Here you will find all available parts and drawings of the 'Makita HS009G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

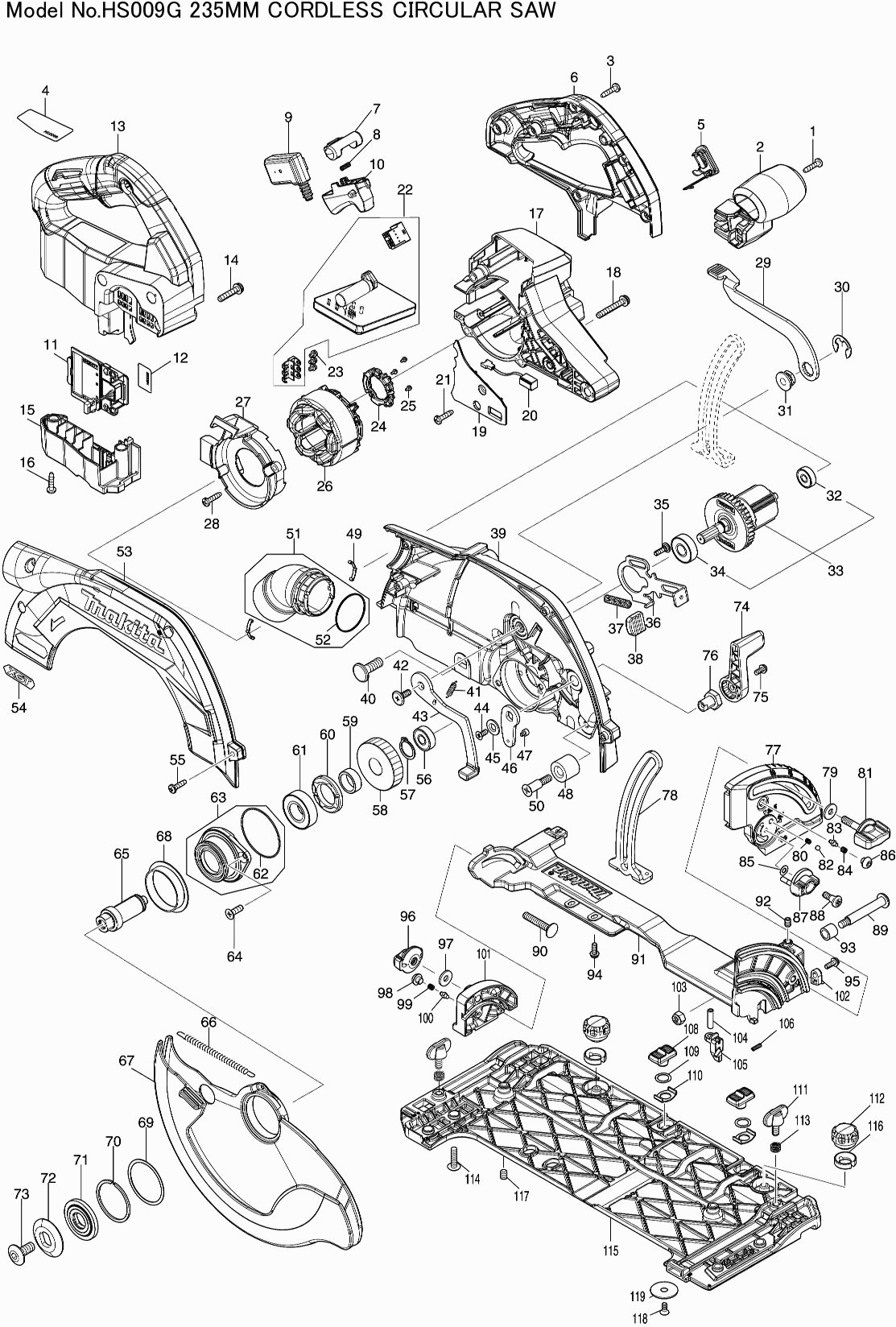

Technical drawing of model Makita HS009G
Spare parts list of model Makita HS009G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TAPSCHR 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| Front handle HS009/10 | ||||
| 002 | 413C21-5 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| Nameplate HS009G | ||||
| 004 | 8114P0-9 | 1.00 | 1.21 | |
| Cover Cap DGA701 | ||||
| 005 | 140F99-0 | 2.40 | 2.90 | |
| O-ring 16 SP001G | ||||
| 005C10 | 213A05-9 | 1.00 | 1.21 | |
| Handle set HS009/010G | ||||
| 006 | 183U47-6 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 006C10 | 263005-3 | 1.00 | 1.21 | |
| Lock button Kp0810/C | ||||
| 007 | 419704-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 008 | 231433-0 | 1.00 | 1.21 | |
| Switch HS009/010G | ||||
| 009 | 650008-0 | 22.00 | 26.62 | |
| Switch lever HS009/010G | ||||
| 010 | 413C24-9 | 1.20 | 1.45 | |
| Control unit GA-40V series | ||||
| 011 | 632P65-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 012 | 8114P6-7 | |||
| Handle set HS009/010G | ||||
| 013 | 183U47-6 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 013C10 | 263005-3 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 014 | 911243-8 | 1.00 | 1.21 | |
| Connection Unit Housing HS009/010G | ||||
| 015 | 141G16-9 | 3.60 | 4.36 | |
| Rubber pen 6 | ||||
| 015C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 016 | 265B67-9 | 1.00 | 1.21 | |
| Motor casing HS009/010G | ||||
| 017 | 413C17-6 | 12.10 | 14.64 | |
| Screw 5x36 | ||||
| 018 | 911258-5 | 1.00 | 1.21 | |
| Light cover HS009/010G | ||||
| 019 | 413C23-1 | 1.20 | 1.45 | |
| LED circuit DHR680 | ||||
| 020 | 620936-3 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 021 | 265B67-9 | 1.00 | 1.21 | |
| Controller HS009/010G | ||||
| 022 | 620H80-4 | 102.30 | 123.78 | |
| Phillips Head Screw M3X6 | ||||
| 023 | 652069-6 | 1.00 | 1.21 | |
| Sensor set RS002G | ||||
| 024 | 632R96-7 | 22.00 | 26.62 | |
| Met. screw M2x5mm RS002G | ||||
| 025 | 652093-9 | 1.00 | 1.21 | |
| Armature RS002G | ||||
| 026 | 629A40-1 | 19.80 | 23.96 | |
| Intermediate plate HS009/010G | ||||
| 027 | 413C22-3 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 028 | 265B67-9 | 1.00 | 1.21 | |
| 132mm Lever DHS900 | ||||
| 029 | 271453-2 | 2.40 | 2.90 | |
| Lock Ring E-12 | ||||
| 030 | 257953-6 | 1.00 | 1.21 | |
| Locknut DHS782 | ||||
| 031 | 252262-8 | 9.60 | 11.62 | |
| Ball bearing 626zz | ||||
| 032 | 210143-2 | 3.60 | 4.36 | |
| Armature assembly HS009/010G | ||||
| 033 | 519721-8 | 28.60 | 34.61 | |
| Ball bearing 6000ddw | ||||
| 034 | 211289-7 | 13.20 | 15.97 | |
| Metal Screw M4x14mm DHS782 | ||||
| 035 | 251529-1 | 1.00 | 1.21 | |
| Axis Lock HS003/4G | ||||
| 036 | 347676-5 | 2.40 | 2.90 | |
| Compression Spring 6 5903R | ||||
| 037 | 233084-5 | 1.00 | 1.21 | |
| Baffle | ||||
| 038 | 286039-9 | 1.00 | 1.21 | |
| Complete saw cap HS009/010G | ||||
| 039 | 141G17-7 | 38.50 | 46.58 | |
| O-ring 26 | ||||
| 039C10 | 213434-0 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 039C20 | 263005-3 | 1.00 | 1.21 | |
| Label scale DHS900 | ||||
| 039C30 | 8004T1-0 | 2.40 | 2.90 | |
| Carriage bolt 8x25 | ||||
| 040 | 266396-1 | 1.00 | 1.21 | |
| Tension Spring 4mm DHS900 | ||||
| 041 | 232563-0 | 1.00 | 1.21 | |
| Met.screw M5x14mm | ||||
| 042 | 265A60-7 | 1.00 | 1.21 | |
| Lever DHS900 | ||||
| 043 | 162686-9 | 3.60 | 4.36 | |
| Countersunk screw 4x10 | ||||
| 044 | 265135-6 | 1.00 | 1.21 | |
| Washer 6mm DHS900 | ||||
| 045 | 347577-7 | 1.00 | 1.21 | |
| Mounting plate DHS900 | ||||
| 046 | 347576-9 | 1.20 | 1.45 | |
| Allen Head Bolt M3x4mm DHS900 | ||||
| 047 | 265A82-7 | 1.00 | 1.21 | |
| Rubber bus 8 DHS782 | ||||
| 048 | 262185-2 | 2.40 | 2.90 | |
| Leaf spring HS010G | ||||
| 049 | 232674-1 | 1.00 | 1.21 | |
| Metal screw M6x30mm DHS782 | ||||
| 050 | 251572-0 | 1.00 | 1.21 | |
| STOFAFZUIGADAPTER CIRKELZAAG | ||||
| 051 | 136173-4 | 1.00 | 1.21 | |
| O-Ring 30 4100Kb | ||||
| 052 | 213444-7 | 1.00 | 1.21 | |
| Sawing Hood Cap HS009/010G | ||||
| 053 | 312C12-2 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 054 | 8032A7-2 | |||
| Tapping Screw Ct4x16 | ||||
| 055 | 266034-5 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 056 | 210046-0 | 1.20 | 1.45 | |
| Lock ring S-17 | ||||
| 057 | 961057-5 | 1.00 | 1.21 | |
| Gear 46mm DHS900 | ||||
| 058 | 226934-1 | 4.80 | 5.81 | |
| Ring 17 DHS782 | ||||
| 059 | 257451-0 | 1.20 | 1.45 | |
| Bearing Lock 23-36 Ga7010 | ||||
| 060 | 285809-3 | 2.40 | 2.90 | |
| Ball Bearing 6003ddw | ||||
| 061 | 210301-0 | 6.00 | 7.26 | |
| O-ring 46 | ||||
| 062 | 213623-7 | 1.00 | 1.21 | |
| Bearing Housing DHS900 | ||||
| 063 | 136192-0 | 4.80 | 5.81 | |
| Countersunk screw 5x13 | ||||
| 064 | 265034-2 | 1.00 | 1.21 | |
| Cutting Axis DHS782 | ||||
| 065 | 327192-3 | 3.60 | 4.36 | |
| Tension Spring 6mm DHS900 | ||||
| 066 | 232562-2 | 1.20 | 1.45 | |
| Safety Cover HS009/010G | ||||
| 067 | 312C14-8 | 22.00 | 26.62 | |
| Distance Bush DHS900 | ||||
| 068 | 459830-0 | 1.20 | 1.45 | |
| Washer 40 | ||||
| 069 | 267337-0 | 1.20 | 1.45 | |
| Borgring WR-40 DHS782 | ||||
| 070 | 257452-8 | 1.20 | 1.45 | |
| Inner Flange 40 | ||||
| 071 | 224360-8 | 10.80 | 13.07 | |
| Outer flange 38mm DHS900 | ||||
| 072 | 224600-4 | 2.40 | 2.90 | |
| Hex Socket Screw M8 DHS900 | ||||
| 073 | 265A59-2 | 1.00 | 1.21 | |
| 55mm Lever DHS900 | ||||
| 074 | 271451-6 | 2.40 | 2.90 | |
| Screw 4X10 | ||||
| 075 | 911113-1 | 1.00 | 1.21 | |
| Nut 4k M4x16mm DHS900 | ||||
| 076 | 252275-9 | 1.20 | 1.45 | |
| Adjustable Plate HS009G | ||||
| 077 | 312C17-2 | 16.50 | 19.96 | |
| Depth guide DHS900 | ||||
| 078 | 347574-3 | 3.60 | 4.36 | |
| Washer 6 | ||||
| 079 | 253111-2 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 080 | 233314-4 | 1.00 | 1.21 | |
| Screw M6x26 | ||||
| 081 | 265776-8 | 1.20 | 1.45 | |
| Steel ball 4 | ||||
| 082 | 216008-6 | 1.00 | 1.21 | |
| Kraagpen 3-5 DHS782/83 | ||||
| 083 | 263041-9 | 1.00 | 1.21 | |
| Compression Spring 3,5 Hr2400 | ||||
| 084 | 231234-6 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 085 | 253811-4 | 1.00 | 1.21 | |
| Hex bolt M6x4 | ||||
| 086 | 266559-9 | 2.40 | 2.90 | |
| Adjustment knob 27mm DHS900 | ||||
| 087 | 450704-8 | 1.20 | 1.45 | |
| Screw M5 | ||||
| 088 | 251370-2 | 1.20 | 1.45 | |
| Metal screw M6 | ||||
| 089 | 251528-3 | 1.00 | 1.21 | |
| Carriage bolt M6x35mm DHS900 | ||||
| 090 | 266332-7 | 1.00 | 1.21 | |
| Complete frame HS009G | ||||
| 091 | 141G18-5 | 25.30 | 30.61 | |
| Hexagon Bolt 5x8 | ||||
| 092 | 266229-0 | 1.00 | 1.21 | |
| Washer 8 DHS900 | ||||
| 093 | 257580-9 | 1.20 | 1.45 | |
| Metal Screw M4x12mm DHS900 | ||||
| 094 | 265A84-3 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 095 | 911116-5 | 1.00 | 1.21 | |
| Star knob M6 | ||||
| 096 | 252270-9 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 097 | 253111-2 | 1.00 | 1.21 | |
| Hex bolt M6x4 | ||||
| 098 | 266559-9 | 2.40 | 2.90 | |
| Compression Spring 3,5 Hr2400 | ||||
| 099 | 231234-6 | 2.40 | 2.90 | |
| Kraagpen 3-5 DHS782/83 | ||||
| 100 | 263041-9 | 1.00 | 1.21 | |
| Adjustable Plate HS009G | ||||
| 101 | 312C18-0 | 12.10 | 14.64 | |
| Identification plate Sp6000 | ||||
| 102 | 419632-6 | 1.20 | 1.45 | |
| Locknut 6-10 | ||||
| 103 | 252014-7 | 1.00 | 1.21 | |
| Adjustment Screw M5x20mm DHS900 | ||||
| 104 | 265A83-5 | 1.00 | 1.21 | |
| Guide DHS900 | ||||
| 105 | 412210-1 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 106 | 233025-1 | 1.00 | 1.21 | |
| Slide plate Dsp600 | ||||
| 108 | 458092-7 | 2.40 | 2.90 | |
| Spring Washer 10 | ||||
| 109 | 253932-2 | 1.00 | 1.21 | |
| Closing Plate | ||||
| 110 | 345977-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 111 | 265701-9 | |||
| Screw M4x3 | ||||
| 112 | 265775-0 | 2.40 | 2.90 | |
| Compression Spring 8 | ||||
| 113 | 233376-2 | 1.00 | 1.21 | |
| Crosshead screw 5x20mm | ||||
| 114 | 265181-9 | 1.00 | 1.21 | |
| Base Plate HS009G | ||||
| 115 | 312C15-6 | 38.50 | 46.58 | |
| Holder | ||||
| 116 | 419627-9 | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 117 | 266225-8 | 1.00 | 1.21 | |
| Countersunk screw 4x10 | ||||
| 118 | 912112-6 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 119 | 345748-0 | 1.20 | 1.45 | |
