Here you will find all available parts and drawings of the 'Makita HR5000'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

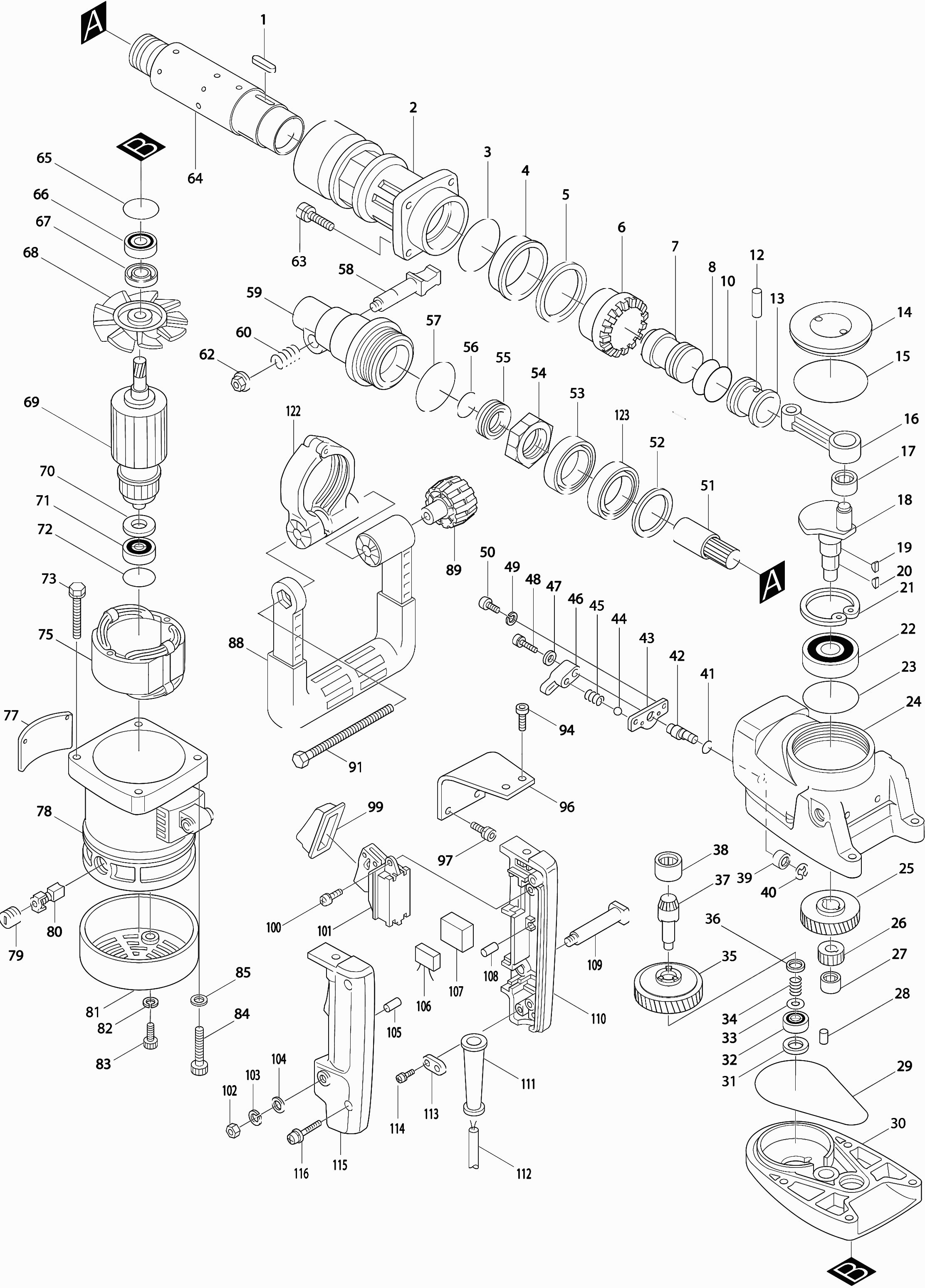

Technical drawing of model Makita HR5000
Spare parts list of model Makita HR5000
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 254205-6 | |||
| Slaghouse Hr5000-Hr5000K * | ||||
| 002 | 316068-9 | 93.50 | 113.14 | |
| O-ring 65 | ||||
| 003 | 213707-1 | 2.40 | 2.90 | |
| Sliding Bearing 52 Hr5000 * | ||||
| 004 | 214653-1 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 005 | 267044-5 | |||
| No information available, not orderable | ||||
| 006 | 221380-3 | |||
| Floating Piston | ||||
| 007 | 323751-1 | 19.80 | 23.96 | |
| Piston ring 40 | ||||
| 008 | 412049-2 | 16.50 | 19.96 | |
| O-Ring 32 Hr5000K * | ||||
| 008A | 213481-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 009 | 412080-8 | |||
| Piston ring 40 | ||||
| 010 | 412049-2 | 16.50 | 19.96 | |
| O-Ring 32 Hr5000K * | ||||
| 010A | 213481-1 | 1.20 | 1.45 | |
| Inner ring 36 | ||||
| 011 | 341862-0 | 4.80 | 5.81 | |
| Pen 10 | ||||
| 012 | 256120-0 | 3.60 | 4.36 | |
| Piston | ||||
| 013 | 323750-3 | 38.50 | 46.58 | |
| Filling cap | ||||
| 014 | 414218-1 | 9.60 | 11.62 | |
| O-ring 71 | ||||
| 015 | 213754-2 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 016 | 315419-3 | 19.80 | 23.96 | |
| Needle Bearing 1516 | ||||
| 017 | 212208-6 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 018 | 153176-3 | |||
| Feather Key 4 | ||||
| 019 | 254001-2 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 020 | 254001-2 | 1.00 | 1.21 | |
| Lock ring R-52 | ||||
| 021 | 962251-2 | 2.40 | 2.90 | |
| Ball Bearing 6304llu | ||||
| 022 | 211327-5 | 10.80 | 13.07 | |
| O-ring 53 | ||||
| 023 | 213656-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 024 | 157868-6 | |||
| No longer available, no replacement | ||||
| 025 | 221761-1 | |||
| No information available, not orderable | ||||
| 026 | 221957-4 | |||
| Needle Bearing 1212 | ||||
| 027 | 212113-7 | 10.80 | 13.07 | |
| Rubber pen 6 | ||||
| 028 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 421690-0 | |||
| No information available, not orderable | ||||
| 030 | 157867-8 | |||
| No information available, not orderable | ||||
| 031 | 253787-5 | |||
| No information available, not orderable | ||||
| 032 | 210004-6 | |||
| Washer 8 | ||||
| 033 | 253865-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 034 | 231446-1 | |||
| Coupling limiter Hr5000-Hr500 * | ||||
| 035 | 134499-8 | 210.10 | 254.22 | |
| Thin Washer 10 | ||||
| 036 | 253310-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 037 | 153174-7 | |||
| Needle Bearing 2216 | ||||
| 038 | 212359-5 | 11.00 | 13.31 | |
| Needle Bearing 609 | ||||
| 039 | 212011-5 | 9.60 | 11.62 | |
| Retaining Ring E-4 | ||||
| 040 | 961011-9 | 1.00 | 1.21 | |
| O-ring 10 | ||||
| 041 | 213055-8 | 1.00 | 1.21 | |
| Switch Axis Hr5000-Hr5000K * | ||||
| 042 | 322187-1 | 14.30 | 17.30 | |
| Switch shaft plate Hr3850-Hr3850 * | ||||
| 043 | 342786-3 | 2.40 | 2.90 | |
| Steel ball 4.8 | ||||
| 044 | 216002-8 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 045 | 231317-2 | 1.00 | 1.21 | |
| Control Lever | ||||
| 046 | 410331-3 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 047 | 941052-1 | 1.00 | 1.21 | |
| Hexagon socket bolt M4x16 | ||||
| 048 | 922126-7 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 049 | 253427-5 | 1.00 | 1.21 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 050 | 922212-4 | 1.00 | 1.21 | |
| Impact Piece Hr5000 * | ||||
| 051 | 322156-2 | 20.90 | 25.29 | |
| Washer 43 * | ||||
| 052 | 267043-7 | 1.20 | 1.45 | |
| Ball Bearing 6907 | ||||
| 053 | 211469-5 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 054 | 252119-3 | |||
| X-ring 28 | ||||
| 055 | 213428-5 | 17.60 | 21.30 | |
| O-ring 27 | ||||
| 056 | 213411-2 | 3.60 | 4.36 | |
| O-ring 55 | ||||
| 057 | 213663-5 | 2.40 | 2.90 | |
| Tool clamp | ||||
| 058 | 331132-5 | 17.60 | 21.30 | |
| Drill-Chisel Guide Hr5000 * | ||||
| 059 | 322203-9 | 88.00 | 106.48 | |
| Compression Spring 15 | ||||
| 060 | 231281-7 | 1.00 | 1.21 | |
| Hex nut 8x13 | ||||
| 062 | 252046-4 | 1.00 | 1.21 | |
| Hex Socket Bolt M8x30 | ||||
| 063 | 922451-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 064 | 152396-6 | |||
| O-ring 32 | ||||
| 065 | 213459-4 | 1.20 | 1.45 | |
| Ball Bearing 6201dw1 | ||||
| 066 | 211129-9 | 8.40 | 10.16 | |
| Seal ring 14 | ||||
| 067 | 213160-1 | 4.80 | 5.81 | |
| Fan 94 Hr3850 * | ||||
| 068 | 241634-2 | 9.60 | 11.62 | |
| Armature | ||||
| 069 | 514888-7 | 100.10 | 121.12 | |
| Insulation ring | ||||
| 070 | 681635-2 | 1.20 | 1.45 | |
| Ball bearing 6200llb | ||||
| 071 | 211066-7 | 4.80 | 5.81 | |
| O-ring 30 | ||||
| 072 | 213406-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 073 | 265346-3 | |||
| Field Hr5000 * | ||||
| 075 | 524833-4 | 59.40 | 71.87 | |
| Clamping bushing for statorv. 2mm | ||||
| 075A | 654502-4 | 1.00 | 1.21 | |
| Stator spring Cb5 | ||||
| 075B | 654020-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 077 | 8580U0-9 | |||
| Motor housing Hr5000-Hr5000K * | ||||
| 078 | 159054-5 | 82.50 | 99.82 | |
| Brush holder cap | ||||
| 079 | 643650-4 | 1.20 | 1.45 | |
| Carbon brush set | ||||
| 080 | 194987-7 | 6.10 | 7.38 | |
| Tail Cover | ||||
| 081 | 284055-5 | 12.10 | 14.64 | |
| Spring washer 5MM DLS211 | ||||
| 082 | 253427-5 | 1.00 | 1.21 | |
| Allen bolt 5x16 | ||||
| 083 | 922221-3 | 1.00 | 1.21 | |
| Hex Socket Bolt M6x55 | ||||
| 084 | 922376-4 | 1.20 | 1.45 | |
| Washer 6x12mm | ||||
| 085 | 941151-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 086 | 423156-6 | |||
| Cotter pin 3-20 | ||||
| 087 | 952257-8 | 1.00 | 1.21 | |
| Handle Hr5000/Hr5000K * | ||||
| 088 | 416061-4 | 19.80 | 23.96 | |
| Knob M8 | ||||
| 089 | 252640-2 | 6.00 | 7.26 | |
| Lock Washer M10 | ||||
| 090 | 942251-8 | 1.00 | 1.21 | |
| Hexagonal bolt 8x150 | ||||
| 091 | 265439-6 | 3.60 | 4.36 | |
| Cotter pin 3-20 | ||||
| 092 | 952257-8 | 1.00 | 1.21 | |
| Handle 38 | ||||
| 093 | 273492-8 | 11.00 | 13.31 | |
| Hex bolt M6X14 A | ||||
| 094 | 922316-2 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 095 | 253903-9 | 1.00 | 1.21 | |
| Handgreepbeugel Hr3850(K) * | ||||
| 096 | 343754-9 | 6.00 | 7.26 | |
| Hex bolt M6x25 | ||||
| 097 | 265914-2 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 098 | 253903-9 | 1.00 | 1.21 | |
| Dust cover for switch | ||||
| 099 | 421265-5 | 2.40 | 2.90 | |
| Screw 4x16 A | ||||
| 100 | 911526-6 | 1.00 | 1.21 | |
| Switch Sw-52 | ||||
| 101 | 651145-3 | 26.40 | 31.94 | |
| Hex Nut M6 | ||||
| 102 | 931302-2 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 103 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 104 | 941151-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 105 | 263002-9 | 1.00 | 1.21 | |
| Capacitor | ||||
| 106 | 645253-0 | 4.80 | 5.81 | |
| Rubber Pin 4 | ||||
| 108 | 263002-9 | 1.00 | 1.21 | |
| Brush Bolt | ||||
| 109 | 321210-9 | 3.60 | 4.36 | |
| Handle | ||||
| 110 | 182077-8 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 111 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 112 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 113 | 687031-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 114 | 911133-5 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 116 | 911243-8 | 1.00 | 1.21 | |
| Bracket for Hr5000K Handle * | ||||
| 122 | 151768-2 | 17.60 | 21.30 | |
