Here you will find all available parts and drawings of the 'Makita HR3520'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

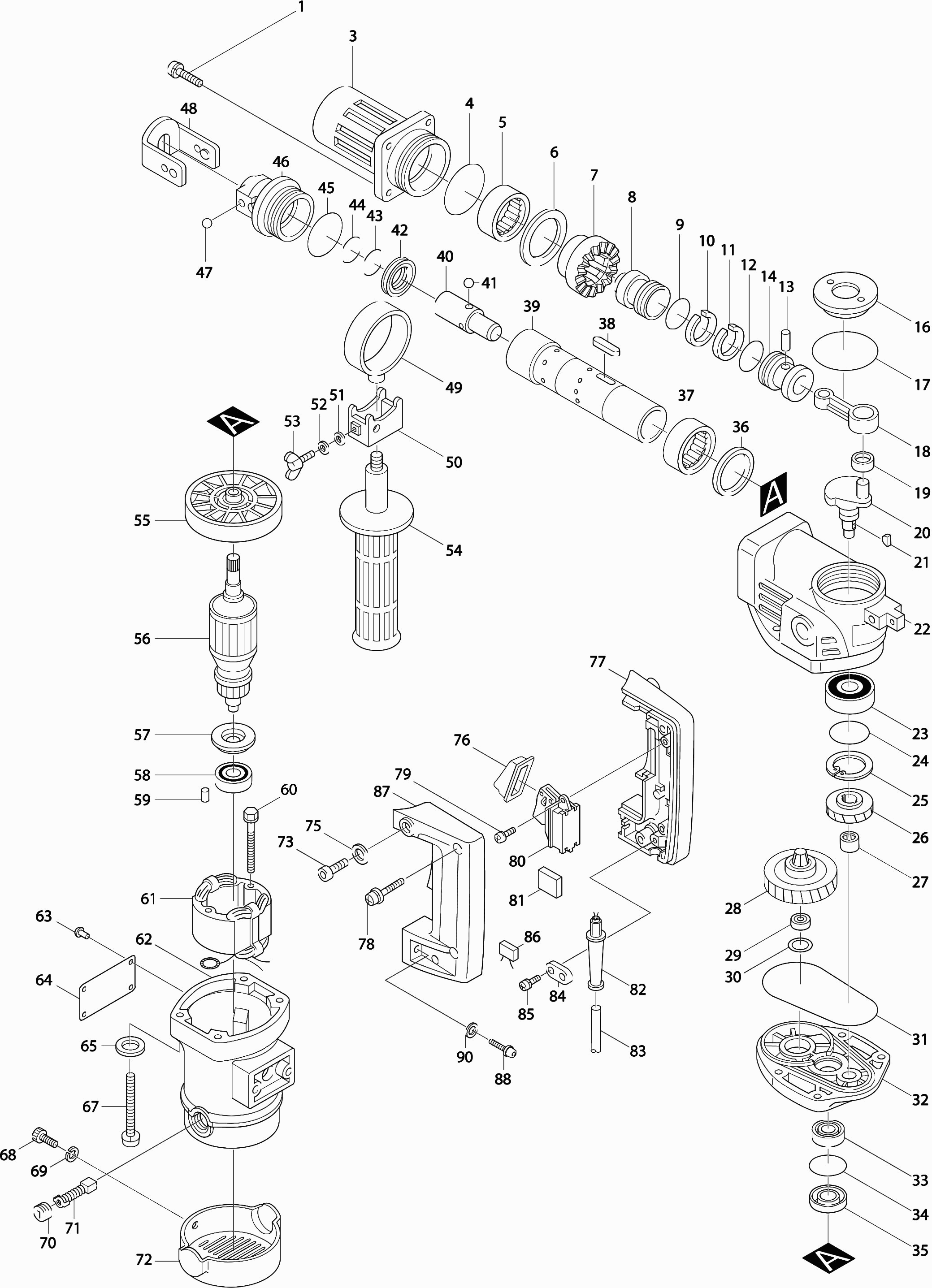

Technical drawing of model Makita HR3520
Spare parts list of model Makita HR3520
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex Bolt M6x25mm | ||||
| 001 | 266087-4 | 1.00 | 1.21 | |
| Slaghuis Hr3520 * | ||||
| 003 | 311612-7 | 48.40 | 58.56 | |
| O-ring 56 | ||||
| 004 | 213655-4 | 2.40 | 2.90 | |
| Needle bearing 4016 | ||||
| 005 | 212502-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 006 | 253817-2 | |||
| Gear 36 | ||||
| 007 | 221367-5 | 26.40 | 31.94 | |
| Piston Hr3500-Hr3520 * | ||||
| 008 | 322806-9 | 10.80 | 13.07 | |
| O-ring 21 | ||||
| 009* | 213381-5 | 3.60 | 4.36 | |
| Plunger Spring | ||||
| 010* | 412037-9 | 8.40 | 10.16 | |
| Plunger Spring | ||||
| 011* | 412037-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 012* | 321363-4 | |||
| Pin 8 * | ||||
| 013 | 256006-8 | 4.80 | 5.81 | |
| Piston Hr3500-Hr3520 * | ||||
| 014 | 322196-0 | 10.80 | 13.07 | |
| OLIEDEKSEL HR2210 * | ||||
| 016 | 411662-3 | 3.60 | 4.36 | |
| O-ring 44 | ||||
| 017 | 213554-0 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 018 | 315248-4 | |||
| Needle Bearing 1012 | ||||
| 019 | 212065-2 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 020 | 321725-6 | |||
| Inlegspie 3 | ||||
| 021 | 254002-0 | 1.00 | 1.21 | |
| Crankcase Hr3520 * | ||||
| 022 | 159507-4 | 72.60 | 87.85 | |
| Ball bearing 6203dw | ||||
| 023 | 211278-2 | 9.60 | 11.62 | |
| O-ring 40 | ||||
| 024 | 213507-9 | 1.20 | 1.45 | |
| Spring retaining ring | ||||
| 025 | 257998-4 | 1.20 | 1.45 | |
| Gear 36 Hr3500-Hr3520 * | ||||
| 026 | 221676-2 | 10.80 | 13.07 | |
| Needle Bearing 810 | ||||
| 027 | 212043-2 | 3.60 | 4.36 | |
| Torque limiter | ||||
| 028 | 151176-7 | 81.40 | 98.49 | |
| Ball bearing 608llb | ||||
| 029 | 210043-6 | 2.40 | 2.90 | |
| Thin washer 15 | ||||
| 030 | 253314-8 | 1.00 | 1.21 | |
| Sealing Ring 97 * | ||||
| 031 | 421688-7 | 2.40 | 2.90 | |
| Gear housing Hr3520 * | ||||
| 032 | 157304-2 | 28.60 | 34.61 | |
| Ball Bearing 6201dw1 | ||||
| 033 | 211129-9 | 8.40 | 10.16 | |
| O-ring 32 | ||||
| 034 | 213459-4 | 1.20 | 1.45 | |
| Seal ring 14 | ||||
| 035 | 213160-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 036 | 253818-0 | |||
| Needle bearing 4016 | ||||
| 037 | 212502-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 038 | 254205-6 | |||
| Cylinder Hr3500-Hr3520 * | ||||
| 039 | 152338-0 | 100.10 | 121.12 | |
| No longer available, no replacement | ||||
| 040 | 322237-2 | |||
| Steel ball 7.9 | ||||
| 041 | 216004-4 | 1.00 | 1.21 | |
| X-ring 25 | ||||
| 042* | 213383-1 | 4.80 | 5.81 | |
| O-ring 23.5 | ||||
| 043* | 213374-2 | 3.60 | 4.36 | |
| O-ring 23.5 | ||||
| 044* | 213374-2 | 3.60 | 4.36 | |
| O-ring 44 | ||||
| 045 | 213554-0 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 046 | 322327-1 | |||
| Steel ball 7.9 | ||||
| 047 | 216004-4 | 1.00 | 1.21 | |
| Clamping Saddle | ||||
| 048 | 165227-0 | 28.60 | 34.61 | |
| Circlip | ||||
| 049 | 164569-9 | 13.20 | 15.97 | |
| Clamping block | ||||
| 050 | 164543-7 | 10.80 | 13.07 | |
| Rubber Washer 5.5 * | ||||
| 051 | 261049-7 | 1.20 | 1.45 | |
| Rubber Washer 5.5 * | ||||
| 052 | 261049-7 | 1.20 | 1.45 | |
| Wing bolt 6x18 | ||||
| 053 | 924321-5 | 1.20 | 1.45 | |
| Fan 82 | ||||
| 055 | 241827-1 | 8.40 | 10.16 | |
| Armature Hr3520 | ||||
| 056 | 512818-2 | 68.20 | 82.52 | |
| Insulation ring | ||||
| 057 | 681625-5 | 1.20 | 1.45 | |
| Ball bearing 608llb | ||||
| 058 | 210043-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 059 | 263014-2 | 1.00 | 1.21 | |
| Screw 5X60 * | ||||
| 060 | 911681-4 | 1.20 | 1.45 | |
| Field Hr3500 * | ||||
| 061 | 528706-3 | 59.40 | 71.87 | |
| Motor Housing Hr3520 * | ||||
| 062 | 183383-4 | 30.80 | 37.27 | |
| Washer 6mm A | ||||
| 065 | 267214-6 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 066 | 253903-9 | 1.00 | 1.21 | |
| Hex Socket Bolt M6x50 | ||||
| 067 | 922371-4 | 1.20 | 1.45 | |
| Allen bolt 5x16 | ||||
| 068 | 922221-3 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 069 | 253427-5 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 070 | 643600-9 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-105 | ||||
| 071* | 181038-5 | 8.40 | 10.16 | |
| Rear Cover * | ||||
| 072 | 284056-3 | 13.20 | 15.97 | |
| Allen bolt M6x22 | ||||
| 073 | 922336-6 | 1.00 | 1.21 | |
| Washer 6mm A | ||||
| 075 | 267214-6 | 1.00 | 1.21 | |
| Dust cover for switch | ||||
| 076 | 421265-5 | 2.40 | 2.90 | |
| Handle set Hr3520 * | ||||
| 077 | 181653-5 | 11.00 | 13.31 | |
| Screw 5x25 | ||||
| 078 | 911241-2 | 1.00 | 1.21 | |
| Screw 4x16 | ||||
| 079 | 911126-2 | 1.00 | 1.21 | |
| Switch Sw-52 | ||||
| 080 | 651145-3 | 26.40 | 31.94 | |
| No longer available, no replacement | ||||
| 082 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 083 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 084 | 687031-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 085 | 911131-9 | 1.00 | 1.21 | |
| Handle set Hr3520 * | ||||
| 087 | 181653-5 | 11.00 | 13.31 | |
| Hex Bolt M6x25mm | ||||
| 088 | 266087-4 | 1.00 | 1.21 | |
| Washer 6mm A | ||||
| 090 | 267214-6 | 1.00 | 1.21 | |
| Little stator spring Cb-7 | ||||
| 091 | 654019-7 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 092 | 654502-4 | 1.00 | 1.21 | |
