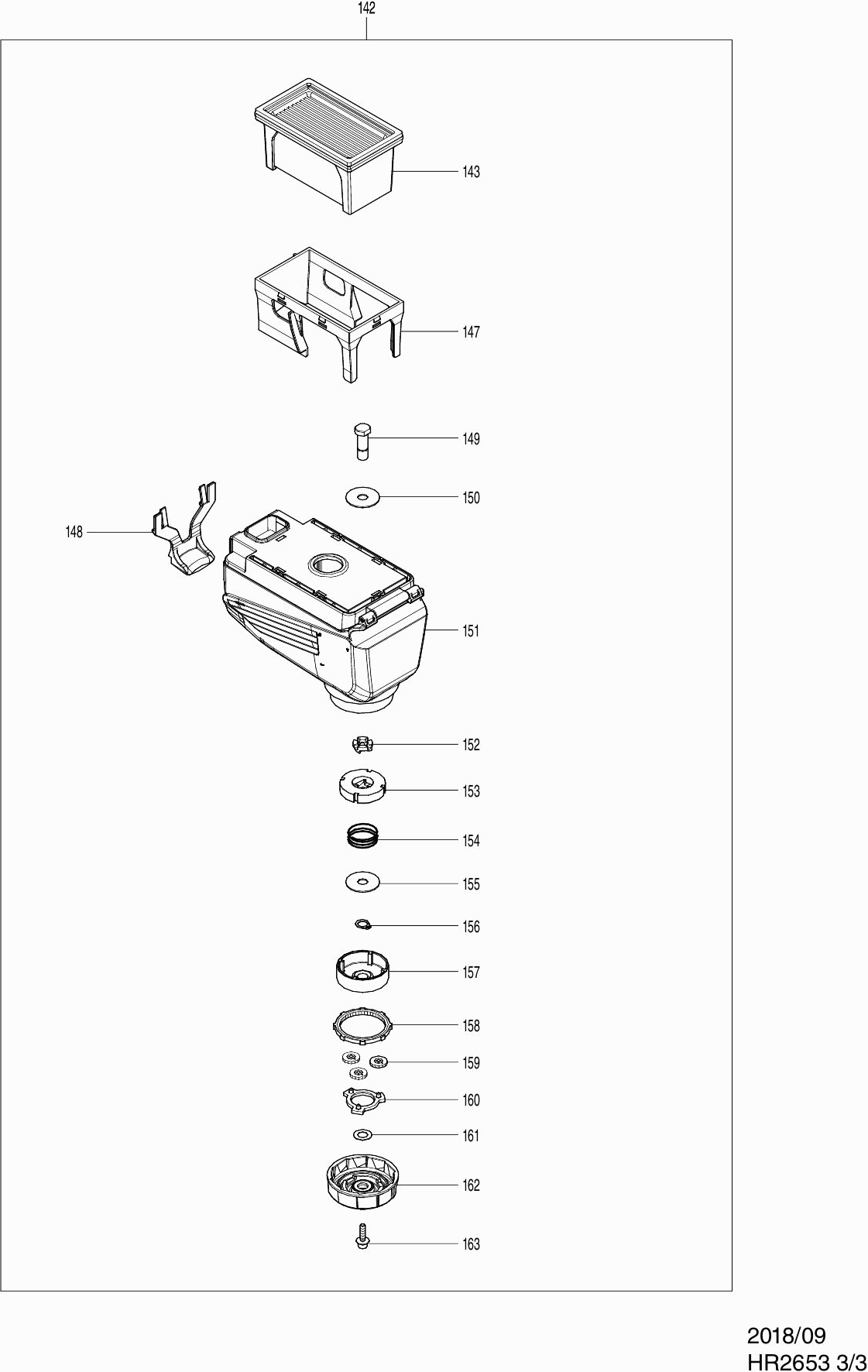

Technical drawing of model Makita HR2653

Spare parts list of model Makita HR2653

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Rubber dust cap 35
001 286288-8 0.83 1.00
Washer 14
002 233989-9 0.83 1.00
Rivet 16mm
003 346834-0 0.83 1.00
Lock washer 15
004 233992-0 0.83 1.00
Washer 17
005 267114-0 0.83 1.00
Chisel lock cap
006 455393-4 0.83 1.00
Locking Ring 21
007 325813-1 1.20 1.45
Guide Ring
008 346177-0 0.83 1.00
Compression Spring 21-29
009 233916-6 0.83 1.00
Steel ball 7.0
010 216022-2 0.83 1.00
Nut Bolt M8x90mm
019 266745-2 0.83 1.00
Handle Bracket
020 453129-5 2.71 3.28
Handle
021 158057-6 9.24 11.18
NUT M8
021C10 931402-8 0.83 1.00
Adjustment knob complete
022 161656-5 1.20 1.45
Compression Spring 3x28mm
023 234264-6 0.83 1.00
O-ring 17
024 213278-8 0.83 1.00
Locking Button
025 457709-9 0.83 1.00
Gear Housing Hr2651/61 A
026 140D00-3 11.65 14.10
Oil Seal 25
026C10 213636-8 3.96 4.79
Socket
027 331890-3 2.71 3.28
Ball Bearing 6806llu
028 211294-4 8.21 9.93
No information available, not orderable
029 210028-2
Drill/Chisel Holder
030 142972-4 21.08 25.51
Seal ring 9
030C10 213344-1 3.96 4.79
Steel ball 3
031 216019-1 0.83 1.00
No longer available, no replacement
032 332139-4
No longer available, no replacement
033 227360-7
Compression spring 31mm
034 234148-8 1.18 1.43
Washer 30
035 267153-0 0.83 1.00
Lock ring spiro30
036 257932-4 3.12 3.78
Washer 30
037 267153-0 0.83 1.00
Bushing 9b
038 325783-4 0.98 1.19
Slagstuk "a"
039 325789-2 1.18 1.43
Ring 10
040 325792-3 1.18 1.43
Compression Spring 20
041 234149-6 0.98 1.19
O-ring huis "b"
042 325793-1 2.71 3.28
O-ring 9
043 213073-6 0.83 1.00
Spring washer 28
044 233979-2 0.83 1.00
Jackhammer
045 325784-2 2.71 3.28
O-ring 17.5
046 213258-4 2.02 2.44
Piston-cylinder
047 310345-1 8.21 9.93
Guide plate
048 346036-8 0.83 1.00
Piston Pin Hr2440/50 A
049 324215-8 2.02 2.44
Compression Spring 14
050 234098-7 0.83 1.00
Sluitring 14mm
051 267447-3 0.83 1.00
Stopring Ext-u6
052 257336-0 0.83 1.00
Washer 7 LF1000 A
053 267322-3 0.83 1.00
Gear 10
054 227359-2 12.22 14.79
Clutch Plate
055 310678-4 5.06 6.12
Gear Shaft
057 326448-1 5.06 6.12
Pendulum Bearing 10
058 219023-9 23.06 27.90
Washer 8
059 257321-3 0.83 1.00
Hex bolt 4x16
060 266437-3 0.83 1.00
Bearing Housing
061 310344-3 2.71 3.28
Ball Bearing 608Zz A
062 210046-0 0.83 1.00
Bearing Lock
063 285735-6 0.83 1.00
Gear 26
064 227719-8 3.54 4.28
O-ring 68
065 213728-3 0.98 1.19
Hexagon socket screw 4x12
066 265353-6 0.83 1.00
Clamping Plate
067 346222-1 0.83 1.00
Inner Housing
068 141573-5 13.82 16.72
Weight Holder
069 346180-1 0.83 1.00
Pin 6
070 256246-8 0.83 1.00
Counterweight
071 161655-7 4.45 5.38
Seal Ring 12mm
072 213678-2 5.06 6.12
O-ring 26
073 213407-3 1.18 1.43
Sleeve 9
074 262569-4 0.83 1.00
Ball bearing 629llb
075 210042-8 2.36 2.86
Washer 9
076 253733-8 0.83 1.00
Fan 65
077 240182-8 5.70 6.90
Spacer plate
078 457711-2 1.18 1.43
Fan Housing
079 457710-4 2.71 3.28
Filter
080 457713-8 1.39 1.68
Sleeve 10
081 262184-4 0.83 1.00
Fan 65
082 240121-8 0.83 1.00
Insulation ring
083 681652-2 0.83 1.00
Ball bearing 627ddw
084 210045-2 3.12 3.78
Armature Hr2650/51
085 515424-2 28.02 33.90
No information available, not orderable
086 267804-5
Swap Plate B
087 347230-5 1.67 2.02
Compression Spring 4
088 233360-7 0.83 1.00
Compression Spring 5
089 234343-0 0.83 1.00
Swap Plate A
090 347229-0 2.36 2.86
Blocking Plate
091 347228-2 1.18 1.43
Tap screw 4x30mm DGA520
092 265B70-0 0.83 1.00
Intermediate Plate
093 451527-7 0.98 1.19
Field
094 621874-2 21.34 25.82
No information available, not orderable
095 819390-8
Nameplate HR2653
096 855F87-1 2.71 3.28
Brush Set Cb-325
097 194074-2 2.02 2.44
No information available, not orderable
098 266334-3
Motor Housing
099 451536-6 9.67 11.70
Met.Screw Ck 3X12Mm Hr2300
100 266556-5 0.83 1.00
Brush Holder
101 632K38-9 6.38 7.72
Serial number label HR2653
102 855F89-7 0.83 1.00
No information available, not orderable
103 819389-3
No information available, not orderable
104 266326-2
Switch Tg853Tb Hr2650/51 A
105 651090-2 17.38 21.03
Cable gland 10
106 682566-8 1.18 1.43
Tapping screw 4X14 Ga7020 A
107 266385-6 0.83 1.00
Handle Cover
108 451528-5 4.14 5.01
Strain reliever
109 687682-1 0.83 1.00
No information available, not orderable
110 665890-4
Stofafzuigadapter met stofopvang
112 127185-8 80.00 96.80
No information available, not orderable
113 424722-2
Bushing
114 455736-0 2.02 2.44
Doorvoermanchet
115 424474-5 1.00 1.21
Hex bolt M6x40mm
116 251568-1 0.83 1.00
Catch holder A
117 457730-8 2.02 2.44
Lock Lever Cover
118 457723-5 1.39 1.68
Push button B
120 457718-8 0.83 1.00
Intermediate Pipe
121 326988-9 27.60 33.40
Stop Base B
122 457728-5 0.83 1.00
Serrated plate
123 457722-7 1.39 1.68
Compression Spring 4
124 232386-6 0.83 1.00
Plate for spring
125 457721-9 0.83 1.00
Push button A
126 457717-0 0.83 1.00
Hex nut M4
127 931102-0 0.83 1.00
Stop base A
128 457719-6 0.83 1.00
Screw,M4x12
129 251314-2 0.83 1.00
Hose 30mm DX04 A
130 245045-3 6.38 7.72
Locking handle Hr2650/61 A
131 458668-0 2.38 2.88
Compression Spring 7
132 231316-4 0.83 1.00
Tapping Screw 3x16
133 266130-9 0.83 1.00
No information available, not orderable
134 183K50-7
Guide Bushing
135 457712-0 0.83 1.00
Hose 30C HR2650/51T P
136 245042-9 7.22 8.74
Pen 3
137 256158-5 0.83 1.00
Unlocking lever
138 457720-1 0.83 1.00
No information available, not orderable
139 183K50-7
Inner tube WCR 1000 ET-BG
140 457724-3 0.98 1.19
Foam Rubber B
141 457725-1 0.83 1.00
Dust box assembly HR2653
142 199586-0 44.96 54.40
HEPA fijnstoffilter voor diverse stofboxen
143 199557-7 14.00 16.94
Stopper HR2650
145 458687-6 0.83 1.00
Damper HR2650
146 422315-9 0.83 1.00
Filter Frame HR2653
147 457727-7 1.67 2.02
No information available, not orderable
148 453148-1
No information available, not orderable
149 327221-2
No information available, not orderable
150 253431-4
No information available, not orderable
151 140G88-1
No information available, not orderable
151C10 256533-5
No information available, not orderable
151C20 423426-3
Filter Base HR2653
151C30 457726-9 2.71 3.28
No information available, not orderable
152 310918-0
No information available, not orderable
153 310919-8
No information available, not orderable
154 232482-0
No information available, not orderable
155 253431-4
Lock ring S-8
156 961004-6 0.83 1.00
No information available, not orderable
157 226856-5
No information available, not orderable
158 226857-3
No information available, not orderable
159 226855-7
No information available, not orderable
160 140F90-8
No information available, not orderable
161 253430-6
No information available, not orderable
162 140H88-7
No information available, not orderable
162C10 422431-7
No information available, not orderable
163 922129-1
