Here you will find all available parts and drawings of the 'Makita HR2650'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

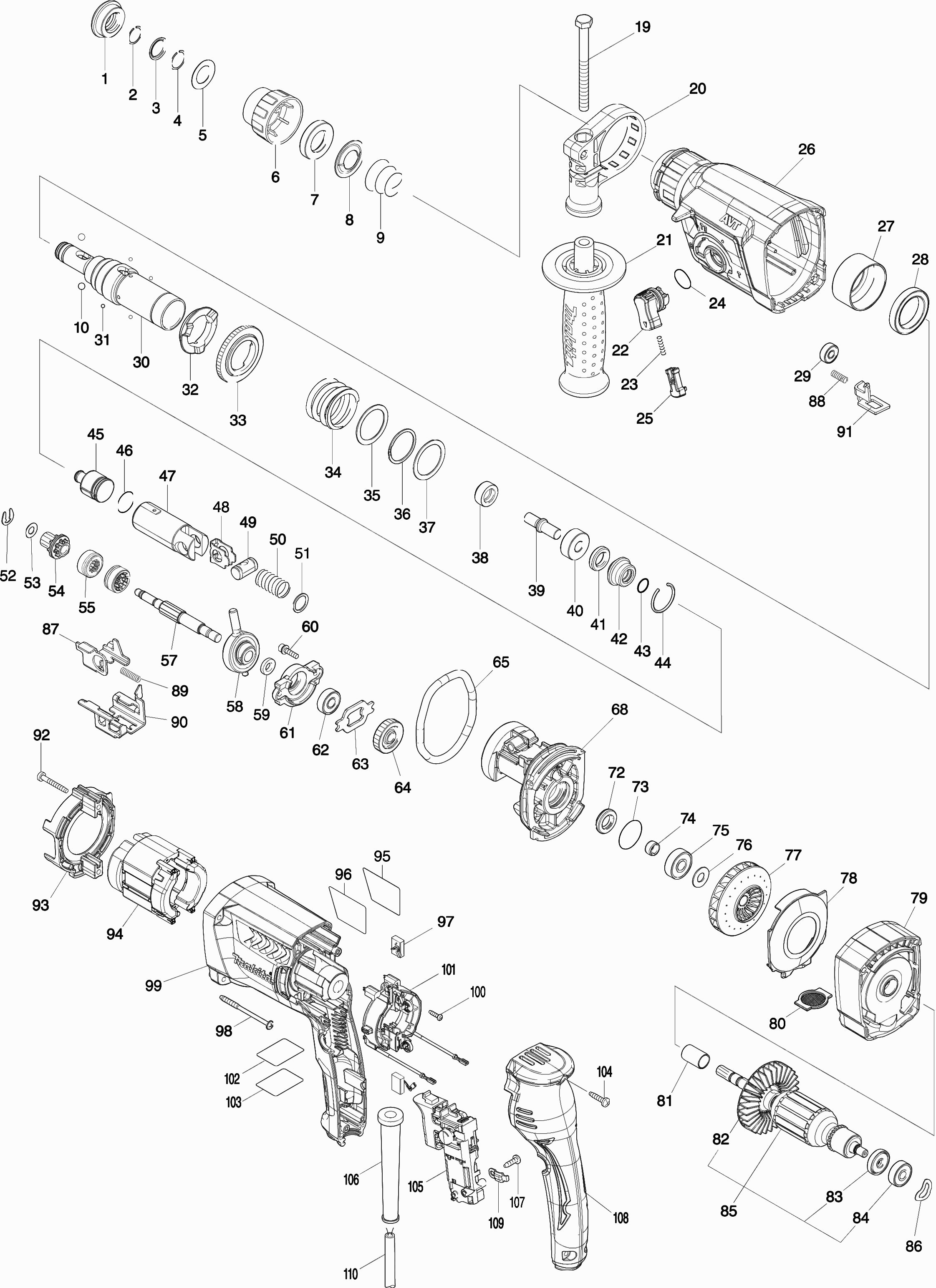

Technical drawing of model Makita HR2650
Spare parts list of model Makita HR2650
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001 | 286288-8 | 1.20 | 1.45 | |
| Washer 14 | ||||
| 002 | 233989-9 | 1.00 | 1.21 | |
| Rivet 16mm | ||||
| 003 | 346834-0 | 1.21 | 1.46 | |
| Lock washer 15 | ||||
| 004 | 233992-0 | 1.00 | 1.21 | |
| Washer 17 | ||||
| 005 | 267114-0 | 1.00 | 1.21 | |
| Chisel lock cap | ||||
| 006 | 455393-4 | 1.00 | 1.21 | |
| Locking Ring 21 | ||||
| 007 | 325813-1 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 008 | 346177-0 | 1.00 | 1.21 | |
| Compression Spring 21-29 | ||||
| 009 | 233916-6 | 1.00 | 1.21 | |
| Steel ball 7.0 | ||||
| 010 | 216022-2 | 1.00 | 1.21 | |
| Nut Bolt M8x90mm | ||||
| 019 | 266745-2 | 1.20 | 1.45 | |
| Handle Bracket | ||||
| 020 | 453129-5 | 3.60 | 4.36 | |
| Handle | ||||
| 021 | 158057-6 | 9.60 | 11.62 | |
| NUT M8 | ||||
| 021 | 931402-8 | 1.00 | 1.21 | |
| Locking Button | ||||
| 022 | 457709-9 | 1.20 | 1.45 | |
| Compression Spring 3x28mm | ||||
| 023 | 234264-6 | 1.00 | 1.21 | |
| O-ring 17 | ||||
| 024 | 213278-8 | 1.00 | 1.21 | |
| Adjustment knob complete | ||||
| 025 | 161656-5 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 026 | 144616-2 | 11.00 | 13.31 | |
| Oil Seal 25 | ||||
| 026 | 213636-8 | 4.80 | 5.81 | |
| Socket | ||||
| 027 | 331890-3 | 3.60 | 4.36 | |
| Ball Bearing 6806llu | ||||
| 028 | 211294-4 | 8.40 | 10.16 | |
| Ball bearing 606Zz A | ||||
| 029 | 210137-7 | 1.20 | 1.45 | |
| Drill/Chisel Holder Hr2630 A | ||||
| 030 | 142973-2 | 19.80 | 23.96 | |
| Seal ring 9 | ||||
| 030 | 213344-1 | 4.80 | 5.81 | |
| Steel ball 3 | ||||
| 031 | 216019-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 032 | 332139-4 | |||
| No longer available, no replacement | ||||
| 033 | 227360-7 | |||
| Compression spring 31mm | ||||
| 034 | 234148-8 | 1.20 | 1.45 | |
| Washer 30 | ||||
| 035 | 267153-0 | 1.00 | 1.21 | |
| Lock ring spiro30 | ||||
| 036 | 257932-4 | 3.60 | 4.36 | |
| Washer 30 | ||||
| 037 | 267153-0 | 1.00 | 1.21 | |
| Bushing 9a | ||||
| 038 | 325782-6 | 2.40 | 2.90 | |
| Slagstuk "a" | ||||
| 039 | 325789-2 | 1.20 | 1.45 | |
| Spacer Ring 10a | ||||
| 040 | 325794-9 | 1.20 | 1.45 | |
| Shock ring 12 | ||||
| 041 | 424267-0 | 1.20 | 1.45 | |
| O-Ring housing "a" | ||||
| 042 | 325798-1 | 3.60 | 4.36 | |
| O-ring 9 | ||||
| 043 | 213073-6 | 1.20 | 1.45 | |
| Spring washer 28 | ||||
| 044 | 233979-2 | 1.20 | 1.45 | |
| Jackhammer | ||||
| 045 | 325784-2 | 3.60 | 4.36 | |
| O-ring 17.5 | ||||
| 046 | 213258-4 | 2.40 | 2.90 | |
| Piston-cylinder | ||||
| 047 | 310345-1 | 8.40 | 10.16 | |
| Guide plate | ||||
| 048 | 346036-8 | 1.00 | 1.21 | |
| Piston Pin Hr2440/50 A | ||||
| 049 | 324215-8 | 2.40 | 2.90 | |
| Compression Spring 14 | ||||
| 050 | 234098-7 | 1.00 | 1.21 | |
| Sluitring 14mm | ||||
| 051 | 267447-3 | 1.00 | 1.21 | |
| Stopring Ext-u6 | ||||
| 052 | 257336-0 | 1.00 | 1.21 | |
| Washer 7 LF1000 A | ||||
| 053 | 267322-3 | 1.00 | 1.21 | |
| Gear 10 | ||||
| 054 | 227359-2 | 13.20 | 15.97 | |
| Clutch Plate | ||||
| 055 | 310678-4 | 6.00 | 7.26 | |
| Gear Shaft | ||||
| 057 | 326448-1 | 6.00 | 7.26 | |
| Pendulum Bearing 10 | ||||
| 058 | 219021-3 | 9.24 | 11.18 | |
| Washer 8 | ||||
| 059 | 257321-3 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 060 | 266437-3 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 061 | 310344-3 | 3.60 | 4.36 | |
| Ball Bearing 608Zz A | ||||
| 062 | 210046-0 | 1.20 | 1.45 | |
| Bearing Lock | ||||
| 063 | 285735-6 | 1.20 | 1.45 | |
| Gear 26 | ||||
| 064 | 227719-8 | 3.60 | 4.36 | |
| O-ring 68 | ||||
| 065 | 213728-3 | 1.20 | 1.45 | |
| Inner Housing | ||||
| 068 | 141572-7 | 14.30 | 17.30 | |
| Seal Ring 12mm | ||||
| 072 | 213678-2 | 6.00 | 7.26 | |
| O-ring 26 | ||||
| 073 | 213407-3 | 1.20 | 1.45 | |
| Sleeve 9 | ||||
| 074 | 262569-4 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 075 | 210042-8 | 2.40 | 2.90 | |
| Washer 9 | ||||
| 076 | 253733-8 | 1.00 | 1.21 | |
| Fan 65 | ||||
| 077 | 240182-8 | 6.00 | 7.26 | |
| Spacer plate | ||||
| 078 | 457711-2 | 1.20 | 1.45 | |
| Fan Housing | ||||
| 079 | 457710-4 | 3.60 | 4.36 | |
| Filter | ||||
| 080 | 457713-8 | 2.40 | 2.90 | |
| Sleeve 10 | ||||
| 081 | 262184-4 | 1.00 | 1.21 | |
| Fan 65 | ||||
| 082 | 240121-8 | 1.20 | 1.45 | |
| Insulation ring | ||||
| 083 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 084 | 210045-2 | 3.60 | 4.36 | |
| Armature Hr2650/51 | ||||
| 085 | 515424-2 | 28.60 | 34.61 | |
| Retaining ring 15 DLS211Z A | ||||
| 086 | 267804-5 | 1.00 | 1.21 | |
| Swap Plate B | ||||
| 087 | 347230-5 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 088 | 233360-7 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 089 | 234343-0 | 1.00 | 1.21 | |
| Swap Plate A | ||||
| 090 | 347229-0 | 2.40 | 2.90 | |
| Blocking Plate | ||||
| 091 | 347228-2 | 1.20 | 1.45 | |
| Tap screw 4x30mm DGA520 | ||||
| 092 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 092-1 | 265B70-0 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 093 | 451527-7 | 1.20 | 1.45 | |
| Field | ||||
| 094 | 621874-2 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 095 | 819390-8 | |||
| Nameplate Hr2650 | ||||
| 096 | 853M36-4 | 3.60 | 4.36 | |
| Brush Set Cb-325 | ||||
| 097 | 194074-2 | 2.40 | 2.90 | |
| Self Tapping Screw Pt4X60 * | ||||
| 098 | 266052-3 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 099 | 451536-6 | 10.80 | 13.07 | |
| Met.Screw Ck 3X12Mm Hr2300 | ||||
| 100 | 266556-5 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 101 | 632K38-9 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 102 | 853M40-3 | |||
| No information available, not orderable | ||||
| 103 | 819389-3 | |||
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 104 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 104-1 | 265B67-9 | 1.00 | 1.21 | |
| Switch Tg853Tb Hr2650/51 A | ||||
| 105 | 651090-2 | 17.60 | 21.30 | |
| Cable gland 10 | ||||
| 106 | 682566-8 | 1.20 | 1.45 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 107 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 107 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 107-1 | 265B74-2 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 108 | 451528-5 | 4.80 | 5.81 | |
| Strain reliever | ||||
| 109 | 687682-1 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 110 | 695123-3 | 22.00 | 26.62 | |
| STOFAFZUIGADAPTER MET STOFOPVANG | ||||
| 112 | 136018-6 | 60.00 | 72.60 | |
| No information available, not orderable | ||||
| 113 | 424722-2 | |||
| Feed-through DX15 A | ||||
| 114 | 413A88-1 | 2.20 | 2.66 | |
| Feed-through grommet | ||||
| 114 | 422784-4 | 1.21 | 1.46 | |
| Feed-through grommet | ||||
| 115 | 422784-4 | 1.21 | 1.46 | |
| Hex bolt M6x40mm | ||||
| 116 | 251568-1 | 1.00 | 1.21 | |
| Catch holder A | ||||
| 117 | 457730-8 | 2.40 | 2.90 | |
| Lock Lever Cover | ||||
| 118 | 457723-5 | 2.40 | 2.90 | |
| Push button B | ||||
| 120 | 457718-8 | 1.00 | 1.21 | |
| Intermediate Pipe | ||||
| 121 | 326988-9 | 28.60 | 34.61 | |
| Stop Base B | ||||
| 122 | 457728-5 | 1.20 | 1.45 | |
| Serrated plate | ||||
| 123 | 457722-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 124 | 232386-6 | 1.00 | 1.21 | |
| Plate for spring | ||||
| 125 | 457721-9 | 1.00 | 1.21 | |
| Push button A | ||||
| 126 | 457717-0 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 127 | 931102-0 | 1.00 | 1.21 | |
| Stop base A | ||||
| 128 | 457719-6 | 1.00 | 1.21 | |
| Screw,M4x12 | ||||
| 129 | 251314-2 | 1.00 | 1.21 | |
| Hose 30D Hr2650/51T P | ||||
| 130 | 245043-7 | 16.50 | 19.96 | |
| Locking handle Hr2650/61 A | ||||
| 131 | 458668-0 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 132 | 231316-4 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 133 | 266130-9 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 134 | 183G77-3 | 14.30 | 17.30 | |
| Guide Bushing | ||||
| 135 | 457712-0 | 1.20 | 1.45 | |
| Hose 30C HR2650/51T P | ||||
| 136 | 245042-9 | 8.40 | 10.16 | |
| Pen 3 | ||||
| 137 | 256158-5 | 1.20 | 1.45 | |
| Unlocking lever | ||||
| 138 | 457720-1 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 139 | 183G77-3 | 14.30 | 17.30 | |
| Inner tube WCR 1000 ET-BG | ||||
| 140 | 457724-3 | 1.20 | 1.45 | |
| Foam Rubber B | ||||
| 141 | 457725-1 | 1.00 | 1.21 | |
| STOFBOX MET HEPA FIJNSTOFFILTER | ||||
| 142 | 198981-1 | 21.00 | 25.41 | |
| HEPA FIJNSTOFFILTER VOOR DIVERSE STOFBOXEN | ||||
| 142C10 | 199557-7 | 11.00 | 13.31 | |
