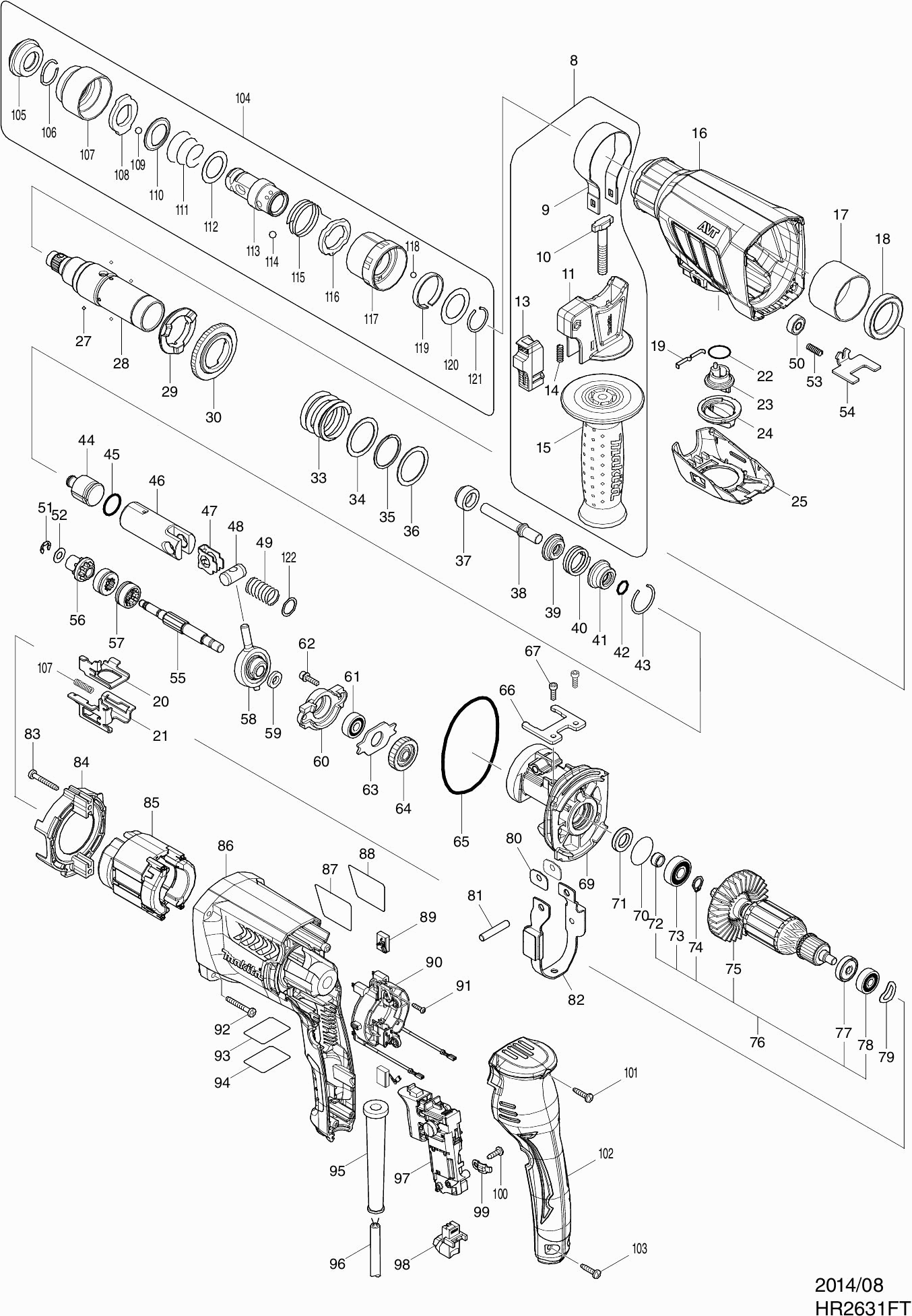

Technical drawing of model Makita HR2631FT
Spare parts list of model Makita HR2631FT
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HANDGREEP COMPLEET | ||||
| 008 | 122878-2 | 8.00 | 9.68 | |
| No information available, not orderable | ||||
| 009 | 346181-9 | |||
| No information available, not orderable | ||||
| 010 | 266349-0 | |||
| No information available, not orderable | ||||
| 011 | 451539-0 | |||
| Locking Button | ||||
| 013 | 141765-6 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 014 | 233360-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015 | 154935-8 | |||
| Gear Cover | ||||
| 016 | 142970-8 | 9.60 | 11.62 | |
| Oil Seal 25 | ||||
| 016A | 213636-8 | 4.80 | 5.81 | |
| Socket | ||||
| 017 | 331890-3 | 3.60 | 4.36 | |
| Ball Bearing 6806llu | ||||
| 018 | 211294-4 | 8.40 | 10.16 | |
| Leaf Spring | ||||
| 019 | 232286-0 | 1.00 | 1.21 | |
| Swap Plate A | ||||
| 020 | 346832-4 | 2.40 | 2.90 | |
| Swap Plate B | ||||
| 020 | 346833-2 | 1.20 | 1.45 | |
| Swap Plate A | ||||
| 021 | 346832-4 | 2.40 | 2.90 | |
| Swap Plate B | ||||
| 021 | 346833-2 | 1.20 | 1.45 | |
| O-ring 17 | ||||
| 022 | 213278-8 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 023 | 455392-6 | 2.40 | 2.90 | |
| Chisel lock cap | ||||
| 024 | 455394-2 | 1.00 | 1.21 | |
| Adjustment button cap | ||||
| 025 | 455391-8 | 2.40 | 2.90 | |
| Steel ball 3 | ||||
| 027 | 216019-1 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 028 | 140266-1 | 23.10 | 27.95 | |
| Seal ring 9 | ||||
| 028A | 213344-1 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 029 | 332139-4 | |||
| No longer available, no replacement | ||||
| 030 | 227360-7 | |||
| Compression spring 31mm | ||||
| 033 | 234148-8 | 1.20 | 1.45 | |
| Washer 30 | ||||
| 034 | 267153-0 | 1.00 | 1.21 | |
| Lock ring spiro30 | ||||
| 035 | 257932-4 | 3.60 | 4.36 | |
| Washer 30 | ||||
| 036 | 267153-0 | 1.00 | 1.21 | |
| Bushing 9b | ||||
| 037 | 325783-4 | 1.20 | 1.45 | |
| Slagstuk "b" | ||||
| 038 | 325791-5 | 2.40 | 2.90 | |
| Ring 10 | ||||
| 039 | 325792-3 | 1.20 | 1.45 | |
| Compression Spring 20 | ||||
| 040 | 234149-6 | 1.20 | 1.45 | |
| O-ring huis "b" | ||||
| 041 | 325793-1 | 3.60 | 4.36 | |
| O-ring 9 | ||||
| 042 | 213073-6 | 1.20 | 1.45 | |
| Spring washer 28 | ||||
| 043 | 233979-2 | 1.20 | 1.45 | |
| Jackhammer | ||||
| 044 | 325784-2 | 3.60 | 4.36 | |
| O-ring 17.5 | ||||
| 045 | 213258-4 | 2.40 | 2.90 | |
| Piston-cylinder | ||||
| 046 | 310345-1 | 8.40 | 10.16 | |
| Guide plate | ||||
| 047 | 346036-8 | 1.00 | 1.21 | |
| Piston Pin Hr2440/50 A | ||||
| 048 | 324215-8 | 2.40 | 2.90 | |
| Compression Spring 14 | ||||
| 049 | 234098-7 | 1.00 | 1.21 | |
| Ball bearing 606Zz A | ||||
| 050 | 210137-7 | 1.20 | 1.45 | |
| Stopring Ext-u6 | ||||
| 051 | 257336-0 | 1.00 | 1.21 | |
| Washer 7 LF1000 A | ||||
| 052 | 267322-3 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 053 | 233360-7 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 054 | 346831-6 | 1.20 | 1.45 | |
| Gear Shaft | ||||
| 055 | 326448-1 | 6.00 | 7.26 | |
| Gear 10 | ||||
| 056 | 227359-2 | 13.20 | 15.97 | |
| Clutch Plate | ||||
| 057 | 310678-4 | 6.00 | 7.26 | |
| Pendulum Bearing 10 | ||||
| 058 | 219023-9 | 23.10 | 27.95 | |
| Washer 8 | ||||
| 059 | 257321-3 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 060 | 310344-3 | 3.60 | 4.36 | |
| Ball Bearing 608Zz A | ||||
| 061 | 210046-0 | 1.20 | 1.45 | |
| Hex bolt 4x16 | ||||
| 062 | 266437-3 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 063 | 285735-6 | 1.20 | 1.45 | |
| Gear 26 | ||||
| 064 | 227719-8 | 3.60 | 4.36 | |
| O-ring 68 | ||||
| 065 | 213728-3 | 1.20 | 1.45 | |
| Clamping Plate | ||||
| 066 | 346222-1 | 1.20 | 1.45 | |
| Hexagon socket screw 4x12 | ||||
| 067 | 265353-6 | 1.20 | 1.45 | |
| Inner Housing | ||||
| 069 | 141573-5 | 14.30 | 17.30 | |
| Damping felt | ||||
| 069A | 443153-6 | 1.00 | 1.21 | |
| O-ring 26 | ||||
| 070 | 213407-3 | 1.20 | 1.45 | |
| Seal Ring 12mm | ||||
| 071 | 213678-2 | 6.00 | 7.26 | |
| Sleeve 9 | ||||
| 072 | 262569-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 073 | 211097-6 | |||
| Locking Ring S-10 | ||||
| 074 | 257408-1 | 1.20 | 1.45 | |
| Fan 65 | ||||
| 075 | 240121-8 | 1.20 | 1.45 | |
| Armature 240v | ||||
| 076 | 515359-7 | 30.80 | 37.27 | |
| Insulation ring | ||||
| 077 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 078 | 210045-2 | 3.60 | 4.36 | |
| BORGRING 15 DLS211Z A | ||||
| 079 | 267804-5 | 1.00 | 1.21 | |
| Weight Holder | ||||
| 080 | 346180-1 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 081 | 256246-8 | 1.00 | 1.21 | |
| Counterweight | ||||
| 082 | 165593-5 | 6.00 | 7.26 | |
| Tap screw 4x30mm DGA520 | ||||
| 083 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 083-1 | 265B70-0 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 084 | 451527-7 | 1.20 | 1.45 | |
| Field Hr2600 | ||||
| 085 | 626634-7 | 27.50 | 33.28 | |
| Motor Housing | ||||
| 086 | 451535-8 | 9.60 | 11.62 | |
| Nameplate "hr2631ft" | ||||
| 087 | 850L76-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 088 | 819390-8 | |||
| Brush Set Cb-325 | ||||
| 089 | 194074-2 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 090 | 638655-7 | 8.40 | 10.16 | |
| Met.Screw Ck 3X12Mm Hr2300 | ||||
| 091 | 266556-5 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 092 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 092-1 | 265B70-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 094 | 819389-3 | |||
| Cable gland 10 | ||||
| 095 | 682566-8 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 096 | 695123-3 | 22.00 | 26.62 | |
| Switch Tg853Tb Hr2650/51 A | ||||
| 097 | 651090-2 | 17.60 | 21.30 | |
| Light circuit | ||||
| 098 | 631937-6 | 7.20 | 8.71 | |
| Strain reliever | ||||
| 099 | 687682-1 | 1.00 | 1.21 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 100 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 100-1 | 265B74-2 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 101 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 101-1 | 265B67-9 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 102 | 451528-5 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 103 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 103-1 | 265B67-9 | 1.00 | 1.21 | |
| BOORKOP SDS-PLUS | ||||
| 104 | 194080-7 | 35.00 | 42.35 | |
| Rubber dust cap 35 | ||||
| 105 | 286263-4 | 1.20 | 1.45 | |
| Lock washer 19 | ||||
| 106 | 233940-9 | 1.20 | 1.45 | |
| Chisel lock cap | ||||
| 107 | 418217-5 | 2.40 | 2.90 | |
| End stop | ||||
| 108 | 345333-9 | 1.20 | 1.45 | |
| Steel ball 7.0 | ||||
| 109 | 216022-2 | 1.00 | 1.21 | |
| Guide Ring | ||||
| 110 | 345187-4 | 1.20 | 1.45 | |
| Compression Spring 21-29 | ||||
| 111 | 233916-6 | 1.00 | 1.21 | |
| Washer 21 | ||||
| 112 | 267279-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 113 | 324355-2 | |||
| Steel ball 6 | ||||
| 114 | 216030-3 | 1.00 | 1.21 | |
| Torsion Spring 31 | ||||
| 115 | 231669-1 | 1.00 | 1.21 | |
| Exchange Washer | ||||
| 116 | 345334-7 | 2.40 | 2.90 | |
| Locking cap | ||||
| 117 | 418218-3 | 1.20 | 1.45 | |
| Steel ball 5.0 | ||||
| 118 | 216018-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 119 | 345335-5 | 1.00 | 1.21 | |
| Washer 24 | ||||
| 120 | 267270-6 | 1.00 | 1.21 | |
| Locking washer 21 | ||||
| 121 | 233924-7 | 1.00 | 1.21 | |
| Sluitring 14mm | ||||
| 122 | 267447-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 123 | 234343-0 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 124 | 263005-3 | 1.00 | 1.21 | |
