Here you will find all available parts and drawings of the 'Makita HR2460'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

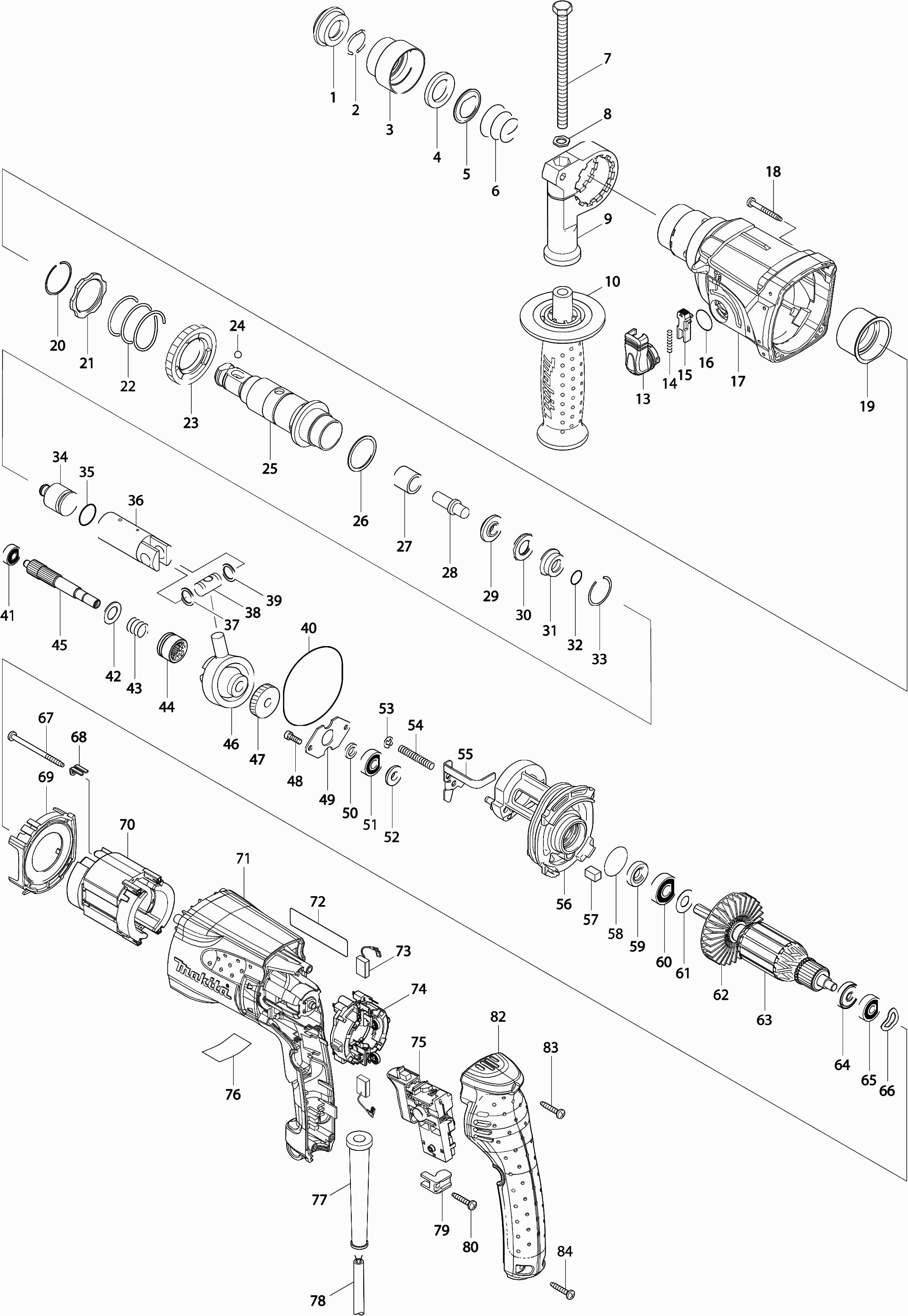

Technical drawing of model Makita HR2460
Spare parts list of model Makita HR2460
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001* | 286263-4 | 1.20 | 1.45 | |
| Lock washer 19 | ||||
| 002 | 233940-9 | 1.20 | 1.45 | |
| Drill Chuck Cap | ||||
| 003 | 417629-9 | 1.20 | 1.45 | |
| Washer 21 | ||||
| 004 | 257241-1 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 005 | 345187-4 | 1.20 | 1.45 | |
| Compression Spring 21-29 | ||||
| 006 | 233916-6 | 1.00 | 1.21 | |
| Hex bolt 8x120 | ||||
| 007 | 265583-9 | 1.20 | 1.45 | |
| Washer | ||||
| 008 | 345280-4 | 1.00 | 1.21 | |
| ZIJHANDGREEP BOORMACHINE/COMBIHAMER | ||||
| 009 | 136603-5 | 4.00 | 4.84 | |
| Handle | ||||
| 010 | 158057-6 | 9.60 | 11.62 | |
| NUT M8 | ||||
| 010C | 931402-8 | 1.00 | 1.21 | |
| Adjustment Knob Hr2230 | ||||
| 013 | 162244-1 | 1.20 | 1.45 | |
| Compression Spring 3x28mm | ||||
| 014 | 234264-6 | 1.00 | 1.21 | |
| Locking Button | ||||
| 015 | 419192-8 | 1.00 | 1.21 | |
| O-ring 17 | ||||
| 016 | 213278-8 | 1.00 | 1.21 | |
| Gearhouse Couple | ||||
| 017 | 158305-3 | 13.20 | 15.97 | |
| Seal ring 25 | ||||
| 017C | 213345-9 | 2.40 | 2.90 | |
| Screw 4x35 | ||||
| 018 | 266351-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018-1 | 265B69-5 | |||
| Needle-roller Bearing | ||||
| 019 | 153290-5 | 7.20 | 8.71 | |
| Spring washer 28 Hr2440/50 | ||||
| 020 | 233918-2 | 1.00 | 1.21 | |
| Rivet 30 Hr2230 | ||||
| 021 | 267805-3 | 1.00 | 1.21 | |
| Compression Spring 31 Hr2440/50 | ||||
| 022 | 233328-3 | 1.20 | 1.45 | |
| Gear 51 Hr2440 | ||||
| 023 | 227019-6 | 8.40 | 10.16 | |
| Steel ball 7.0 | ||||
| 024* | 216022-2 | 1.00 | 1.21 | |
| Chisel holder Cpl Hr2230/2460 A | ||||
| 025 | 135207-0 | 45.10 | 54.57 | |
| Washer 28 | ||||
| 026 | 267229-3 | 1.00 | 1.21 | |
| Socket | ||||
| 027 | 331769-8 | 2.40 | 2.90 | |
| Striker | ||||
| 028 | 324669-9 | 2.40 | 2.90 | |
| Ring 10 | ||||
| 029 | 324402-9 | 2.40 | 2.90 | |
| Bumper Ring | ||||
| 030 | 421955-0 | 1.20 | 1.45 | |
| O-ring housing | ||||
| 031 | 324216-6 | 6.00 | 7.26 | |
| O-ring 9 | ||||
| 032* | 213073-6 | 1.20 | 1.45 | |
| Spring washer 28 | ||||
| 033* | 233917-4 | 1.00 | 1.21 | |
| Jackhammer | ||||
| 034 | 324733-6 | 2.40 | 2.90 | |
| O-ring 16 | ||||
| 035* | 213227-5 | 1.20 | 1.45 | |
| Piston Cylinder | ||||
| 036 | 317517-9 | 14.30 | 17.30 | |
| Washer 12 | ||||
| 037 | 267104-3 | 1.20 | 1.45 | |
| Piston Pin Hr2440/50 A | ||||
| 038 | 324215-8 | 2.40 | 2.90 | |
| Washer 12 | ||||
| 039 | 267104-3 | 1.20 | 1.45 | |
| O-ring 63 | ||||
| 040 | 213727-5 | 2.40 | 2.90 | |
| Ball bearing 606Zz A | ||||
| 041 | 210137-7 | 1.20 | 1.45 | |
| Washer 12 | ||||
| 042 | 267212-0 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 043 | 233347-9 | 1.00 | 1.21 | |
| Clutch Plate | ||||
| 044 | 331734-7 | 4.80 | 5.81 | |
| Gear 10 | ||||
| 045 | 227182-5 | 8.40 | 10.16 | |
| Pendulum Bearing 10 Bhr200 A | ||||
| 046 | 219014-0 | 45.10 | 54.57 | |
| Gear | ||||
| 047 | 226656-3 | 3.60 | 4.36 | |
| Hexagon bolt 4x12 | ||||
| 048 | 266273-7 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 049 | 345179-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 050 | 267234-0 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 051 | 210046-0 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 052 | 324212-4 | 4.80 | 5.81 | |
| Retaining Ring E-4 | ||||
| 053 | 961011-9 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 054 | 233388-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 055 | 345770-7 | |||
| Bearing Housing | ||||
| 056 | 141575-1 | 13.20 | 15.97 | |
| Damping felt | ||||
| 057 | 443126-9 | 1.00 | 1.21 | |
| O-ring 26 | ||||
| 058 | 213407-3 | 1.20 | 1.45 | |
| Keerring 10 | ||||
| 059 | 213077-8 | 3.60 | 4.36 | |
| Ball bearing 6000ddw | ||||
| 060 | 211289-7 | 13.20 | 15.97 | |
| Washer 10 | ||||
| 061 | 267213-8 | 1.20 | 1.45 | |
| Fan 64 | ||||
| 062 | 240092-9 | 2.40 | 2.90 | |
| Armature Hr2460 | ||||
| 063 | 517984-0 | 33.00 | 39.93 | |
| Insulation ring | ||||
| 064 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 065 | 210045-2 | 3.60 | 4.36 | |
| BORGRING 15 DLS211Z A | ||||
| 066 | 267804-5 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4X60 * | ||||
| 067 | 266052-3 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 068 | 344871-8 | 1.20 | 1.45 | |
| Intermediate Plate | ||||
| 069 | 419716-0 | 1.00 | 1.21 | |
| Field HR2460 | ||||
| 070 | 621884-9 | 26.40 | 31.94 | |
| Field HR2460 | ||||
| 070-1 | 621884-9 | 26.40 | 31.94 | |
| Motor housing Hr2460 | ||||
| 071 | 419731-4 | 10.80 | 13.07 | |
| Label | ||||
| 072 | 863521-1 | 3.60 | 4.36 | |
| Brush Set Cb-325 | ||||
| 073* | 194074-2 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 074 | 638500-6 | 9.60 | 11.62 | |
| Switch | ||||
| 075 | 650588-6 | 16.50 | 19.96 | |
| Serial number label | ||||
| 076 | 814958-5 | 2.40 | 2.90 | |
| Cable gland 10 | ||||
| 077 | 682566-8 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 078 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 079 | 687260-7 | 1.00 | 1.21 | |
| Tapping screw 4x22 | ||||
| 080 | 266324-6 | 1.00 | 1.21 | |
| Motor housing cover Hr2230 | ||||
| 082 | 419717-8 | 6.00 | 7.26 | |
| Tapping screw 4x22 | ||||
| 083 | 266324-6 | 1.00 | 1.21 | |
| Tapping screw 4x22 | ||||
| 084 | 266324-6 | 1.00 | 1.21 | |
