Here you will find all available parts and drawings of the 'Makita HR2450'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

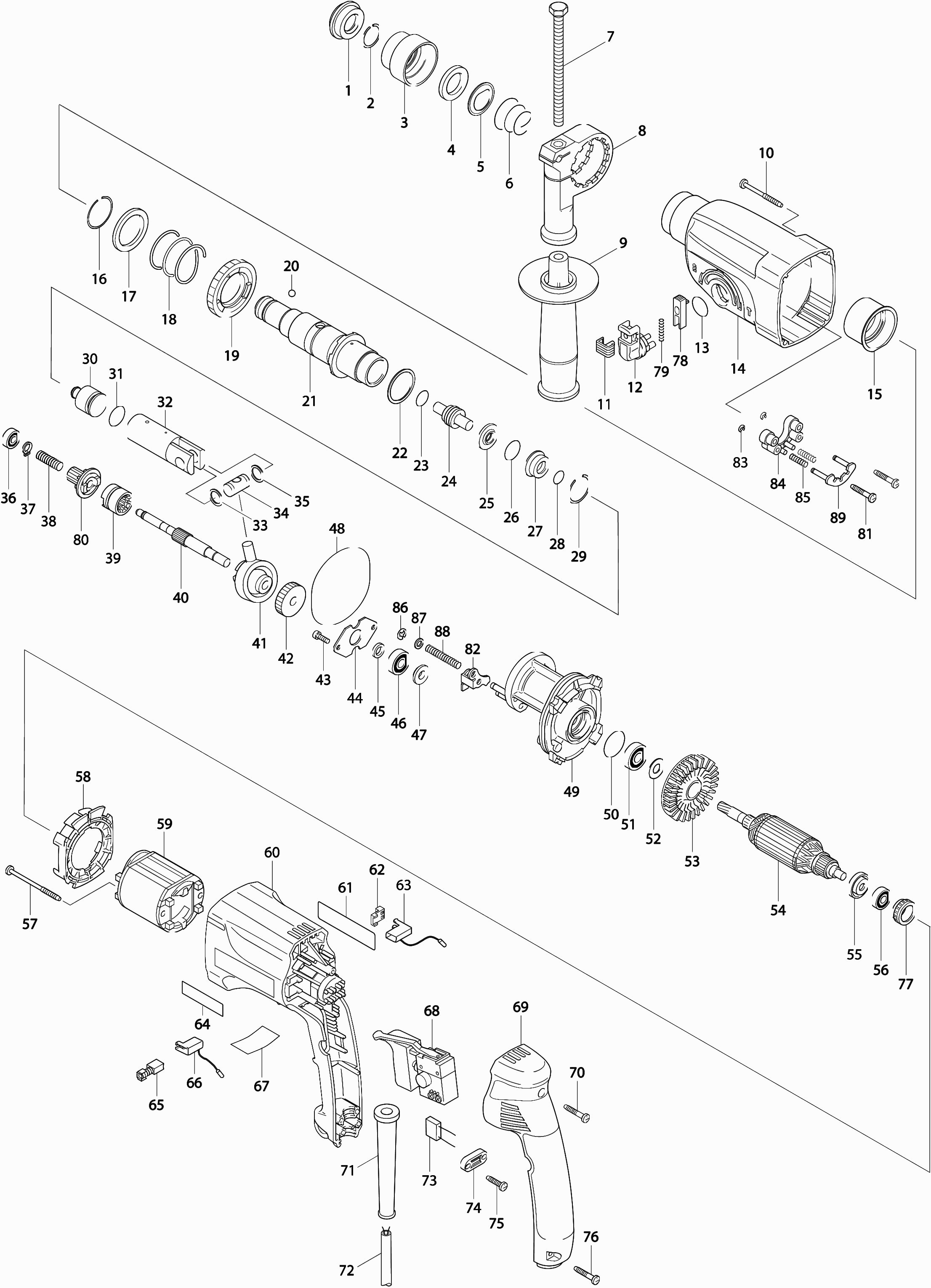

Technical drawing of model Makita HR2450
Spare parts list of model Makita HR2450
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001* | 286263-4 | 1.20 | 1.45 | |
| Lock washer 19 | ||||
| 002 | 233940-9 | 1.20 | 1.45 | |
| Drill Chuck Cap | ||||
| 003 | 417629-9 | 1.20 | 1.45 | |
| Washer 21 | ||||
| 004 | 257241-1 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 005 | 345187-4 | 1.20 | 1.45 | |
| Compression Spring 21-29 | ||||
| 006 | 233916-6 | 1.00 | 1.21 | |
| Hex bolt 8x120 | ||||
| 007 | 265583-9 | 1.20 | 1.45 | |
| ZIJHANDGREEP BOORMACHINE/COMBIHAMER | ||||
| 009 | 136603-5 | 4.00 | 4.84 | |
| Tapschroef 4x45 | ||||
| 010 | 266069-6 | 1.20 | 1.45 | |
| Covering hood | ||||
| 011 | 417794-4 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 012 | 162229-7 | 2.40 | 2.90 | |
| O-ring 17 | ||||
| 013 | 213278-8 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 014 | 183441-6 | 15.40 | 18.63 | |
| Needle-roller Bearing | ||||
| 015 | 153290-5 | 7.20 | 8.71 | |
| Spring washer 28 Hr2440/50 | ||||
| 016 | 233918-2 | 1.00 | 1.21 | |
| Lock Washer 30Mm Hr2440/50 | ||||
| 017 | 267228-5 | 1.20 | 1.45 | |
| Compression Spring 31 Hr2440/50 | ||||
| 018 | 233328-3 | 1.20 | 1.45 | |
| Gear 51 | ||||
| 019 | 227028-5 | 13.20 | 15.97 | |
| Steel ball 7.0 | ||||
| 020 | 216022-2 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 021 | 153365-0 | 20.90 | 25.29 | |
| Washer 28 | ||||
| 022 | 267229-3 | 1.00 | 1.21 | |
| O-ring 12 | ||||
| 023* | 213128-7 | 1.20 | 1.45 | |
| Striker | ||||
| 024 | 324396-8 | 10.80 | 13.07 | |
| Washer 9 | ||||
| 025 | 324218-2 | 4.80 | 5.81 | |
| O-ring 15 | ||||
| 026* | 213232-2 | 2.40 | 2.90 | |
| O-ring housing | ||||
| 027 | 324216-6 | 6.00 | 7.26 | |
| O-ring 9 | ||||
| 028* | 213073-6 | 1.20 | 1.45 | |
| Spring washer 28 | ||||
| 029* | 233917-4 | 1.00 | 1.21 | |
| Striker | ||||
| 030 | 324214-0 | 3.60 | 4.36 | |
| O-ring 16 | ||||
| 031* | 213227-5 | 1.20 | 1.45 | |
| Piston Cylinder | ||||
| 032 | 331632-5 | 38.50 | 46.58 | |
| Washer 12 | ||||
| 033 | 267104-3 | 1.20 | 1.45 | |
| Piston Pin Hr2440/50 A | ||||
| 034 | 324215-8 | 2.40 | 2.90 | |
| Washer 12 | ||||
| 035 | 267104-3 | 1.20 | 1.45 | |
| Ball bearing 606Zz A | ||||
| 036 | 210137-7 | 1.20 | 1.45 | |
| Lock ring S-7 | ||||
| 037 | 961003-8 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 038 | 233343-7 | 1.00 | 1.21 | |
| Clutch Bowl | ||||
| 039 | 331993-3 | 13.20 | 15.97 | |
| Gear Shaft | ||||
| 040 | 324248-3 | 10.80 | 13.07 | |
| Pendulum Bearing 10 Bhr200 A | ||||
| 041 | 219014-0 | 45.10 | 54.57 | |
| Gear 26 | ||||
| 042 | 226550-9 | 7.20 | 8.71 | |
| Hexagon bolt 4x12 | ||||
| 043 | 266273-7 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 044 | 345179-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 045 | 267234-0 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 046 | 210046-0 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 047 | 324212-4 | 4.80 | 5.81 | |
| O-ring 68 | ||||
| 048 | 213725-9 | 1.20 | 1.45 | |
| Inner Housing | ||||
| 049 | 153687-8 | 14.30 | 17.30 | |
| O-ring 24 | ||||
| 050 | 213380-7 | 1.00 | 1.21 | |
| Ball Bearing 609llu | ||||
| 051 | 210060-6 | 4.80 | 5.81 | |
| Washer 9 | ||||
| 052 | 267231-6 | 1.00 | 1.21 | |
| Fan 60 Hr2440/50 A | ||||
| 053 | 240084-8 | 2.40 | 2.90 | |
| Armature | ||||
| 054 | 515668-4 | 23.10 | 27.95 | |
| Insulation ring | ||||
| 055 | 681636-0 | 1.20 | 1.45 | |
| Ball bearing 607llb | ||||
| 056 | 211021-9 | 4.80 | 5.81 | |
| Self Tapping Screw Pt4X60 * | ||||
| 057 | 266052-3 | 1.20 | 1.45 | |
| Intermediate Plate | ||||
| 058 | 419201-3 | 1.00 | 1.21 | |
| Field | ||||
| 059 | 633488-5 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 060 | 183409-2 | |||
| No information available, not orderable | ||||
| 061 | 853822-5 | |||
| Spacer STM 1800 | ||||
| 062 | 689111-0 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 063 | 643988-7 | 3.60 | 4.36 | |
| Label Makita | ||||
| 064 | 819063-3 | 2.40 | 2.90 | |
| Brush Set CB-419 | ||||
| 065* | 195015-1 | 4.80 | 5.81 | |
| DRUKVEER 4 UC120DW A | ||||
| 065A | 233194-8 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 066 | 643989-5 | 3.60 | 4.36 | |
| Switch | ||||
| 068 | 650508-0 | 30.80 | 37.27 | |
| Pressure Spring 2 | ||||
| 068A | 233025-1 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 069 | 153284-0 | 12.10 | 14.64 | |
| Rubber Pin 4 | ||||
| 069A | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 070 | 265999-8 | |||
| Cable gland 10 | ||||
| 071 | 682566-8 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 072 | 695123-3 | 22.00 | 26.62 | |
| Capacitor | ||||
| 073 | 645253-0 | 4.80 | 5.81 | |
| Clamp Bracket | ||||
| 074 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 075 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 076 | 265999-8 | |||
| Rubber Ring 19 | ||||
| 077 | 421494-0 | 4.80 | 5.81 | |
| Locking Button | ||||
| 078 | 417795-2 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 079 | 233341-1 | 1.00 | 1.21 | |
| Gear 10 | ||||
| 080 | 226399-7 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 081 | 265999-8 | |||
| Exchange Plate | ||||
| 082 | 345363-0 | 2.40 | 2.90 | |
| Stopring E-3 | ||||
| 083 | 961017-7 | 1.00 | 1.21 | |
| Guide Base Hr2450 | ||||
| 084 | 417796-0 | 1.00 | 1.21 | |
| Compression Spring 4 HR2450 black | ||||
| 085 | 233344-5 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 086 | 961011-9 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 087 | 941102-2 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 088 | 233342-9 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 089 | 163430-7 | 2.40 | 2.90 | |
