Here you will find all available parts and drawings of the 'Makita HR1841F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

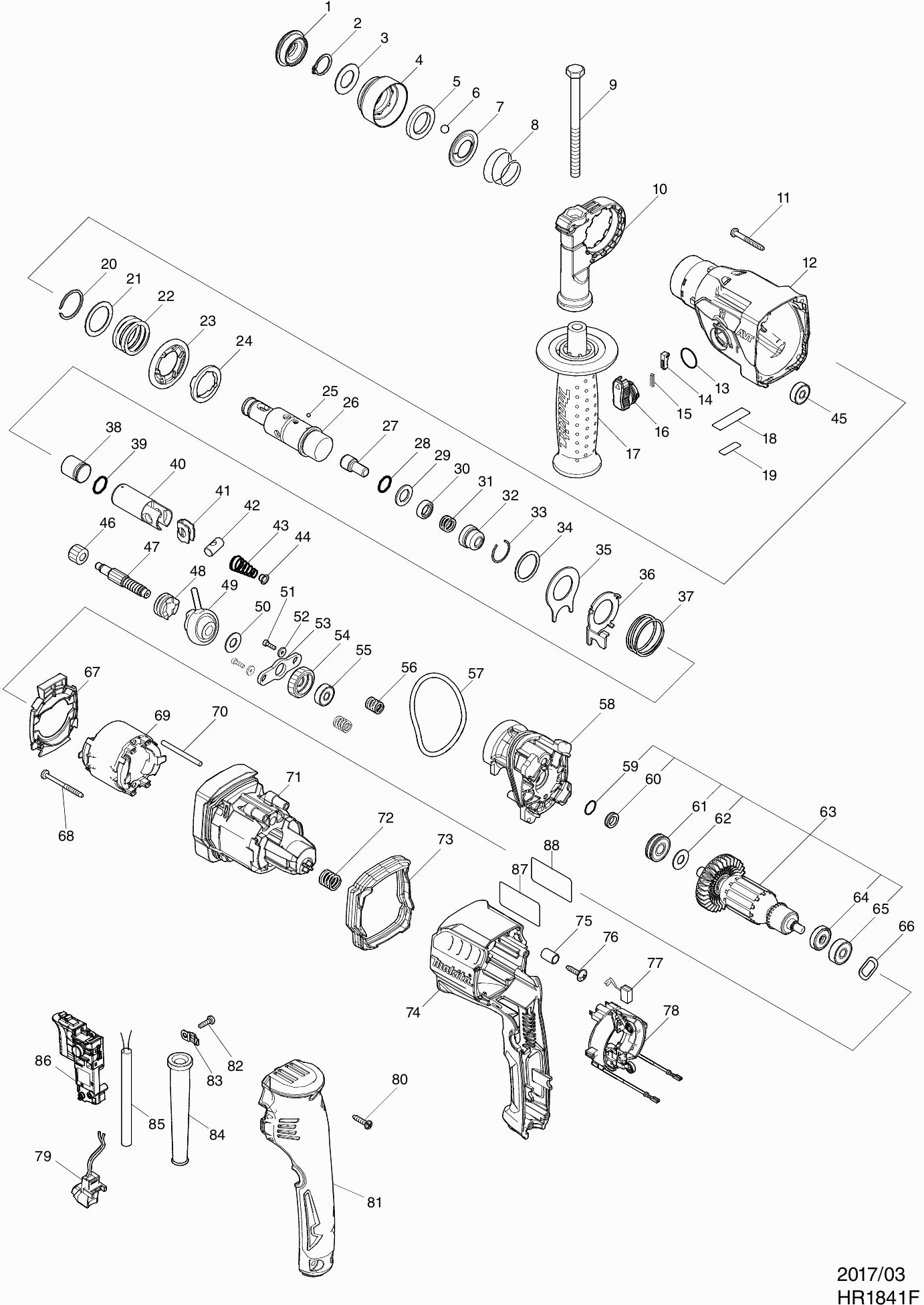

Technical drawing of model Makita HR1841F
Spare parts list of model Makita HR1841F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber Dust Cap 34 | ||||
| 001 | 286037-3 | 1.20 | 1.45 | |
| Lock ring S-17 | ||||
| 002 | 961057-5 | 1.00 | 1.21 | |
| Washer 17mm | ||||
| 003 | 253377-4 | 1.00 | 1.21 | |
| Drill chuck cap pressure | ||||
| 004 | 457214-6 | 1.00 | 1.21 | |
| Washer 21 | ||||
| 005 | 257416-2 | 1.20 | 1.45 | |
| Steel ball 7.0 | ||||
| 006 | 216022-2 | 1.00 | 1.21 | |
| Guide Ring | ||||
| 007 | 346177-0 | 1.00 | 1.21 | |
| Conical compression spring 21-29 | ||||
| 008 | 232347-6 | 1.00 | 1.21 | |
| Nut bolt M8x110mm | ||||
| 009 | 265495-6 | 1.20 | 1.45 | |
| BASISSET VOOR ZIJHANDGREEP 158057-6 | ||||
| 010 | 194581-5 | 9.00 | 10.89 | |
| Spacer 18 Hr1841F | ||||
| 010 | 122810-6 | 6.00 | 7.26 | |
| Spacer 18 Hr1841F | ||||
| 010C10 | 122810-6 | 6.00 | 7.26 | |
| Screw 4x35 | ||||
| 011 | 266351-3 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 012 | 144271-0 | 16.50 | 19.96 | |
| Ball Bearing 6805llb | ||||
| 012 | 211375-4 | 13.20 | 15.97 | |
| Oil Seal 25 | ||||
| 012 | 213636-8 | 4.80 | 5.81 | |
| Oil Seal 25 | ||||
| 012C10 | 213636-8 | 4.80 | 5.81 | |
| Ball Bearing 6805llb | ||||
| 012C20 | 211375-4 | 13.20 | 15.97 | |
| O-ring 17 | ||||
| 013 | 213278-8 | 1.00 | 1.21 | |
| Locking Button | ||||
| 014 | 161568-2 | 1.20 | 1.45 | |
| Compression Spring 3 | ||||
| 015 | 232344-2 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 016 | 161569-0 | 2.40 | 2.90 | |
| Handle | ||||
| 017 | 158057-6 | 9.60 | 11.62 | |
| NUT M8 | ||||
| 017 | 931402-8 | 1.00 | 1.21 | |
| NUT M8 | ||||
| 017C10 | 931402-8 | 1.00 | 1.21 | |
| Plate | ||||
| 018 | 457356-6 | 1.00 | 1.21 | |
| Label, Hr1841F Serial Number | ||||
| 019 | 853K20-7 | 2.40 | 2.90 | |
| Locking Washer WR-25 Hr1830F A | ||||
| 020 | 347555-7 | 1.00 | 1.21 | |
| Washer 25 | ||||
| 021 | 267304-5 | 1.00 | 1.21 | |
| Compression Spring 25 | ||||
| 022 | 232360-4 | 1.20 | 1.45 | |
| Gear 44 | ||||
| 023 | 221494-8 | 7.20 | 8.71 | |
| Drive Flange | ||||
| 024 | 327039-1 | 2.40 | 2.90 | |
| Steel ball 3 | ||||
| 025 | 216019-1 | 1.00 | 1.21 | |
| Drill/Chisel Holder | ||||
| 026 | 326886-7 | 13.20 | 15.97 | |
| Striker Pin | ||||
| 027 | 326887-5 | 1.20 | 1.45 | |
| O-ring 11 (3,5mm) | ||||
| 028 | 213117-2 | 2.40 | 2.90 | |
| Rivet 13 | ||||
| 029 | 253380-5 | 1.00 | 1.21 | |
| Ring 10 | ||||
| 030 | 326888-3 | 1.20 | 1.45 | |
| Compression Spring 10a | ||||
| 031 | 232357-3 | 1.00 | 1.21 | |
| Socket | ||||
| 032 | 327038-3 | 2.40 | 2.90 | |
| Locking Ring 22 | ||||
| 033 | 233942-5 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 034 | 267175-0 | 1.20 | 1.45 | |
| Adapter Plate | ||||
| 035 | 345681-6 | 1.00 | 1.21 | |
| Exchange Plate | ||||
| 036 | 347128-6 | 1.20 | 1.45 | |
| Compression Spring 32 | ||||
| 037 | 233458-0 | 1.00 | 1.21 | |
| Jackhammer | ||||
| 038 | 326889-1 | 2.40 | 2.90 | |
| O-ring 10 | ||||
| 039 | 213832-8 | 1.00 | 1.21 | |
| Piston-cylinder | ||||
| 040 | 326890-6 | 6.00 | 7.26 | |
| Guide plate | ||||
| 041 | 347127-8 | 1.00 | 1.21 | |
| Piston connection | ||||
| 042 | 324612-8 | 1.20 | 1.45 | |
| Conical Compression Spring 6-13 | ||||
| 043 | 232361-2 | 1.00 | 1.21 | |
| Spring Guide | ||||
| 044 | 347130-9 | 1.00 | 1.21 | |
| Ball bearing 626llb | ||||
| 045 | 211016-2 | 6.00 | 7.26 | |
| Gear 19 | ||||
| 046 | 221495-6 | 2.40 | 2.90 | |
| Gear Shaft | ||||
| 047 | 326892-2 | 3.60 | 4.36 | |
| Clutch Plate | ||||
| 048 | 326891-4 | 3.60 | 4.36 | |
| Swing Bearing 9 | ||||
| 049 | 219029-7 | 14.30 | 17.30 | |
| Washer 9 | ||||
| 050 | 253733-8 | 1.00 | 1.21 | |
| Hex bolt M3x12mm | ||||
| 051 | 251510-2 | 1.00 | 1.21 | |
| Rivet 3 | ||||
| 052 | 253381-3 | 1.00 | 1.21 | |
| Plate for spring | ||||
| 053 | 347129-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 054 | 221496-4 | |||
| Ball bearing 626llb | ||||
| 055 | 211016-2 | 6.00 | 7.26 | |
| Compression Spring 7 | ||||
| 056 | 232359-9 | 1.00 | 1.21 | |
| O-ring 60 | ||||
| 057 | 213833-6 | 1.00 | 1.21 | |
| Complete inner housing | ||||
| 058 | 144270-2 | 16.50 | 19.96 | |
| O-ring 12 | ||||
| 059 | 213118-0 | 1.00 | 1.21 | |
| Washer 9 | ||||
| 060 | 326893-0 | 1.20 | 1.45 | |
| Ball Bearing 609llu | ||||
| 061 | 210060-6 | 4.80 | 5.81 | |
| Washer 9 | ||||
| 062 | 267231-6 | 1.00 | 1.21 | |
| Armature 240V Hr1840 | ||||
| 063 | 513989-8 | 28.60 | 34.61 | |
| Insulation Washer Hr1841F | ||||
| 064 | 681670-0 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 065 | 210045-2 | 3.60 | 4.36 | |
| BORGRING 15 DLS211Z A | ||||
| 066 | 267804-5 | 1.00 | 1.21 | |
| Retaining ring 15 Hr2230 A | ||||
| 066 | I55213 | 0.83 | 1.00 | |
| Interlayer Hr1841F | ||||
| 067 | 457350-8 | 1.20 | 1.45 | |
| Tapschroef 4x45 | ||||
| 068 | 266069-6 | 1.20 | 1.45 | |
| Field | ||||
| 069 | 633994-0 | 10.80 | 13.07 | |
| Rod 4 | ||||
| 070 | 256347-2 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 071 | 457352-4 | 6.00 | 7.26 | |
| Compression Spring 10b | ||||
| 072 | 232358-1 | 1.00 | 1.21 | |
| Buffer Ring Hr1841F | ||||
| 073 | 424951-7 | 2.40 | 2.90 | |
| Handle | ||||
| 074 | 457355-8 | 8.40 | 10.16 | |
| Bus 8 | ||||
| 075 | 257417-0 | 1.00 | 1.21 | |
| Self-tapping Screw 4X18 Hr1841F | ||||
| 076 | 251530-6 | 1.00 | 1.21 | |
| Carbon brush set Cb-459 | ||||
| 077 | 195026-6 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 078 | 632K41-0 | 8.40 | 10.16 | |
| Light circuit | ||||
| 079 | 631937-6 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 080 | 265B67-9 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 081 | 457354-0 | 7.20 | 8.71 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 082 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 082 | 266385-6 | 0.83 | 1.00 | |
| Strain reliever | ||||
| 083 | 687682-1 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 084 | 682566-8 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 085 | 695123-3 | 22.00 | 26.62 | |
| Switch | ||||
| 086 | 651086-3 | 13.20 | 15.97 | |
| Nameplate Hr1841F | ||||
| 087 | 853K16-8 | 3.60 | 4.36 | |
| Protection label Hr1841F | ||||
| 088 | 813E00-9 | 2.40 | 2.90 | |
