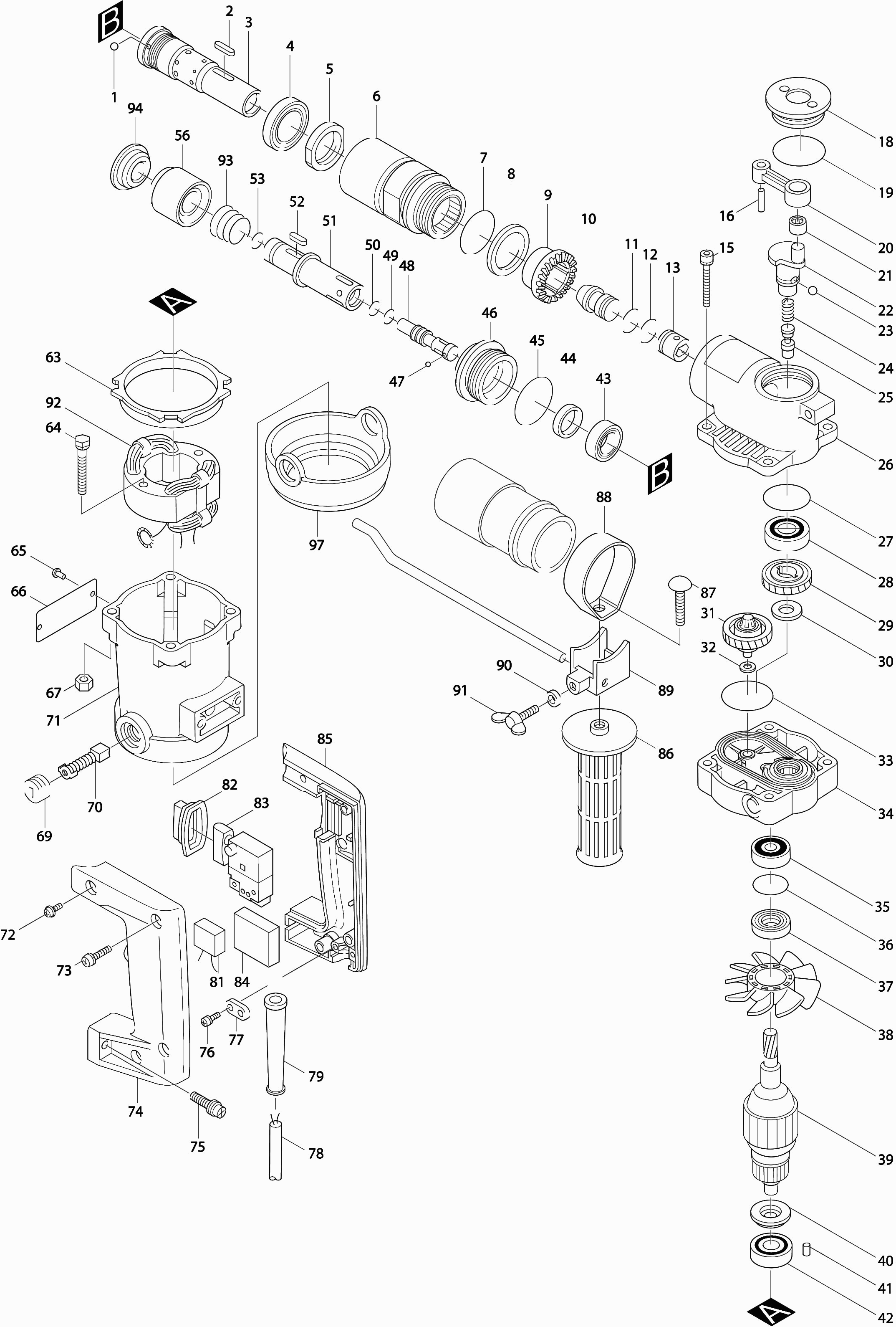

Technical drawing of model Makita HR1820
Spare parts list of model Makita HR1820
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Steel ball 6.4 | ||||
| 001 | 216007-8 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 002 | 254231-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 003 | 331269-8 | |||
| Ball Bearing 3007 * | ||||
| 004 | 211443-3 | 23.10 | 27.95 | |
| Nut M30.3-36 | ||||
| 005 | 252214-9 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 006 | 153156-9 | |||
| O-ring 34 | ||||
| 007 | 213458-6 | 2.40 | 2.90 | |
| Washer 30 Hr1830/20 * | ||||
| 008 | 253854-6 | 4.80 | 5.81 | |
| Gear 26 Hr1800-Hr1820 * | ||||
| 009 | 221358-6 | 39.60 | 47.92 | |
| Striker | ||||
| 010 | 321814-7 | 8.40 | 10.16 | |
| O-ring 16mm DTW181 | ||||
| 011 | 213882-3 | 1.00 | 1.21 | |
| O-ring 16mm DTW181 | ||||
| 012 | 213882-3 | 1.00 | 1.21 | |
| Piston Hr1800-Hr1820 * | ||||
| 013 | 321483-4 | 8.40 | 10.16 | |
| Hex Socket Bolt M6x50 | ||||
| 015 | 922371-4 | 1.20 | 1.45 | |
| Pen 5 | ||||
| 016 | 256123-4 | 2.40 | 2.90 | |
| Filling cap Hr1800-Hr1820 * | ||||
| 018 | 410018-7 | 4.80 | 5.81 | |
| O-ring 35 | ||||
| 019 | 213460-9 | 1.20 | 1.45 | |
| Connecting rod Hr1800-Hr1820 * | ||||
| 020 | 321489-2 | 14.30 | 17.30 | |
| Needle Bearing 810 | ||||
| 021 | 212043-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 022 | 321485-0 | |||
| Steel ball 5.6 | ||||
| 023 | 216041-8 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 024 | 231327-9 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 025 | 321484-2 | 2.40 | 2.90 | |
| Crankcase Hr1820 * | ||||
| 026 | 156911-8 | 36.30 | 43.92 | |
| Screw 4x28 | ||||
| 027 | 911151-3 | 1.00 | 1.21 | |
| Ball Bearing 6002llb | ||||
| 028 | 211201-7 | 8.40 | 10.16 | |
| Gear 29 Hr1800-Hr1820 * | ||||
| 029 | 221705-1 | 16.50 | 19.96 | |
| Washer 15 | ||||
| 030 | 253853-8 | 1.00 | 1.21 | |
| Torque limiter Hr1800-Hr1820* | ||||
| 031 | 151153-9 | 100.10 | 121.12 | |
| Washer 6 | ||||
| 032 | 253715-0 | 1.20 | 1.45 | |
| O-ring 65 | ||||
| 033 | 213707-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 034 | 156910-0 | |||
| Ball bearing 6200llb | ||||
| 035 | 211066-7 | 4.80 | 5.81 | |
| O-ring 30 | ||||
| 036 | 213406-5 | 1.20 | 1.45 | |
| Seal Ring 13 | ||||
| 037 | 213157-0 | 10.80 | 13.07 | |
| Fan 67 * | ||||
| 038 | 241820-5 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 039 | 512778-8 | |||
| Insulation ring | ||||
| 040 | 681625-5 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 041 | 263014-2 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 042 | 210043-6 | 2.40 | 2.90 | |
| Seal ring 21 | ||||
| 043 | 213377-6 | 11.00 | 13.31 | |
| Felt Ring 20 | ||||
| 044 | 443061-1 | 1.00 | 1.21 | |
| O-ring 40 | ||||
| 045 | 213507-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 046 | 322095-6 | |||
| Steel ball 6.4 | ||||
| 047 | 216007-8 | 1.00 | 1.21 | |
| Striker | ||||
| 048 | 321616-1 | 26.40 | 31.94 | |
| O-ring 10 | ||||
| 049 | 213058-2 | 3.60 | 4.36 | |
| O-ring 10 | ||||
| 050 | 213058-2 | 3.60 | 4.36 | |
| Complete Drill Holder | ||||
| 051 | 134561-9 | 86.90 | 105.15 | |
| Roller 6.5 A | ||||
| 052 | 322255-0 | 6.00 | 7.26 | |
| O-ring 10 | ||||
| 053 | 213064-7 | 3.60 | 4.36 | |
| Exchange Washer | ||||
| 056 | 414425-6 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 063 | 410043-8 | |||
| Screw 5x40 | ||||
| 064 | 911263-2 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 067 | 931302-2 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 069 | 643600-9 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-105 | ||||
| 070 | 181038-5 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 071 | 159541-4 | |||
| Screw 6X16 | ||||
| 072 | 911324-8 | 1.00 | 1.21 | |
| Screw 5x22 | ||||
| 073 | 911238-1 | 1.00 | 1.21 | |
| Complete handle Hr1800-Hr1820 * | ||||
| 074 | 181488-4 | 14.30 | 17.30 | |
| Screw 6X25 | ||||
| 075 | 911343-4 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 076 | 911133-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 077 | 687031-2 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 078 | 695123-3 | 22.00 | 26.62 | |
| No longer available, no replacement | ||||
| 079 | 682505-8 | |||
| Capacitor | ||||
| 081 | 645173-8 | 8.40 | 10.16 | |
| Dust cover for switch | ||||
| 082 | 421145-5 | 11.00 | 13.31 | |
| Switch Sw-88 | ||||
| 083 | 651258-0 | 36.30 | 43.92 | |
| Sponge rubber | ||||
| 084 | 685700-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 086 | 273479-0 | |||
| Slot bolt 8x35 | ||||
| 087 | 923456-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 088 | 341539-7 | |||
| Clamping block | ||||
| 089 | 315145-4 | 4.80 | 5.81 | |
| Plastic Washer 4.5 * | ||||
| 090 | 261042-1 | 1.00 | 1.21 | |
| Wing bolt 5x15 | ||||
| 091 | 924216-2 | 1.00 | 1.21 | |
| Field | ||||
| 092 | 528788-5 | 56.10 | 67.88 | |
| Conical Compression Spring | ||||
| 093 | 231946-1 | 1.00 | 1.21 | |
| Dust Cap | ||||
| 094 | 286234-1 | 7.20 | 8.71 | |
