Here you will find all available parts and drawings of the 'Makita HR008G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

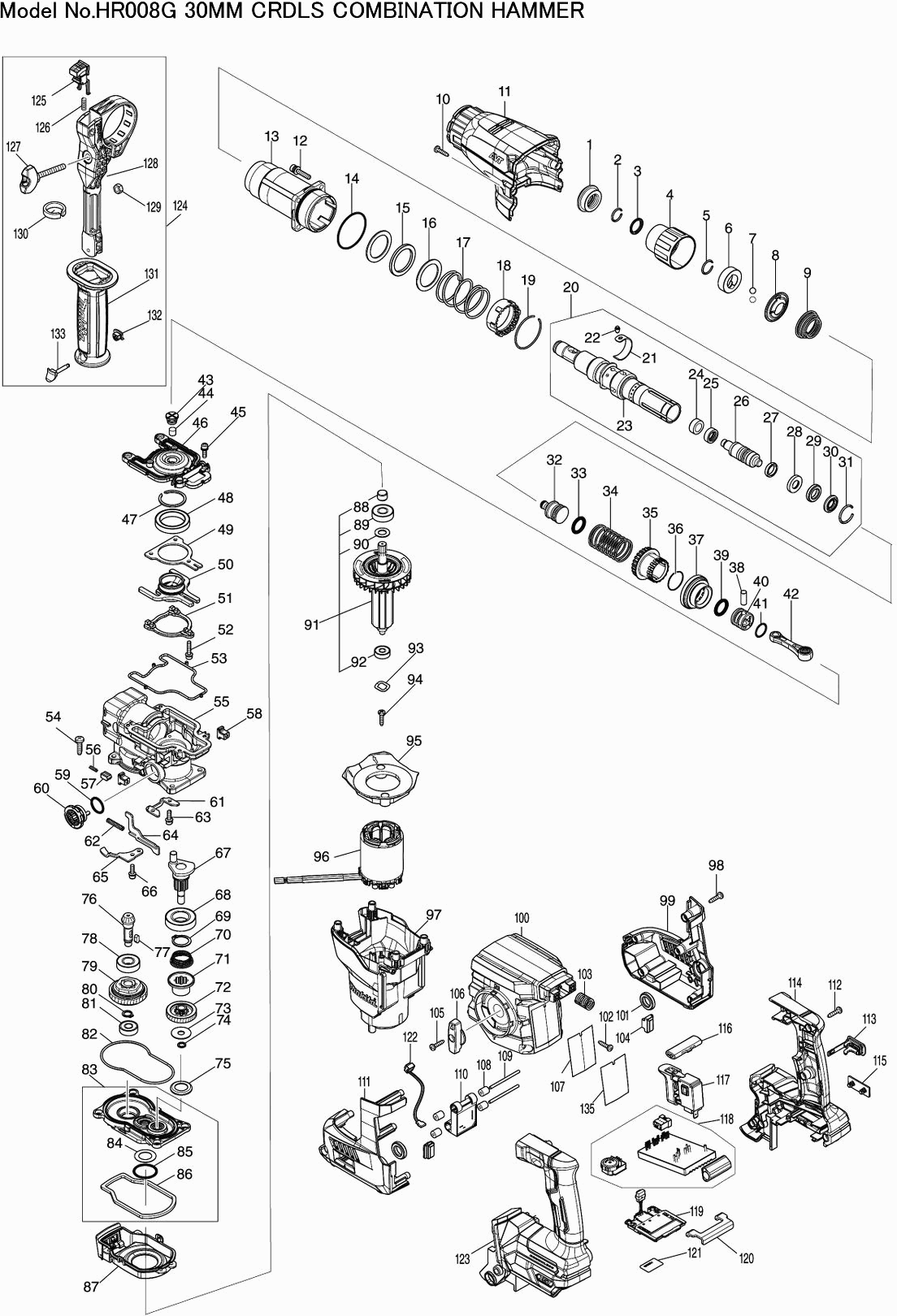

Technical drawing of model Makita HR008G
Spare parts list of model Makita HR008G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001 | 286288-8 | 1.20 | 1.45 | |
| Washer 14 | ||||
| 002 | 233989-9 | 1.00 | 1.21 | |
| Rivet 16mm | ||||
| 003 | 346834-0 | 1.21 | 1.46 | |
| Drill chuck cap HR3001/11C | ||||
| 004 | 459685-3 | 2.40 | 2.90 | |
| Lock washer 15 | ||||
| 005 | 233992-0 | 1.00 | 1.21 | |
| Washer 17 HR3001/11 | ||||
| 006 | 327269-4 | 4.80 | 5.81 | |
| Steel ball 7.0 | ||||
| 007 | 216022-2 | 1.00 | 1.21 | |
| Guide plate HR3011FC A | ||||
| 008 | 347944-6 | 1.20 | 1.45 | |
| Compression Spring 21-34 HR3001/11 | ||||
| 009 | 232503-8 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| Cylinder Cap HR3011/12 | ||||
| 011 | 459167-5 | 7.20 | 8.71 | |
| Inbusschr M5x25mm HR3011FC | ||||
| 012 | 266793-1 | 1.00 | 1.21 | |
| Cylinder Housing HR3001/11C | ||||
| 013 | 140J35-0 | 14.30 | 17.30 | |
| Oil Seal 25 | ||||
| 013C10 | 213636-8 | 4.80 | 5.81 | |
| O-ring 46 | ||||
| 014 | 213620-3 | 1.20 | 1.45 | |
| Rubber ring 31 HR3001/11C | ||||
| 015 | 422493-5 | 2.40 | 2.90 | |
| Rivet 31 | ||||
| 016 | 267354-0 | 1.00 | 1.21 | |
| Compression spring 37 HR3001/11 | ||||
| 017 | 232496-9 | 1.00 | 1.21 | |
| Blocking Bush | ||||
| 018 | 419986-1 | 1.20 | 1.45 | |
| Washer 41 | ||||
| 019 | 233952-2 | 1.00 | 1.21 | |
| Drill/Chisel holder HR3011/12 | ||||
| 020 | 136312-6 | 56.10 | 67.88 | |
| Leaf Spring HR3011FC | ||||
| 021 | 347501-0 | 1.00 | 1.21 | |
| Collar Pin 4 HR3011FC | ||||
| 022 | 256598-7 | 1.20 | 1.45 | |
| Drill-chisel holder HR3011FC | ||||
| 023 | 327277-5 | 30.80 | 37.27 | |
| Bus 11 HR3011FC | ||||
| 024 | 327515-5 | 2.40 | 2.90 | |
| Washer 11 HR3011FC | ||||
| 025 | 327516-3 | 2.40 | 2.90 | |
| Strike Bolt A HR3011FC | ||||
| 026 | 140S89-1 | 13.20 | 15.97 | |
| Seal Ring 12 HR3011FC | ||||
| 027 | 213880-7 | 2.40 | 2.90 | |
| Washer 11 HR3011FC | ||||
| 028 | 327268-6 | 1.20 | 1.45 | |
| Shock ring 12 | ||||
| 029 | 424267-0 | 1.20 | 1.45 | |
| Washer 11 HR3011FC | ||||
| 030 | 327271-7 | 1.20 | 1.45 | |
| Washer 21 | ||||
| 031 | 231987-7 | 1.00 | 1.21 | |
| Striking Piece HR3001/11 | ||||
| 032 | 327266-0 | 3.60 | 4.36 | |
| O-ring 16 HR3001/11 | ||||
| 033 | 213881-5 | 3.60 | 4.36 | |
| Pressure Spring 27 HR3001/11 | ||||
| 034 | 232497-7 | 1.00 | 1.21 | |
| Guide bush HR3001/11 | ||||
| 035 | 327276-7 | 8.40 | 10.16 | |
| Locking Spring 24 HR3001/11 | ||||
| 036 | 232501-2 | 1.00 | 1.21 | |
| Gear 31 A HR3001/11 | ||||
| 037 | 226868-8 | 17.60 | 21.30 | |
| Pin 7 HR3001/11 | ||||
| 038 | 268122-4 | 1.00 | 1.21 | |
| O-ring 16 HR3001/11 | ||||
| 039 | 213881-5 | 3.60 | 4.36 | |
| Piston HR3001/11 | ||||
| 040 | 319807-6 | 4.80 | 5.81 | |
| O-ring 16 | ||||
| 041 | 213226-7 | 1.20 | 1.45 | |
| Connecting Rod HR3001/11 | ||||
| 042 | 140J36-8 | 4.80 | 5.81 | |
| Filter cap HR3001/11 | ||||
| 043 | 459180-3 | 1.00 | 1.21 | |
| Damping felt | ||||
| 044 | 443153-6 | 1.00 | 1.21 | |
| Hexagonal Bolt | ||||
| 045 | 922123-3 | 1.00 | 1.21 | |
| Crankshaft Cover HR3011/12 | ||||
| 046 | 319802-6 | 7.20 | 8.71 | |
| Spring retaining ring | ||||
| 047 | 961140-8 | 1.20 | 1.45 | |
| Ball bearing 6806ddw | ||||
| 048 | 211423-9 | 4.80 | 5.81 | |
| Bearing Lock Ring B HR3001/11 | ||||
| 049 | 347500-2 | 1.20 | 1.45 | |
| Balance Weight HR3001/11 | ||||
| 050 | 140J31-8 | 36.30 | 43.92 | |
| Balance Holder HR3001/11 | ||||
| 051 | 310927-9 | 3.60 | 4.36 | |
| Inbusbout M4x20mm | ||||
| 052 | 266948-8 | 1.00 | 1.21 | |
| Sealing ring B HR3001/11 | ||||
| 053 | 459182-9 | 1.20 | 1.45 | |
| Tapschroef 5x20 | ||||
| 054 | 266021-4 | 1.20 | 1.45 | |
| Crankcase cpl HR3001/11 | ||||
| 055 | 140J33-4 | 23.10 | 27.95 | |
| Pressure Spring 2 HR3001/11 | ||||
| 056 | 232499-3 | 1.00 | 1.21 | |
| Pressure plate HR3001/11 | ||||
| 057 | 310929-5 | 1.00 | 1.21 | |
| Mounting bushing | ||||
| 058 | 455165-7 | 1.00 | 1.21 | |
| O-ring 18 | ||||
| 059 | 213262-3 | 1.20 | 1.45 | |
| Coupling plate HR3001/11 | ||||
| 060 | 459175-6 | 2.40 | 2.90 | |
| Bearing Lock Washer A HR3001/11 | ||||
| 061 | 347497-5 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 062 | 234019-9 | 1.00 | 1.21 | |
| Hexagonal Bolt | ||||
| 063 | 922123-3 | 1.00 | 1.21 | |
| Connection Plate | ||||
| 064 | 345814-3 | 1.00 | 1.21 | |
| Guide Plate HR3001/11 | ||||
| 065 | 347498-3 | 1.20 | 1.45 | |
| Hexagonal Bolt | ||||
| 066 | 922123-3 | 1.00 | 1.21 | |
| Crankshaft cpl HR3001/11 | ||||
| 067 | 140M22-7 | 10.80 | 13.07 | |
| Ball Bearing 6904 | ||||
| 068 | 211323-3 | 8.40 | 10.16 | |
| Lock Ring S-20 | ||||
| 069 | 961060-6 | 1.00 | 1.21 | |
| Pressure Spring 21-26 HR3001/11 | ||||
| 070 | 232498-5 | 1.00 | 1.21 | |
| Coupling HR3001/11 | ||||
| 071 | 327273-3 | 3.60 | 4.36 | |
| Gear 31 B HR3001/11 | ||||
| 072 | 226869-6 | 8.40 | 10.16 | |
| Rivet 29 | ||||
| 073 | 267353-2 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 074 | 961034-7 | 1.00 | 1.21 | |
| Washer 16 | ||||
| 075 | 345818-5 | 1.00 | 1.21 | |
| Gear 8 HR3001/11 | ||||
| 076 | 226867-0 | 9.60 | 11.62 | |
| Feather Key 4 | ||||
| 077 | 254239-9 | 1.20 | 1.45 | |
| Ball Bearing 6001dw | ||||
| 078 | 211131-2 | 9.60 | 11.62 | |
| Torque limiter | ||||
| 079 | 125386-2 | 41.80 | 50.58 | |
| Locking Ring S-10 | ||||
| 080 | 257408-1 | 1.20 | 1.45 | |
| Ball Bearing 608ddw | ||||
| 081 | 210005-4 | 4.80 | 5.81 | |
| Sealing ring A HR3001/11 | ||||
| 082 | 459181-1 | 1.00 | 1.21 | |
| Gear housing HR3011/12 | ||||
| 083 | 136330-4 | 13.20 | 15.97 | |
| 16 * Washer | ||||
| 084 | 253749-3 | 1.00 | 1.21 | |
| O-ring 26 | ||||
| 085 | 213407-3 | 1.20 | 1.45 | |
| Foam rubber HR3011FC | ||||
| 086 | 459183-7 | 1.00 | 1.21 | |
| Air Intake HR3001/12 | ||||
| 087 | 140J32-6 | 6.00 | 7.26 | |
| Sleeve 10 | ||||
| 088 | 331775-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 089 | 211097-6 | |||
| Washer 10 | ||||
| 090 | 253828-7 | 1.00 | 1.21 | |
| Armature assembly HR008G | ||||
| 091 | 519722-6 | 53.90 | 65.22 | |
| Ball bearing 626zz | ||||
| 092 | 210143-2 | 3.60 | 4.36 | |
| Spring washer 12 HR008G | ||||
| 093 | 253555-6 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 094 | 265B67-9 | 1.00 | 1.21 | |
| Intermediate plate HR008G | ||||
| 095 | 413F13-2 | 2.40 | 2.90 | |
| Field | ||||
| 096 | 629A96-4 | 38.50 | 46.58 | |
| Motor housing cpl HR008G | ||||
| 097 | 141H81-4 | 10.80 | 13.07 | |
| Rubber Pin 4 | ||||
| 097C10 | 263027-3 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 098 | 265B67-9 | 1.00 | 1.21 | |
| Housing kit HR008G | ||||
| 099 | 183V77-3 | 8.40 | 10.16 | |
| Handle base HR008G | ||||
| 100 | 413F12-4 | 8.40 | 10.16 | |
| Buffer ring HR001G | ||||
| 101 | 459184-5 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 102 | 265B67-9 | 1.00 | 1.21 | |
| Pressure Spring 10 HR3001/11 | ||||
| 103 | 232500-4 | 1.00 | 1.21 | |
| Battery holder HR008G | ||||
| 104 | 422863-8 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 105 | 265B67-9 | 1.00 | 1.21 | |
| Change lever HR3001/11 | ||||
| 106 | 459174-8 | 1.20 | 1.45 | |
| NAMEPLATE HR008G | ||||
| 107 | 8119V9-3 | 1.00 | 1.21 | |
| Damper HR001G | ||||
| 108 | 422472-3 | 2.40 | 2.90 | |
| Shaft 3mm HR001G | ||||
| 109 | 256886-2 | 1.00 | 1.21 | |
| Accelerometer HR008G | ||||
| 110 | 620J19-9 | 33.00 | 39.93 | |
| Housing kit HR008G | ||||
| 111 | 183V77-3 | 8.40 | 10.16 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 112 | 265B67-9 | 1.00 | 1.21 | |
| COVER DSP601/DHR400 A | ||||
| 113 | 140G30-2 | 1.74 | 2.11 | |
| O-ring 16 SP001G | ||||
| 113C10 | 213A05-9 | 1.00 | 1.21 | |
| HR008G Handle Set | ||||
| 114 | 183V96-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 114C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT logo | ||||
| 114C20 | 8005T5-8 | 2.40 | 2.90 | |
| Cover HR007G | ||||
| 115 | 459753-2 | 1.00 | 1.21 | |
| L+r switch lever | ||||
| 116 | 453124-5 | 2.40 | 2.90 | |
| Switch JR001G | ||||
| 117 | 651439-6 | 17.60 | 21.30 | |
| Controller HR008G | ||||
| 118 | 620J18-1 | 154.00 | 186.34 | |
| Control unit GA-40V series | ||||
| 119 | 632P65-6 | 8.40 | 10.16 | |
| Assisting plate HR007G | ||||
| 120 | 347885-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 121 | 8119W3-2 | |||
| LED Circuit HR007G | ||||
| 122 | 620G34-5 | 6.00 | 7.26 | |
| HR008G Handle Set | ||||
| 123 | 183V96-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 123C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT logo | ||||
| 123C20 | 8005T5-8 | 2.40 | 2.90 | |
| ZIJHANDGREEP COMBIHAMER | ||||
| 124 | 126882-3 | 12.00 | 14.52 | |
| Blocking Button DHR281/283 | ||||
| 125 | 144959-2 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 126 | 233360-7 | 1.00 | 1.21 | |
| Wing bolt M6x50mm | ||||
| 127 | 265625-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 128 | 458355-1 | |||
| Hex Nut M6 | ||||
| 129 | 931302-2 | 1.00 | 1.21 | |
| Foam rubber DHR281 | ||||
| 130 | 422258-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 131 | 458357-7 | |||
| Hand group cover cap DHR281/283 | ||||
| 132 | 422255-1 | 1.20 | 1.45 | |
| Mounting pin h-gr DHR281/283 | ||||
| 133 | 161838-9 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 135 | 8052T1-3 | |||
