Here you will find all available parts and drawings of the 'Makita HR005G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

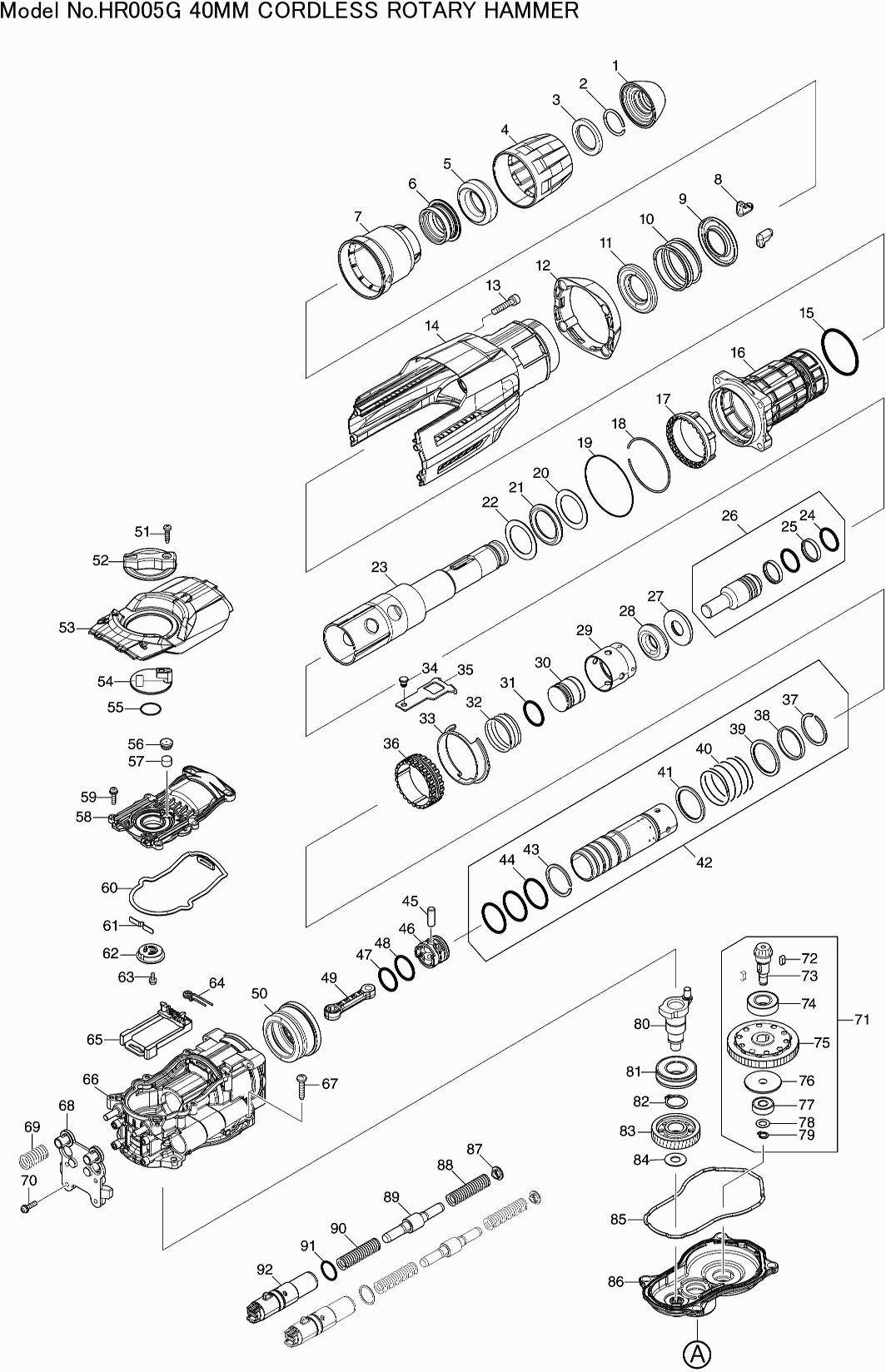

Technical drawing of model Makita HR005G
Spare parts list of model Makita HR005G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chisel Holder Cap | ||||
| 001 | 286292-7 | 2.40 | 2.90 | |
| Lock ring 25 | ||||
| 002 | 233948-3 | 1.20 | 1.45 | |
| Washer 28 | ||||
| 003 | 257308-5 | 2.40 | 2.90 | |
| Chisel lock cap | ||||
| 004 | 454330-5 | 2.40 | 2.90 | |
| Rubber washer 30 | ||||
| 005 | 262167-4 | 4.80 | 5.81 | |
| Lock Ring | ||||
| 006 | 326272-2 | 6.00 | 7.26 | |
| Unlock Cap | ||||
| 007 | 454331-3 | 2.40 | 2.90 | |
| Tool clamp | ||||
| 008 | 310257-8 | 7.20 | 8.71 | |
| Spring Guide | ||||
| 009 | 346670-4 | 1.20 | 1.45 | |
| Compression spring 46mm | ||||
| 010 | 234288-2 | 1.00 | 1.21 | |
| Spring Guide | ||||
| 011 | 346670-4 | 1.20 | 1.45 | |
| Covering hood | ||||
| 012 | 424560-2 | 2.40 | 2.90 | |
| Hex bolt 6x30 | ||||
| 013 | 922351-0 | 1.00 | 1.21 | |
| Housing cover | ||||
| 014 | 141957-7 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 014C10 | 810100-6 | |||
| O-ring 46 | ||||
| 015 | 213615-6 | 1.20 | 1.45 | |
| Complete cylinder | ||||
| 016 | 141956-9 | 44.00 | 53.24 | |
| Seal Ring Hr4013 | ||||
| 016C10 | 213490-0 | 3.60 | 4.36 | |
| O-ring 32 | ||||
| 016C20 | 213492-6 | 2.40 | 2.90 | |
| Washer Ring 45 | ||||
| 016C30 | 233963-7 | 1.00 | 1.21 | |
| Blocking Bush | ||||
| 017 | 454337-1 | 2.40 | 2.90 | |
| Washer 59 | ||||
| 018 | 234290-5 | 1.00 | 1.21 | |
| O-ring 65 | ||||
| 019 | 213707-1 | 2.40 | 2.90 | |
| Washer 32 | ||||
| 020 | 267469-3 | 1.00 | 1.21 | |
| Rubber washer 32 | ||||
| 021 | 262168-2 | 2.40 | 2.90 | |
| Washer 32 | ||||
| 022 | 267469-3 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 023 | 326268-3 | 139.70 | 169.04 | |
| O-ring 20 | ||||
| 024 | 213317-4 | 1.00 | 1.21 | |
| Fluoride ring 25 | ||||
| 025 | 213392-0 | 9.60 | 11.62 | |
| Strike bolt HR005G | ||||
| 026 | 136377-8 | 30.80 | 37.27 | |
| Washer 17 | ||||
| 027 | 326274-8 | 2.40 | 2.90 | |
| Rubber Washer 18 | ||||
| 028 | 262166-6 | 4.80 | 5.81 | |
| Guide Bush | ||||
| 029 | 454347-8 | 2.40 | 2.90 | |
| Jackhammer | ||||
| 030 | 326270-6 | 3.60 | 4.36 | |
| O-ring 22 | ||||
| 031 | 213695-2 | 3.60 | 4.36 | |
| Compression spring 33mm | ||||
| 032 | 234289-0 | 1.00 | 1.21 | |
| Guide Ring | ||||
| 033 | 346673-8 | 4.80 | 5.81 | |
| Flat head pin 6mm . | ||||
| 034 | 256548-2 | 1.00 | 1.21 | |
| Connection Plate | ||||
| 035 | 346671-2 | 1.20 | 1.45 | |
| Guide Bush | ||||
| 036 | 313255-1 | 10.80 | 13.07 | |
| Spring retaining ring | ||||
| 037 | 257991-8 | 1.20 | 1.45 | |
| Washer 33 | ||||
| 038 | 257340-9 | 1.20 | 1.45 | |
| Washer 33 | ||||
| 039 | 267470-8 | 1.20 | 1.45 | |
| Compression spring 34mm | ||||
| 040 | 234287-4 | 1.00 | 1.21 | |
| Washer 33 | ||||
| 041 | 267470-8 | 1.20 | 1.45 | |
| 28.5 Cylinder HR005G | ||||
| 042 | 136378-6 | 66.00 | 79.86 | |
| Spring retaining ring | ||||
| 043 | 257991-8 | 1.20 | 1.45 | |
| O-ring 30 | ||||
| 044 | 213406-5 | 1.20 | 1.45 | |
| Pin 7 | ||||
| 045 | 256197-5 | 1.20 | 1.45 | |
| Piston | ||||
| 046 | 419004-5 | 2.40 | 2.90 | |
| O-ring 21 | ||||
| 047 | 213379-2 | 1.00 | 1.21 | |
| O-ring 22 | ||||
| 048 | 213695-2 | 3.60 | 4.36 | |
| Connecting Rod | ||||
| 049 | 454317-7 | 6.00 | 7.26 | |
| Gear 26 | ||||
| 050 | 227613-4 | 16.50 | 19.96 | |
| Tapping screw Pt4x20 | ||||
| 051 | 266045-0 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 052 | 454326-6 | 2.40 | 2.90 | |
| Crankshaft cover HR005G | ||||
| 053 | 313325-6 | 10.80 | 13.07 | |
| Crankshaft guide | ||||
| 054 | 454345-2 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 055 | 213262-3 | 1.20 | 1.45 | |
| Filter cap | ||||
| 056 | 424556-3 | 1.00 | 1.21 | |
| Filter | ||||
| 057 | 443182-9 | 1.00 | 1.21 | |
| Gear Housing Cover | ||||
| 058 | 454319-3 | 3.60 | 4.36 | |
| Screw 4x16 A | ||||
| 059 | 911526-6 | 1.00 | 1.21 | |
| Seal ring B | ||||
| 060 | 424559-7 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 061 | 232280-2 | 1.00 | 1.21 | |
| Connecting ring DHR400 | ||||
| 062 | 458100-4 | 2.40 | 2.90 | |
| Screw 4X10 | ||||
| 063 | 911511-9 | 1.00 | 1.21 | |
| Torsion Spring 7 | ||||
| 064 | 233603-7 | 1.00 | 1.21 | |
| Connecting Washer | ||||
| 065 | 454338-9 | 2.40 | 2.90 | |
| Crank Case | ||||
| 066 | 141953-5 | 78.10 | 94.50 | |
| Tap Screw 5X25 | ||||
| 067 | 266041-8 | 1.00 | 1.21 | |
| Spring holder HR005G | ||||
| 068 | 140Y51-2 | 4.80 | 5.81 | |
| KAP 10 HR005G | ||||
| 068C10 | 422646-6 | 1.00 | 1.21 | |
| Compression spring 12mm | ||||
| 069 | 234282-4 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 070 | 911526-6 | 1.00 | 1.21 | |
| Torque limiter | ||||
| 071 | 126290-8 | 88.00 | 106.48 | |
| Feather Key 4 | ||||
| 072 | 254239-9 | 1.20 | 1.45 | |
| Gear 7 Hr4013C | ||||
| 073 | 227612-6 | 8.40 | 10.16 | |
| Ball bearing 6002llu | ||||
| 074 | 211232-6 | 8.40 | 10.16 | |
| Torque limiter Hr4013C | ||||
| 075 | 141959-3 | 59.40 | 71.87 | |
| Collar Rivet 8mm | ||||
| 076 | 324727-1 | 4.80 | 5.81 | |
| Ball Bearing 608ddw | ||||
| 077 | 210005-4 | 4.80 | 5.81 | |
| Washer 8 x 14 x 0.5mm | ||||
| 078 | 253215-0 | 1.00 | 1.21 | |
| Lock ring S-8 | ||||
| 079 | 961004-6 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 080 | 326271-4 | 10.80 | 13.07 | |
| Ball Bearing 6004llu | ||||
| 081 | 211332-2 | 7.20 | 8.71 | |
| Lock Ring S-20 | ||||
| 082 | 961060-6 | 1.00 | 1.21 | |
| Gear 37 | ||||
| 083 | 227772-4 | 8.40 | 10.16 | |
| Washer 10 | ||||
| 084 | 253180-3 | 1.20 | 1.45 | |
| Seal ring A | ||||
| 085 | 424558-9 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 086 | 141955-1 | 46.20 | 55.90 | |
| Plate for spring | ||||
| 087 | 454342-8 | 1.20 | 1.45 | |
| Compression spring 11mm | ||||
| 088 | 234286-6 | 1.00 | 1.21 | |
| Counterweight | ||||
| 089 | 326273-0 | 3.60 | 4.36 | |
| Compression spring 11mm | ||||
| 090 | 234286-6 | 1.00 | 1.21 | |
| O-ring 19 | ||||
| 091 | 213325-5 | 1.00 | 1.21 | |
| Holder | ||||
| 092 | 142289-5 | 7.20 | 8.71 | |
| Keerring 10 | ||||
| 093 | 213231-4 | 6.00 | 7.26 | |
| Bus 12 | ||||
| 094 | 331596-3 | 6.00 | 7.26 | |
| Ball Bearing 6201llu | ||||
| 095 | 211137-0 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 096 | 253744-3 | 1.00 | 1.21 | |
| Complete Armature DHR400 | ||||
| 097 | 519492-7 | 112.20 | 135.76 | |
| Ball Bearing 608ddw | ||||
| 098 | 210005-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 099 | 265999-8 | |||
| Intermediate plate DHR400 | ||||
| 100 | 458099-3 | 3.60 | 4.36 | |
| Armature DHR400 | ||||
| 101 | 629335-6 | 56.10 | 67.88 | |
| Cable set HR005G | ||||
| 102 | 632R64-0 | 7.20 | 8.71 | |
| Screw M3X6 | ||||
| 103 | 652031-1 | 1.00 | 1.21 | |
| Controller B HR005G | ||||
| 104 | 620D76-1 | 14.30 | 17.30 | |
| Stopper DHR400 | ||||
| 105 | 687B69-9 | 2.40 | 2.90 | |
| Parker Ck 2x6mm | ||||
| 106 | 266490-9 | 1.00 | 1.21 | |
| Protective Washer | ||||
| 107 | 454348-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 108 | 265999-8 | |||
| Spring Washer 15 | ||||
| 109 | 267721-9 | 1.00 | 1.21 | |
| Motor House DHR400 | ||||
| 110 | 458051-1 | 16.50 | 19.96 | |
| Collar pin 4-6 DHR400 | ||||
| 111 | 256380-4 | 1.00 | 1.21 | |
| Guide plate DHR400 | ||||
| 112 | 347299-9 | 8.40 | 10.16 | |
| Allen bolt M4x10 | ||||
| 113 | 922112-8 | 1.00 | 1.21 | |
| Holder HR005G | ||||
| 114 | 412951-9 | 3.60 | 4.36 | |
| Torsion Spring 13 HR005G | ||||
| 115 | 232643-2 | 1.00 | 1.21 | |
| Lever HR005G | ||||
| 116 | 140W56-0 | 8.40 | 10.16 | |
| Tapping screw 3x14mm HR005G | ||||
| 117 | 263046-9 | 1.00 | 1.21 | |
| Sensor circuit HR005G | ||||
| 118 | 620D75-3 | 8.40 | 10.16 | |
| Tapping screw Pt4x20 | ||||
| 119 | 266045-0 | 1.00 | 1.21 | |
| Circuit DHR400 | ||||
| 120 | 620796-3 | 16.50 | 19.96 | |
| Motor housing HR005G | ||||
| 121 | 140W55-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 121C10 | 422564-8 | |||
| No information available, not orderable | ||||
| 122 | 265999-8 | |||
| No information available, not orderable | ||||
| 123 | 265999-8 | |||
| Motor housing HR005G | ||||
| 124 | 183R84-2 | 48.40 | 58.56 | |
| Compression Spring 8 | ||||
| 125 | 232411-3 | 1.00 | 1.21 | |
| Light Circuit Dhp483 | ||||
| 126 | 620549-0 | 3.60 | 4.36 | |
| Controller HR005G | ||||
| 127 | 620D73-7 | 162.80 | 196.99 | |
| Speed control circuit HR005G | ||||
| 128 | 620D74-5 | 41.80 | 50.58 | |
| Damper HR001G | ||||
| 129 | 422472-3 | 2.40 | 2.90 | |
| Shaft 3mm HR001G | ||||
| 130 | 256886-2 | 1.00 | 1.21 | |
| Bumper HR005G | ||||
| 131 | 422642-4 | 3.60 | 4.36 | |
| Compression spring 13 HR005G | ||||
| 132 | 232650-5 | 1.00 | 1.21 | |
| Battery holder set HR005G | ||||
| 133 | 183R85-0 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 133C10 | 263005-3 | 1.00 | 1.21 | |
| Support Plate | ||||
| 134 | 346039-2 | 1.20 | 1.45 | |
| Connection unit TD001G | ||||
| 135 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 135-1 | 632W77-1 | |||
| Battery holder set HR005G | ||||
| 136 | 183R85-0 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 136C10 | 263005-3 | 1.00 | 1.21 | |
| Tapping screw Pt4x20 | ||||
| 137 | 266045-0 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 138 | 232152-1 | 2.40 | 2.90 | |
| Pull block ring HR005G | ||||
| 139 | 412953-5 | 2.40 | 2.90 | |
| Switch handle DHR400 | ||||
| 140 | 458097-7 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 141 | 232418-9 | 1.00 | 1.21 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 142 | 651083-9 | 19.80 | 23.96 | |
| Motor housing HR005G | ||||
| 143 | 183R84-2 | 48.40 | 58.56 | |
| Cover Cap DGA701 | ||||
| 144 | 140F99-0 | 2.40 | 2.90 | |
| O-ring 16 | ||||
| 144C10 | 213218-6 | 1.20 | 1.45 | |
| Label DGA701 | ||||
| 144C20 | 818H07-8 | 2.40 | 2.90 | |
| Tapping screw Pt4x20 | ||||
| 145 | 266045-0 | 1.00 | 1.21 | |
| Label XGT HS004G | ||||
| 146 | 8012U4-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 147 | 857X76-0 | |||
| NAAMPLAAT HR005G | ||||
| 148 | 857X71-0 | 1.20 | 1.45 | |
