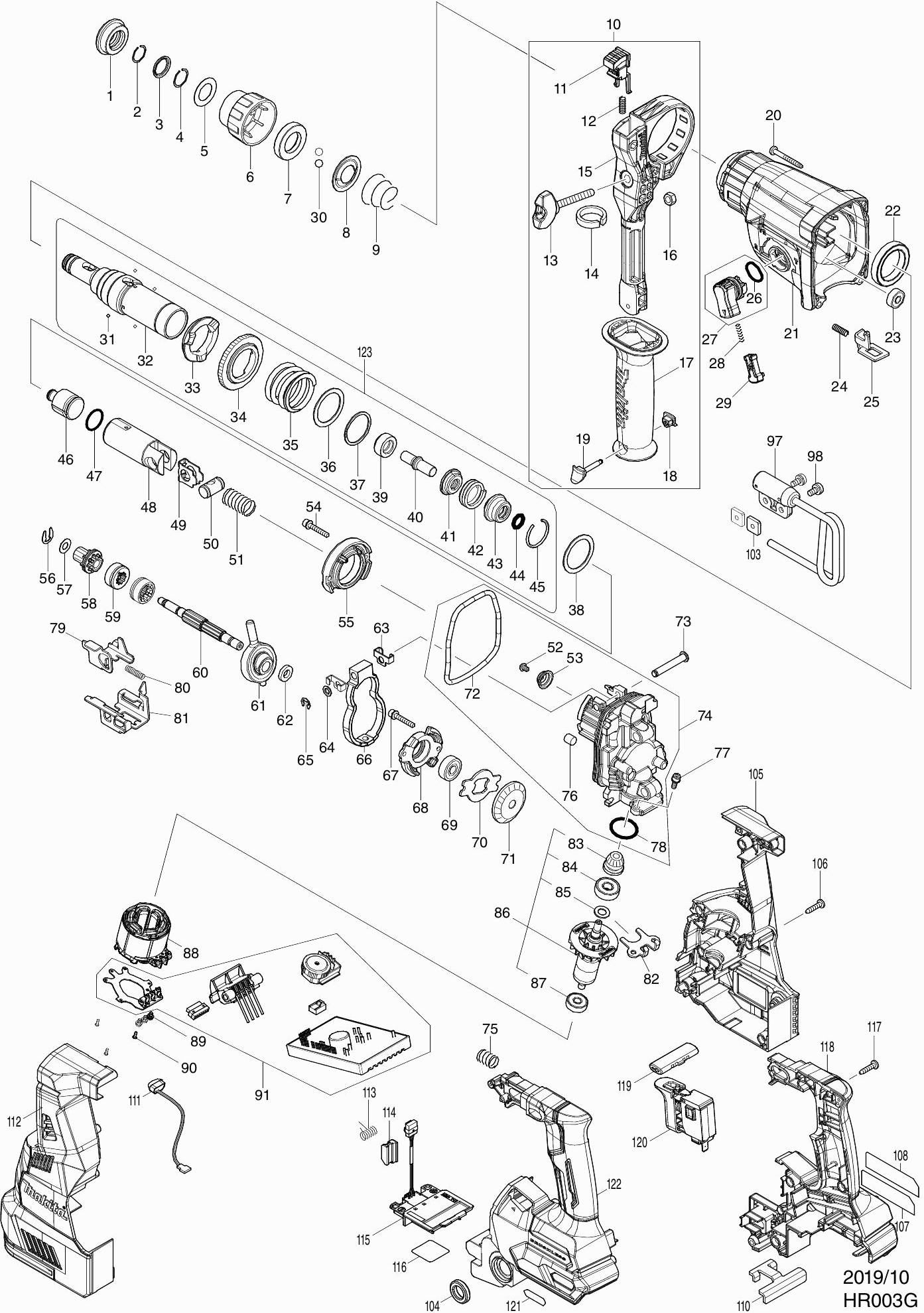

Technical drawing of model Makita HR003G

Spare parts list of model Makita HR003G

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Rubber dust cap 35
001 286288-8 0.83 1.00
Washer 14
002 233989-9 0.83 1.00
Rivet 16mm
003 346834-0 0.83 1.00
Lock washer 15
004 233992-0 0.83 1.00
Washer 17
005 267114-0 0.83 1.00
Chisel lock cap
006 455393-4 0.83 1.00
Locking Ring 21
007 325813-1 1.20 1.45
Guide Ring
008 346177-0 0.83 1.00
Compression Spring 21-29
009 233916-6 0.83 1.00
Zijhandgreep combihamer
010 126882-3 15.00 18.15
Blocking Button DHR281/283
011 144959-2 1.00 1.21
Compression Spring 4
012 233360-7 0.83 1.00
Wing bolt M6x50mm
013 265625-9 0.98 1.19
Foam rubber DHR281
014 422258-5 0.83 1.00
No information available, not orderable
015 458355-1
Hex Nut M6
016 931302-2 0.83 1.00
No information available, not orderable
017 458357-7
Hand group cover cap DHR281/283
018 422255-1 0.98 1.19
Mounting pin h-gr DHR281/283
019 161838-9 3.12 3.78
Screw 4x35
020 266351-3 0.83 1.00
Gearbox DHR281/283
021 144965-7 11.82 14.30
Seal ring 25
021C10 213345-9 1.39 1.68
Socket
021C20 331890-3 2.71 3.28
Ball Bearing 6806llu
022 211294-4 8.21 9.93
No information available, not orderable
023 211012-0
Compression Spring 4
024 233360-7 0.83 1.00
Blocking Plate
025 347228-2 1.18 1.43
O-ring 17
026 213278-8 0.83 1.00
Switch button DHR281/283
027 135961-6 1.39 1.68
Compression Spring 3x28mm
028 234264-6 0.83 1.00
Locking Button
029 457709-9 0.83 1.00
Steel ball 7.0
030 216022-2 0.83 1.00
Steel ball 3
031 216019-1 0.83 1.00
Drill/Chisel Holder
032 142972-4 21.08 25.51
Seal ring 9
032C10 213344-1 3.96 4.79
No longer available, no replacement
033 332139-4
No longer available, no replacement
034 227360-7
Compression spring 31mm
035 234148-8 1.18 1.43
Washer 30
036 267153-0 0.83 1.00
Lock ring spiro30
037 257932-4 3.12 3.78
Washer 30
038 267153-0 0.83 1.00
Bushing 9b
039 325783-4 0.98 1.19
Slagstuk "a"
040 325789-2 1.18 1.43
Ring 10
041 325792-3 1.18 1.43
Compression Spring 20
042 234149-6 0.98 1.19
O-ring huis "b"
043 325793-1 2.71 3.28
O-ring 9
044 213073-6 0.83 1.00
Spring washer 28
045 233979-2 0.83 1.00
Jackhammer
046 325784-2 2.71 3.28
O-ring 17.5
047 213258-4 2.02 2.44
Piston DHR281/283
048 327079-9 6.38 7.72
Guide plate
049 346036-8 0.83 1.00
Piston Pin Hr2440/50 A
050 324215-8 2.02 2.44
Pressure spring 14mm DHR281/283
051 232449-8 0.83 1.00
Allen Bolt M4x8mm
052 265A87-7 0.83 1.00
Spring guide DHR281/283
053 347344-0 0.83 1.00
Hex Bolt Hr5210C
054 922148-7 0.83 1.00
Guide ring DHR281/283
055 144960-7 3.54 4.28
Stopring Ext-u6
056 257336-0 0.83 1.00
Washer 7 LF1000 A
057 267322-3 0.83 1.00
Gear 10 DHR281/283
058 226170-9 6.38 7.72
Clutch Plate
059 310678-4 5.06 6.12
Coupling DHR281/283
060 327078-1 5.06 6.12
Pendulum Bearing 10 DHR281/283
061 219030-2 13.82 16.72
Washer 8
062 257321-3 0.83 1.00
Weight Holder
063 346538-4 0.83 1.00
Washer 6
064 253077-6 0.83 1.00
Retaining Ring E-5
065 961018-5 0.83 1.00
Balance Weight DHR281/283
066 310869-7 3.96 4.79
Hex Bolt Hr5210C
067 922148-7 0.83 1.00
Bearing Housing DHR281/283
068 319674-9 2.36 2.86
Ball Bearing 608Zz A
069 210046-0 0.83 1.00
B Bearing Lock DHR281/283
070 347343-2 1.00 1.21
Gear 32 DHR281/283
071 221599-4 5.70 6.90
O-ring 74mm DHR281/283
072 213850-6 0.98 1.19
Flat head pin 6mm .
073 256536-9 0.98 1.19
Inner housing HR001 series
074 136194-6 25.36 30.69
Compression spring 10mm DHR281/283
075 232436-7 0.83 1.00
Damping felt
076 443153-6 0.83 1.00
Allen bolt m4x12
077 922118-6 0.83 1.00
O-ring 22.4
078 213008-7 0.98 1.19
Swap Plate B
079 347230-5 1.67 2.02
Compression Spring 5
080 234343-0 0.83 1.00
Swap Plate A
081 347229-0 2.36 2.86
Bearing Lock A
082 346536-8 1.18 1.43
Gear 11 DHR281/283
083 144964-9 4.45 5.38
Ball bearing 608 2rs
084 210024-0 3.12 3.78
Washer 8 x 14 x 1mm
085 253835-0 0.83 1.00
Anker assy DHR281/283 A
086 619841-9 63.68 77.05
Ball bearing 626zz
087 210143-2 2.71 3.28
Field HR001G
088 629454-8 11.82 14.30
Phillips Head Screw M3X6
089 652069-6 0.83 1.00
Parker Ck 2x6mm
090 266490-9 0.83 1.00
No information available, not orderable
091 620B99-7
No information available, not orderable
091-1 620K80-2
Carry Hook
097 127344-4 9.00 10.89
Screw 5x12
098 911211-1 0.83 1.00
Square nut M5
103 264002-2 0.83 1.00
Buffer ring HR001G
104 459184-5 0.83 1.00
Motor Housing HR003G
105 183N56-3 15.60 18.88
No information available, not orderable
106 266326-2
Name plate HR003G
107 856N55-5 2.71 3.28
No information available, not orderable
108 8008C4-9
Support Plate
110 346039-2 1.00 1.21
Light Circuit Dhp483
111 620549-0 3.54 4.28
Motor Housing HR003G
112 183N56-3 15.60 18.88
Torsion spring 6mm
113 233598-4 0.83 1.00
Blocking handle
114 313226-8 0.83 1.00
Connection unit HR001G
115 632P64-8 8.21 9.93
Serial number label HR003G
116 856N60-2 0.83 1.00
No information available, not orderable
117 266326-2
Handle Set HR003G
118 183N53-9 13.82 16.72
Rubber pen 6
118C10 263005-3 0.83 1.00
L+r switch lever
119 453124-5 0.83 1.00
Switch JR001G
120 651439-6 17.38 21.03
Label XGT logo
121 8005T5-8 0.83 1.00
Handle Set HR003G
122 183N53-9 13.82 16.72
Rubber pen 6
122C10 263005-3 0.83 1.00
Complete drill/chisel head holder HR003G
123 135966-6 30.70 37.15
