Here you will find all available parts and drawings of the 'Makita HP331D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

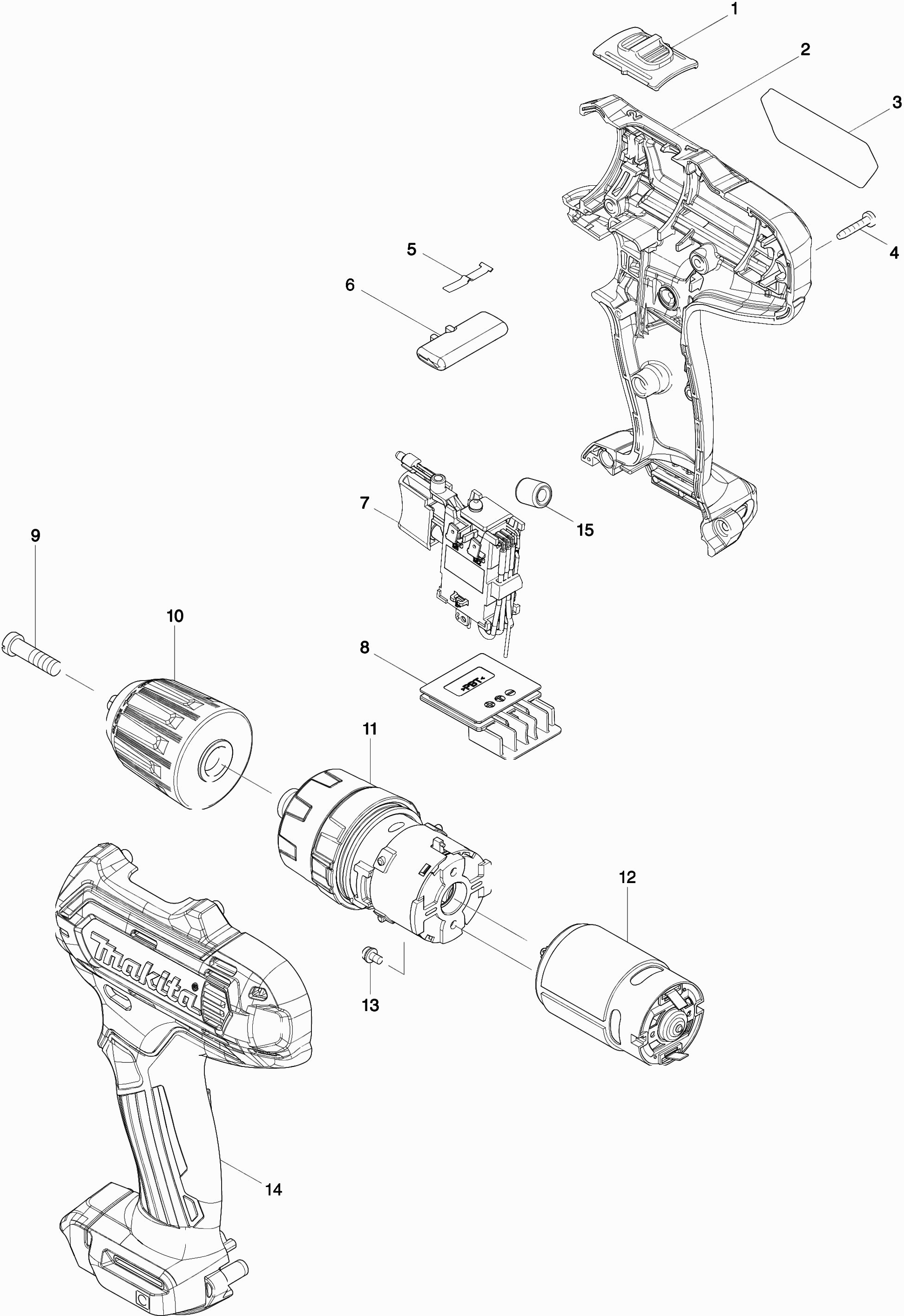

Technical drawing of model Makita HP331D
Spare parts list of model Makita HP331D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 126233-0 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 001A | 231433-0 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 002 | 183B50-3 | 9.60 | 11.62 | |
| Lock Nut M4x7mm | ||||
| 002A | 252126-6 | 1.00 | 1.21 | |
| Name plate HP331D 12Vmax * | ||||
| 003 | 851H12-2 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232239-9 | 1.00 | 1.21 | |
| F/r switch button | ||||
| 006 | 456039-5 | 1.00 | 1.21 | |
| Switch Df/Hp331 A | ||||
| 007 | 632J76-5 | 26.40 | 31.94 | |
| LED Circuit | ||||
| 007A | 620463-0 | 2.40 | 2.90 | |
| Line filter unit | ||||
| 007B | 632F65-6 | 3.60 | 4.36 | |
| Connection unit | ||||
| 008 | 644813-5 | 2.40 | 2.90 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| BOORKOP SNELSPAN 1-10MM | ||||
| 010 | 763229-6 | 11.00 | 13.31 | |
| Gear set | ||||
| 011 | 123502-0 | 39.60 | 47.92 | |
| Motor 10.8v | ||||
| 012 | 629167-1 | 11.00 | 13.31 | |
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 014 | 183B50-3 | 9.60 | 11.62 | |
| Lock Nut M4x7mm | ||||
| 014A | 252126-6 | 1.00 | 1.21 | |
| Line filter | ||||
| 015 | 688164-6 | 1.00 | 1.21 | |
