Here you will find all available parts and drawings of the 'Makita HP2030'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

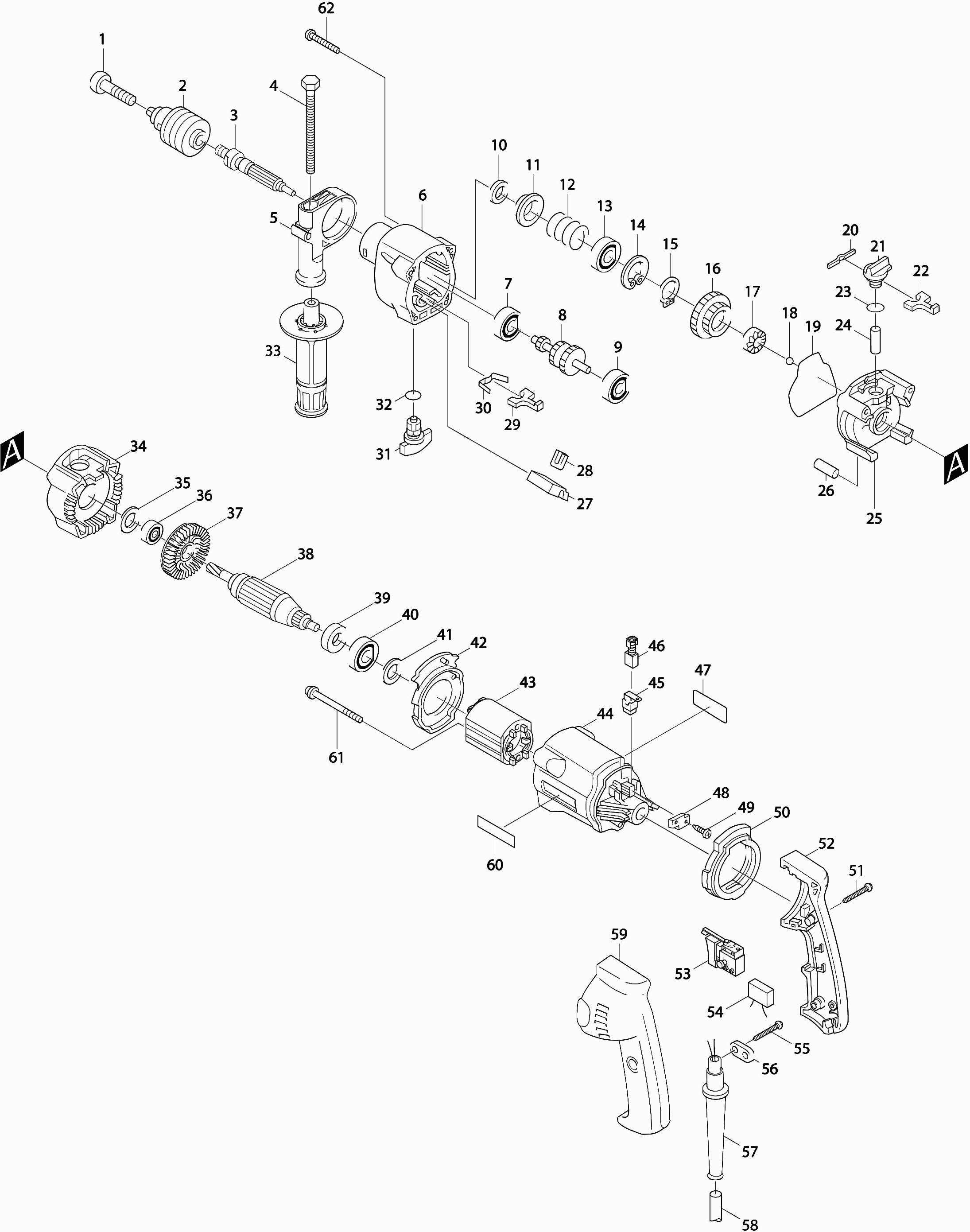

Technical drawing of model Makita HP2030

Spare parts list of model Makita HP2030

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw M6x22
001 251469-3 1.00 1.21
Drill Spindle
003 323854-1 33.35 40.35
Pen 4
003A 256251-5 0.83 1.00
Nut bolt M8x110mm
004 265495-6 0.83 1.00
Zijhandgreep boormachine/combihamer
005 136603-5 4.00 4.84
Gear Housing Hp2030 *
006 415614-6 21.23 25.69
Ball bearing 606Zz A
007 210137-7 0.98 1.19
Gear 8-19-27
008 226818-3 34.95 42.29
Ball bearing 606Zz A
009 210137-7 0.98 1.19
Oil seal 19
010 213314-0 5.06 6.12
Ring 26 Hp2030 *
011 344177-4 0.83 1.00
Compression Spring 16 Hp1500 *
012 233091-8 0.83 1.00
Ball bearing 6202llb
013 211228-7 7.22 8.74
Lock Ring R-35
014 962153-2 0.83 1.00
Lock washer S-15
015 961055-9 0.83 1.00
Gear 27-38
016 226289-4 8.21 9.93
Stroke cam A Hp2030 *
017 223104-3 10.50 12.70
Steel ball 3.5
018 216040-0 0.83 1.00
O-Ring 72 *
019 213759-2 1.39 1.68
Leaf Spring
020 232053-3 0.83 1.00
Adjusting Knob A Hp2030 *
021 415619-6 1.67 2.02
Locking Plate Hp2030 *
022 344178-2 0.83 1.00
O-ring 14
023 213162-7 0.83 1.00
Adjusting pin
024 322787-7 3.96 4.79
Hammer Case
025 151764-0 17.40 21.05
Pen 4
026 256251-5 0.83 1.00
Slide plate Hp2030 *
027 415621-9 0.98 1.19
Exchange Plate Hp2030 *
028 344179-0 0.83 1.00
Locking Plate Hp2030 *
029 344178-2 0.83 1.00
Leaf Spring
030 232143-2 0.83 1.00
Adjusting Knob B Hp2030 *
031 415620-1 1.67 2.02
O-ring 14
032 213162-7 0.83 1.00
No information available, not orderable
033 152521-9
No information available, not orderable
034 415615-4
Washer 16 A
035 267323-1 0.83 1.00
Ball bearing 608llb
036 210043-6 1.67 2.02
Fan 60
037 241850-6 7.22 8.74
Armature
038 517103-8 58.04 70.23
Insulation ring
039 681614-0 0.83 1.00
Ball bearing 627llb
040 210025-8 2.71 3.28
Washer 16 A
041 267323-1 0.83 1.00
Intermediate Plate Hp2030 *
042 415618-8 1.39 1.68
No information available, not orderable
043 633414-4
Motor case Hp2030 *
044 415601-5 21.08 25.51
Brush Holder
045 643923-5 1.18 1.43
Brush Set CB-419
046 195015-1 4.45 5.38
Brush Holder
048 415622-7 0.83 1.00
Tapping screw Pt3x10
049 266007-8 0.83 1.00
Inter-rubber Hp2030 *
050 421505-1 2.38 2.88
Tap screw 4x18
051 265A48-7 0.83 1.00
Handle Set Hp2030
052 182724-1 12.19 14.75
Switch
053 651986-7 25.36 30.69
Tap screw 4x18
055 265A48-7 0.83 1.00
Clamp Bracket
056 687124-5 0.83 1.00
Cable grommet 8-85
057 682502-4 1.67 2.02
Power cord 2x1.00 2.2mtr
058 665383-1 10.50 12.70
Tapschroef Pf 4x65
061 266060-4 1.39 1.68
Tapping screw 5x70mm
062 266038-7 2.02 2.44
