Here you will find all available parts and drawings of the 'Makita HP1500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

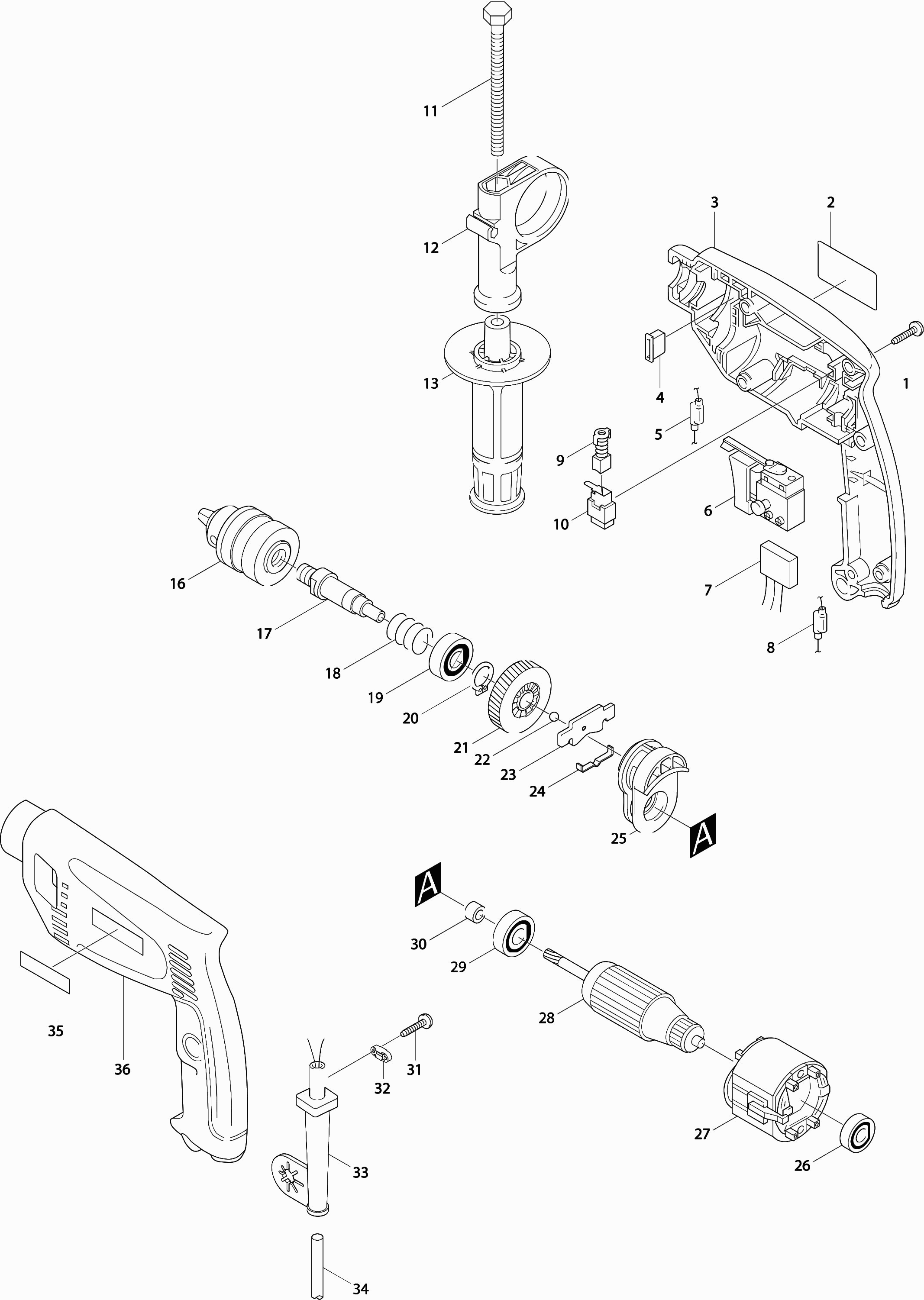

Technical drawing of model Makita HP1500
Spare parts list of model Makita HP1500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing Set * | ||||
| 003 | 182841-7 | 13.20 | 15.97 | |
| Adjustment Button | ||||
| 004 | 415453-4 | 1.00 | 1.21 | |
| Capacitor | ||||
| 005 | 645144-5 | 3.60 | 4.36 | |
| Switch | ||||
| 006 | 651986-7 | 26.40 | 31.94 | |
| Capacitor | ||||
| 007 | 645144-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 008 | 539117-7 | |||
| Brush Set CB-419 | ||||
| 009 | 195015-1 | 4.80 | 5.81 | |
| KOOLBORSTELHOUDR HP1500/2040 A | ||||
| 010 | 643936-6 | 2.40 | 2.90 | |
| Nut bolt M8x110mm | ||||
| 011 | 265495-6 | 1.20 | 1.45 | |
| ZIJHANDGREEP BOORMACHINE/COMBIHAMER | ||||
| 012 | 136603-5 | 4.00 | 4.84 | |
| No information available, not orderable | ||||
| 013 | 152521-9 | |||
| Drill Chuck Screw M6x22mm Li | ||||
| 015 | 251468-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 017 | 322900-7 | |||
| Compression Spring 16 Hp1500 * | ||||
| 018 | 233091-8 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 019 | 211236-8 | 9.60 | 11.62 | |
| Lock washer S-15 | ||||
| 020 | 961055-9 | 1.00 | 1.21 | |
| Gear 41 | ||||
| 021 | 226423-6 | 8.40 | 10.16 | |
| Steel ball 3.5 | ||||
| 022 | 216040-0 | 1.00 | 1.21 | |
| Adjustment plate Hp1500 New A | ||||
| 023 | 344419-6 | 1.20 | 1.45 | |
| Leaf spring Hp1500 | ||||
| 024 | 232134-3 | 1.00 | 1.21 | |
| Striker | ||||
| 025 | 152529-3 | 10.80 | 13.07 | |
| Ball bearing 627llb | ||||
| 026 | 210025-8 | 3.60 | 4.36 | |
| Field | ||||
| 027 | 633303-3 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 028 | 517108-8 | |||
| Ball bearing 608llb | ||||
| 029 | 210043-6 | 2.40 | 2.90 | |
| Spacer 7 * | ||||
| 030 | 262528-8 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 031 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 032 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 032 | 687124-5 | 1.00 | 1.21 | |
| Cable grommet | ||||
| 033 | 682549-8 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 034 | 665383-1 | 10.80 | 13.07 | |
| Pen 4 | ||||
| 050 | 256251-5 | 1.00 | 1.21 | |
