Here you will find all available parts and drawings of the 'Makita HP1310'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

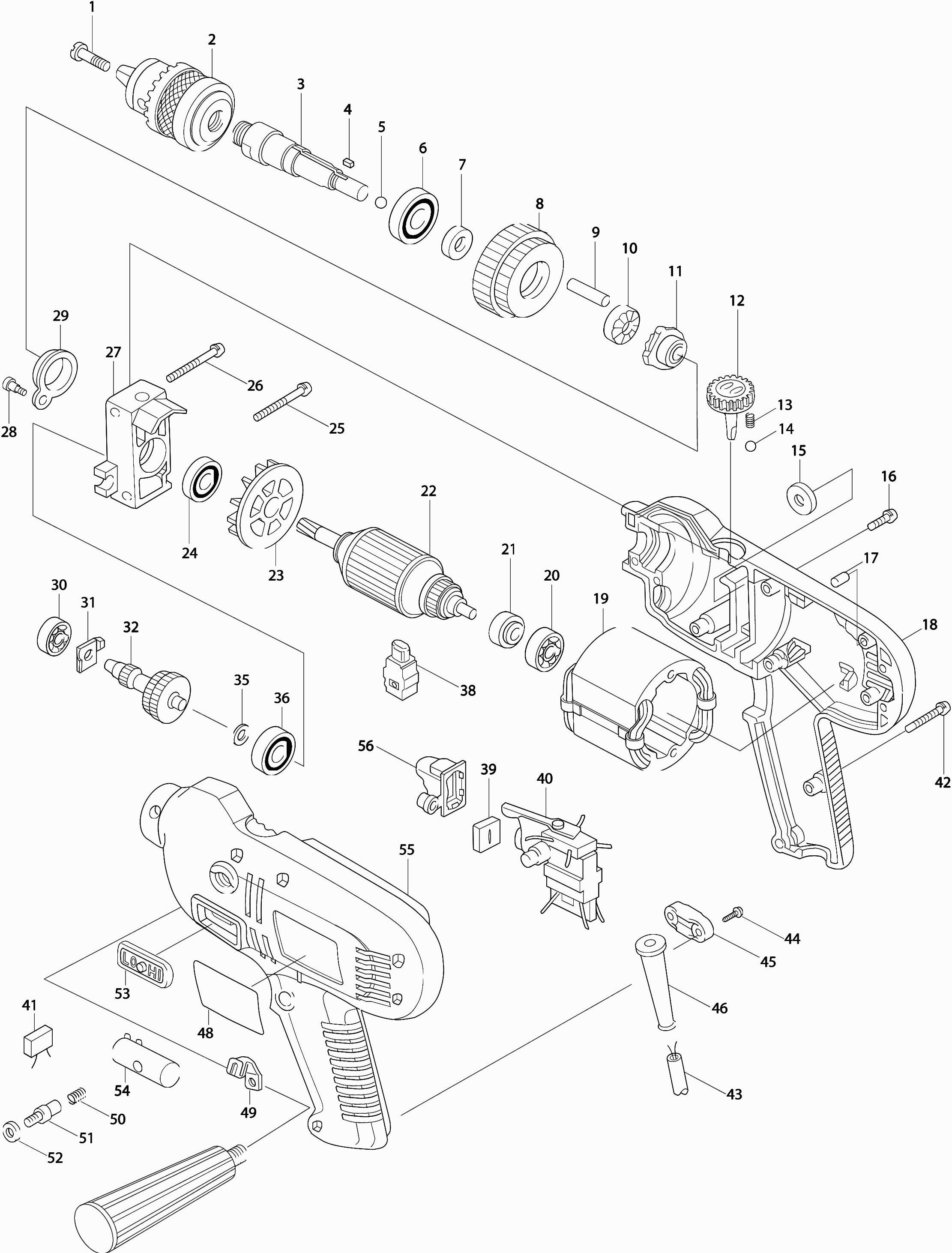

Technical drawing of model Makita HP1310
Spare parts list of model Makita HP1310
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 251425-3 | |||
| No information available, not orderable | ||||
| 002 | 763055-3 | |||
| No information available, not orderable | ||||
| 003 | 321332-5 | |||
| Feather Key 4 | ||||
| 004 | 254011-9 | 1.00 | 1.21 | |
| Steel ball 4.8 | ||||
| 005 | 216002-8 | 1.00 | 1.21 | |
| Ball bearing 6202llb | ||||
| 006 | 211228-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 007 | 257074-4 | |||
| Gear 47-57 Hp1300 * | ||||
| 008 | 226050-9 | 36.30 | 43.92 | |
| No information available, not orderable | ||||
| 009 | 256103-0 | |||
| No information available, not orderable | ||||
| 010 | 223056-8 | |||
| No information available, not orderable | ||||
| 011 | 153129-2 | |||
| Screw 23 Hp1300 * | ||||
| 012 | 271407-9 | 7.20 | 8.71 | |
| Compression Spring 24 | ||||
| 013 | 231282-5 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 014 | 216040-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015 | 261046-3 | |||
| Screw 4x12 | ||||
| 016 | 911116-5 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 017 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 181339-1 | |||
| No information available, not orderable | ||||
| 019 | 521433-1 | |||
| Ball bearing 627llb | ||||
| 020 | 210025-8 | 3.60 | 4.36 | |
| Insulation ring | ||||
| 021 | 681614-0 | 1.00 | 1.21 | |
| Armature Hp1310 * | ||||
| 022 | 511998-1 | 56.10 | 67.88 | |
| Fan 62 * | ||||
| 023 | 241814-0 | 7.20 | 8.71 | |
| Ball bearing 627llb | ||||
| 024 | 210025-8 | 3.60 | 4.36 | |
| Screw 4X40 | ||||
| 025 | 911170-9 | 1.00 | 1.21 | |
| Screw 4x35 | ||||
| 026 | 911163-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 315219-1 | |||
| Screw 4x8 | ||||
| 028 | 911106-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 341628-8 | |||
| Ball bearing 626llb | ||||
| 030 | 211016-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 031 | 341658-9 | |||
| No information available, not orderable | ||||
| 032 | 153166-6 | |||
| Inlegspie 3 | ||||
| 033 | 254031-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 034 | 153166-6 | |||
| Washer 6 | ||||
| 035 | 253715-0 | 1.20 | 1.45 | |
| Ball bearing 626llb | ||||
| 036 | 211016-2 | 6.00 | 7.26 | |
| Brush Holder | ||||
| 037 | 643552-4 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 038 | 194968-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 039 | 685721-1 | |||
| Switch Sw-33 | ||||
| 040 | 651934-6 | 34.10 | 41.26 | |
| No longer available, no replacement | ||||
| 041 | 645209-3 | |||
| Screw 4x25 | ||||
| 042 | 911146-6 | 1.00 | 1.21 | |
| Power cord 2x1.00 2.2mtr | ||||
| 043 | 665383-1 | 10.80 | 13.07 | |
| Screw 4X18 | ||||
| 044 | 911131-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 045 | 687001-1 | 1.00 | 1.21 | |
| Cable grommet 10-85 | ||||
| 046 | 682504-0 | 2.40 | 2.90 | |
| Sponge rubber | ||||
| 047 | 685700-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 342965-3 | |||
| No information available, not orderable | ||||
| 050 | 231283-3 | |||
| No information available, not orderable | ||||
| 051 | 321222-2 | |||
| Rivet 3 | ||||
| 052 | 253821-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 053 | 411720-5 | |||
| Switch axis Hp1300 * | ||||
| 054 | 154269-9 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 055 | 251851-6 | |||
