Here you will find all available parts and drawings of the 'Makita HM1810'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

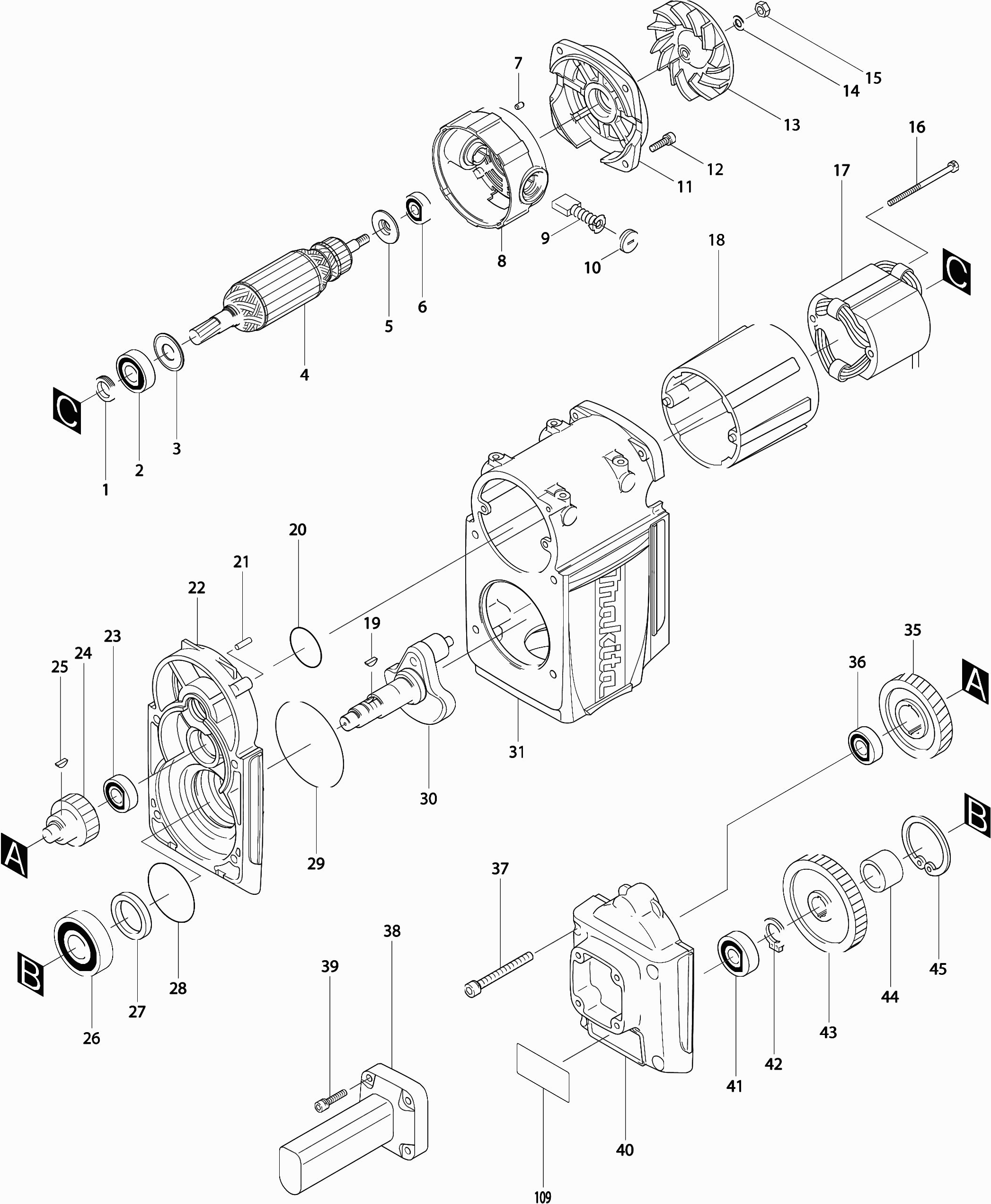

Technical drawing of model Makita HM1810
Spare parts list of model Makita HM1810
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Sealing Screw | ||||
| 001 | 322566-3 | 8.40 | 10.16 | |
| Ball bearing | ||||
| 002 | 211256-2 | 8.10 | 9.80 | |
| Ball Bearing 6203zz | ||||
| 002 | 211290-2 | 6.38 | 7.72 | |
| Washer 17 | ||||
| 003 | 267706-5 | 2.40 | 2.90 | |
| Armature | ||||
| 004 | 516922-9 | 125.40 | 151.73 | |
| Insulation ring | ||||
| 005 | 681646-7 | 6.00 | 7.26 | |
| Ball bearing 6200dw | ||||
| 006 | 211087-9 | 8.40 | 10.16 | |
| Rubber Pin 4 | ||||
| 007 | 263002-9 | 1.00 | 1.21 | |
| Carbon Brush Holder | ||||
| 008 | 154586-7 | 29.70 | 35.94 | |
| Carbon brush clamping ring | ||||
| 008A | 414665-6 | 1.20 | 1.45 | |
| Brush Holder | ||||
| 008B | 643711-0 | 10.80 | 13.07 | |
| Carbon brush set Cb-204 | ||||
| 009* | 194992-4 | 11.00 | 13.31 | |
| Brush holder cap | ||||
| 010 | 643700-5 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 011 | 317899-9 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 012 | 265366-7 | |||
| Fan 100 | ||||
| 013 | 240024-6 | 10.80 | 13.07 | |
| Washer 8 | ||||
| 014 | 253165-9 | 1.00 | 1.21 | |
| NUT M8 | ||||
| 015 | 931402-8 | 1.00 | 1.21 | |
| Screw 5x85 | ||||
| 016 | 911938-3 | 1.20 | 1.45 | |
| Field | ||||
| 017 | 628943-0 | 86.90 | 105.15 | |
| Motor Housing A | ||||
| 018 | 414787-2 | 14.30 | 17.30 | |
| Feather Key 4 | ||||
| 019 | 254001-2 | 1.00 | 1.21 | |
| O-ring 40 | ||||
| 020 | 213507-9 | 1.20 | 1.45 | |
| Pen 5 | ||||
| 021 | 256151-9 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 022 | 154585-9 | 72.60 | 87.85 | |
| Ball bearing 6202llb | ||||
| 023 | 211228-7 | 8.40 | 10.16 | |
| Gear 22 | ||||
| 024 | 226251-9 | 38.50 | 46.58 | |
| Feather Key 4 | ||||
| 025 | 254001-2 | 1.00 | 1.21 | |
| Ball Bearing 6305llb | ||||
| 026 | 211361-5 | 13.20 | 15.97 | |
| Seal Ring 35 | ||||
| 027 | 213476-4 | 7.20 | 8.71 | |
| O-ring 61 | ||||
| 028 | 213721-7 | 7.20 | 8.71 | |
| O-ring 90 | ||||
| 029 | 213806-9 | 2.40 | 2.90 | |
| Crank Shaft | ||||
| 030 | 154588-3 | 34.10 | 41.26 | |
| Crankcase Hm1810 A | ||||
| 031 | 318027-9 | 337.70 | 408.62 | |
| Rubber Pin 4 | ||||
| 032 | 263002-9 | 1.00 | 1.21 | |
| Crankcase cover | ||||
| 033 | 419262-3 | 8.40 | 10.16 | |
| Covering hood | ||||
| 034 | 419263-1 | 9.60 | 11.62 | |
| Gear 50 | ||||
| 035 | 221793-8 | 28.60 | 34.61 | |
| Ball bearing 6202llb | ||||
| 036 | 211228-7 | 8.40 | 10.16 | |
| Hex socket screw M8x75 | ||||
| 037 | 922496-4 | 3.60 | 4.36 | |
| Side Handle | ||||
| 038 | 418415-1 | 12.10 | 14.64 | |
| Allen Bolt m6x30 | ||||
| 039 | 922353-6 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 040 | 317902-6 | 59.40 | 71.87 | |
| Ball bearing 6302 | ||||
| 041 | 211214-8 | 9.60 | 11.62 | |
| Lock Ring S-20 | ||||
| 042 | 961060-6 | 1.00 | 1.21 | |
| Gear 47 | ||||
| 043 | 226242-0 | 59.40 | 71.87 | |
| Housing 25 | ||||
| 044 | 331416-1 | 6.00 | 7.26 | |
| Lock Ring R-62 | ||||
| 045 | 962301-3 | 2.40 | 2.90 | |
| Inbusbout M6x20 | ||||
| 046 | 265905-3 | 1.20 | 1.45 | |
| Washer 6mm A | ||||
| 047 | 267214-6 | 1.00 | 1.21 | |
| Motor Hood | ||||
| 048 | 419324-7 | 29.70 | 35.94 | |
| Washer 63 | ||||
| 049 | 267296-8 | 6.00 | 7.26 | |
| Spacer Ring | ||||
| 050 | 324580-5 | 23.10 | 27.95 | |
| Needle Bearing 2520 | ||||
| 051 | 212358-7 | 11.00 | 13.31 | |
| Connecting Rod Hm1810 A | ||||
| 052 | 154946-3 | 26.40 | 31.94 | |
| Connecting Rod | ||||
| 052 | 322476-4 | 22.00 | 26.62 | |
| Spacer Ring Hm1810 A | ||||
| 052A | 331718-5 | 6.00 | 7.26 | |
| O-Ring 55 Hm1810 | ||||
| 053 | 213662-7 | 1.00 | 1.21 | |
| Piston | ||||
| 054 | 324536-8 | 11.00 | 13.31 | |
| Pen 15 | ||||
| 055 | 268130-5 | 4.80 | 5.81 | |
| O-ring 52 | ||||
| 056* | 213666-9 | 11.00 | 13.31 | |
| Cylinder 62 | ||||
| 057 | 331694-3 | 300.30 | 363.36 | |
| O-ring 52 | ||||
| 058* | 213666-9 | 11.00 | 13.31 | |
| Jackhammer | ||||
| 059 | 324546-5 | 56.10 | 67.88 | |
| Distance support | ||||
| 060 | 418949-4 | 3.60 | 4.36 | |
| Counterweight | ||||
| 061 | 154589-1 | 112.20 | 135.76 | |
| Distance support | ||||
| 062 | 418949-4 | 3.60 | 4.36 | |
| Needle Bearing 1010 Hm1810 | ||||
| 063 | 212075-9 | 3.60 | 4.36 | |
| Connecting Rod Hm1810 A | ||||
| 064 | 154946-3 | 26.40 | 31.94 | |
| O-ring 95 | ||||
| 065 | 213855-6 | 3.60 | 4.36 | |
| Crankcase | ||||
| 066 | 318028-7 | 39.60 | 47.92 | |
| Crankcase Hm1810 A | ||||
| 066A | 318027-9 | 337.70 | 408.62 | |
| Inbusbout M6x20 | ||||
| 067 | 265905-3 | 1.20 | 1.45 | |
| Washer 65 | ||||
| 068 | 267297-6 | 4.80 | 5.81 | |
| Needle bearing 7025 Hm1810 | ||||
| 069 | 212701-0 | 23.10 | 27.95 | |
| Excenter Hm1810 | ||||
| 070 | 154587-5 | 45.10 | 54.57 | |
| Spacer Ring Hm1810 A | ||||
| 071 | 331718-5 | 6.00 | 7.26 | |
| Washer 65 | ||||
| 072 | 267297-6 | 4.80 | 5.81 | |
| Locking Ring R-80 | ||||
| 073 | 962354-2 | 3.60 | 4.36 | |
| O-ring 78 | ||||
| 074 | 213765-7 | 2.40 | 2.90 | |
| Locking cap | ||||
| 075 | 418952-5 | 8.40 | 10.16 | |
| Allen Screw M5X20 | ||||
| 076 | 266464-0 | 1.00 | 1.21 | |
| Plate Hm1810 | ||||
| 077 | 345569-0 | 9.60 | 11.62 | |
| Pen 5 | ||||
| 078 | 256151-9 | 2.40 | 2.90 | |
| Filling cap | ||||
| 079 | 450347-6 | 8.40 | 10.16 | |
| Gasket | ||||
| 080 | 162241-7 | 16.50 | 19.96 | |
| Cylinder | ||||
| 081 | 317905-0 | 248.60 | 300.81 | |
| Lock Washer M12 | ||||
| 082 | 942301-9 | 1.00 | 1.21 | |
| Hex socket bolt M12X55 * | ||||
| 083 | 922677-0 | 6.00 | 7.26 | |
| O-ring 53 | ||||
| 084* | 213660-1 | 3.60 | 4.36 | |
| Cylinder B | ||||
| 085 | 322548-5 | 56.10 | 67.88 | |
| Rubber ring 54 | ||||
| 086 | 262050-5 | 4.80 | 5.81 | |
| Tension pin 8-40 | ||||
| 087 | 951272-9 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 088 | 322550-8 | 28.60 | 34.61 | |
| Chisel Clamp Bracket | ||||
| 089 | 322478-0 | 146.30 | 177.02 | |
| Pen 4 | ||||
| 090 | 256219-1 | 1.00 | 1.21 | |
| Locking Bar | ||||
| 091 | 322477-2 | 24.20 | 29.28 | |
| Compression spring 12 | ||||
| 092 | 233083-7 | 2.40 | 2.90 | |
| Washer For Locking Pin | ||||
| 093 | 322560-5 | 9.60 | 11.62 | |
| Hexagon Socket Bolt 12x45 | ||||
| 094 | 265989-1 | 3.60 | 4.36 | |
| Spring Washer 12 | ||||
| 095 | 253989-3 | 1.20 | 1.45 | |
| Chisel holder | ||||
| 096 | 324539-2 | 300.30 | 363.36 | |
| O-ring 75 | ||||
| 097 | 213755-0 | 3.60 | 4.36 | |
| X-ring 40 | ||||
| 098* | 213517-6 | 23.10 | 27.95 | |
| Striker Pin | ||||
| 099 | 324545-7 | 27.50 | 33.28 | |
| O-ring 60 | ||||
| 100* | 213667-7 | 12.10 | 14.64 | |
| Hammer Holder | ||||
| 101 | 324541-5 | 48.40 | 58.56 | |
| Power cord 2x1.50 4.0mtr | ||||
| 102 | 695123-3 | 22.00 | 26.62 | |
| Cable gland 12-125 | ||||
| 103 | 682546-4 | 3.60 | 4.36 | |
| Indicator Lamp | ||||
| 104 | 631671-8 | 10.80 | 13.07 | |
| Cable harness | ||||
| 105 | 638378-7 | 3.60 | 4.36 | |
| Lens | ||||
| 106 | 418951-7 | 2.40 | 2.90 | |
| Tail Cover | ||||
| 107 | 317901-8 | 42.90 | 51.91 | |
| Allen Bolt m6x45 | ||||
| 108 | 922366-7 | 1.20 | 1.45 | |
| Nameplate Hm1810 A | ||||
| 109 | 858S82-8 | 3.60 | 4.36 | |
| Top cover | ||||
| 110 | 418954-1 | 4.80 | 5.81 | |
| Handle Base Hm1810 A | ||||
| 111 | 419044-3 | 11.00 | 13.31 | |
| Sponge rubber | ||||
| 112 | 685700-9 | 1.00 | 1.21 | |
| Sponge ring | ||||
| 113 | 685722-9 | 2.40 | 2.90 | |
| Line filter | ||||
| 114 | 688131-1 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 115 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 115 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 116 | 265A48-7 | 1.00 | 1.21 | |
| Capacitor 0.22uF | ||||
| 117 | 645190-8 | 2.40 | 2.90 | |
| Sponge ring | ||||
| 118 | 685722-9 | 2.40 | 2.90 | |
| Terminal block | ||||
| 119 | 654554-5 | 4.80 | 5.81 | |
| Hex Bolt M6X65 Hm1810 | ||||
| 120 | 265535-0 | 1.20 | 1.45 | |
| Washer 6mm A | ||||
| 121 | 267214-6 | 1.00 | 1.21 | |
| Handle | ||||
| 122 | 418333-3 | 19.80 | 23.96 | |
| Switch lever | ||||
| 123 | 418332-5 | 6.00 | 7.26 | |
| Dust cover for switch | ||||
| 124 | 421850-4 | 7.20 | 8.71 | |
| Pen 4 | ||||
| 125 | 256206-0 | 1.20 | 1.45 | |
| Dust Plate Support Hm1800 | ||||
| 126 | 345355-9 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 127 | 265A48-7 | 1.00 | 1.21 | |
| Switch Sw-51 | ||||
| 128 | 651131-4 | 22.00 | 26.62 | |
| Switch cap Hm1810 | ||||
| 129 | 419045-1 | 6.00 | 7.26 | |
| Tap screw 4x18 | ||||
| 130 | 265A48-7 | 1.00 | 1.21 | |
| Sponge rubber Hm1810 | ||||
| 131 | 685718-0 | 1.00 | 1.21 | |
| O-ring 22 | ||||
| 133 | 213373-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 134 | 819213-0 | |||
| Rubber cap | ||||
| 136 | 424132-3 | 1.20 | 1.45 | |
