Here you will find all available parts and drawings of the 'Makita HM1317C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

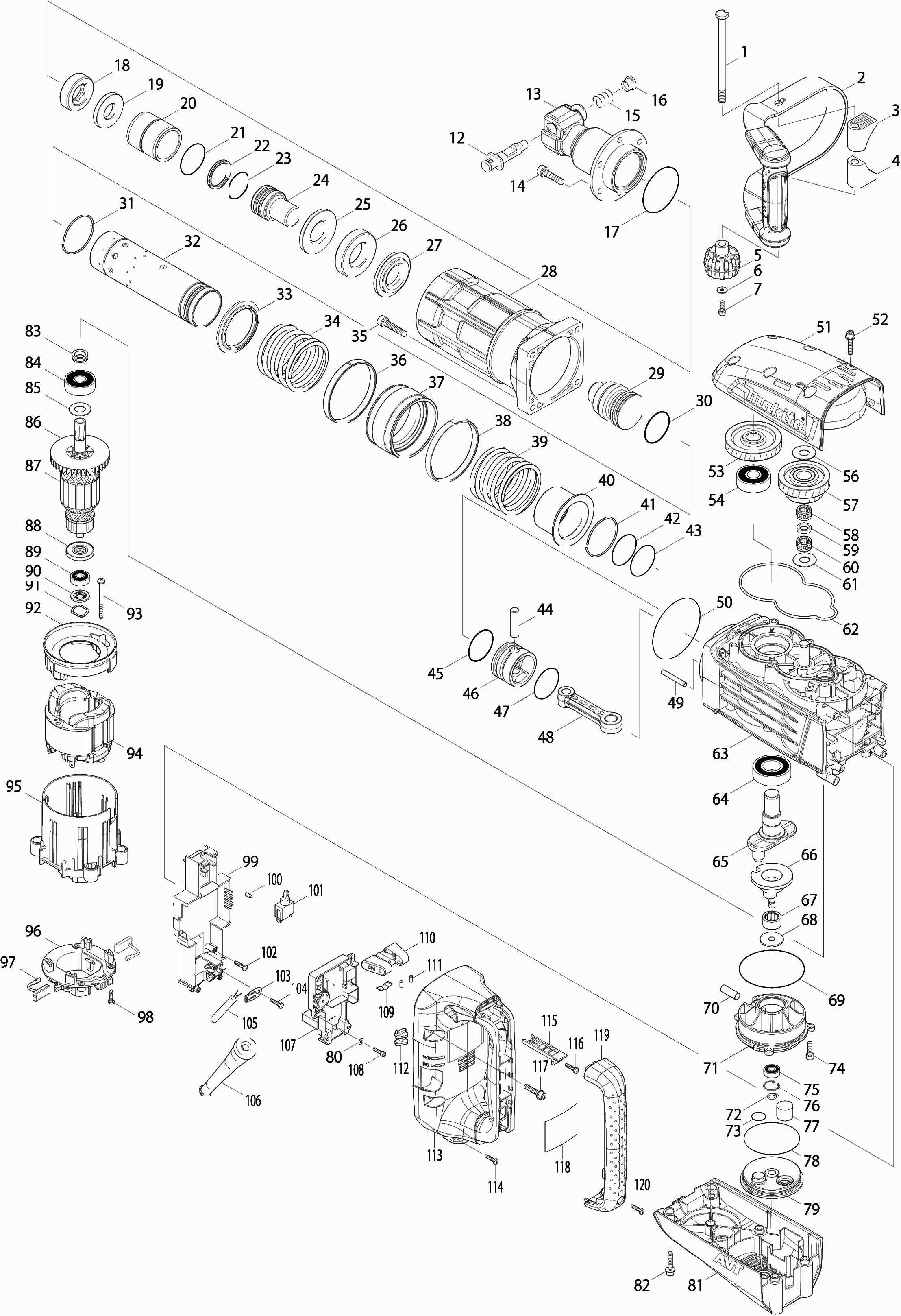

Technical drawing of model Makita HM1317C
Spare parts list of model Makita HM1317C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagonal bolt 10x142 | ||||
| 001 | 266512-5 | 8.40 | 10.16 | |
| Handle clamp | ||||
| 002 | 163506-0 | 29.70 | 35.94 | |
| Handle filling bush | ||||
| 003 | 451331-4 | 1.20 | 1.45 | |
| Handle filling bush | ||||
| 004 | 451331-4 | 1.20 | 1.45 | |
| Knob M8 | ||||
| 005 | 252654-1 | 4.80 | 5.81 | |
| Lock washer 5 | ||||
| 006 | 253194-2 | 1.00 | 1.21 | |
| Allen bolt 5x16 | ||||
| 007 | 922221-3 | 1.00 | 1.21 | |
| Tool clamp | ||||
| 012 | 324099-4 | 4.80 | 5.81 | |
| Guide Bush | ||||
| 013 | 331866-0 | 185.90 | 224.94 | |
| Socket Head Cap Screw M8x35 | ||||
| 014 | 922457-4 | 1.00 | 1.21 | |
| Lock Washer M8 | ||||
| 014A | 942201-3 | 1.00 | 1.21 | |
| Pressure spring 16 | ||||
| 015 | 233309-7 | 2.40 | 2.90 | |
| Lock Pin Bushing | ||||
| 016 | 324135-6 | 6.00 | 7.26 | |
| O-ring 67 | ||||
| 017 | 213720-9 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 018 | 262150-1 | 6.00 | 7.26 | |
| Washer 24 Hm1317c | ||||
| 019 | 267401-7 | 11.00 | 13.31 | |
| Bus 43 | ||||
| 020 | 257782-7 | 19.80 | 23.96 | |
| O-Ring 45 Hm1214C | ||||
| 021* | 213569-7 | 1.00 | 1.21 | |
| Fluoride ring 36 | ||||
| 022* | 213192-8 | 6.00 | 7.26 | |
| O-ring 36 | ||||
| 023* | 213150-4 | 2.40 | 2.90 | |
| Striker Pin | ||||
| 024 | 325682-0 | 26.40 | 31.94 | |
| Ring | ||||
| 025 | 325683-8 | 10.80 | 13.07 | |
| Collar bushing 36 | ||||
| 026 | 424206-0 | 11.00 | 13.31 | |
| Collar Bushing 32 | ||||
| 027 | 325684-6 | 13.20 | 15.97 | |
| Hammer Case | ||||
| 028 | 318458-2 | 82.50 | 99.82 | |
| Jackhammer | ||||
| 029 | 325685-4 | 13.20 | 15.97 | |
| O-ring 42 | ||||
| 030* | 213193-6 | 2.40 | 2.90 | |
| Lock ring 55 | ||||
| 031 | 233977-6 | 1.20 | 1.45 | |
| Cilinder 52 | ||||
| 032 | 331870-9 | 105.60 | 127.78 | |
| Cylinder guide | ||||
| 033 | 451168-9 | 3.60 | 4.36 | |
| Pressure spring 66 | ||||
| 034 | 234111-1 | 9.60 | 11.62 | |
| Hexagon socket screw M8x40 | ||||
| 035 | 265367-5 | 2.40 | 2.90 | |
| Weight guide | ||||
| 036 | 451169-7 | 2.40 | 2.90 | |
| Counterweight | ||||
| 037 | 331867-8 | 14.30 | 17.30 | |
| Weight guide | ||||
| 038 | 451169-7 | 2.40 | 2.90 | |
| Pressure spring 66 | ||||
| 039 | 234111-1 | 9.60 | 11.62 | |
| Guide Bush | ||||
| 040 | 331868-6 | 12.10 | 14.64 | |
| Lock ring 55 | ||||
| 041 | 233977-6 | 1.20 | 1.45 | |
| O-Ring 45 Hm1214C | ||||
| 042 | 213569-7 | 1.00 | 1.21 | |
| O-Ring 45 Hm1214C | ||||
| 043 | 213569-7 | 1.00 | 1.21 | |
| Pen 12 | ||||
| 044 | 256238-7 | 3.60 | 4.36 | |
| O-ring 42 | ||||
| 045* | 213193-6 | 2.40 | 2.90 | |
| Piston | ||||
| 046 | 318459-0 | 23.10 | 27.95 | |
| O-Ring 45 Hm1214C | ||||
| 047* | 213569-7 | 1.00 | 1.21 | |
| Connecting Rod Hm1317C | ||||
| 048 | 451164-7 | 4.80 | 5.81 | |
| Pin 6 | ||||
| 049 | 268241-6 | 1.20 | 1.45 | |
| O-ring 90 | ||||
| 050 | 213806-9 | 2.40 | 2.90 | |
| Gear-box cover | ||||
| 051 | 318462-1 | 56.10 | 67.88 | |
| Allen Bolt m6x30 | ||||
| 052 | 266499-1 | 1.20 | 1.45 | |
| Gear 47 | ||||
| 053 | 227709-1 | 36.30 | 43.92 | |
| Ball Bearing 6204 | ||||
| 054 | 211306-3 | 10.80 | 13.07 | |
| Flat Washer 14 | ||||
| 056 | 267166-1 | 2.40 | 2.90 | |
| Gear | ||||
| 057 | 226156-3 | 67.10 | 81.19 | |
| Needle-roller Bearing | ||||
| 058 | 212159-3 | 4.80 | 5.81 | |
| Washer 14 | ||||
| 059 | 262157-7 | 2.40 | 2.90 | |
| Needle-roller Bearing | ||||
| 060 | 212159-3 | 4.80 | 5.81 | |
| Flat Washer 14 | ||||
| 061 | 267166-1 | 2.40 | 2.90 | |
| Seal ring | ||||
| 062 | 424207-8 | 2.40 | 2.90 | |
| Crank Case | ||||
| 063 | 140056-2 | 235.40 | 284.83 | |
| Ball Bearing 6205llu | ||||
| 064 | 211373-8 | 10.80 | 13.07 | |
| Crank Shaft | ||||
| 065 | 331871-7 | 16.50 | 19.96 | |
| Eccentric Shaft | ||||
| 066 | 331869-4 | 56.10 | 67.88 | |
| Needle-roller Bearing | ||||
| 067 | 212264-6 | 13.20 | 15.97 | |
| Collared Washer 8 | ||||
| 068 | 325686-2 | 3.60 | 4.36 | |
| O-ring 100 | ||||
| 069 | 213809-3 | 3.60 | 4.36 | |
| Pen 10 | ||||
| 070 | 268240-8 | 2.40 | 2.90 | |
| Bearing Housing | ||||
| 071 | 140057-0 | 34.10 | 41.26 | |
| Lock ring S-8 | ||||
| 072 | 961004-6 | 1.00 | 1.21 | |
| O-ring 17 | ||||
| 073 | 213261-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 074 | 265844-7 | |||
| Ball Bearing 608Zz A | ||||
| 075 | 210046-0 | 1.20 | 1.45 | |
| Lock Ring R-22 | ||||
| 076 | 962112-6 | 1.00 | 1.21 | |
| Filter | ||||
| 077 | 443127-7 | 1.00 | 1.21 | |
| O-ring 72 | ||||
| 078 | 213758-4 | 3.60 | 4.36 | |
| Filter case lid | ||||
| 079 | 451166-3 | 3.60 | 4.36 | |
| Closing plate 4mm | ||||
| 080 | 346546-5 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 081 | 451167-1 | 16.50 | 19.96 | |
| Allen Bolt m6x30 | ||||
| 082 | 266499-1 | 1.20 | 1.45 | |
| Lock Screw | ||||
| 083 | 331855-5 | 1.20 | 1.45 | |
| Ball bearing 6302llu | ||||
| 084 | 211249-9 | 9.60 | 11.62 | |
| Washer 15 | ||||
| 085 | 267397-2 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 086 | 240003-4 | |||
| Armature 220-240v | ||||
| 087 | 517788-0 | 112.20 | 135.76 | |
| Insulation ring | ||||
| 088 | 681642-5 | 8.40 | 10.16 | |
| Ball bearing 6000ddw | ||||
| 089 | 211289-7 | 13.20 | 15.97 | |
| Washer guide | ||||
| 090 | 451107-9 | 2.40 | 2.90 | |
| Washer 19 | ||||
| 091 | 267809-5 | 1.00 | 1.21 | |
| Spacer plate | ||||
| 092 | 451111-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 093 | 266110-5 | |||
| Field | ||||
| 094 | 639545-7 | 52.80 | 63.89 | |
| Motor Housing | ||||
| 095 | 451117-6 | 11.00 | 13.31 | |
| Brush Holder | ||||
| 096 | 632D00-2 | 10.80 | 13.07 | |
| Brush Set Cb175 | ||||
| 097* | 195844-2 | 7.20 | 8.71 | |
| Tap screw 4x18 | ||||
| 098 | 265A48-7 | 1.00 | 1.21 | |
| Controller cover | ||||
| 099 | 158986-3 | 10.80 | 13.07 | |
| Rubber Pin 4 | ||||
| 100 | 263027-3 | 1.00 | 1.21 | |
| Switch | ||||
| 101 | 651423-1 | 11.00 | 13.31 | |
| Tap screw 4x18 | ||||
| 102 | 265A48-7 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 103 | 687169-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 104 | 265A48-7 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 105 | 695123-3 | 22.00 | 26.62 | |
| Cable gland 10 | ||||
| 106 | 682560-0 | 2.40 | 2.90 | |
| Speed control circuit assy | ||||
| 107 | 620230-3 | 63.80 | 77.20 | |
| Hex bolt 4x16 | ||||
| 108 | 266437-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 109 | 232209-8 | 1.20 | 1.45 | |
| Sliding Plate | ||||
| 110 | 451112-6 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 111 | 263027-3 | 1.00 | 1.21 | |
| Lens | ||||
| 112 | 451105-3 | 2.40 | 2.90 | |
| Handle | ||||
| 113 | 451118-4 | 24.20 | 29.28 | |
| Tap screw 4x18 | ||||
| 114 | 265A48-7 | 1.00 | 1.21 | |
| Switch handle | ||||
| 115 | 451106-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 116 | 265A48-7 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 117 | 266499-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 118 | 867300-9 | |||
| Handle cover | ||||
| 119 | 451119-2 | 12.10 | 14.64 | |
| Tap screw 4x18 | ||||
| 120 | 265A48-7 | 1.00 | 1.21 | |
| Double-sided tape | ||||
| 121 | 442180-0 | 2.40 | 2.90 | |
