Makita Hm1214c spare parts and technical drawings

Here you will find all available parts and drawings of the 'Makita HM1214C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

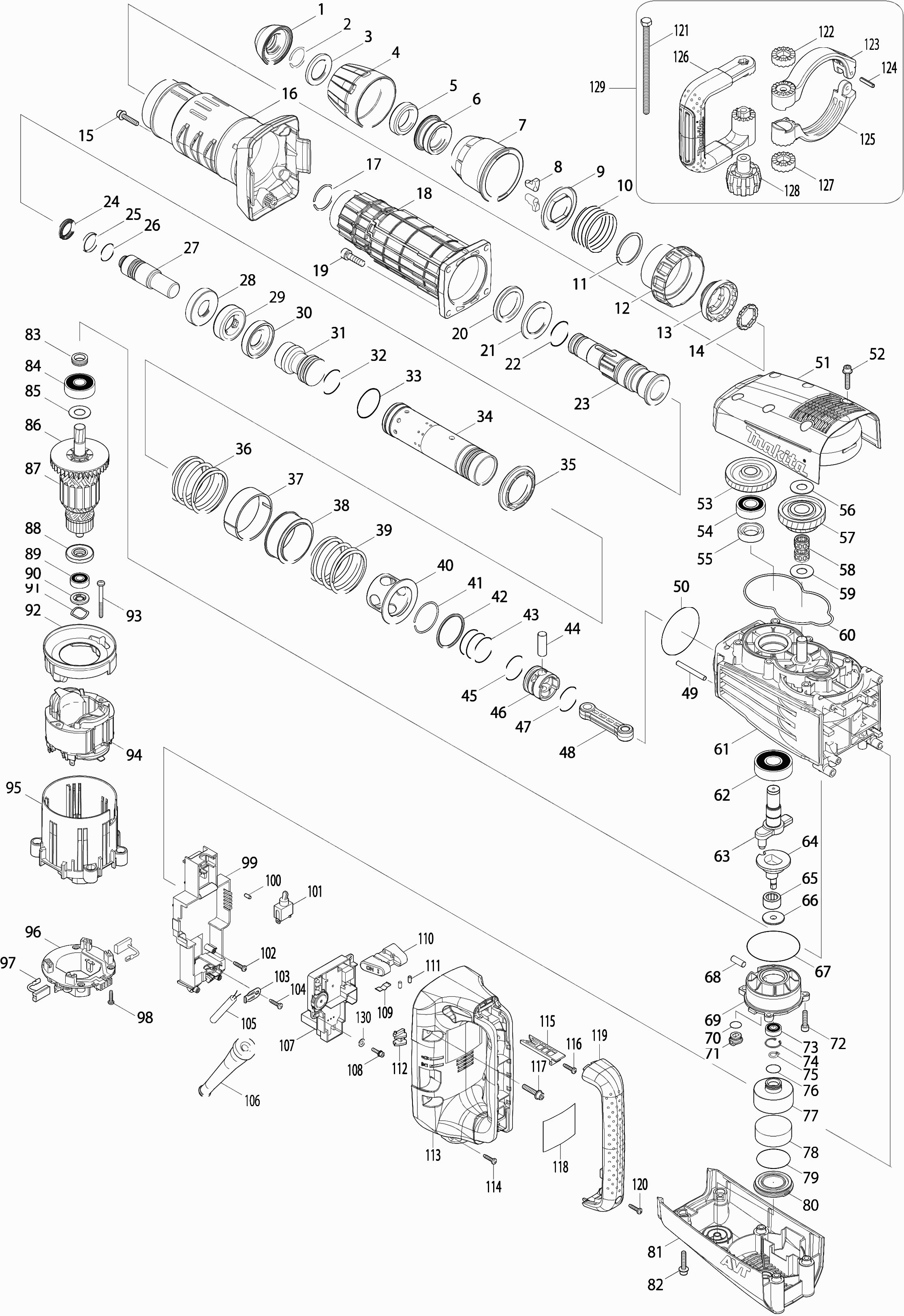

Technical drawing of model Makita HM1214C

Spare parts list of model Makita HM1214C

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Leg
001*	424165-8	2.40	2.90

Lock Ring 26
002	233973-4	1.20	1.45

Washer 30
003	267386-7	6.00	7.26

Chisel lock cap
004	450894-7	3.60	4.36

Rubber Ring 30
005	262147-0	3.60	4.36

Lock Ring
006	324987-5	16.50	19.96

Unlock Cap
007	450895-5	6.00	7.26

Tool clamp
008	310279-8	7.20	8.71

Spring Guide
009	346015-6	3.60	4.36

Compression Spring 5
010	234086-4	3.60	4.36

Lock ring Wr-45
011	961232-3	2.40	2.90

Sleeve for locking ring
012	450893-9	3.60	4.36

Coupling Ring
013	324969-7	23.10	27.95

Locking Ring
014	324988-3	17.60	21.30

Allen Bolt m6x30
015	266499-1	1.20	1.45

Cylinder Housing
016	451113-4	13.20	15.97

Retaining ring 35
017	233970-0	1.20	1.45

Complete cylinder
018	141786-8	72.60	87.85

Hex Socket Bolt M8x30
019	266010-9	2.40	2.90

Rubber Ring 39
020*	262148-8	2.40	2.90

Washer 39
021	267387-5	4.80	5.81

O-ring 35,5
022	213079-4	2.40	2.90

Chisel holder
023	324985-9	155.10	187.67

X-ring 21
024*	213980-3	3.60	4.36

Fluoride ring 28
025*	213431-6	10.80	13.07

O-ring 23
026*	213394-6	1.00	1.21

Striker Pin
027	325681-2	17.60	21.30

Flange bushing KS 60 E
028	324993-0	9.60	11.62

Rubber Ring 24
029*	262149-6	6.00	7.26

Flange bushing KS 60 E
030	324993-0	9.60	11.62

Jackhammer
031	325680-4	17.60	21.30

O-ring 31.5
032*	213499-2	3.60	4.36

O-ring 44
033	213581-7	2.40	2.90

Cylinder 40
034	331856-3	86.90	105.15

Cylinder guide
035	451110-0	3.60	4.36

Pressure spring 58
036	234107-2	6.00	7.26

Weight guide
037	451103-7	4.80	5.81

Counterweight
038	331854-7	6.00	7.26

Pressure spring 58
039	234107-2	6.00	7.26

Guide Bush
040	325661-8	26.40	31.94

Lock washer 43
041	231985-1	1.20	1.45

Washer 45
042	257297-4	4.80	5.81

O-ring 36
043	213510-0	1.20	1.45

Pin 12
044	268121-6	1.20	1.45

O-ring 31.5
045*	213499-2	3.60	4.36

Piston
046	450961-8	8.40	10.16

O-ring 35
047*	213149-9	1.20	1.45

Connecting Rod
048	450890-5	7.20	8.71

Pin 6
049	268235-1	6.00	7.26

O-ring 71
050	213754-2	2.40	2.90

Gear-box cover
051	451115-0	17.60	21.30

Allen Bolt m6x30
052	266499-1	1.20	1.45

Gear
053	226699-5	19.80	23.96

Ball bearing
054	211256-2	8.10	9.80

Ball Bearing 6203zz
054	211290-2	6.38	7.72

Oil seal 20
055	213313-2	8.40	10.16

Flat Washer 14
056	267166-1	2.40	2.90

Gear
057	226155-5	55.00	66.55

Needle-roller Bearing
058	212159-3	4.80	5.81

Flat Washer 14
059	267166-1	2.40	2.90

Seal ring
060	424196-7	1.20	1.45

Crank Case
061	158983-9	221.10	267.53

Ball Bearing 6304llu
062	211327-5	10.80	13.07

Crank Shaft
063	325659-5	12.10	14.64

Eccentric Shaft
064	325660-0	34.10	41.26

Needle-roller Bearing
065	212225-6	14.30	17.30

Lock Washer with Collar
066	325662-6	3.60	4.36

O-ring 71
067	213754-2	2.40	2.90

Pen 8
068	268222-0	4.80	5.81

Bearing housing Hm1214C
069	158985-5	34.10	41.26

O-ring 14
070	213176-6	1.00	1.21

Lid (grease)
071	451104-5	2.40	2.90

Hex Bolt M6x25mm
072	266087-4	1.00	1.21

Ball Bearing 608Zz A
073	210046-0	1.20	1.45

Lock Ring R-22
074	962112-6	1.00	1.21

Lock ring S-8
075	961004-6	1.00	1.21

O-ring 18
076	213262-3	1.20	1.45

Filter box
077	451108-7	3.60	4.36

Filter
078	443147-1	2.40	2.90

O-Ring 45 Hm1214C
079	213569-7	1.00	1.21

Filter box lid Hm1214C
080	451109-5	3.60	4.36

Tail Cover
081	451116-8	18.70	22.63

Allen Bolt m6x30
082	266499-1	1.20	1.45

Lock Screw
083	331855-5	1.20	1.45

Ball bearing 6302llu
084	211249-9	9.60	11.62

Washer 15
085	267397-2	1.20	1.45

Fan 80
086	240003-4	3.60	4.36

Armature 220-240V Hm1214C
087	517838-1	112.20	135.76

Insulation ring
088	681642-5	8.40	10.16

Ball bearing 6000ddw
089	211289-7	13.20	15.97

Washer guide
090	451107-9	2.40	2.90

Washer 19
091	267809-5	1.00	1.21

Spacer plate
092	451111-8	3.60	4.36

Self-tapping screw Pt 5x55 Hr5001C A
093	266095-5	1.20	1.45

Field
094	636303-2	34.10	41.26

Motor Housing
095	451117-6	11.00	13.31

Brush Holder
096	632D00-2	10.80	13.07

Brush Set Cb175
097*	195844-2	7.20	8.71

Tap screw 4x18
098	265A48-7	1.00	1.21

Controller cover
099	158986-3	10.80	13.07

Rubber Pin 4
100	263027-3	1.00	1.21

Switch
101	651423-1	11.00	13.31

Tap screw 4x18
102	265A48-7	1.00	1.21

Strain reliever
103	687169-3	1.00	1.21

Tap screw 4x18
104	265A48-7	1.00	1.21

Power cord 2x1.50 4.0mtr
105	695123-3	22.00	26.62

Cable gland 10
106	682560-0	2.40	2.90

Speed control circuit
107	620226-4	63.80	77.20

Hex bolt 4x16
108	266437-3	1.00	1.21

Leaf Spring
109	232209-8	1.20	1.45

Sliding Plate
110	451112-6	3.60	4.36

Rubber Pin 4
111	263027-3	1.00	1.21

Lens
112	451105-3	2.40	2.90

Handle
113	451118-4	24.20	29.28

Tap screw 4x18
114	265A48-7	1.00	1.21

Switch handle
115	451106-1	3.60	4.36

Tap screw 4x18
116	265A48-7	1.00	1.21

Allen Bolt m6x30
117	266499-1	1.20	1.45

NAAMPLAAT HM1214C A
118	858S22-6	3.60	4.36

Handle cover
119	451119-2	12.10	14.64

Tap screw 4x18
120	265A48-7	1.00	1.21

Hexagonal bolt 8x150
121	265439-6	3.60	4.36

Handle filling bush
122	417002-3	2.40	2.90

Handguard clamp 90a
123	318430-4	10.80	13.07

Spring Pin 5-24
124	951166-8	1.00	1.21

Handguard clamp 90b
125	318431-2	10.80	13.07

Side Handle
126	417003-1	16.50	19.96

Handle filling bush
127	417002-3	2.40	2.90

Knob M8
128	252640-2	6.00	7.26

ZIJHANDGREEP D VOOR BREKEN
129	135283-4	28.00	33.88

Closing plate 4mm
130	346546-5	1.00	1.21

No information available, not orderable
131	126094-8
