Here you will find all available parts and drawings of the 'Makita HM1202C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

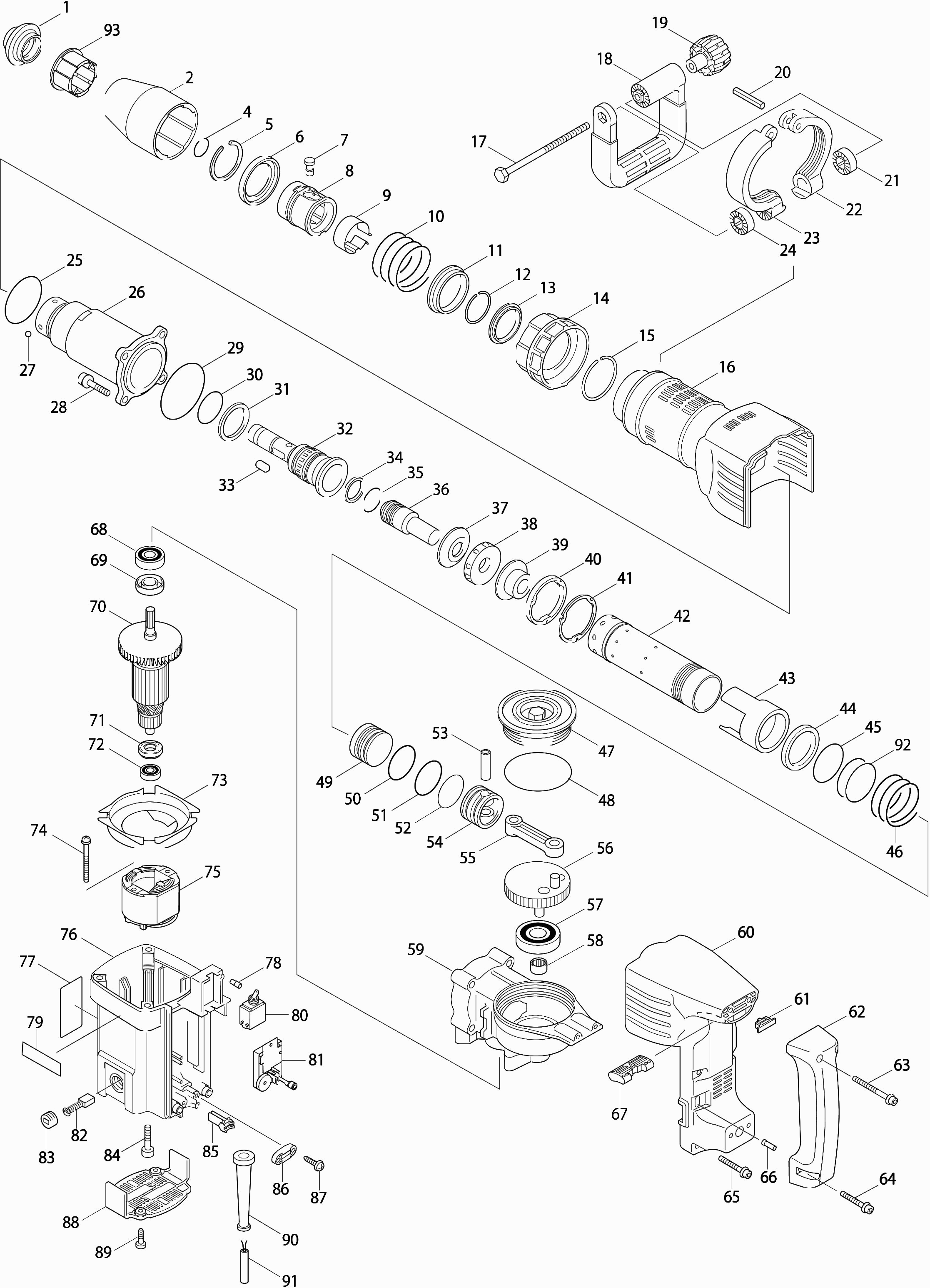

Technical drawing of model Makita HM1202C
Spare parts list of model Makita HM1202C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cap for Chisel Holder | ||||
| 001* | 286250-3 | 2.40 | 2.90 | |
| Chisel Cap | ||||
| 002 | 417577-2 | 6.00 | 7.26 | |
| Lock washer 25 | ||||
| 004 | 231984-3 | 1.20 | 1.45 | |
| Lock ring Wr-45 | ||||
| 005 | 961232-3 | 2.40 | 2.90 | |
| Schotelring 45 | ||||
| 006 | 267735-8 | 3.60 | 4.36 | |
| Pen 8 | ||||
| 007 | 323767-6 | 2.40 | 2.90 | |
| Lock Ring | ||||
| 008 | 324185-1 | 48.40 | 58.56 | |
| Leaf Spring 41 | ||||
| 009 | 232180-6 | 4.80 | 5.81 | |
| Compression spring 55 Hr5001C | ||||
| 010 | 233218-0 | 1.20 | 1.45 | |
| Ball Guide | ||||
| 011 | 324131-4 | 14.30 | 17.30 | |
| Locking ring 33 | ||||
| 012* | 233909-3 | 1.20 | 1.45 | |
| Washer 37 | ||||
| 013 | 267760-9 | 8.40 | 10.16 | |
| Exchange Washer | ||||
| 014 | 416934-1 | 6.00 | 7.26 | |
| Lockring 46 | ||||
| 015 | 231989-3 | 1.20 | 1.45 | |
| Cover | ||||
| 016 | 416938-3 | 19.80 | 23.96 | |
| Hexagonal bolt 8x150 | ||||
| 017 | 265439-6 | 3.60 | 4.36 | |
| Side Handle | ||||
| 018 | 417003-1 | 16.50 | 19.96 | |
| Knob M8 | ||||
| 019 | 252640-2 | 6.00 | 7.26 | |
| Spring Pin 5-24 | ||||
| 020 | 951166-8 | 1.00 | 1.21 | |
| Handle filling bush | ||||
| 021 | 417002-3 | 2.40 | 2.90 | |
| Handle Clamp 82a | ||||
| 022 | 318505-9 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 023 | 317224-4 | |||
| Handle filling bush | ||||
| 024 | 417002-3 | 2.40 | 2.90 | |
| O-ring 58 | ||||
| 025 | 213670-8 | 1.20 | 1.45 | |
| Cylinder Housing | ||||
| 026 | 310087-7 | 214.50 | 259.54 | |
| Steel ball 5.6 | ||||
| 027 | 216041-8 | 1.00 | 1.21 | |
| Hex Socket Bolt M8x30 | ||||
| 028 | 922451-6 | 1.20 | 1.45 | |
| O-ring 67 | ||||
| 029 | 213720-9 | 2.40 | 2.90 | |
| O-ring 36 | ||||
| 030 | 213510-0 | 1.20 | 1.45 | |
| Urethane ring 41 | ||||
| 031* | 262095-3 | 3.60 | 4.36 | |
| Chisel holder | ||||
| 032 | 324109-7 | 139.70 | 169.04 | |
| Roller 8 | ||||
| 033 | 322908-1 | 4.80 | 5.81 | |
| Fluoride ring 28 | ||||
| 034* | 213431-6 | 10.80 | 13.07 | |
| O-ring 23 | ||||
| 035* | 213394-6 | 1.00 | 1.21 | |
| Striker Pin | ||||
| 036 | 324132-2 | 17.60 | 21.30 | |
| Slagboutgeleider Hm1202C | ||||
| 037 | 323909-2 | 9.60 | 11.62 | |
| Rubber Ring 25 Hm1202C | ||||
| 038 | 421691-8 | 10.80 | 13.07 | |
| Sleeve 24 | ||||
| 039 | 323875-3 | 15.40 | 18.63 | |
| Guide Ring Hm1202C A | ||||
| 040 | 417600-3 | 3.60 | 4.36 | |
| Flat Washer 49 Hm1202C A | ||||
| 041 | 344998-4 | 6.00 | 7.26 | |
| Cilinder 44 | ||||
| 042 | 331608-2 | 124.30 | 150.40 | |
| Guide Bushing Hm1202C | ||||
| 043 | 416928-6 | 6.00 | 7.26 | |
| Washer 49 | ||||
| 044 | 257224-1 | 9.60 | 11.62 | |
| O-ring 38 | ||||
| 045 | 213508-7 | 1.20 | 1.45 | |
| Compression Spring 50 | ||||
| 046 | 233246-5 | 2.40 | 2.90 | |
| Oil Cover | ||||
| 047 | 416935-9 | 8.40 | 10.16 | |
| O-ring 90 | ||||
| 048 | 213806-9 | 2.40 | 2.90 | |
| Jackhammer | ||||
| 049 | 323910-7 | 16.50 | 19.96 | |
| O-ring 34 | ||||
| 050* | 213485-3 | 2.40 | 2.90 | |
| O-ring 34 | ||||
| 051* | 213485-3 | 2.40 | 2.90 | |
| O-ring 36 | ||||
| 052* | 213523-1 | 1.20 | 1.45 | |
| Sleeve 9 | ||||
| 053 | 257693-6 | 2.40 | 2.90 | |
| Piston | ||||
| 054 | 416929-4 | 8.40 | 10.16 | |
| Connecting Rod | ||||
| 055 | 416930-9 | 3.60 | 4.36 | |
| Crank Shaft | ||||
| 056 | 323877-9 | 41.80 | 50.58 | |
| Ball Bearing 6304llu | ||||
| 057 | 211327-5 | 10.80 | 13.07 | |
| Needle Bearing 1212 | ||||
| 058 | 212113-7 | 10.80 | 13.07 | |
| Crank Case | ||||
| 059 | 318102-1 | 71.50 | 86.52 | |
| Control Lid Hm1202C | ||||
| 060 | 416940-6 | 19.80 | 23.96 | |
| Stopper Hm1100C | ||||
| 061 | 415692-6 | 4.80 | 5.81 | |
| Handle | ||||
| 062 | 421507-7 | 28.60 | 34.61 | |
| Allen bolt M6x40 | ||||
| 063 | 922361-7 | 1.20 | 1.45 | |
| Allen Bolt m6x30 | ||||
| 064 | 922353-6 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 065 | 922353-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 066 | 416932-5 | |||
| Switch handle | ||||
| 067 | 416931-7 | 6.00 | 7.26 | |
| Ball bearing 6202llu | ||||
| 068 | 211238-4 | 7.20 | 8.71 | |
| Seal ring 17 | ||||
| 069 | 213273-8 | 9.60 | 11.62 | |
| Armature | ||||
| 070 | 516803-7 | 100.10 | 121.12 | |
| Fan 80 | ||||
| 070A | 241908-1 | 3.60 | 4.36 | |
| Insulation ring | ||||
| 071 | 681642-5 | 8.40 | 10.16 | |
| Ball bearing 6000ddw | ||||
| 072 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 072 | 210315-9 | 6.00 | 7.26 | |
| Intermediate Plate Hm1202C | ||||
| 073 | 416936-7 | 4.80 | 5.81 | |
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 074 | 266095-5 | 1.20 | 1.45 | |
| Field | ||||
| 075 | 526093-4 | 69.30 | 83.85 | |
| Stator spring Cb5 | ||||
| 075A | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 075B | 654502-4 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 076 | 158581-9 | |||
| No information available, not orderable | ||||
| 076A | 643653-8 | |||
| Brush Holder | ||||
| 076B | 643661-9 | 10.80 | 13.07 | |
| Wire harness Hm1202C * | ||||
| 076C | 632924-8 | 2.40 | 2.90 | |
| Washer 19 | ||||
| 076D | 267809-5 | 1.00 | 1.21 | |
| Nameplate Hm1202C | ||||
| 077 | 851765-5 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 078 | 263002-9 | 1.00 | 1.21 | |
| Label "makita" | ||||
| 079 | 819064-1 | 2.40 | 2.90 | |
| Switch Sw-124 | ||||
| 080 | 651481-7 | 19.80 | 23.96 | |
| Speed control unit | ||||
| 081 | 631273-0 | 56.10 | 67.88 | |
| Carbon brush set | ||||
| 082* | 194987-7 | 6.10 | 7.38 | |
| Brush holder cap | ||||
| 083 | 643650-4 | 1.20 | 1.45 | |
| Hexagonal Bolt 6x40 | ||||
| 084 | 922364-1 | 1.20 | 1.45 | |
| Mounting rod | ||||
| 085 | 417715-6 | 1.39 | 1.68 | |
| Clamp Bracket | ||||
| 086 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 086 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 087 | 265A48-7 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 088 | 416937-5 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 089 | 265A48-7 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 090 | 682560-0 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 091 | 695123-3 | 22.00 | 26.62 | |
| O-ring 38 | ||||
| 092 | 213508-7 | 1.20 | 1.45 | |
| Bus 39 | ||||
| 093 | 417576-4 | 2.40 | 2.90 | |
| Buffer | ||||
| 094 | 421914-4 | 1.20 | 1.45 | |
| Washer 19 | ||||
| 095 | 267809-5 | 1.00 | 1.21 | |
| Kabelschoen | ||||
| 099 | 654086-2 | 1.20 | 1.45 | |
