Here you will find all available parts and drawings of the 'Makita HM1130C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

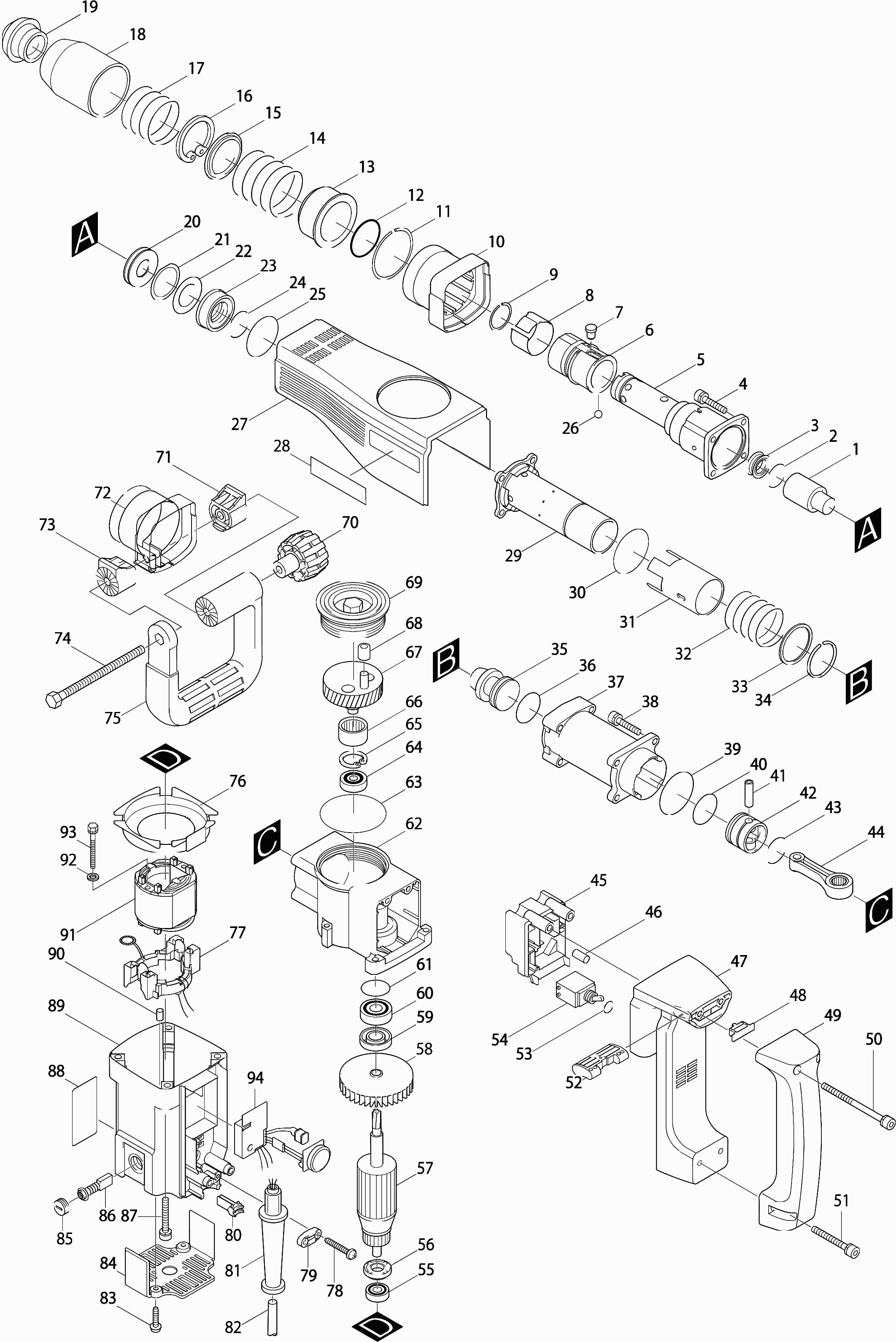

Technical drawing of model Makita HM1130C
Spare parts list of model Makita HM1130C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Striker | ||||
| 001 | 323752-9 | 11.00 | 13.31 | |
| O-ring 27 | ||||
| 002* | 213411-2 | 3.60 | 4.36 | |
| X-ring 28 | ||||
| 003* | 213428-5 | 17.60 | 21.30 | |
| Hex bolt 6x30 | ||||
| 004 | 922351-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 005 | 323755-3 | |||
| No longer available, no replacement | ||||
| 006 | 323754-5 | |||
| Pen 8 | ||||
| 007 | 256450-9 | 3.60 | 4.36 | |
| Leaf Spring 37 Hm1130C * | ||||
| 008 | 232178-3 | 3.60 | 4.36 | |
| Lock washer 27 Hm1130C * | ||||
| 009 | 231983-5 | 1.00 | 1.21 | |
| Support for side handle Hm1100C | ||||
| 010 | 416086-8 | 6.00 | 7.26 | |
| Lock ring 52 | ||||
| 011 | 231972-0 | 1.00 | 1.21 | |
| O-ring 44 | ||||
| 012 | 213554-0 | 2.40 | 2.90 | |
| Spring Guide Hm1130C * | ||||
| 013 | 416491-9 | 6.00 | 7.26 | |
| Compression Spring 47 Hm1130C * | ||||
| 014 | 233208-3 | 1.20 | 1.45 | |
| Ring 40 Hm1130C * | ||||
| 015 | 344618-0 | 2.40 | 2.90 | |
| Lock Ring S-40 | ||||
| 016 | 961176-7 | 2.40 | 2.90 | |
| Compression Spring 46 Hm1130C * | ||||
| 017 | 233207-5 | 1.20 | 1.45 | |
| Chisel Holder Cover | ||||
| 018 | 416490-1 | 6.00 | 7.26 | |
| Chisel Holder Cap Hm1130C * | ||||
| 019* | 286249-8 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 020 | 331525-6 | |||
| Washer 36 | ||||
| 021* | 421570-0 | 1.20 | 1.45 | |
| O-ring 25 | ||||
| 022* | 213391-2 | 6.00 | 7.26 | |
| Guide Bush | ||||
| 023 | 331526-4 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 024* | 213370-0 | |||
| O-ring 44 | ||||
| 025 | 213554-0 | 2.40 | 2.90 | |
| Steel ball 7.9 | ||||
| 026 | 216004-4 | 1.00 | 1.21 | |
| Housing Cover Hm1100C * | ||||
| 027 | 415698-4 | 14.30 | 17.30 | |
| Label "makita" | ||||
| 028 | 819064-1 | 2.40 | 2.90 | |
| Cylinder | ||||
| 029 | 134820-1 | 210.10 | 254.22 | |
| O-ring 50 | ||||
| 030 | 213614-8 | 1.20 | 1.45 | |
| Bus 39 | ||||
| 031 | 331527-2 | 28.60 | 34.61 | |
| Compression Spring 39 Hm1130C * | ||||
| 032 | 233206-7 | 2.40 | 2.90 | |
| Flat Washer 39 | ||||
| 033 | 267156-4 | 1.20 | 1.45 | |
| Lock ring 36 | ||||
| 034 | 231971-2 | 1.00 | 1.21 | |
| Floating Piston Hm1130C * | ||||
| 035 | 323753-7 | 14.30 | 17.30 | |
| O-ring 27 | ||||
| 036* | 213429-3 | 1.20 | 1.45 | |
| Impact Housing Hm1100C * | ||||
| 037 | 316672-4 | 34.10 | 41.26 | |
| Hex bolt 6x30 | ||||
| 038 | 922351-0 | 1.00 | 1.21 | |
| O-ring 48 | ||||
| 039 | 213606-7 | 2.40 | 2.90 | |
| O-ring 27 | ||||
| 040* | 213429-3 | 1.20 | 1.45 | |
| Bus 6 * | ||||
| 041 | 257676-6 | 4.80 | 5.81 | |
| Piston | ||||
| 042 | 415773-6 | 4.80 | 5.81 | |
| O-ring 28 | ||||
| 043 | 213415-4 | 1.00 | 1.21 | |
| Connecting Rod | ||||
| 044 | 415689-5 | 13.20 | 15.97 | |
| Switch Box Hm1100C * | ||||
| 045 | 415699-2 | 6.00 | 7.26 | |
| Rubber Pin 4 | ||||
| 046 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 047 | 417447-5 | |||
| Stopper Hm1100C | ||||
| 048 | 415692-6 | 4.80 | 5.81 | |
| Handle | ||||
| 049 | 421507-7 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 050 | 266135-9 | |||
| Hex Socket Bolt M6x50 | ||||
| 051 | 922371-4 | 1.20 | 1.45 | |
| Switch handle | ||||
| 052 | 415691-8 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 053 | 213107-5 | 1.00 | 1.21 | |
| Switch Sw-124 | ||||
| 054 | 651481-7 | 19.80 | 23.96 | |
| Ball bearing 608llb | ||||
| 055 | 210043-6 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 056 | 681650-6 | 6.00 | 7.26 | |
| Armature HM1100C incl 54,55,57,58,59 | ||||
| 057 | 516288-7 | 93.50 | 113.14 | |
| Impeller 76 | ||||
| 058 | 241876-8 | 4.80 | 5.81 | |
| Seal ring 14 | ||||
| 059 | 213160-1 | 4.80 | 5.81 | |
| Ball bearing | ||||
| 060 | 211143-5 | 9.00 | 10.89 | |
| Ball Bearing 6201dw1 | ||||
| 060 | 211129-9 | 8.40 | 10.16 | |
| O-ring 32 | ||||
| 061 | 213459-4 | 1.20 | 1.45 | |
| Crank Case | ||||
| 062 | 134875-6 | 81.40 | 98.49 | |
| O-ring 65 | ||||
| 063 | 213707-1 | 2.40 | 2.90 | |
| Ball Bearing 6000llu | ||||
| 064 | 210054-1 | 6.00 | 7.26 | |
| Lock ring R-26 A | ||||
| 065 | 962105-3 | 1.00 | 1.21 | |
| Needle Bearing 2116 | ||||
| 066 | 212259-9 | 13.20 | 15.97 | |
| Crank Shaft | ||||
| 067 | 153249-2 | 28.60 | 34.61 | |
| Inner bushing 812 | ||||
| 068 | 216116-3 | 7.20 | 8.71 | |
| Filling cap | ||||
| 069 | 415690-0 | 7.20 | 8.71 | |
| Knob M8 | ||||
| 070 | 252640-2 | 6.00 | 7.26 | |
| Handle Base | ||||
| 071 | 152620-7 | 16.50 | 19.96 | |
| Handle Base | ||||
| 072 | 152620-7 | 16.50 | 19.96 | |
| Handle Base | ||||
| 073 | 152620-7 | 16.50 | 19.96 | |
| Hexagonal bolt 8x150 | ||||
| 074 | 265439-6 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 075 | 416009-6 | |||
| Intermediate Plate Hm1100C * | ||||
| 076 | 415693-4 | 3.60 | 4.36 | |
| Support | ||||
| 077 | 632678-7 | 4.80 | 5.81 | |
| Tap screw 4x18 | ||||
| 078 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 079 | 687124-5 | 1.00 | 1.21 | |
| Mounting Rod Hm1130C * | ||||
| 080 | 416167-8 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 081 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 082 | 695123-3 | 22.00 | 26.62 | |
| Tapschroef 5x20 | ||||
| 083 | 266021-4 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 084 | 415700-3 | 3.60 | 4.36 | |
| Carbon brush cap | ||||
| 085 | 643515-0 | 1.00 | 1.21 | |
| Carbon Brush Set Cb-327 | ||||
| 086* | 194285-9 | 8.21 | 9.93 | |
| KOOLBORSTEL SET CB-327 A | ||||
| 086* | 195003-8 | 8.21 | 9.93 | |
| Hexagonal Bolt 6x40 | ||||
| 087 | 922364-1 | 1.20 | 1.45 | |
| Label | ||||
| 088 | 859371-0 | 3.60 | 4.36 | |
| Motor Housing Hm1100C * | ||||
| 089 | 152662-1 | 33.00 | 39.93 | |
| Carbon Brush holder 5X11 A | ||||
| 089A | 644501-4 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 090 | 263014-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 091 | 639007-5 | |||
| Lock washer 5 | ||||
| 092 | 941102-2 | 1.00 | 1.21 | |
| Hexagon bolt M5X60 * | ||||
| 093 | 265345-5 | 2.40 | 2.90 | |
| Speed control unit | ||||
| 094 | 631204-9 | 77.00 | 93.17 | |
