Here you will find all available parts and drawings of the 'Makita HM1101C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

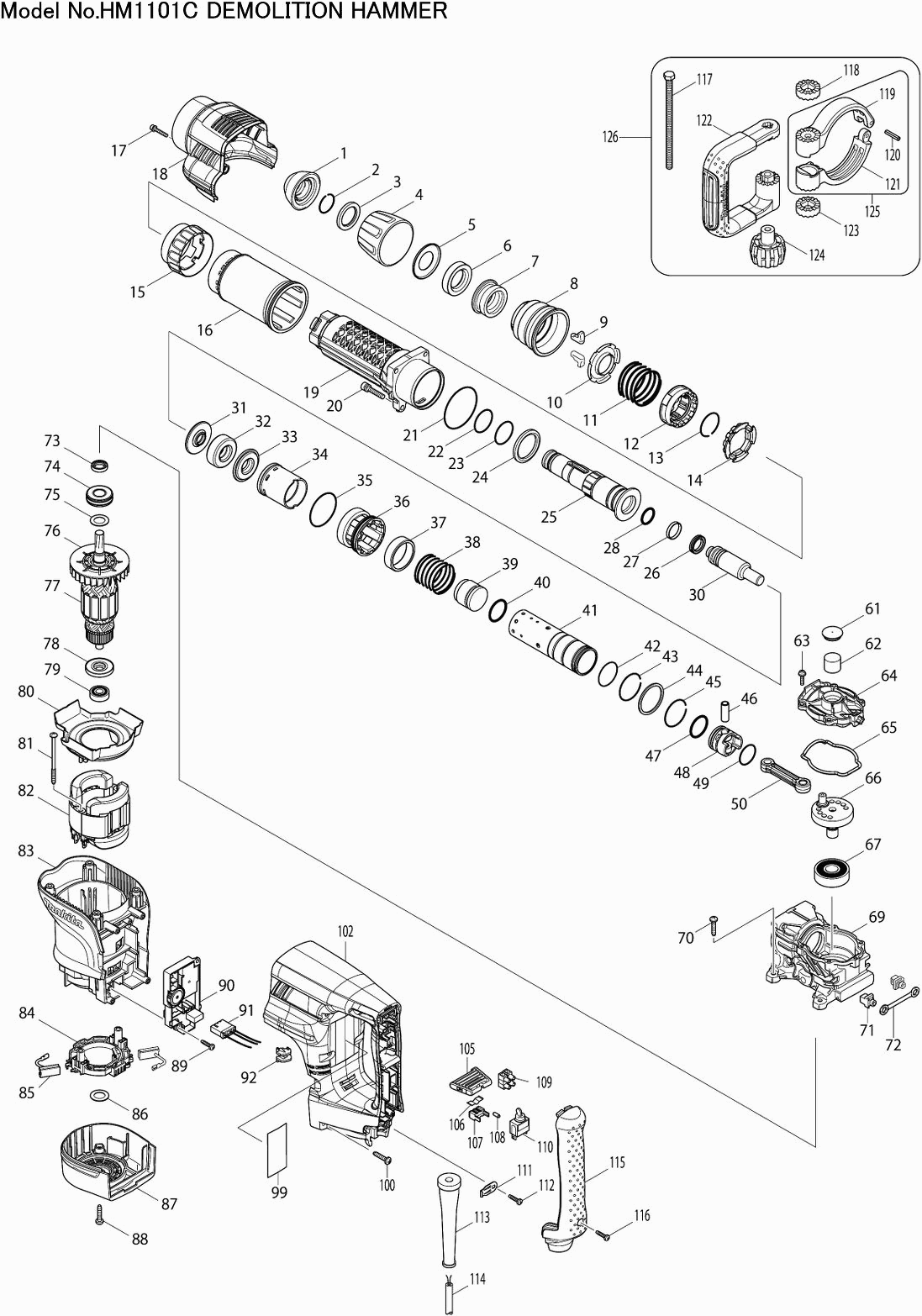

Technical drawing of model Makita HM1101C
Spare parts list of model Makita HM1101C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chisel Holder Cap | ||||
| 001 | 286285-4 | 2.40 | 2.90 | |
| Lock ring 25 | ||||
| 002 | 233948-3 | 1.20 | 1.45 | |
| Washer 28 | ||||
| 003 | 257308-5 | 2.40 | 2.90 | |
| Chisel lock cap | ||||
| 004 | 450064-8 | 3.60 | 4.36 | |
| Dish washer 28 | ||||
| 005 | 346247-5 | 3.60 | 4.36 | |
| Rubber ring 28 | ||||
| 006 | 262161-6 | 3.60 | 4.36 | |
| Clamping Ring | ||||
| 007 | 324752-2 | 14.30 | 17.30 | |
| Unlock Cap | ||||
| 008 | 451836-4 | 4.80 | 5.81 | |
| Tool clamp | ||||
| 009 | 310178-4 | 6.00 | 7.26 | |
| Spring Guide | ||||
| 010 | 345804-6 | 2.40 | 2.90 | |
| Compression Spring 47 | ||||
| 011 | 234180-2 | 2.40 | 2.90 | |
| Coupling Ring | ||||
| 012 | 313193-7 | 16.50 | 19.96 | |
| Spring ring 33 | ||||
| 013 | 233982-3 | 1.20 | 1.45 | |
| Locking Ring | ||||
| 014 | 325904-8 | 11.00 | 13.31 | |
| Sleeve for locking ring | ||||
| 015 | 451842-9 | 3.60 | 4.36 | |
| Cylinder Housing | ||||
| 016 | 451835-6 | 8.40 | 10.16 | |
| Hex Bolt Hr5210C | ||||
| 017 | 922148-7 | 1.00 | 1.21 | |
| KRUKASHUISBEDEKKING HM1101C | ||||
| 018 | 451849-5 | 7.20 | 8.71 | |
| Complete cylinder | ||||
| 019 | 140411-8 | 72.60 | 87.85 | |
| Allen Bolt m6x30 | ||||
| 020 | 922353-6 | 1.00 | 1.21 | |
| O-ring 60 | ||||
| 021 | 213654-6 | 2.40 | 2.90 | |
| O-ring 32 | ||||
| 022 | 213492-6 | 2.40 | 2.90 | |
| O-ring 32 | ||||
| 023 | 213492-6 | 2.40 | 2.90 | |
| Plastic washer 36 | ||||
| 024 | 262135-7 | 2.40 | 2.90 | |
| Chisel holder | ||||
| 025 | 325901-4 | 154.00 | 186.34 | |
| X-ring 18 | ||||
| 026 | 213281-9 | 3.60 | 4.36 | |
| Fluoride ring 25 | ||||
| 027 | 213392-0 | 9.60 | 11.62 | |
| O-ring 20 | ||||
| 028 | 213317-4 | 1.00 | 1.21 | |
| Striker | ||||
| 030 | 325902-2 | 16.50 | 19.96 | |
| Bus 11 | ||||
| 031 | 325903-0 | 8.40 | 10.16 | |
| Rubber Ring | ||||
| 032 | 422053-3 | 12.10 | 14.64 | |
| Bus 11 | ||||
| 033 | 325903-0 | 8.40 | 10.16 | |
| Guide Bush | ||||
| 034 | 412096-3 | 4.80 | 5.81 | |
| O-ring 48 | ||||
| 035 | 213606-7 | 2.40 | 2.90 | |
| Cylinder guide | ||||
| 036 | 318604-7 | 12.10 | 14.64 | |
| Ring 39 | ||||
| 037 | 313194-5 | 3.60 | 4.36 | |
| Compression Spring 40 | ||||
| 038 | 234178-9 | 2.40 | 2.90 | |
| Striker | ||||
| 039 | 325905-6 | 4.80 | 5.81 | |
| O-ring 27 | ||||
| 040 | 213536-2 | 2.40 | 2.90 | |
| Cilinder 35 | ||||
| 041 | 331892-9 | 67.10 | 81.19 | |
| O-ring 34 | ||||
| 042 | 213458-6 | 2.40 | 2.90 | |
| Spring ring 38 | ||||
| 043 | 233981-5 | 1.20 | 1.45 | |
| Washer 40 | ||||
| 044 | 267423-7 | 2.40 | 2.90 | |
| Spring ring 38 | ||||
| 045 | 233981-5 | 1.20 | 1.45 | |
| Piston Pin 10 | ||||
| 046 | 331911-1 | 2.40 | 2.90 | |
| O-ring 27 | ||||
| 047 | 213536-2 | 2.40 | 2.90 | |
| Piston | ||||
| 048 | 451833-0 | 3.60 | 4.36 | |
| O-ring 28 | ||||
| 049 | 213415-4 | 1.00 | 1.21 | |
| Connecting Rod | ||||
| 050 | 451834-8 | 3.60 | 4.36 | |
| Filter cap | ||||
| 061 | 424311-3 | 1.00 | 1.21 | |
| Filter | ||||
| 062 | 443127-7 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 063 | 911133-5 | 1.00 | 1.21 | |
| Filling cap | ||||
| 064 | 451838-0 | 6.00 | 7.26 | |
| Seal ring | ||||
| 065 | 424312-1 | 1.20 | 1.45 | |
| Crank Shaft | ||||
| 066 | 325899-5 | 19.80 | 23.96 | |
| Ball bearing 6303llb | ||||
| 067 | 211279-0 | 8.40 | 10.16 | |
| KRUKASHUIS CPL HM1101C | ||||
| 069 | 140408-7 | 71.50 | 86.52 | |
| Tap Screw 5X25 | ||||
| 070 | 266041-8 | 1.00 | 1.21 | |
| Fitting Piece | ||||
| 071 | 419008-7 | 1.00 | 1.21 | |
| Vibration plate | ||||
| 072 | 423345-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 073 | 213133-4 | |||
| Ball bearing 6202llu | ||||
| 074 | 211295-2 | 8.40 | 10.16 | |
| Washer 15 Btw200 | ||||
| 075 | 267215-4 | 1.20 | 1.45 | |
| Fan 80 | ||||
| 076 | 241908-1 | 3.60 | 4.36 | |
| Armature 220-240v | ||||
| 077 | 517858-5 | 106.70 | 129.11 | |
| Insulation ring | ||||
| 078 | 681642-5 | 8.40 | 10.16 | |
| Ball bearing 6000ddw | ||||
| 079 | 211289-7 | 13.20 | 15.97 | |
| Spacer plate | ||||
| 080 | 451837-2 | 3.60 | 4.36 | |
| Met. Screw Ck 5x80mm | ||||
| 081 | 266568-8 | 1.20 | 1.45 | |
| Field | ||||
| 082 | 623418-4 | 36.30 | 43.92 | |
| Motor Housing | ||||
| 083 | 451840-3 | 17.60 | 21.30 | |
| Carbon brush unit | ||||
| 084 | 638700-8 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 085 | 194412-8 | |||
| Brush Set Cb175 | ||||
| 085-1 | 195844-2 | 7.20 | 8.71 | |
| Washer 15 Btw200 | ||||
| 086 | 267215-4 | 1.20 | 1.45 | |
| Lower Lid | ||||
| 087 | 451839-8 | 8.40 | 10.16 | |
| Tap Screw 5X25 | ||||
| 088 | 266041-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 089 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 089-1 | 266300-0 | 1.00 | 1.21 | |
| CONTROLLER HM1101C | ||||
| 090 | 631966-9 | 35.20 | 42.59 | |
| Cable harness | ||||
| 091 | 638718-9 | 6.00 | 7.26 | |
| Lens | ||||
| 092 | 450240-4 | 2.40 | 2.90 | |
| NAAMPLAAT HM1101C | ||||
| 099 | 868072-9 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 100 | 266041-8 | 1.00 | 1.21 | |
| HANDGREEP CPL HM1101C | ||||
| 102 | 140410-0 | 18.70 | 22.63 | |
| Sponge rubber seal | ||||
| 102C10 | 423379-6 | 1.00 | 1.21 | |
| Sliding button HM1203C | ||||
| 105 | 450897-1 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 106 | 232209-8 | 1.20 | 1.45 | |
| Locking element for lever | ||||
| 107 | 450891-3 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 108 | 263027-3 | 1.00 | 1.21 | |
| Terminal block | ||||
| 109 | 654531-7 | 2.10 | 2.54 | |
| Switch HM0870C | ||||
| 110 | 651418-4 | 9.50 | 11.50 | |
| Switch Sw-126 A | ||||
| 110 | 651069-3 | 8.40 | 10.16 | |
| Strain reliever | ||||
| 111 | 687169-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 112 | 265A48-7 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 113 | 682560-0 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 114 | 695123-3 | 22.00 | 26.62 | |
| Handle Cover | ||||
| 115 | 451841-1 | 11.00 | 13.31 | |
| Tap screw 4x18 | ||||
| 116 | 265A48-7 | 1.00 | 1.21 | |
| Hexagonal bolt 8x150 | ||||
| 117 | 265439-6 | 3.60 | 4.36 | |
| Handle filling bush | ||||
| 118 | 417002-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 119 | 317282-0 | |||
| Spring Pin 5-24 | ||||
| 120 | 951166-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 121 | 317283-8 | |||
| Side Handle | ||||
| 122 | 417003-1 | 16.50 | 19.96 | |
| Handle filling bush | ||||
| 123 | 417002-3 | 2.40 | 2.90 | |
| Knob M8 | ||||
| 124 | 252640-2 | 6.00 | 7.26 | |
| Handle bracket | ||||
| 125 | 151769-0 | 16.50 | 19.96 | |
| ZIJHANDGREEP D VOOR BREKEN | ||||
| 126 | 134890-0 | 28.00 | 33.88 | |
