Here you will find all available parts and drawings of the 'Makita HM0871C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

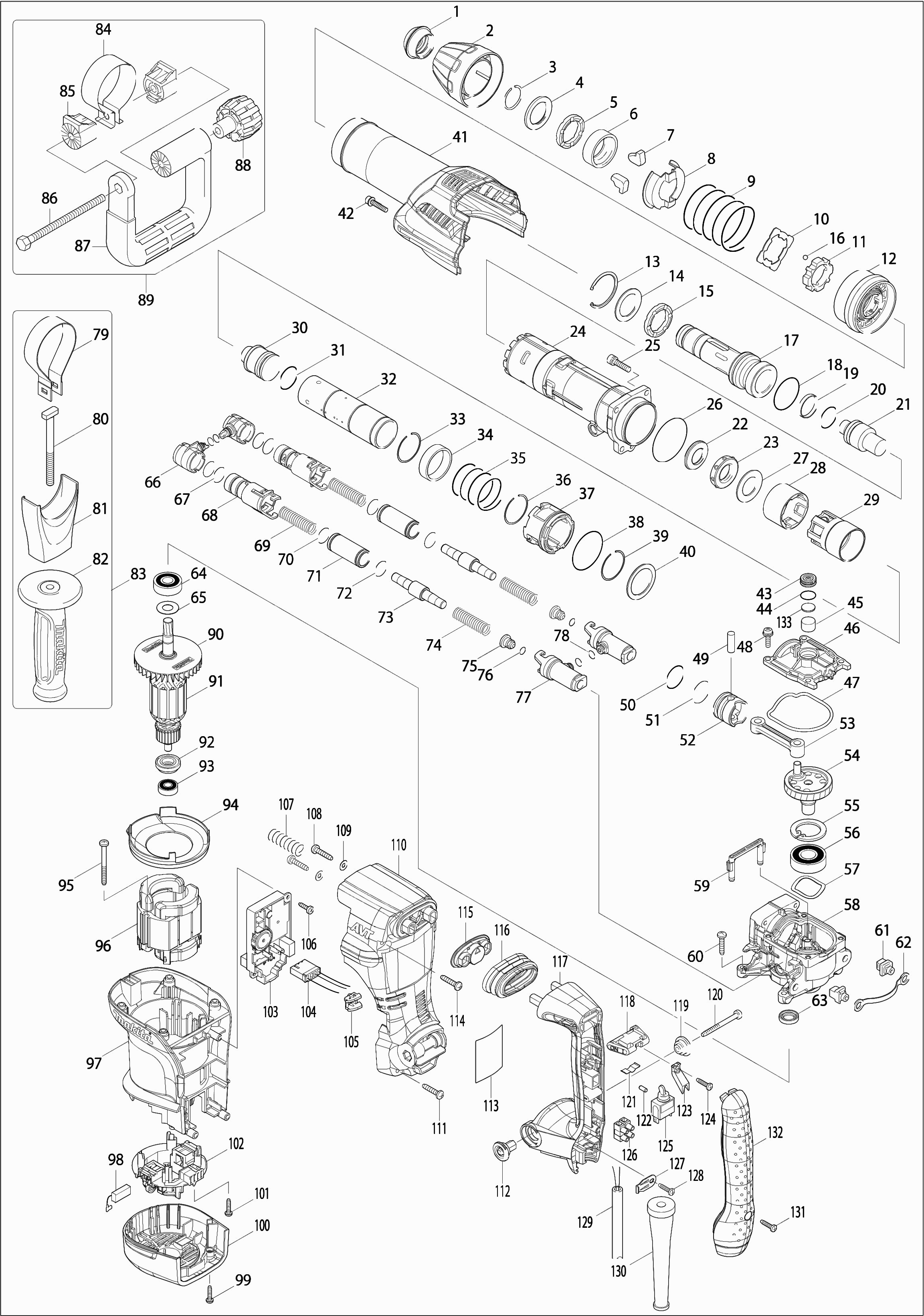

Technical drawing of model Makita HM0871C
Spare parts list of model Makita HM0871C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chisel Holder Cover | ||||
| 001* | 286287-0 | 2.40 | 2.90 | |
| Chisel lock cap | ||||
| 002 | 451432-8 | 3.60 | 4.36 | |
| Lock washer 25 | ||||
| 003* | 231984-3 | 1.20 | 1.45 | |
| Flat Washer 28 | ||||
| 004 | 267272-2 | 3.60 | 4.36 | |
| Rubber ring 28 | ||||
| 005 | 424261-2 | 2.40 | 2.90 | |
| Unlock Ring | ||||
| 006 | 331659-5 | 7.20 | 8.71 | |
| Tool clamp | ||||
| 007* | 310108-5 | 8.40 | 10.16 | |
| Spring Guide | ||||
| 008 | 346677-0 | 8.40 | 10.16 | |
| Compression spring 52 Hm0860C | ||||
| 009 | 233387-7 | 2.40 | 2.90 | |
| Coverplate | ||||
| 010 | 346141-1 | 2.40 | 2.90 | |
| Locking Ring | ||||
| 011 | 310145-9 | 11.00 | 13.31 | |
| Exchange Washer | ||||
| 012 | 451433-6 | 4.80 | 5.81 | |
| Lock Ring R42 | ||||
| 013 | 257960-9 | 6.00 | 7.26 | |
| Flat Washer 29 | ||||
| 014 | 267273-0 | 1.20 | 1.45 | |
| Rubber ring 28 | ||||
| 015 | 424261-2 | 2.40 | 2.90 | |
| Steel ball 4.8 | ||||
| 016 | 216002-8 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 017 | 324387-9 | 88.00 | 106.48 | |
| O-ring 38 | ||||
| 018 | 213527-3 | 1.20 | 1.45 | |
| Fluoride ring 28 | ||||
| 019* | 213431-6 | 10.80 | 13.07 | |
| O-ring 23 | ||||
| 020* | 213394-6 | 1.00 | 1.21 | |
| Striker Pin | ||||
| 021 | 324389-5 | 13.20 | 15.97 | |
| Washer 20 | ||||
| 022 | 325732-1 | 4.80 | 5.81 | |
| Rubber ring 20 | ||||
| 023 | 424245-0 | 2.40 | 2.90 | |
| Cylinder | ||||
| 024 | 318511-4 | 56.10 | 67.88 | |
| Hex bolt 6x25 | ||||
| 025 | 922341-3 | 1.00 | 1.21 | |
| O-ring 53 | ||||
| 026 | 213656-2 | 1.20 | 1.45 | |
| Flat Washer 23 | ||||
| 027 | 267407-5 | 2.40 | 2.90 | |
| Guide Ring | ||||
| 028 | 451639-6 | 2.40 | 2.90 | |
| Guide Bush | ||||
| 029 | 450098-1 | 3.60 | 4.36 | |
| Floating Piston | ||||
| 030 | 324388-7 | 11.00 | 13.31 | |
| O-ring 24 | ||||
| 031* | 213958-6 | 2.40 | 2.90 | |
| Cylinder 32 | ||||
| 032 | 331658-7 | 59.40 | 71.87 | |
| Lock washer 34 | ||||
| 033 | 233927-1 | 1.00 | 1.21 | |
| Washer 36 | ||||
| 034 | 331660-0 | 8.40 | 10.16 | |
| Compression Spring 37 HM0860C | ||||
| 035 | 233386-9 | 1.20 | 1.45 | |
| Lock washer 34 | ||||
| 036 | 233927-1 | 1.00 | 1.21 | |
| Cylinder guide | ||||
| 037 | 318510-6 | 10.80 | 13.07 | |
| O-ring 46 | ||||
| 038 | 213611-4 | 1.20 | 1.45 | |
| Lock washer 34 | ||||
| 039 | 233927-1 | 1.00 | 1.21 | |
| Flat washer 34 | ||||
| 040 | 267079-6 | 2.40 | 2.90 | |
| Housing cover | ||||
| 041 | 451443-3 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 042 | 922243-3 | |||
| Filter cap | ||||
| 043 | 419988-7 | 1.00 | 1.21 | |
| O-ring 16 | ||||
| 044 | 213218-6 | 1.20 | 1.45 | |
| Filter | ||||
| 045 | 443129-3 | 1.00 | 1.21 | |
| Filling cap | ||||
| 046 | 451434-4 | 3.60 | 4.36 | |
| Seal ring | ||||
| 047 | 424244-2 | 1.20 | 1.45 | |
| Screw Vk 20mm | ||||
| 048 | 911233-1 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 049 | 268104-6 | 1.20 | 1.45 | |
| O-ring 24 | ||||
| 050* | 213958-6 | 2.40 | 2.90 | |
| O-ring 26 | ||||
| 051* | 213432-4 | 1.00 | 1.21 | |
| Piston | ||||
| 052 | 418349-8 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 053 | 418350-3 | 3.60 | 4.36 | |
| Crankshaft 17.5 | ||||
| 054 | 325734-7 | 19.80 | 23.96 | |
| Spring retaining ring | ||||
| 055 | 257998-4 | 1.20 | 1.45 | |
| Ball Bearing 6203llu | ||||
| 056 | 211490-4 | 8.40 | 10.16 | |
| Washer 30 | ||||
| 057 | 267825-7 | 1.20 | 1.45 | |
| Complete crankcase | ||||
| 058 | 140204-3 | 68.20 | 82.52 | |
| Needle Bearing 1412 Hm0860C | ||||
| 058A | 212157-7 | 4.80 | 5.81 | |
| Air Pipe | ||||
| 059 | 451429-7 | 2.40 | 2.90 | |
| Tap Screw 5X25 | ||||
| 060 | 266041-8 | 1.00 | 1.21 | |
| Fitting Piece | ||||
| 061 | 419008-7 | 1.00 | 1.21 | |
| Vibration plate | ||||
| 062 | 423400-1 | 1.00 | 1.21 | |
| Seal Ring 12mm | ||||
| 063 | 213678-2 | 6.00 | 7.26 | |
| Ball Bearing 6201llb | ||||
| 064 | 211106-1 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 065 | 253759-0 | 1.00 | 1.21 | |
| Support, pipe holder- | ||||
| 066 | 455791-2 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 067 | 213275-4 | 1.00 | 1.21 | |
| Pipe holder B | ||||
| 068 | 451436-0 | 2.40 | 2.90 | |
| Compression spring 12 | ||||
| 069 | 234134-9 | 1.20 | 1.45 | |
| O-ring 18 | ||||
| 070 | 213275-4 | 1.00 | 1.21 | |
| Rijp 16 | ||||
| 071 | 324572-4 | 8.40 | 10.16 | |
| O-ring 18 | ||||
| 072 | 213275-4 | 1.00 | 1.21 | |
| Counterweight | ||||
| 073 | 325733-9 | 3.60 | 4.36 | |
| Compression spring 12 | ||||
| 074 | 234134-9 | 1.20 | 1.45 | |
| Spring Guide | ||||
| 075 | 419011-8 | 1.00 | 1.21 | |
| O-ring 8 | ||||
| 076 | 213030-4 | 1.00 | 1.21 | |
| Pipe holder A | ||||
| 077 | 451435-2 | 2.40 | 2.90 | |
| O-ring 8 | ||||
| 078 | 213030-4 | 1.00 | 1.21 | |
| Handle Base | ||||
| 084 | 152620-7 | 16.50 | 19.96 | |
| Handle filling bush | ||||
| 085 | 417002-3 | 2.40 | 2.90 | |
| Hexagonal bolt 8x150 | ||||
| 086 | 265439-6 | 3.60 | 4.36 | |
| Side Handle | ||||
| 087 | 417003-1 | 16.50 | 19.96 | |
| Knob M8 | ||||
| 088 | 252640-2 | 6.00 | 7.26 | |
| ZIJHANDGREEP D VOOR BREKEN | ||||
| 089 | 134909-5 | 23.00 | 27.83 | |
| Impeller 76 | ||||
| 090 | 240119-5 | 3.60 | 4.36 | |
| Armature | ||||
| 091 | 513793-5 | 59.40 | 71.87 | |
| Insulation ring | ||||
| 092 | 681650-6 | 6.00 | 7.26 | |
| Ball Bearing 608ddw | ||||
| 093 | 210005-4 | 4.80 | 5.81 | |
| Intermediate Plate | ||||
| 094 | 451438-6 | 2.40 | 2.90 | |
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 095 | 266095-5 | 1.20 | 1.45 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 096 | 625764-1 | 28.60 | 34.61 | |
| Motor Housing | ||||
| 097 | 451423-9 | 17.60 | 21.30 | |
| Carbon brush set CB350 | ||||
| 098* | 194160-9 | 5.50 | 6.66 | |
| Tap screw 4x18 | ||||
| 099 | 265A48-7 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 100 | 451442-5 | 6.00 | 7.26 | |
| Tap screw 4x18 | ||||
| 101 | 265A48-7 | 1.00 | 1.21 | |
| Carbon brush unit | ||||
| 102 | 638674-3 | 9.60 | 11.62 | |
| Speed control circuit | ||||
| 103 | 631932-6 | 63.80 | 77.20 | |
| Cable harness | ||||
| 104 | 638675-1 | 6.00 | 7.26 | |
| Lens | ||||
| 105 | 451428-9 | 1.20 | 1.45 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 106 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 106 | 266385-6 | 0.83 | 1.00 | |
| Compression Spring 11 | ||||
| 107 | 233434-4 | 2.40 | 2.90 | |
| Tap Screw 5X25 | ||||
| 108 | 266041-8 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 109 | 267066-5 | 1.20 | 1.45 | |
| Handle Support | ||||
| 110 | 451447-5 | 17.60 | 21.30 | |
| Tap Screw 5X25 | ||||
| 111 | 266041-8 | 1.00 | 1.21 | |
| Lock, handle- | ||||
| 112 | 451431-0 | 2.40 | 2.90 | |
| Nameplate Hm0871C A | ||||
| 113 | 814H67-8 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 114 | 266041-8 | 1.00 | 1.21 | |
| Dust Cap | ||||
| 115 | 451437-8 | 2.40 | 2.90 | |
| Dust Cap | ||||
| 116 | 424247-6 | 2.40 | 2.90 | |
| Complete handle housing | ||||
| 117 | 140205-1 | 14.30 | 17.30 | |
| Sliding Plate | ||||
| 118 | 451439-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 119 | 450352-3 | |||
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 120 | 266095-5 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 121 | 232209-8 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 122 | 263027-3 | 1.00 | 1.21 | |
| Switch handle | ||||
| 123 | 451427-1 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 124 | 265A48-7 | 1.00 | 1.21 | |
| Switch Sw-126 A | ||||
| 125 | 651069-3 | 8.40 | 10.16 | |
| Terminal block | ||||
| 126 | 654531-7 | 2.10 | 2.54 | |
| Strain reliever | ||||
| 127 | 687169-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 128 | 265A48-7 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 129 | 695123-3 | 22.00 | 26.62 | |
| Cable gland 10 | ||||
| 130 | 682560-0 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 131 | 265A48-7 | 1.00 | 1.21 | |
| Handle cover | ||||
| 132 | 451445-9 | 16.50 | 19.96 | |
| Rubber plate | ||||
| 133 | 423411-6 | 1.00 | 1.21 | |
