Here you will find all available parts and drawings of the 'Makita HM0860C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

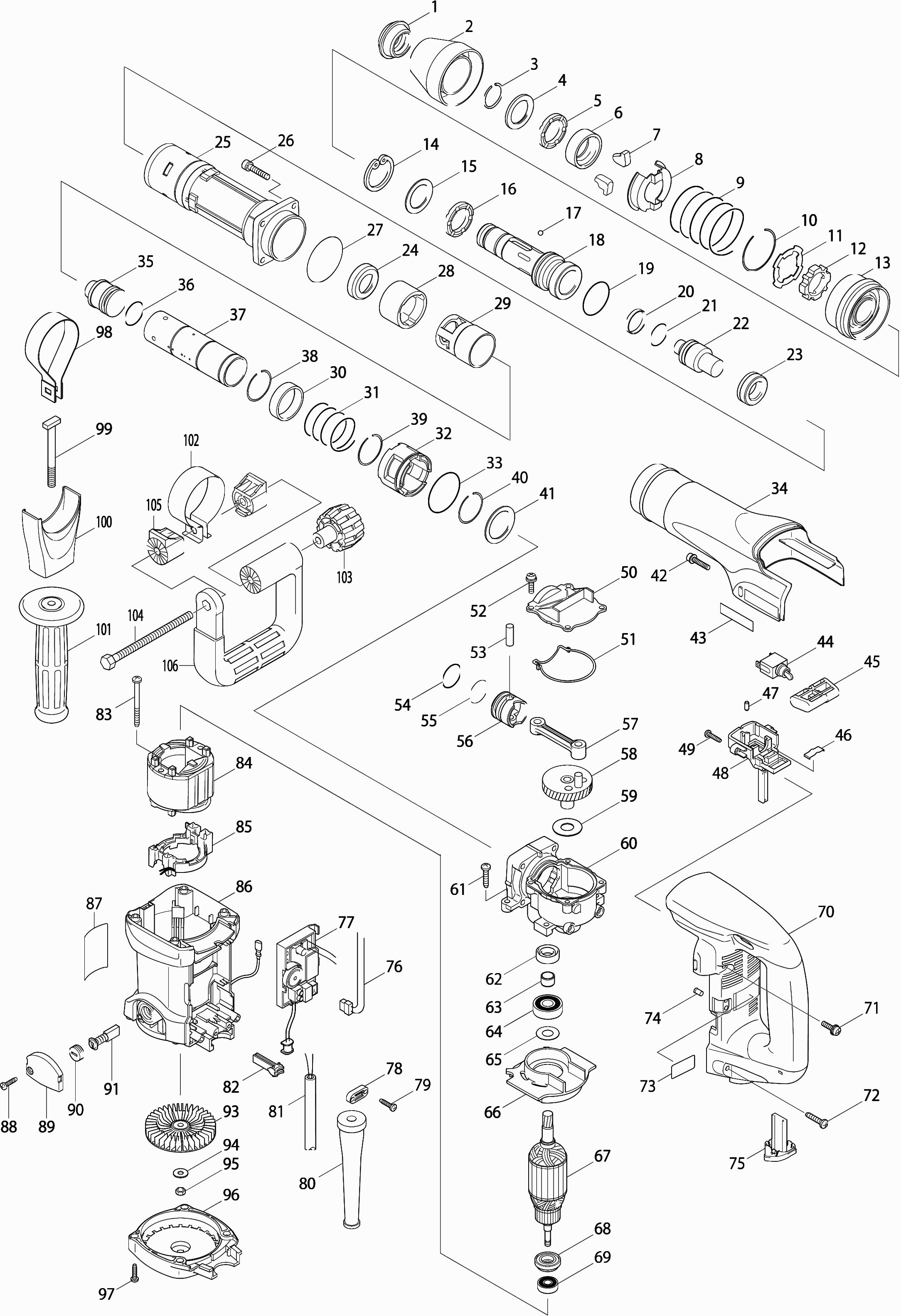

Technical drawing of model Makita HM0860C
Spare parts list of model Makita HM0860C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chisel Holder Cover | ||||
| 001* | 286269-2 | 2.40 | 2.90 | |
| Chisel Locking Cap Hm0860C | ||||
| 002 | 418351-1 | 3.60 | 4.36 | |
| Lock washer 25 | ||||
| 003 | 231984-3 | 1.20 | 1.45 | |
| Flat Washer 28 | ||||
| 004 | 267272-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 005 | 262110-3 | |||
| Unlock Ring | ||||
| 006 | 331659-5 | 7.20 | 8.71 | |
| Tool clamp | ||||
| 007* | 310108-5 | 8.40 | 10.16 | |
| Spring Guide | ||||
| 008 | 346677-0 | 8.40 | 10.16 | |
| Compression spring 52 Hm0860C | ||||
| 009 | 233387-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 010 | 233928-9 | |||
| Coverplate | ||||
| 011 | 346141-1 | 2.40 | 2.90 | |
| Locking Ring | ||||
| 012 | 310145-9 | 11.00 | 13.31 | |
| Lock ring Hm0860 | ||||
| 013 | 418357-9 | 3.60 | 4.36 | |
| Lock ring R-42 | ||||
| 014 | 962211-4 | 2.40 | 2.90 | |
| Lock Ring R42 | ||||
| 014A | 257960-9 | 6.00 | 7.26 | |
| Flat Washer 29 | ||||
| 015 | 267273-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 016 | 262110-3 | |||
| Steel ball 4.8 | ||||
| 017 | 216002-8 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 018 | 324387-9 | 88.00 | 106.48 | |
| O-ring 38 | ||||
| 019 | 213527-3 | 1.20 | 1.45 | |
| Fluoride ring 28 | ||||
| 020* | 213431-6 | 10.80 | 13.07 | |
| O-ring 23 | ||||
| 021* | 213394-6 | 1.00 | 1.21 | |
| Striker Pin | ||||
| 022 | 324389-5 | 13.20 | 15.97 | |
| Rubber ring 20 | ||||
| 023 | 421852-0 | 8.40 | 10.16 | |
| Washer 23 | ||||
| 024 | 267780-3 | 3.60 | 4.36 | |
| Cylinder | ||||
| 025 | 318052-0 | 71.50 | 86.52 | |
| Hex bolt 6x30 | ||||
| 026 | 922351-0 | 1.00 | 1.21 | |
| O-ring 53 | ||||
| 027 | 213656-2 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 028 | 451639-6 | 2.40 | 2.90 | |
| Guide Bush | ||||
| 029 | 450098-1 | 3.60 | 4.36 | |
| Washer 36 | ||||
| 030 | 331660-0 | 8.40 | 10.16 | |
| Compression Spring 37 HM0860C | ||||
| 031 | 233386-9 | 1.20 | 1.45 | |
| Cylinder guide | ||||
| 032 | 317719-7 | 11.00 | 13.31 | |
| O-ring 46 | ||||
| 033 | 213611-4 | 1.20 | 1.45 | |
| Crankcase Cover | ||||
| 034 | 183719-7 | 11.00 | 13.31 | |
| Floating Piston | ||||
| 035 | 324388-7 | 11.00 | 13.31 | |
| O-ring 24 | ||||
| 036* | 213958-6 | 2.40 | 2.90 | |
| Cylinder 32 | ||||
| 037 | 331658-7 | 59.40 | 71.87 | |
| Lock washer 34 | ||||
| 038 | 233927-1 | 1.00 | 1.21 | |
| Lock washer 34 | ||||
| 039 | 233927-1 | 1.00 | 1.21 | |
| Lock washer 34 | ||||
| 040 | 233927-1 | 1.00 | 1.21 | |
| Flat washer 34 | ||||
| 041 | 267079-6 | 2.40 | 2.90 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 042 | 922241-7 | 1.00 | 1.21 | |
| Label Makita | ||||
| 043 | 819063-3 | 2.40 | 2.90 | |
| Switch | ||||
| 044 | 651423-1 | 11.00 | 13.31 | |
| Switch handle | ||||
| 045 | 418360-0 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 046 | 232209-8 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 047 | 263027-3 | 1.00 | 1.21 | |
| Switch box | ||||
| 048 | 418361-8 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 1.00 | 1.21 | |
| Oil Cap Hm0860C | ||||
| 050 | 418358-7 | 2.40 | 2.90 | |
| Seal ring | ||||
| 051 | 421851-2 | 1.00 | 1.21 | |
| Screw Vk 20mm | ||||
| 052 | 911233-1 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 053 | 268104-6 | 1.20 | 1.45 | |
| O-ring 24 | ||||
| 054* | 213958-6 | 2.40 | 2.90 | |
| O-ring 26 | ||||
| 055 | 213432-4 | 1.00 | 1.21 | |
| Piston | ||||
| 056 | 418349-8 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 057 | 418350-3 | 3.60 | 4.36 | |
| Crank Shaft | ||||
| 058 | 153676-3 | 42.90 | 51.91 | |
| Flat Washer 14 | ||||
| 059 | 267166-1 | 2.40 | 2.90 | |
| Crank Case | ||||
| 060 | 153678-9 | 81.40 | 98.49 | |
| Needle Bearing 1412 | ||||
| 060A | 212151-9 | 9.60 | 11.62 | |
| Needle Bearing 1412 Hm0860C | ||||
| 060B | 212157-7 | 4.80 | 5.81 | |
| Tap Screw 5X25 | ||||
| 061 | 266041-8 | 1.00 | 1.21 | |
| Keerring 10 | ||||
| 062 | 213231-4 | 6.00 | 7.26 | |
| Bus 12 | ||||
| 063 | 331596-3 | 6.00 | 7.26 | |
| Ball Bearing 6201llu | ||||
| 064 | 211137-0 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 065 | 253759-0 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 066 | 418355-3 | 3.60 | 4.36 | |
| Armature | ||||
| 067 | 513563-2 | 78.10 | 94.50 | |
| Insulation ring | ||||
| 068 | 681650-6 | 6.00 | 7.26 | |
| Ball Bearing 608ddw | ||||
| 069 | 210005-4 | 4.80 | 5.81 | |
| Handle | ||||
| 070 | 418366-8 | 20.90 | 25.29 | |
| Screw Vk 20mm | ||||
| 071 | 911233-1 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 072 | 266041-8 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 073 | 815954-6 | |||
| Acrylic pen | ||||
| 074 | 416285-2 | 1.00 | 1.21 | |
| Handle cover | ||||
| 075 | 418359-5 | 2.40 | 2.90 | |
| Wiring harness Hm0860C | ||||
| 076 | 638294-3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 077 | 631554-2 | |||
| Clamp Bracket | ||||
| 078 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 078 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 079 | 265A48-7 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 080 | 682560-0 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 081 | 695123-3 | 22.00 | 26.62 | |
| Mounting rod | ||||
| 082 | 418353-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 083 | 266110-5 | |||
| Field | ||||
| 084 | 634508-8 | 28.60 | 34.61 | |
| Support | ||||
| 085 | 638293-5 | 6.00 | 7.26 | |
| Clamping bushing for statorv. 2mm | ||||
| 085A | 654502-4 | 1.00 | 1.21 | |
| Little stator spring Cb-7 | ||||
| 085B | 654019-7 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 086 | 153677-1 | 36.30 | 43.92 | |
| Cable harness | ||||
| 086A | 638295-1 | 2.40 | 2.90 | |
| Carbon Brush holder 5X11 A | ||||
| 086B | 644501-4 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 086C | 643757-6 | 8.40 | 10.16 | |
| Label | ||||
| 087 | 850965-4 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 088 | 265A48-7 | 1.00 | 1.21 | |
| Carbon brush cover | ||||
| 089 | 418362-6 | 1.20 | 1.45 | |
| Carbon brush cap | ||||
| 090 | 643515-0 | 1.00 | 1.21 | |
| Carbon Brush Set Cb-327 | ||||
| 091* | 194285-9 | 8.21 | 9.93 | |
| KOOLBORSTEL SET CB-327 A | ||||
| 091* | 195003-8 | 8.21 | 9.93 | |
| Impeller 76 | ||||
| 093 | 135058-1 | 7.20 | 8.71 | |
| Washer 6x12mm | ||||
| 094 | 941151-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 095 | 931303-0 | |||
| Lower Lid | ||||
| 096 | 418354-5 | 6.00 | 7.26 | |
| Tap screw 4x18 | ||||
| 097 | 265A48-7 | 1.00 | 1.21 | |
| Handle Spring 60 Hm0860C | ||||
| 098 | 345361-4 | 6.00 | 7.26 | |
| Bolt for handle gr. M8X80mm | ||||
| 099 | 266322-0 | 2.40 | 2.90 | |
| Side handle base 60 Hm0860C | ||||
| 100 | 418363-4 | 4.80 | 5.81 | |
| Handle 36 Hm0830T | ||||
| 101 | 158131-0 | 13.20 | 15.97 | |
| Handle Base | ||||
| 102 | 152620-7 | 16.50 | 19.96 | |
| Knob M8 | ||||
| 103 | 252640-2 | 6.00 | 7.26 | |
| Hexagonal bolt 8x150 | ||||
| 104 | 265439-6 | 3.60 | 4.36 | |
| Handle filling bush | ||||
| 105 | 417002-3 | 2.40 | 2.90 | |
| Side Handle | ||||
| 106 | 417003-1 | 16.50 | 19.96 | |
