Here you will find all available parts and drawings of the 'Makita HM0810B'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

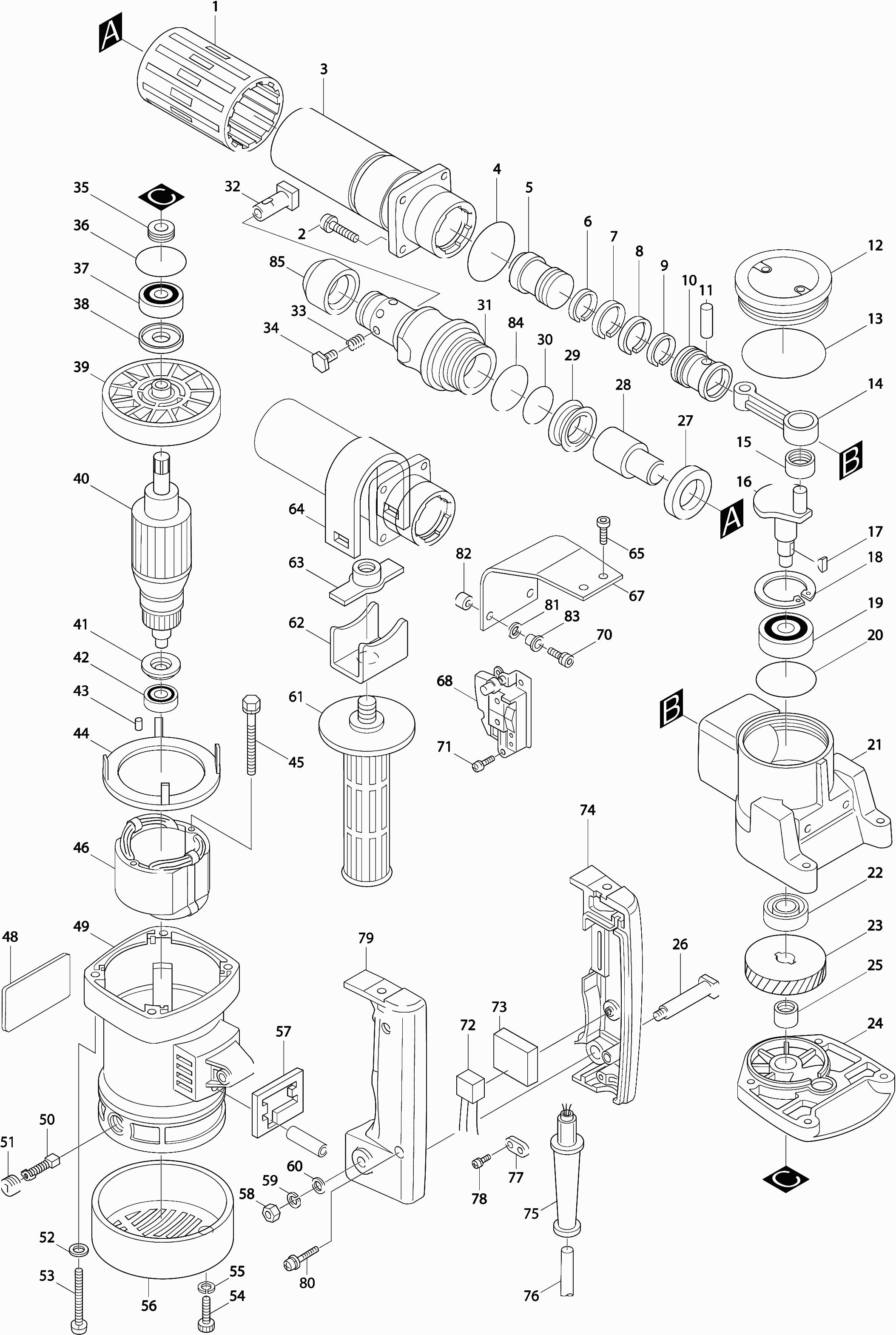

Technical drawing of model Makita HM0810B
Spare parts list of model Makita HM0810B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Housing Hm0810 * | ||||
| 001 | 421196-8 | 8.40 | 10.16 | |
| Hex bolt 6x25 | ||||
| 002 | 922341-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 151413-9 | |||
| O-ring 44 | ||||
| 004 | 213554-0 | 2.40 | 2.90 | |
| Striker | ||||
| 005 | 321929-0 | 13.20 | 15.97 | |
| Inner ring 26 | ||||
| 006 | 412073-5 | 13.20 | 15.97 | |
| Piston Ring | ||||
| 007 | 412053-1 | 8.40 | 10.16 | |
| Piston Ring | ||||
| 008 | 412053-1 | 8.40 | 10.16 | |
| Inner ring 26 | ||||
| 009 | 321514-9 | 3.60 | 4.36 | |
| Piston | ||||
| 010 | 321958-3 | 19.80 | 23.96 | |
| Pen 8 | ||||
| 011 | 256165-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 012 | 150368-5 | |||
| O-ring 60 | ||||
| 013 | 213654-6 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 014 | 312956-8 | 16.50 | 19.96 | |
| Needle Bearing 1212 | ||||
| 015 | 212108-0 | 11.00 | 13.31 | |
| Crank Shaft | ||||
| 016 | 321954-1 | 17.60 | 21.30 | |
| Feather Key 4 | ||||
| 017 | 254001-2 | 1.00 | 1.21 | |
| Lock ring R-47 | ||||
| 018 | 962203-3 | 1.20 | 1.45 | |
| Ball bearing 6303llb | ||||
| 019 | 211279-0 | 8.40 | 10.16 | |
| O-ring 48 | ||||
| 020 | 213606-7 | 2.40 | 2.90 | |
| Crank Case | ||||
| 021 | 157627-8 | 28.60 | 34.61 | |
| Seal ring 17 | ||||
| 022 | 213260-7 | 3.60 | 4.36 | |
| Gear 41 | ||||
| 023 | 221669-9 | 26.40 | 31.94 | |
| Gear Cover | ||||
| 024 | 157628-6 | 12.10 | 14.64 | |
| Needle Bearing 1210 | ||||
| 025 | 212102-2 | 6.00 | 7.26 | |
| Brush Bolt | ||||
| 026 | 321210-9 | 3.60 | 4.36 | |
| Washer 24 | ||||
| 027 | 253955-0 | 8.40 | 10.16 | |
| Slagstuk Hm0810B * | ||||
| 028 | 324162-3 | 16.50 | 19.96 | |
| X-ring 28 | ||||
| 029 | 213428-5 | 17.60 | 21.30 | |
| O-ring 27 | ||||
| 030 | 213411-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 031 | 322323-9 | |||
| Tool clamp | ||||
| 032 | 331301-8 | 23.10 | 27.95 | |
| Compression Spring 15 | ||||
| 033 | 231375-8 | 1.20 | 1.45 | |
| Hex Bolt 8x12 | ||||
| 034 | 265321-9 | 4.80 | 5.81 | |
| Gasket | ||||
| 035 | 331194-3 | 6.00 | 7.26 | |
| O-ring 32 | ||||
| 036 | 213459-4 | 1.20 | 1.45 | |
| Ball Bearing 6201dw1 | ||||
| 037 | 211129-9 | 8.40 | 10.16 | |
| Dust Seal 12 | ||||
| 038 | 213102-5 | 1.20 | 1.45 | |
| Fan 82 | ||||
| 039 | 241827-1 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 040 | 518283-3 | |||
| Insulation ring | ||||
| 041 | 681625-5 | 1.20 | 1.45 | |
| Ball bearing 608llb | ||||
| 042 | 210043-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 043 | 263002-9 | 1.00 | 1.21 | |
| Cutting Insert | ||||
| 044 | 410509-8 | 2.40 | 2.90 | |
| Screw 5X60 * | ||||
| 045 | 911681-4 | 1.20 | 1.45 | |
| Field Hm0810 | ||||
| 046 | 528796-6 | 56.10 | 67.88 | |
| Motor Housing | ||||
| 049 | 159634-7 | 39.60 | 47.92 | |
| Carbon Brush Set Cb-105 | ||||
| 050 | 181038-5 | 8.40 | 10.16 | |
| Brush holder cap | ||||
| 051 | 643600-9 | 1.20 | 1.45 | |
| Washer 6x12mm | ||||
| 052 | 941151-9 | 1.00 | 1.21 | |
| Hex Socket Bolt M6x50 | ||||
| 053 | 922371-4 | 1.20 | 1.45 | |
| Allen bolt 5x18 | ||||
| 054 | 922227-1 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 055 | 253427-5 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 056 | 284059-7 | 6.00 | 7.26 | |
| Sponge | ||||
| 057 | 423257-0 | 1.20 | 1.45 | |
| Hex Nut M6 | ||||
| 058 | 931302-2 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 059 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 060 | 941151-9 | 1.00 | 1.21 | |
| Handle Clamp Piece | ||||
| 062 | 341922-8 | 2.40 | 2.90 | |
| Lock Nut | ||||
| 063 | 321497-3 | 10.80 | 13.07 | |
| Handle clamp | ||||
| 064 | 341914-7 | 6.00 | 7.26 | |
| Hex bolt M6X14 A | ||||
| 065 | 922316-2 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 066 | 253903-9 | 1.00 | 1.21 | |
| Vibration plate | ||||
| 067 | 343753-1 | 6.00 | 7.26 | |
| Switch Sw-72 | ||||
| 068 | 651038-4 | 17.60 | 21.30 | |
| Spring Washer 6 A | ||||
| 069 | 253903-9 | 1.00 | 1.21 | |
| Hex bolt 6x25 | ||||
| 070 | 922341-3 | 1.00 | 1.21 | |
| Screw 4x8 | ||||
| 071 | 911109-2 | 1.00 | 1.21 | |
| Sponge ring | ||||
| 073 | 685722-9 | 2.40 | 2.90 | |
| Handle Set Hm0810 New A | ||||
| 074 | 182590-6 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 075 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 076 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 077 | 687031-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 078 | 911133-5 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 080 | 911243-8 | 1.00 | 1.21 | |
