Here you will find all available parts and drawings of the 'Makita HK1800'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

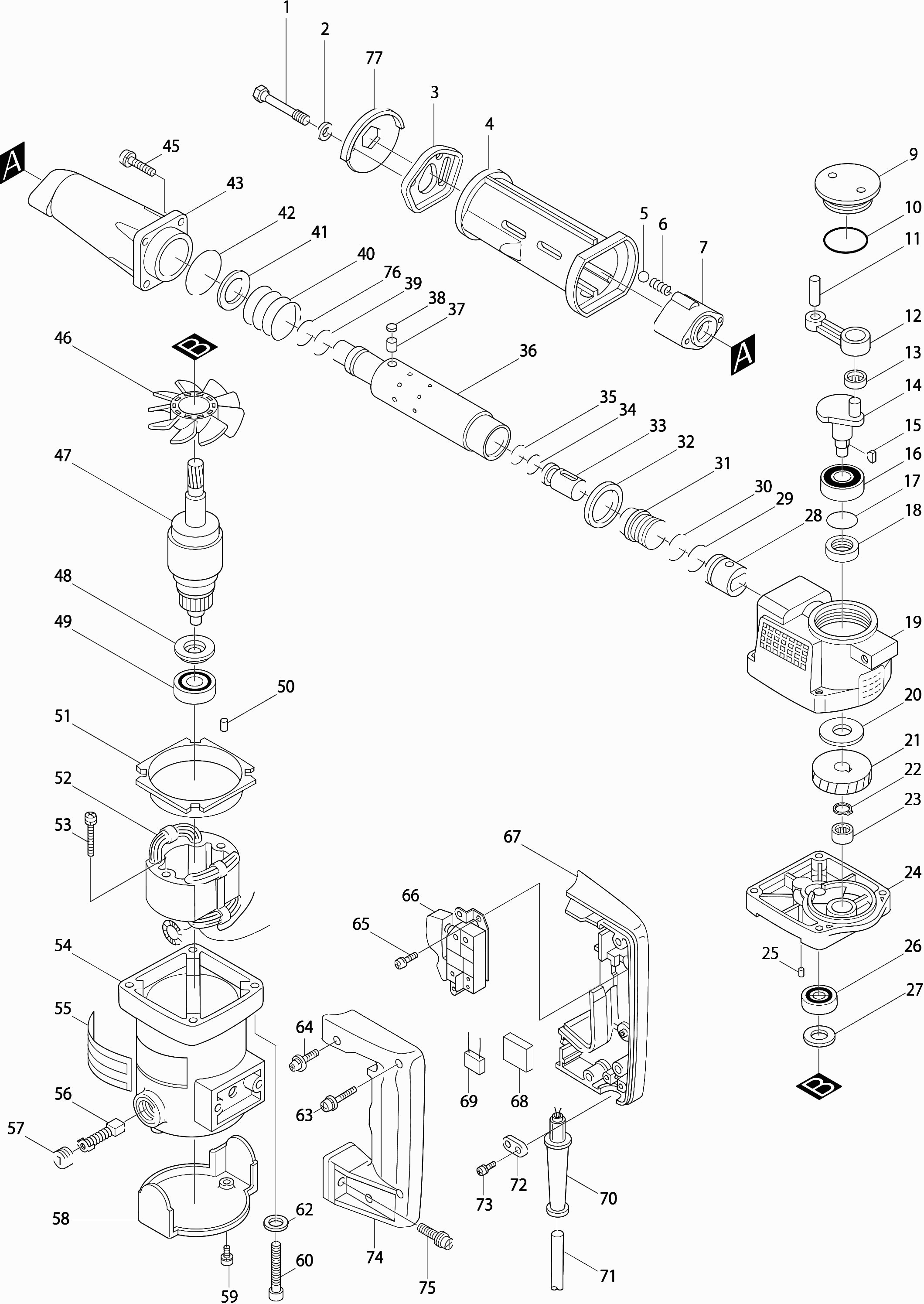

Technical drawing of model Makita HK1800
Spare parts list of model Makita HK1800
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagon bolt 6x49 | ||||
| 001 | 265393-4 | 3.60 | 4.36 | |
| Washer 8 | ||||
| 002 | 267017-8 | 1.20 | 1.45 | |
| Tool clamp | ||||
| 003 | 342910-8 | 4.80 | 5.81 | |
| Column cover Hk1800 | ||||
| 004 | 414175-3 | 7.20 | 8.71 | |
| Steel ball 5.6 | ||||
| 005 | 216041-8 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 006 | 231403-9 | 1.00 | 1.21 | |
| Chisel holder | ||||
| 007 | 321859-5 | 29.70 | 35.94 | |
| Filling cap | ||||
| 009 | 410734-1 | 3.60 | 4.36 | |
| O-ring 44 | ||||
| 010 | 213554-0 | 2.40 | 2.90 | |
| Pin 6 | ||||
| 011 | 256099-5 | 2.40 | 2.90 | |
| Drive rod | ||||
| 012 | 315146-2 | 17.60 | 21.30 | |
| Needle Bearing 810 | ||||
| 013 | 212017-3 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 014 | 321855-3 | |||
| Inlegspie 3 | ||||
| 015 | 254031-3 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 016 | 211236-8 | 9.60 | 11.62 | |
| O-ring 32 | ||||
| 017 | 213459-4 | 1.20 | 1.45 | |
| Seal Ring 15 | ||||
| 018 | 213219-4 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 019 | 157875-9 | |||
| Washer 15 | ||||
| 020 | 253887-1 | 1.20 | 1.45 | |
| Gear 36 | ||||
| 021 | 221745-9 | 19.80 | 23.96 | |
| Lock washer S-12 | ||||
| 022 | 961052-5 | 1.00 | 1.21 | |
| Needle Bearing 1010 | ||||
| 023 | 212052-1 | 6.00 | 7.26 | |
| Gear Cover | ||||
| 024 | 157782-6 | 27.50 | 33.28 | |
| Rubber pen 6 | ||||
| 025 | 263005-3 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 026 | 211131-2 | 9.60 | 11.62 | |
| Washer 12 | ||||
| 027 | 253748-5 | 1.00 | 1.21 | |
| Piston | ||||
| 028 | 321685-2 | 11.00 | 13.31 | |
| O-ring 19 (3 mm) | ||||
| 029* | 213308-5 | 4.80 | 5.81 | |
| O-ring 19 (3 mm) | ||||
| 030* | 213308-5 | 4.80 | 5.81 | |
| Striker | ||||
| 031 | 322505-3 | 11.00 | 13.31 | |
| Washer 28 | ||||
| 032 | 257117-2 | 3.60 | 4.36 | |
| Striker | ||||
| 033 | 324680-1 | 12.10 | 14.64 | |
| O-ring 12 | ||||
| 034* | 213111-4 | 4.80 | 5.81 | |
| O-ring 12 | ||||
| 035* | 213111-4 | 4.80 | 5.81 | |
| Cylinder 24 | ||||
| 036 | 321857-9 | 106.70 | 129.11 | |
| Pin 6 | ||||
| 037 | 256156-9 | 1.20 | 1.45 | |
| Label | ||||
| 038 | 423122-3 | 1.00 | 1.21 | |
| O-ring 19 (2.4 mm) | ||||
| 039* | 213309-3 | 3.60 | 4.36 | |
| Compression Spring 24 | ||||
| 040 | 231395-2 | 1.20 | 1.45 | |
| Washer 25 | ||||
| 041 | 267026-7 | 1.00 | 1.21 | |
| O-ring 39 | ||||
| 042 | 213512-6 | 2.40 | 2.90 | |
| Hammer Case | ||||
| 043 | 315838-3 | 44.00 | 53.24 | |
| Hex Bolt M6x25mm | ||||
| 045 | 266087-4 | 1.00 | 1.21 | |
| Fan 67 * | ||||
| 046 | 241820-5 | 7.20 | 8.71 | |
| Armature | ||||
| 047 | 512853-0 | 62.70 | 75.87 | |
| Insulation ring | ||||
| 048 | 681625-5 | 1.20 | 1.45 | |
| Ball Bearing 608ddw | ||||
| 049 | 210005-4 | 4.80 | 5.81 | |
| Rubber Pin 4 | ||||
| 050 | 263014-2 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 051 | 410578-9 | 2.40 | 2.90 | |
| Field | ||||
| 052 | 528788-5 | 56.10 | 67.88 | |
| Field | ||||
| 053 | 911265-8 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 054 | 157553-1 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 055 | 855426-9 | |||
| Carbon Brush Set Cb-105 | ||||
| 056* | 181038-5 | 8.40 | 10.16 | |
| Brush holder cap | ||||
| 057 | 643600-9 | 1.20 | 1.45 | |
| Bearing Cover Hk1800 * | ||||
| 058 | 343390-1 | 11.00 | 13.31 | |
| Screw 5x12 | ||||
| 059 | 911211-1 | 1.00 | 1.21 | |
| Allen Bolt m6x45 | ||||
| 060 | 922366-7 | 1.20 | 1.45 | |
| Washer 6mm A | ||||
| 062 | 267214-6 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 063 | 911243-8 | 1.00 | 1.21 | |
| Screw 6x18 | ||||
| 064 | 911328-0 | 1.00 | 1.21 | |
| Screw 4x8 | ||||
| 065 | 911106-8 | 1.00 | 1.21 | |
| Switch Sw-28 | ||||
| 066 | 651026-1 | 18.70 | 22.63 | |
| Handle Set Hr3500-Hk1800 * | ||||
| 067 | 181411-9 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 070 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 071 | 695123-3 | 22.00 | 26.62 | |
| Clamp Bracket | ||||
| 072 | 687031-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 073 | 911131-9 | 1.00 | 1.21 | |
| Screw 6X25 | ||||
| 075 | 911343-4 | 1.00 | 1.21 | |
| O-ring 19 (2.4 mm) | ||||
| 076* | 213309-3 | 3.60 | 4.36 | |
| Rubber seal | ||||
| 077* | 421336-8 | 2.40 | 2.90 | |
| Clamping bushing for statorv. 2mm | ||||
| 079 | 654502-4 | 1.00 | 1.21 | |
| Little stator spring Cb-7 | ||||
| 080 | 654019-7 | 1.20 | 1.45 | |
