Here you will find all available parts and drawings of the 'Makita HG6531C'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

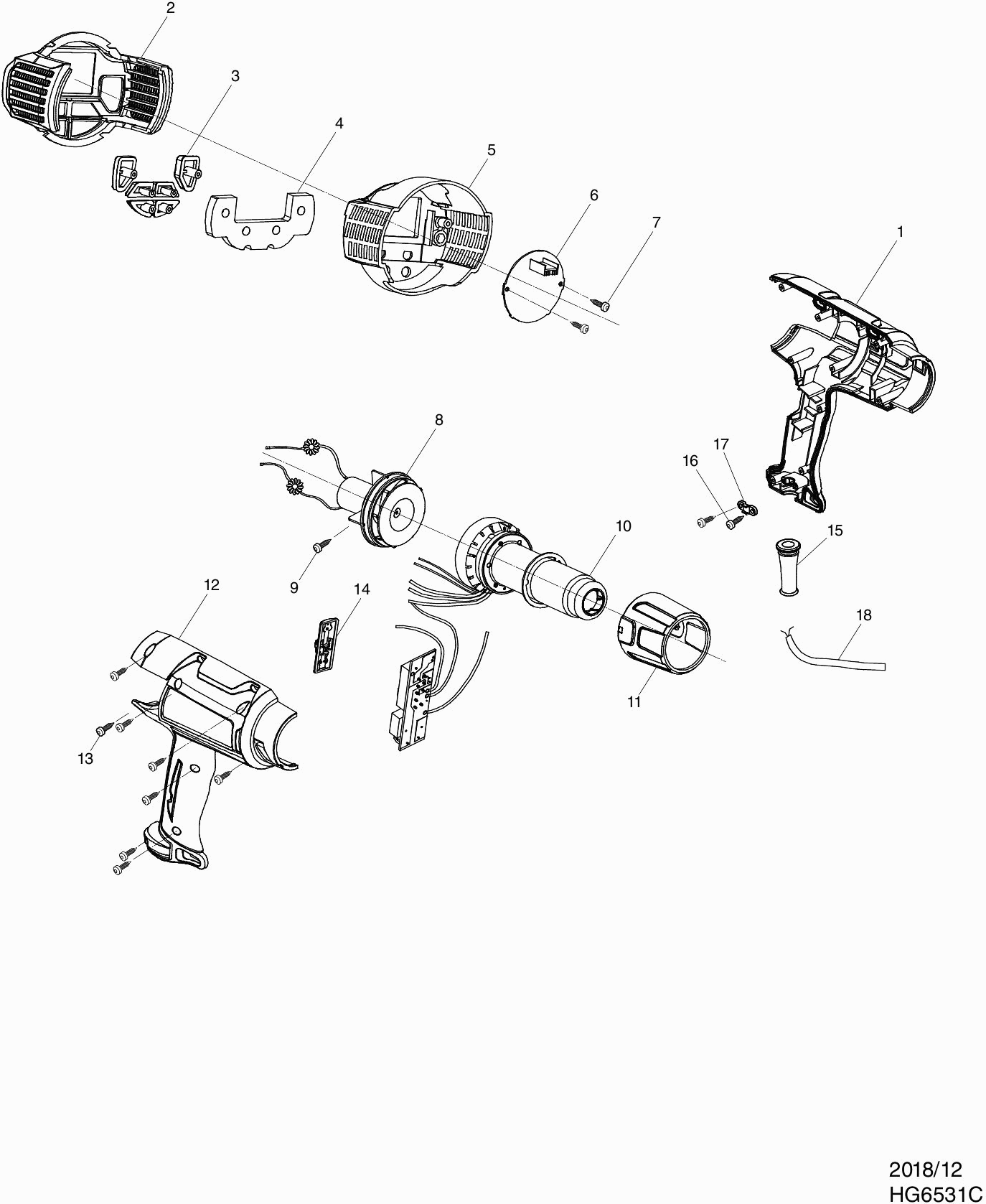

Technical drawing of model Makita HG6531C
Spare parts list of model Makita HG6531C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing L HG6031V | ||||
| 001 | PR00000015 | 11.84 | 14.33 | |
| Rear Housing HG6531C | ||||
| 002 | PR00000068 | 2.38 | 2.88 | |
| Air Guide HG6531C | ||||
| 003 | PR00000069 | 0.83 | 1.00 | |
| Sponge HG6531C | ||||
| 004 | PR00000070 | 0.83 | 1.00 | |
| Interior Housing HG6531C | ||||
| 005 | PR00000071 | 3.44 | 4.16 | |
| Circuit Board HG6531C | ||||
| 006 | PR00000086 | 63.68 | 77.05 | |
| Screw HG6031V | ||||
| 007 | PR00000020 | 0.83 | 1.00 | |
| Motor Cpl HG6531C | ||||
| 008 | PR00000088 | 21.08 | 25.51 | |
| SCREW | ||||
| 009 | PR00000007 | 0.83 | 1.00 | |
| Heating element HG6531C | ||||
| 010 | PR00000090 | 59.21 | 71.64 | |
| Cover cap HG5030 | ||||
| 011 | PR00000010 | 4.44 | 5.37 | |
| Housing R HG6031V | ||||
| 012 | PR00000023 | 10.52 | 12.73 | |
| SCREW | ||||
| 013 | PR00000004 | 0.83 | 1.00 | |
| Switch cover HG5030 | ||||
| 014 | PR00000005 | 1.99 | 2.41 | |
| Cable grommet | ||||
| 015 | PR00000008 | 1.99 | 2.41 | |
| SCREW | ||||
| 016 | PR00000007 | 0.83 | 1.00 | |
| CORD CLAMP | ||||
| 017 | PR00000006 | 0.83 | 1.00 | |
| Power cord 2x1.50 4.0mtr | ||||
| 018 | 695123-3 | 21.08 | 25.51 | |
