Here you will find all available parts and drawings of the 'Makita HG6031V'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

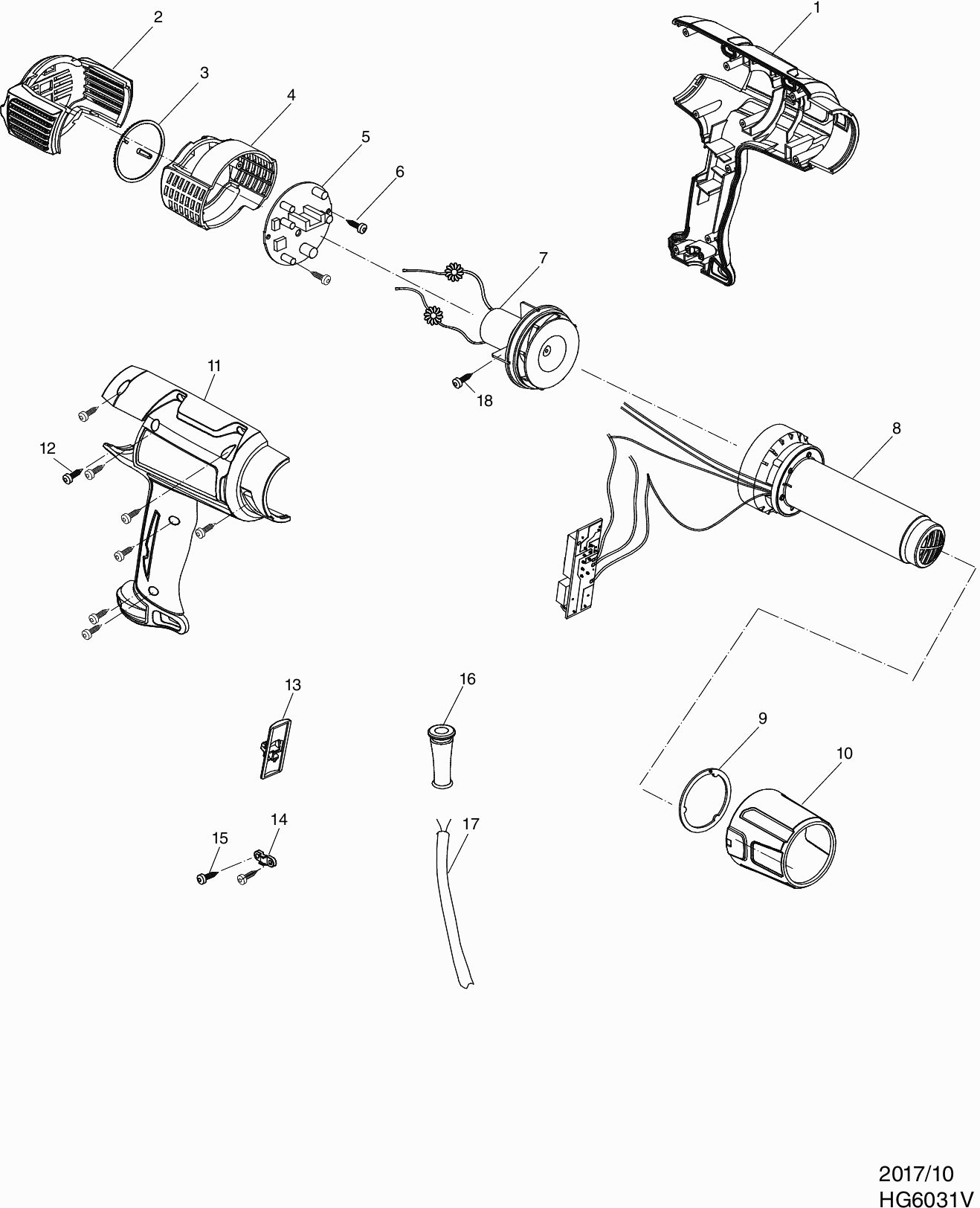

Technical drawing of model Makita HG6031V
Spare parts list of model Makita HG6031V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing L HG6031V | ||||
| 001 | PR00000015 | 11.00 | 13.31 | |
| Back cover HG6013V | ||||
| 002 | PR00000016 | 2.40 | 2.90 | |
| Heat controller HG6031V | ||||
| 003 | PR00000017 | 2.40 | 2.90 | |
| Rear housing HG6013V | ||||
| 004 | PR00000018 | 3.60 | 4.36 | |
| Controller HG6031V | ||||
| 005 | PR00000019 | 19.80 | 23.96 | |
| Screw HG6031V | ||||
| 006 | PR00000020 | 1.00 | 1.21 | |
| Motor Cpl HG6031V | ||||
| 007 | PR00000021 | 16.50 | 19.96 | |
| Switch HG6031V | ||||
| 008 | PR00000022 | 39.60 | 47.92 | |
| Support ring HG5030 | ||||
| 009 | PR00000011 | 1.20 | 1.45 | |
| Cover cap HG5030 | ||||
| 010 | PR00000010 | 4.80 | 5.81 | |
| Housing R HG6031V | ||||
| 011 | PR00000023 | 10.80 | 13.07 | |
| SCREW | ||||
| 012 | PR00000004 | 1.20 | 1.45 | |
| Switch cover HG5030 | ||||
| 013 | PR00000005 | 2.40 | 2.90 | |
| CORD CLAMP | ||||
| 014 | PR00000006 | 1.20 | 1.45 | |
| SCREW | ||||
| 015 | PR00000007 | 1.00 | 1.21 | |
| Cable grommet | ||||
| 016 | PR00000008 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 017 | 695123-3 | 22.00 | 26.62 | |
| SCREW | ||||
| 018 | PR00000007 | 1.00 | 1.21 | |
