Here you will find all available parts and drawings of the 'Makita GS5000'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

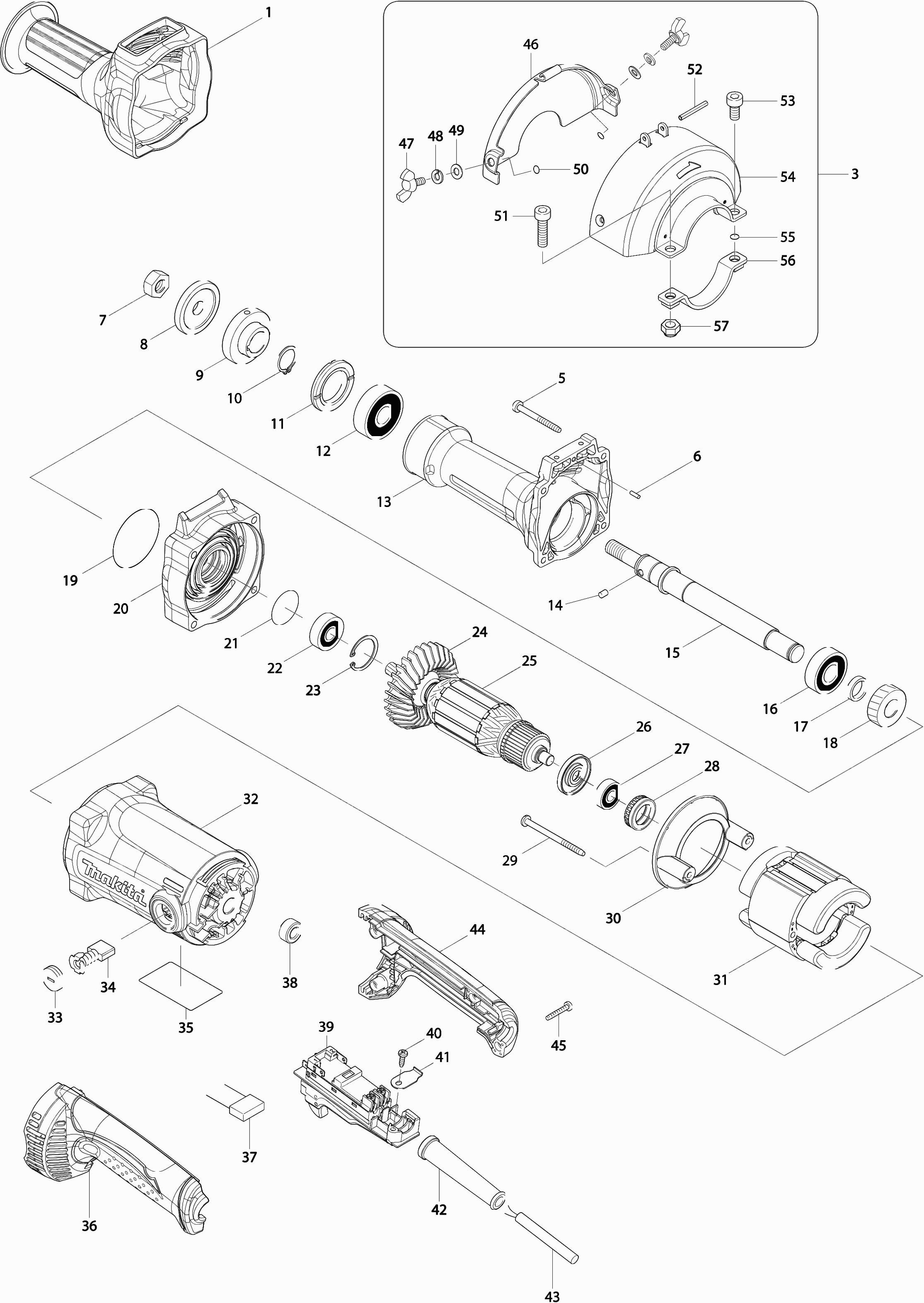

Technical drawing of model Makita GS5000
Spare parts list of model Makita GS5000
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulating Cap | ||||
| 001 | 424549-0 | 11.00 | 13.31 | |
| Protective Cap Assy 125mm | ||||
| 003 | 123199-5 | 26.40 | 31.94 | |
| Screw 5x50mm | ||||
| 005 | 266046-8 | 3.60 | 4.36 | |
| Pen 3 | ||||
| 006 | 256180-2 | 1.00 | 1.21 | |
| SLUITMOER RECHTE SLIJPER | ||||
| 008 | 224583-8 | 9.00 | 10.89 | |
| Inner flange 50mm | ||||
| 009 | 224457-3 | 14.30 | 17.30 | |
| Lock Ring S-20 | ||||
| 010 | 961060-6 | 1.00 | 1.21 | |
| Bearing Lock A | ||||
| 011 | 285824-7 | 3.60 | 4.36 | |
| Ball Bearing 6204 | ||||
| 012 | 211306-3 | 10.80 | 13.07 | |
| Gear Cover | ||||
| 013 | 318961-3 | 52.80 | 63.89 | |
| Pen 5mm | ||||
| 014 | 268161-4 | 1.00 | 1.21 | |
| Plunger | ||||
| 015 | 326252-8 | 41.80 | 50.58 | |
| Ball bearing | ||||
| 016 | 211256-2 | 8.10 | 9.80 | |
| Ball Bearing 6203zz | ||||
| 016 | 211290-2 | 6.38 | 7.72 | |
| Washer 17 | ||||
| 017 | 257253-4 | 1.20 | 1.45 | |
| Gear 47 | ||||
| 018 | 227766-9 | 16.50 | 19.96 | |
| O-ring 53 | ||||
| 019 | 213656-2 | 1.20 | 1.45 | |
| Gear Housing Cover | ||||
| 020 | 318962-1 | 46.20 | 55.90 | |
| No information available, not orderable | ||||
| 021 | 213487-9 | |||
| Ball Bearing 6201dw1 | ||||
| 022 | 211129-9 | 8.40 | 10.16 | |
| Lock washer r-32 | ||||
| 023 | 962151-6 | 1.00 | 1.21 | |
| Fan 80mm | ||||
| 024 | 240143-8 | 8.40 | 10.16 | |
| Armature | ||||
| 025 | 517889-4 | 93.50 | 113.14 | |
| Insulation ring | ||||
| 026 | 681657-2 | 1.20 | 1.45 | |
| Ball bearing 6000ddw | ||||
| 027 | 211289-7 | 13.20 | 15.97 | |
| Rubber Ring 26 | ||||
| 028 | 421490-8 | 6.00 | 7.26 | |
| Tapping screw 5x70mm | ||||
| 029 | 266038-7 | 2.40 | 2.90 | |
| Spacer plate | ||||
| 030 | 451480-7 | 1.20 | 1.45 | |
| Field assy 240v | ||||
| 031 | 523424-8 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 031A | 654208-4 | |||
| Motor Housing | ||||
| 032 | 140222-1 | 13.20 | 15.97 | |
| Brush Holder | ||||
| 032A | 643707-1 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 033 | 643700-5 | 1.20 | 1.45 | |
| Carbon brush set Cb-204 | ||||
| 034 | 194992-4 | 11.00 | 13.31 | |
| Label | ||||
| 035 | 814H98-7 | 3.60 | 4.36 | |
| Set Of Handles | ||||
| 036 | 188848-1 | 8.40 | 10.16 | |
| Capacitor | ||||
| 037 | 645088-9 | 1.00 | 1.21 | |
| Line filter | ||||
| 038 | 688131-1 | 1.00 | 1.21 | |
| Safety switch | ||||
| 039 | 650102-8 | 23.10 | 27.95 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 040 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 040 | 266385-6 | 0.83 | 1.00 | |
| Strain reliever | ||||
| 041 | 687169-3 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 042 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 043 | 695123-3 | 22.00 | 26.62 | |
| Set Of Handles | ||||
| 044 | 188848-1 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 045 | 265999-8 | |||
| No information available, not orderable | ||||
| 046 | 346654-2 | |||
| Wing Bolt 6x15 | ||||
| 047 | 265726-3 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 048 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 049 | 941151-9 | 1.00 | 1.21 | |
| O-ring 5mm | ||||
| 050 | 213005-3 | 1.00 | 1.21 | |
| Hex Socket Bolt M8x30 | ||||
| 051 | 922452-4 | 1.00 | 1.21 | |
| Spring Pin 4x32mm | ||||
| 052 | 951125-2 | 1.00 | 1.21 | |
| Allen Bolt M8x16 | ||||
| 053 | 922422-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 054 | 165713-1 | |||
| O-ring 6 | ||||
| 055 | 213017-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 056 | 346656-8 | |||
| Lock nut M8x13 high | ||||
| 057 | 252105-4 | 1.20 | 1.45 | |
