Here you will find all available parts and drawings of the 'Makita GN900'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

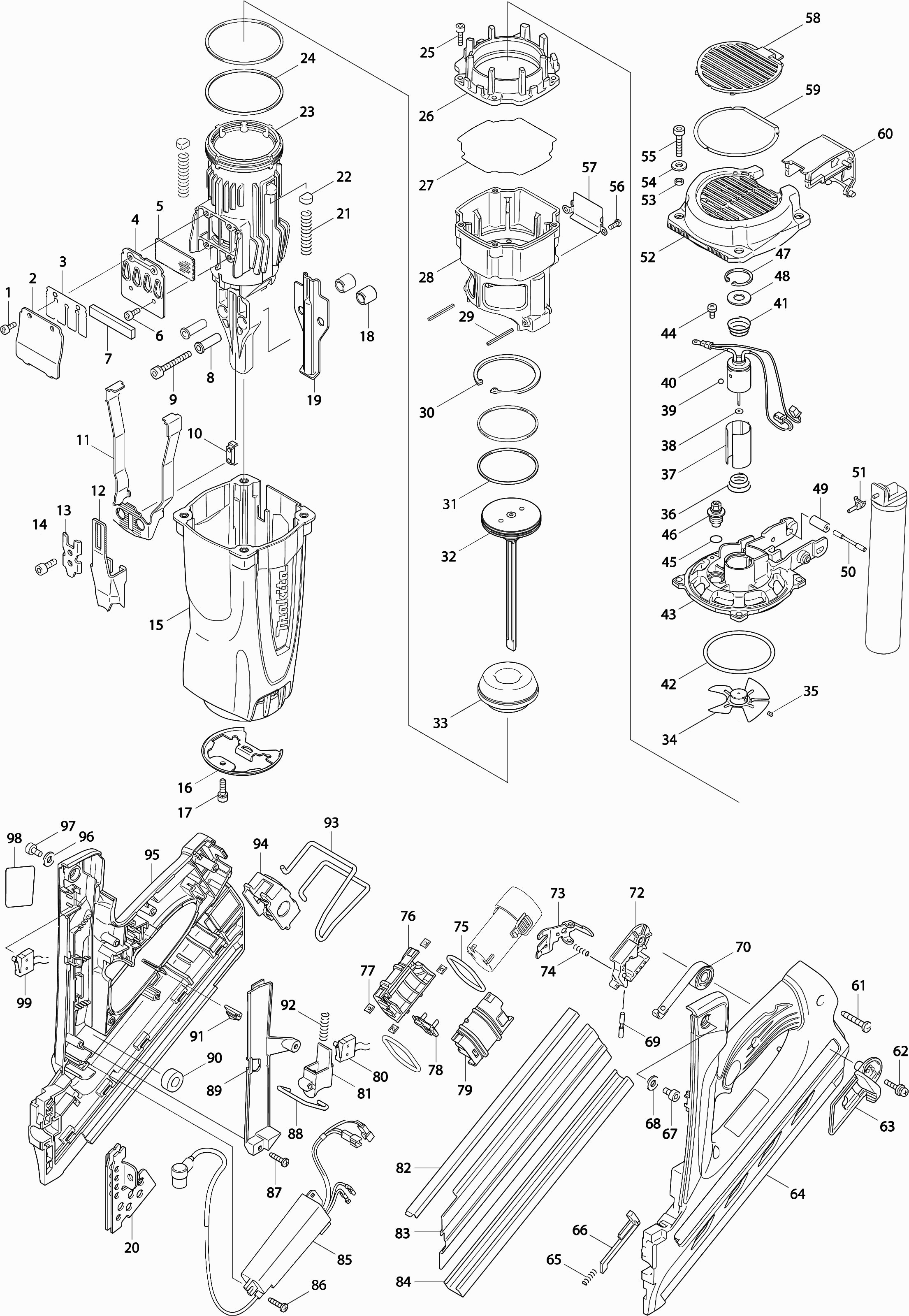

Technical drawing of model Makita GN900
Spare parts list of model Makita GN900
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Allen bolt M4x10 | ||||
| 001 | 922112-8 | 1.00 | 1.21 | |
| Exhaust Cap | ||||
| 002 | 345984-8 | 7.20 | 8.71 | |
| Exhaust valve | ||||
| 003 | 345982-2 | 2.40 | 2.90 | |
| Muffler | ||||
| 004 | 345983-0 | 4.80 | 5.81 | |
| Perforated Plate | ||||
| 005 | 352008-3 | 2.40 | 2.90 | |
| Allen bolt M4x10 | ||||
| 006 | 922112-8 | 1.00 | 1.21 | |
| Damping Ring | ||||
| 007 | 352009-1 | 3.60 | 4.36 | |
| Bus 5 | ||||
| 008 | 325711-9 | 3.60 | 4.36 | |
| Hexagon socket screw M5x35 | ||||
| 009 | 266271-1 | 1.20 | 1.45 | |
| Connector | ||||
| 010 | 313157-1 | 13.20 | 15.97 | |
| Lever | ||||
| 011 | 345987-2 | 16.50 | 19.96 | |
| Contact point Gn900 | ||||
| 012 | 345990-3 | 16.50 | 19.96 | |
| Arm Plate | ||||
| 013 | 345991-1 | 2.40 | 2.90 | |
| Hexagon Socket Bolt 5x10 | ||||
| 014 | 922207-7 | 1.00 | 1.21 | |
| Flange Ring Ps64 73 7900 A | ||||
| 015 | 038171042 | 2.40 | 2.90 | |
| Front cover plate | ||||
| 016 | 346008-3 | 10.80 | 13.07 | |
| Screw 5X16 JR3051T A | ||||
| 017 | 265C32-4 | 1.00 | 1.21 | |
| Bus 8 | ||||
| 018 | 257784-3 | 2.40 | 2.90 | |
| Strike Piece guide | ||||
| 019 | 346124-1 | 11.00 | 13.31 | |
| Strike pin guide | ||||
| 020 | 346357-8 | 39.60 | 47.92 | |
| Compression Spring 8 | ||||
| 021 | 234127-6 | 1.20 | 1.45 | |
| Rubber Cap | ||||
| 022 | 424138-1 | 3.60 | 4.36 | |
| Cylinder | ||||
| 023 | 318496-4 | 105.60 | 127.78 | |
| Gasket | ||||
| 024 | 324973-6 | 10.80 | 13.07 | |
| Hex bolt 4x16 | ||||
| 025 | 922127-5 | 1.00 | 1.21 | |
| Upper Chamber | ||||
| 026 | 318322-7 | 6.00 | 7.26 | |
| Washer | ||||
| 027 | 424139-9 | 3.60 | 4.36 | |
| Chamber | ||||
| 028 | 318320-1 | 11.00 | 13.31 | |
| Slotted Spring Pin | ||||
| 029 | 951078-5 | 1.00 | 1.21 | |
| Lock Ring R-58 | ||||
| 030 | 962254-6 | 3.60 | 4.36 | |
| Piston Ring | ||||
| 031 | 324972-8 | 8.40 | 10.16 | |
| Striking pin | ||||
| 032 | 158840-1 | 124.30 | 150.40 | |
| SHOCK PAD | ||||
| 033 | 424137-3 | 3.60 | 4.36 | |
| Fan 60 | ||||
| 034 | 241674-0 | 10.80 | 13.07 | |
| Adjusting screw M3x4 | ||||
| 035 | 913904-6 | 2.40 | 2.90 | |
| Pressure spring 12-18 | ||||
| 036 | 233969-5 | 1.00 | 1.21 | |
| Motor housing | ||||
| 037 | 454002-2 | 2.40 | 2.90 | |
| Epoxy Washer | ||||
| 038 | 261141-9 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 039 | 216019-1 | 1.00 | 1.21 | |
| Direct current motor | ||||
| 040 | 629860-7 | 124.30 | 150.40 | |
| Pressure spring 12-18 | ||||
| 041 | 233969-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042 | 213677-4 | |||
| Cylinder Head | ||||
| 043 | 318321-9 | 45.10 | 54.57 | |
| Screw 4x8 | ||||
| 044 | 652014-1 | 1.00 | 1.21 | |
| O-ring 10 | ||||
| 045 | 213070-2 | 1.00 | 1.21 | |
| Spark Plug | ||||
| 046 | 162269-5 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 047 | 962103-7 | |||
| Ring 10 | ||||
| 048 | 253024-7 | 1.00 | 1.21 | |
| Rubber bushing 9 | ||||
| 049 | 422044-4 | 1.00 | 1.21 | |
| Collar Pin 4 | ||||
| 050 | 324976-0 | 2.40 | 2.90 | |
| Adaptor | ||||
| 051 | 454003-0 | 1.20 | 1.45 | |
| Top cover | ||||
| 052 | 450730-7 | 8.40 | 10.16 | |
| Bus 5 | ||||
| 053 | 257672-4 | 1.20 | 1.45 | |
| Washer 5mm DSP601 A | ||||
| 054 | 253414-4 | 1.00 | 1.21 | |
| Hexagon Bolt | ||||
| 055 | 922242-5 | 1.00 | 1.21 | |
| Screw 4X10 1050Dw * | ||||
| 056 | 265069-3 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 057 | 345985-6 | 3.60 | 4.36 | |
| Filter Cover | ||||
| 058 | 450733-1 | 3.60 | 4.36 | |
| Filter | ||||
| 059 | 162270-0 | 8.40 | 10.16 | |
| Release button | ||||
| 060 | 454202-4 | 6.00 | 7.26 | |
| Tap Screw 5X25 | ||||
| 061 | 266041-8 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 062 | 911138-5 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 063 | 450735-7 | 2.40 | 2.90 | |
| Set Of Handles | ||||
| 064 | 188625-1 | 48.40 | 58.56 | |
| LED indication label | ||||
| 064A | 808225-8 | 2.40 | 2.90 | |
| Warning Label | ||||
| 064B | 810458-3 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 065 | 233054-4 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 066 | 310289-5 | 15.40 | 18.63 | |
| Inbusbout 5x10 | ||||
| 067 | 265907-9 | 1.00 | 1.21 | |
| Washer 5mm DSP601 A | ||||
| 068 | 253414-4 | 1.00 | 1.21 | |
| Collar Pin 4 | ||||
| 069 | 324977-8 | 2.40 | 2.90 | |
| Complete spiral spring | ||||
| 070 | 158791-8 | 12.10 | 14.64 | |
| Pressure holder | ||||
| 072 | 450734-9 | 3.60 | 4.36 | |
| Pressure Plate | ||||
| 073 | 345992-9 | 4.80 | 5.81 | |
| Compression Spring 3 | ||||
| 074 | 234084-8 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 075 | 424152-7 | 1.20 | 1.45 | |
| Battery holder set for Gn900 | ||||
| 076 | 188598-8 | 6.00 | 7.26 | |
| Mounting Plate | ||||
| 077 | 345749-8 | 1.00 | 1.21 | |
| Connection unit | ||||
| 078 | 643817-4 | 2.40 | 2.90 | |
| Battery holder set for Gn900 | ||||
| 079 | 188598-8 | 6.00 | 7.26 | |
| Switching Unit | ||||
| 080 | 638642-6 | 11.00 | 13.31 | |
| Rotary knob ABB OHYS2AJ | ||||
| 081 | 450736-5 | 3.60 | 4.36 | |
| Nail guide | ||||
| 082 | 345988-0 | 11.00 | 13.31 | |
| Nail plate | ||||
| 083 | 345989-8 | 11.00 | 13.31 | |
| Magazine support | ||||
| 084 | 345981-4 | 15.40 | 18.63 | |
| Ignition Unit Gn900 A | ||||
| 085 | 620158-5 | 112.20 | 135.76 | |
| Tap screw 4x18 | ||||
| 086 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 087 | 265A48-7 | 1.00 | 1.21 | |
| Chamber Lock Pin | ||||
| 088 | 324974-4 | 3.60 | 4.36 | |
| Wire cover | ||||
| 089 | 450740-4 | 3.60 | 4.36 | |
| Line filter | ||||
| 090 | 688131-1 | 1.00 | 1.21 | |
| Lens | ||||
| 091 | 450741-2 | 2.40 | 2.90 | |
| Compression Spring 6 | ||||
| 092 | 231307-5 | 1.00 | 1.21 | |
| Carry Hook | ||||
| 093 | 324953-2 | 3.00 | 3.63 | |
| holder for carrying hook | ||||
| 094 | 318338-2 | 7.20 | 8.71 | |
| Set Of Handles | ||||
| 095 | 188625-1 | 48.40 | 58.56 | |
| LED indication label | ||||
| 095A | 808225-8 | 2.40 | 2.90 | |
| Warning Label | ||||
| 095B | 810458-3 | 2.40 | 2.90 | |
| Washer 5mm DSP601 A | ||||
| 096 | 253414-4 | 1.00 | 1.21 | |
| Inbusbout 5x10 | ||||
| 097 | 265907-9 | 1.00 | 1.21 | |
| Nameplate "gn900" | ||||
| 098 | 866161-4 | 3.60 | 4.36 | |
| Switching Unit | ||||
| 099 | 638642-6 | 11.00 | 13.31 | |
