Here you will find all available parts and drawings of the 'Makita GD0810C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

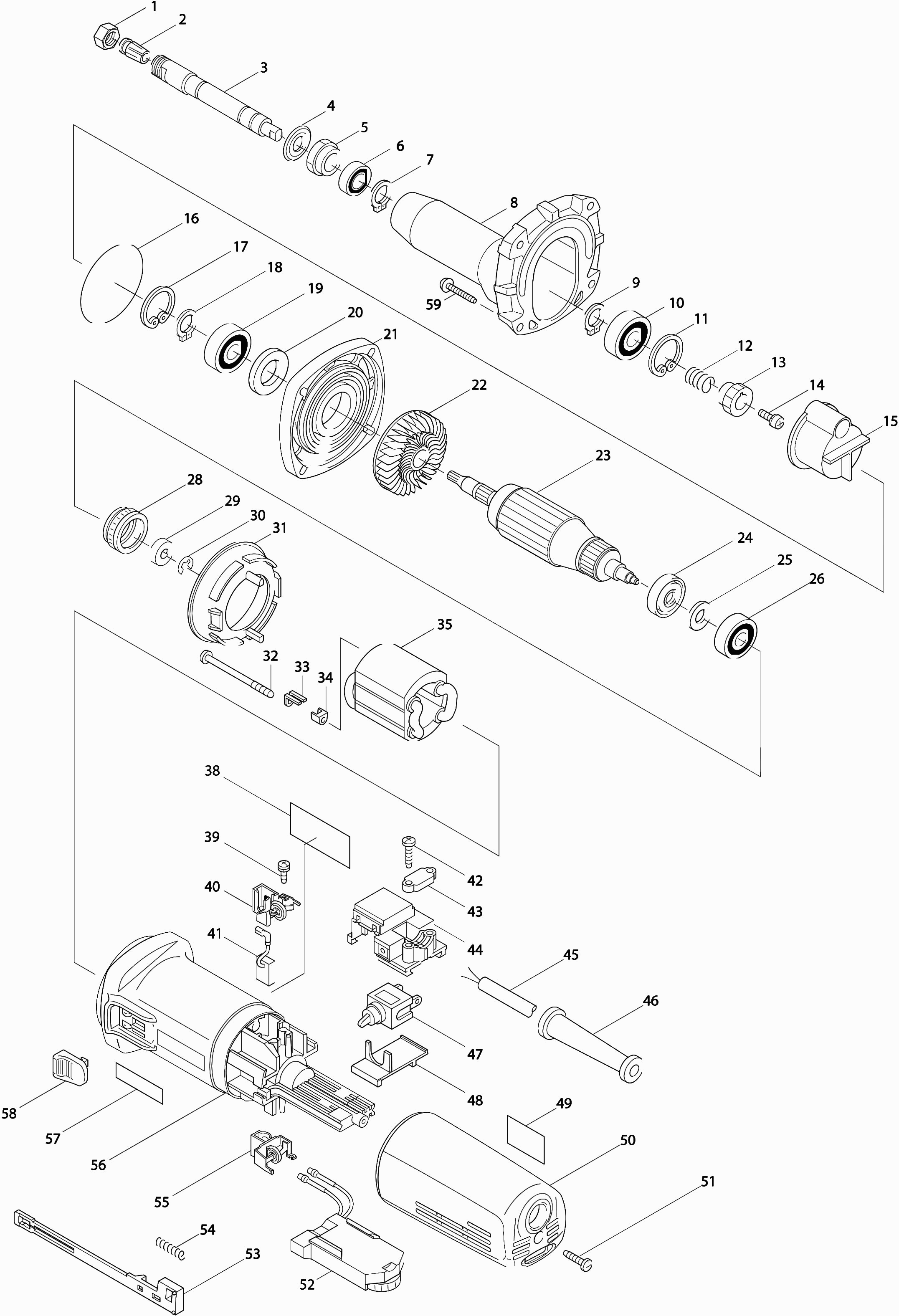

Technical drawing of model Makita GD0810C
Spare parts list of model Makita GD0810C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SPANMOER RECHTE SLIJPER | ||||
| 001 | 763645-2 | 2.00 | 2.42 | |
| SPANTANGSET 6MM RECHTE SLIJPER | ||||
| 002 | 193012-1 | 16.00 | 19.36 | |
| Spindle Ass'y | ||||
| 003 | 324042-3 | 26.40 | 31.94 | |
| Seal Ring 16 | ||||
| 004 | 213209-7 | 3.60 | 4.36 | |
| Bearing Lock | ||||
| 005 | 285700-5 | 9.60 | 11.62 | |
| Ball Bearing 6901llb | ||||
| 006 | 211141-9 | 7.20 | 8.71 | |
| Lock washer S-12 | ||||
| 007 | 961052-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 008 | 317369-8 | 59.40 | 71.87 | |
| Lock washer S-12 | ||||
| 009 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001zz | ||||
| 010 | 211148-5 | 8.40 | 10.16 | |
| Lock Ring S-28 | ||||
| 011 | 961108-4 | 1.20 | 1.45 | |
| Lock Spring 12 | ||||
| 012 | 233901-9 | 3.60 | 4.36 | |
| Gear 25 | ||||
| 013 | 226531-3 | 16.50 | 19.96 | |
| Cross-head screw 4x8 | ||||
| 014 | 265082-1 | 1.00 | 1.21 | |
| Gear-box cover | ||||
| 015 | 417363-1 | 4.80 | 5.81 | |
| O-ring 46 | ||||
| 016 | 213611-4 | 1.20 | 1.45 | |
| Lock Ring S-28 | ||||
| 017 | 961108-4 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 018 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001zz | ||||
| 019 | 211148-5 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 020 | 253084-9 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 021 | 317367-2 | 14.30 | 17.30 | |
| Fan 57 | ||||
| 022 | 240036-9 | 4.80 | 5.81 | |
| Armature | ||||
| 023 | 515214-3 | 63.68 | 77.05 | |
| Insulation ring | ||||
| 024 | 681656-4 | 1.00 | 1.21 | |
| SLUITRING 7 LF1000 A | ||||
| 025 | 267326-5 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 026 | 210045-2 | 3.60 | 4.36 | |
| Labyrinth ring | ||||
| 028 | 421770-2 | 8.40 | 10.16 | |
| Magnetic socket Rt0700 A | ||||
| 029 | 688117-5 | 3.60 | 4.36 | |
| Retaining Ring E-4 | ||||
| 030 | 961011-9 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 031 | 413076-2 | 2.40 | 2.90 | |
| Tapping screw 4x60 | ||||
| 032 | 266259-1 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 033 | 344871-8 | 1.20 | 1.45 | |
| Insulating Cap | ||||
| 034 | 417237-6 | 1.20 | 1.45 | |
| Field | ||||
| 035 | 626529-4 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 035-1 | 621B79-6 | |||
| Self Tapper Pt 3x10 | ||||
| 039 | 266256-7 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 040 | 643760-7 | 3.60 | 4.36 | |
| Carbon brush set CB-318 | ||||
| 041 | 191978-9 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 043 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 043 | 687124-5 | 1.00 | 1.21 | |
| Switch Holder | ||||
| 044 | 632945-0 | 9.60 | 11.62 | |
| Power cord 2x1.00 2.2mtr | ||||
| 045 | 665383-1 | 10.80 | 13.07 | |
| Cable gland 8-110 | ||||
| 046 | 682559-5 | 1.20 | 1.45 | |
| Switch Sw-126 A | ||||
| 047 | 651069-3 | 8.40 | 10.16 | |
| Switch cover | ||||
| 048 | 687113-0 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 050 | 417185-9 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 051 | 265A48-7 | 1.00 | 1.21 | |
| Electronic regulator | ||||
| 052 | 631391-4 | 63.80 | 77.20 | |
| Control rod | ||||
| 053 | 417187-5 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 054 | 233071-4 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 055 | 643974-8 | 6.00 | 7.26 | |
| Motor Housing | ||||
| 056 | 417812-8 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 057 | 819720-3 | |||
| Switch Button | ||||
| 058 | 417813-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 059 | 265999-8 | |||
