Here you will find all available parts and drawings of the 'Makita GD0801C'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

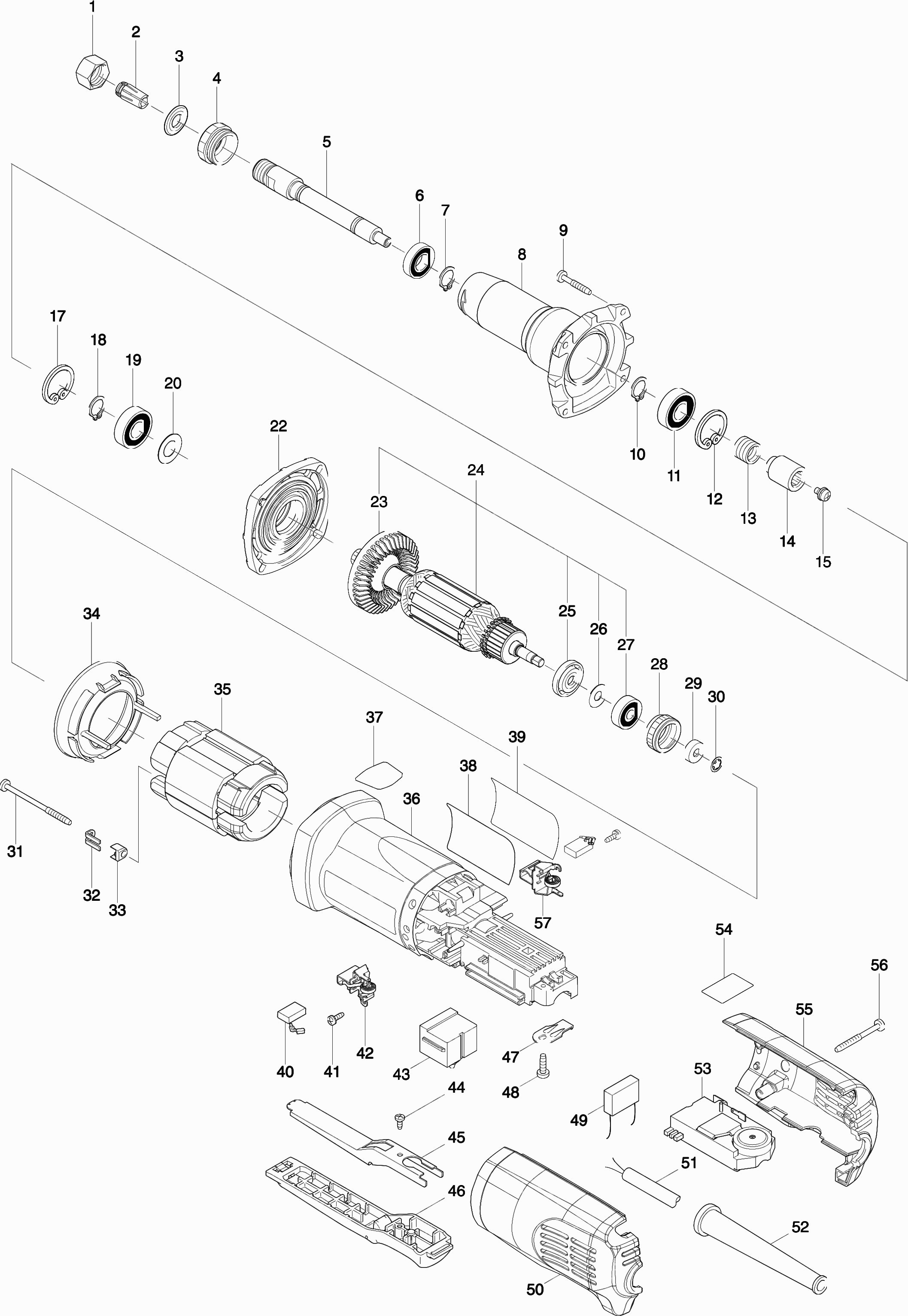

Technical drawing of model Makita GD0801C
Spare parts list of model Makita GD0801C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spanmoer rechte slijper | ||||
| 001 | 763645-2 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 002 | 763646-0 | |||
| Seal Ring 16 | ||||
| 003 | 213209-7 | 3.44 | 4.16 | |
| Bearing Lock | ||||
| 004 | 285700-5 | 9.24 | 11.18 | |
| Spindle Ass'y | ||||
| 005 | 324042-3 | 25.36 | 30.69 | |
| Ball Bearing 6901llb | ||||
| 006 | 211141-9 | 6.38 | 7.72 | |
| Lock washer S-12 | ||||
| 007 | 961052-5 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 008 | 317368-0 | 47.10 | 56.99 | |
| No information available, not orderable | ||||
| 009 | 265999-8 | |||
| Lock washer S-12 | ||||
| 010 | 961052-5 | 0.83 | 1.00 | |
| Ball Bearing 6001zz | ||||
| 011 | 211148-5 | 8.21 | 9.93 | |
| Lock washer R-28 | ||||
| 012 | 962106-1 | 0.83 | 1.00 | |
| Lock Spring 12 | ||||
| 013 | 233901-9 | 2.71 | 3.28 | |
| Clutch | ||||
| 014 | 323989-8 | 16.35 | 19.78 | |
| Cross-head screw 4x8 | ||||
| 015 | 265082-1 | 0.83 | 1.00 | |
| Lock washer R-28 | ||||
| 017 | 962106-1 | 0.83 | 1.00 | |
| Lock washer S-12 | ||||
| 018 | 961052-5 | 0.83 | 1.00 | |
| Ball Bearing 6001zz | ||||
| 019 | 211148-5 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 020 | 253084-9 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 022 | 317367-2 | 13.82 | 16.72 | |
| Fan 57 | ||||
| 023 | 240036-9 | 4.67 | 5.65 | |
| Armature 240V Gd0801C A | ||||
| 024 | 510306-3 | 40.56 | 49.08 | |
| Insulation ring | ||||
| 025 | 681656-4 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 026 | 267326-5 | 0.83 | 1.00 | |
| Ball bearing 627ddw | ||||
| 027 | 210045-2 | 3.12 | 3.78 | |
| Labyrinth ring | ||||
| 028 | 421770-2 | 7.57 | 9.16 | |
| Magnetic socket Rt0700 A | ||||
| 029 | 688117-5 | 2.71 | 3.28 | |
| Spring retaining ring | ||||
| 030 | 259039-2 | 0.83 | 1.00 | |
| Tapping screw 4x60 | ||||
| 031 | 266259-1 | 0.83 | 1.00 | |
| Holding Plate | ||||
| 032 | 344871-8 | 0.83 | 1.00 | |
| Insulating Cap | ||||
| 033 | 417237-6 | 0.83 | 1.00 | |
| Intermediate Plate | ||||
| 034 | 455367-5 | 2.36 | 2.86 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 035 | 626669-8 | 25.36 | 30.69 | |
| No information available, not orderable | ||||
| 035-1 | 621B54-2 | |||
| Motor Housing | ||||
| 036 | 455358-6 | 5.71 | 6.91 | |
| Label "sjs" | ||||
| 037 | 813900-3 | 2.71 | 3.28 | |
| Nameplate "gd0801c" | ||||
| 038 | 850F20-8 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 039 | 819356-8 | |||
| Carbon brush set CB-318 | ||||
| 040 | 191978-9 | 8.21 | 9.93 | |
| Self Tapper Pt 3x10 | ||||
| 041 | 266256-7 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 042 | 643760-7 | 3.12 | 3.78 | |
| Switch GA5050 A | ||||
| 043 | 651396-8 | 10.50 | 12.70 | |
| Self-tapping Screw Pt3X8 | ||||
| 044 | 265954-0 | 0.83 | 1.00 | |
| Shift Plate | ||||
| 045 | 345504-8 | 1.18 | 1.43 | |
| Switch Button | ||||
| 046 | 154584-1 | 2.10 | 2.54 | |
| Strain reliever | ||||
| 047 | 687169-3 | 0.83 | 1.00 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 048 | 266385-6 | 0.83 | 1.00 | |
| Noise suppression capacitor | ||||
| 049 | 645089-7 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 050 | 188365-1 | 3.12 | 3.78 | |
| Power cord 2x1.00 2.2mtr | ||||
| 051 | 665383-1 | 10.50 | 12.70 | |
| Cable gland 8-110 | ||||
| 052 | 682559-5 | 0.83 | 1.00 | |
| Speed control circuit | ||||
| 053 | 620340-6 | 55.40 | 67.03 | |
| Indication label "gd0801c" | ||||
| 054 | 804Y15-7 | 2.71 | 3.28 | |
| Tail Cover | ||||
| 055 | 188365-1 | 3.12 | 3.78 | |
| Self-tapping screw 4x40 | ||||
| 056 | 266048-4 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 057 | 643771-2 | 5.70 | 6.90 | |
