Here you will find all available parts and drawings of the 'Makita GD0800C'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

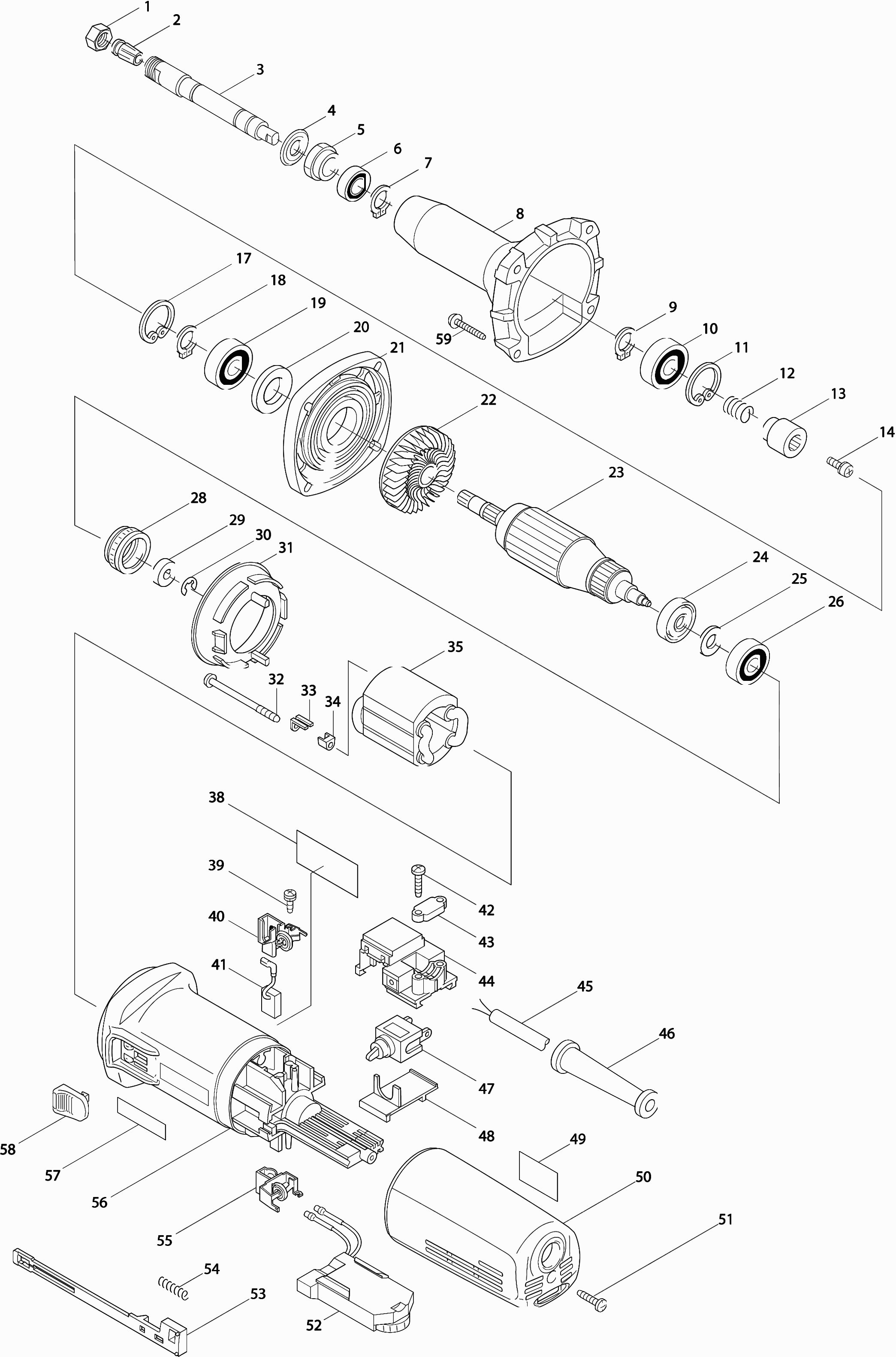

Technical drawing of model Makita GD0800C
Spare parts list of model Makita GD0800C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spanmoer rechte slijper | ||||
| 001 | 763645-2 | 3.00 | 3.63 | |
| Spantangset 6mm rechte slijper | ||||
| 002 | 193012-1 | 21.00 | 25.41 | |
| Spindle Ass'y | ||||
| 003 | 324042-3 | 25.36 | 30.69 | |
| Seal Ring 16 | ||||
| 004 | 213209-7 | 3.44 | 4.16 | |
| Bearing Lock | ||||
| 005 | 285700-5 | 9.24 | 11.18 | |
| Ball Bearing 6901llb | ||||
| 006 | 211141-9 | 6.38 | 7.72 | |
| Lock washer S-12 | ||||
| 007 | 961052-5 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 008 | 317368-0 | 47.10 | 56.99 | |
| Lock washer S-12 | ||||
| 009 | 961052-5 | 0.83 | 1.00 | |
| Ball Bearing 6001zz | ||||
| 010 | 211148-5 | 8.21 | 9.93 | |
| Lock washer R-28 | ||||
| 011 | 962106-1 | 0.83 | 1.00 | |
| Lock Spring 12 | ||||
| 012 | 233901-9 | 2.71 | 3.28 | |
| Clutch | ||||
| 013 | 323989-8 | 16.35 | 19.78 | |
| Cross-head screw 4x8 | ||||
| 014 | 265082-1 | 0.83 | 1.00 | |
| Lock Ring S-28 | ||||
| 015 | 961108-4 | 0.98 | 1.19 | |
| Lock Ring S-28 | ||||
| 017 | 961108-4 | 0.98 | 1.19 | |
| Lock washer S-12 | ||||
| 018 | 961052-5 | 0.83 | 1.00 | |
| Ball Bearing 6001zz | ||||
| 019 | 211148-5 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 020 | 253084-9 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 021 | 317367-2 | 13.82 | 16.72 | |
| Fan 57 | ||||
| 022 | 240036-9 | 4.67 | 5.65 | |
| Armature | ||||
| 023 | 515219-3 | 72.58 | 87.82 | |
| Insulation ring | ||||
| 024 | 681656-4 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 025 | 267326-5 | 0.83 | 1.00 | |
| Ball bearing 627ddw | ||||
| 026 | 210045-2 | 3.12 | 3.78 | |
| Labyrinth ring | ||||
| 028 | 421770-2 | 7.57 | 9.16 | |
| Magnetic socket Rt0700 A | ||||
| 029 | 688117-5 | 2.71 | 3.28 | |
| Spring retaining ring | ||||
| 030 | 259039-2 | 0.83 | 1.00 | |
| Intermediate Plate | ||||
| 031 | 413076-2 | 1.39 | 1.68 | |
| Tapping screw 4x60 | ||||
| 032 | 266259-1 | 0.83 | 1.00 | |
| Holding Plate | ||||
| 033 | 344871-8 | 0.83 | 1.00 | |
| Insulating Cap | ||||
| 034 | 417237-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 035 | 626524-4 | |||
| Veld Gd0800C A | ||||
| 035-1 | 621B39-8 | 26.69 | 32.29 | |
| Self Tapper Pt 3x10 | ||||
| 039 | 266256-7 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 040 | 643760-7 | 3.12 | 3.78 | |
| Carbon brush set CB-318 | ||||
| 041 | 191978-9 | 8.21 | 9.93 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 043 | 687053-2 | 0.83 | 1.00 | |
| Switch Holder | ||||
| 044 | 632945-0 | 9.24 | 11.18 | |
| Power cord 2x1.00 2.2mtr | ||||
| 045 | 665383-1 | 10.50 | 12.70 | |
| Cable gland 8-110 | ||||
| 046 | 682559-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 651428-1 | |||
| Switch cover | ||||
| 048 | 687113-0 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 050 | 417185-9 | 8.21 | 9.93 | |
| Tap screw 4x18 | ||||
| 051 | 265A48-7 | 0.83 | 1.00 | |
| Electronic regulator | ||||
| 052 | 631391-4 | 63.68 | 77.05 | |
| Control rod | ||||
| 053 | 417187-5 | 2.02 | 2.44 | |
| Compression Spring 4 | ||||
| 054 | 233071-4 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 055 | 643974-8 | 5.06 | 6.12 | |
| Motor Housing | ||||
| 056 | 417812-8 | 13.82 | 16.72 | |
| No information available, not orderable | ||||
| 057 | 819720-3 | |||
| Switch Button | ||||
| 058 | 417813-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 059 | 265999-8 | |||
