Here you will find all available parts and drawings of the 'Makita GD0600'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

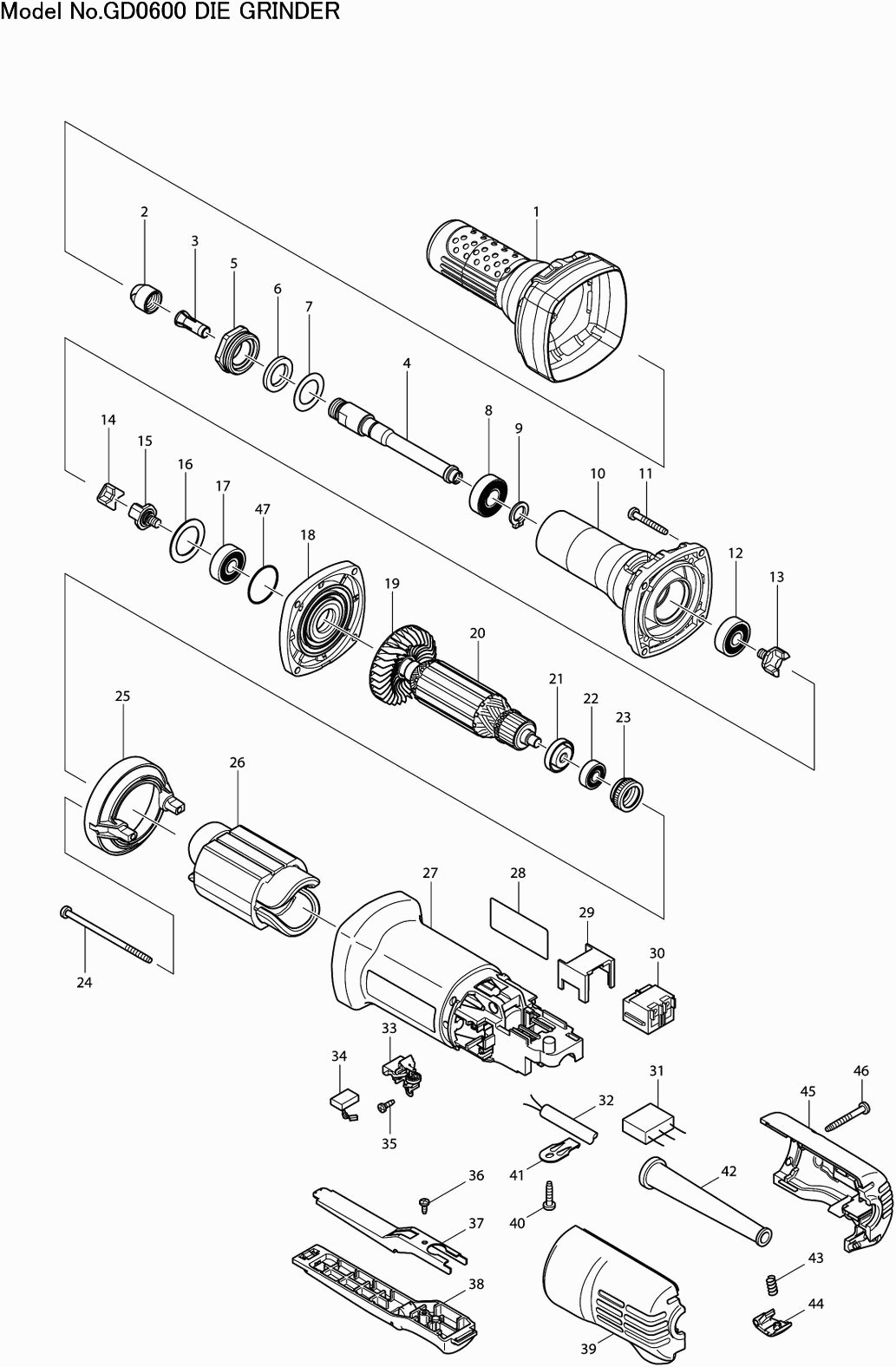

Technical drawing of model Makita GD0600
Spare parts list of model Makita GD0600
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulating Cap | ||||
| 001 | 421943-7 | 4.80 | 5.81 | |
| SPANMOER RECHTE SLIJPER | ||||
| 002 | 763664-8 | 2.00 | 2.42 | |
| SPANTANG 6MM RECHTE SLIJPER | ||||
| 003 | 763620-8 | 10.00 | 12.10 | |
| Spindle Ass'y | ||||
| 004 | 324638-0 | 6.00 | 7.26 | |
| Bearing Lock | ||||
| 005 | 317999-5 | 3.60 | 4.36 | |
| Felt ring 17mm | ||||
| 006 | 443124-3 | 1.00 | 1.21 | |
| Washer 18 | ||||
| 007 | 267329-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | 210106-8 | |||
| Lock washer S-12 | ||||
| 009 | 961052-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 010 | 318000-9 | 12.10 | 14.64 | |
| Tap screw 4x30mm DGA520 | ||||
| 011 | 265B70-0 | 1.00 | 1.21 | |
| Ball bearing 629llb | ||||
| 012 | 210042-8 | 2.40 | 2.90 | |
| Clutch | ||||
| 013 | 324639-8 | 3.60 | 4.36 | |
| Spacer | ||||
| 014 | 421942-9 | 1.00 | 1.21 | |
| Clutch | ||||
| 015 | 324639-8 | 3.60 | 4.36 | |
| Washer 22 | ||||
| 016 | 267126-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 017 | 210042-8 | 2.40 | 2.90 | |
| Inner Cover | ||||
| 018 | 317821-6 | 3.60 | 4.36 | |
| Fan | ||||
| 019 | 240076-7 | 1.20 | 1.45 | |
| Armature | ||||
| 020 | 515679-9 | 23.10 | 27.95 | |
| Insulation ring | ||||
| 021 | 681636-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 022 | 210034-7 | |||
| Intermediate ring 9554Nb A | ||||
| 023 | 422768-2 | 1.20 | 1.45 | |
| Tapping Screw 4x80 | ||||
| 024 | 266345-8 | 1.00 | 1.21 | |
| Separation plate 9558Nb A | ||||
| 025 | 457791-8 | 1.00 | 1.21 | |
| Field | ||||
| 026 | 621724-1 | 18.70 | 22.63 | |
| Motor Housing | ||||
| 027 | 418838-3 | 8.40 | 10.16 | |
| Name Plate GD0600 | ||||
| 028 | 862168-8 | 1.00 | 1.21 | |
| Distance support | ||||
| 029 | 418729-8 | 1.00 | 1.21 | |
| Switch | ||||
| 030 | 651947-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 031 | 645233-6 | |||
| Power cord 2x1.00 2.2mtr | ||||
| 032 | 665383-1 | 10.80 | 13.07 | |
| Brush Holder | ||||
| 033 | 643760-7 | 3.60 | 4.36 | |
| Brush Set Cb-325 | ||||
| 034 | 194074-2 | 2.40 | 2.90 | |
| Tapping screw Pt3x10 | ||||
| 035 | 266007-8 | 1.00 | 1.21 | |
| Self-tapping screw 3x8mm | ||||
| 036 | 266492-5 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 037 | 345504-8 | 1.20 | 1.45 | |
| Switch Button | ||||
| 038 | 154584-1 | 2.40 | 2.90 | |
| Tail Cover | ||||
| 039 | 183943-2 | 6.00 | 7.26 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 040 | 265B67-9 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 041 | 687169-3 | 1.00 | 1.21 | |
| Cable gland 8-110 | ||||
| 042 | 682559-5 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 043 | 231252-4 | 1.00 | 1.21 | |
| Lock button 9558Pb * | ||||
| 044 | 419057-4 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 045 | 183943-2 | 6.00 | 7.26 | |
| Screw 4x35 | ||||
| 046 | 266351-3 | 1.00 | 1.21 | |
| O-ring 26 | ||||
| 047 | 213407-3 | 1.20 | 1.45 | |
