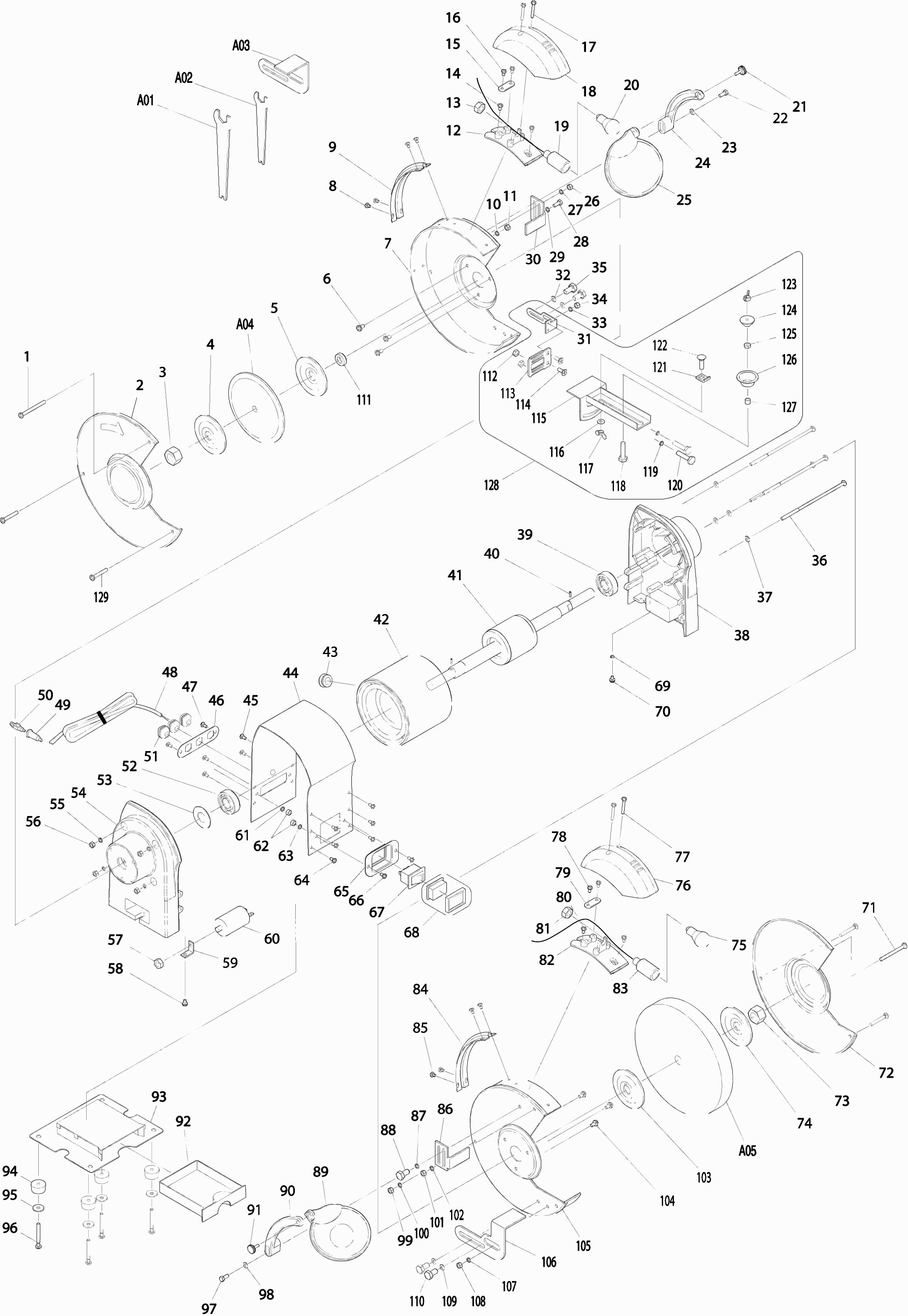

Technical drawing of model Makita GB602W
Spare parts list of model Makita GB602W
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M5x46 | ||||
| 001 | AL00000143 | 1.00 | 1.21 | |
| Screw M5X50 A | ||||
| 002 | 911274-7 | 1.00 | 1.21 | |
| Guard | ||||
| 003 | AL00000002 | 8.40 | 10.16 | |
| Hexagonal nut M12 left | ||||
| 004 | AL00000003 | 1.00 | 1.21 | |
| Clamp, outer | ||||
| 005 | AL00000004 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 006 | AL00000304 | |||
| No information available, not orderable | ||||
| 007 | AL00000115 | |||
| No information available, not orderable | ||||
| 008 | AL00000132 | |||
| Protective hood L GB602 A | ||||
| 009 | AL00000203 | 10.80 | 13.07 | |
| Screw M4x6 | ||||
| 010 | AL00000114 | 1.00 | 1.21 | |
| Pressure plate (cable) | ||||
| 011 | AL00000007 | 1.00 | 1.21 | |
| Lamp base cover | ||||
| 012 | AL00000008 | 2.40 | 2.90 | |
| Lamp holder lock nut | ||||
| 013 | AL00000009 | 1.00 | 1.21 | |
| Screw M4x6 | ||||
| 014 | AL00000102 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 015 | AL00000010 | 1.00 | 1.21 | |
| Screw M4x10 | ||||
| 016 | AL00000104 | 1.00 | 1.21 | |
| Screw M4x30 | ||||
| 017 | AL00000105 | 1.00 | 1.21 | |
| Complete lamp housing | ||||
| 018 | AL00000011 | 2.40 | 2.90 | |
| Complete lamp | ||||
| 019 | AL00000012 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 020 | AL00000121 | |||
| Spark guard, left | ||||
| 021 | AL00000017 | 1.20 | 1.45 | |
| Eye protection cap complete | ||||
| 022 | AL00000016 | 3.60 | 4.36 | |
| Eye protection holder left | ||||
| 023 | AL00000015 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 024 | AL00000127 | 1.00 | 1.21 | |
| Spring Lock Washer M6 | ||||
| 025 | AL00000133 | 1.00 | 1.21 | |
| Hex bolt M6x30 | ||||
| 026 | AL00000119 | 1.00 | 1.21 | |
| Closing button eye protection | ||||
| 027 | AL00000014 | 1.00 | 1.21 | |
| Stop "li" | ||||
| 028 | AL00000082 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 029 | AL00000128 | |||
| Hexagon bolt M8X12 A | ||||
| 030 | 921411-5 | 1.20 | 1.45 | |
| End cap left | ||||
| 031 | AL00000028 | 16.50 | 19.96 | |
| Retaining Ring D35 | ||||
| 032 | AL00000027 | 1.00 | 1.21 | |
| Ball bearing 180202 | ||||
| 033 | AL00000100 | 4.80 | 5.81 | |
| Cord Clamp | ||||
| 034 | AL00000026 | 1.00 | 1.21 | |
| Mains cable | ||||
| 035 | AL00000171 | 11.00 | 13.31 | |
| Screw M4x8 | ||||
| 036 | AL00000103 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 037 | AL00000126 | 1.00 | 1.21 | |
| Lock Washer M4 | ||||
| 037 | AL00000131 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 038 | AL00000183 | 8.40 | 10.16 | |
| Cable sleeve | ||||
| 039 | AL00000022 | 1.00 | 1.21 | |
| Field | ||||
| 040 | AL00000185 | 69.30 | 83.85 | |
| Armature | ||||
| 041 | AL00000020 | 15.40 | 18.63 | |
| Roll Pin 3x8 | ||||
| 042 | AL00000135 | 1.00 | 1.21 | |
| End cap right | ||||
| 043 | AL00000019 | 16.50 | 19.96 | |
| Lock washer 5 | ||||
| 044 | AL00000126 | 1.00 | 1.21 | |
| Screw M5x135 | ||||
| 045 | AL00000113 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 046 | AL00000146 | 1.00 | 1.21 | |
| Drill chuck M8 | ||||
| 047 | AL00000122 | 1.00 | 1.21 | |
| Capacitor Holder | ||||
| 048 | AL00000029 | 1.00 | 1.21 | |
| Capacitor | ||||
| 049 | AL00000095 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 050 | AL00000141 | |||
| Switchboard | ||||
| 051 | AL00000031 | 1.20 | 1.45 | |
| Hex nut M4 | ||||
| 052 | AL00000120 | 1.00 | 1.21 | |
| Serrated washer 4mm PF1110 | ||||
| 053 | 609024600 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 054 | AL00000109 | 1.00 | 1.21 | |
| Flat washer 4 | ||||
| 055 | AL00000129 | 1.00 | 1.21 | |
| Rubber footsole | ||||
| 056 | AL00000041 | 1.00 | 1.21 | |
| Heat shield complete | ||||
| 057 | AL00000040 | 2.40 | 2.90 | |
| Drawer | ||||
| 058 | AL00000039 | 2.40 | 2.90 | |
| Eye protection holder right | ||||
| 059 | AL00000038 | 2.40 | 2.90 | |
| Magnifying glass complete | ||||
| 060 | AL00000037 | 3.60 | 4.36 | |
| Spark catcher, right | ||||
| 061 | AL00000036 | 1.20 | 1.45 | |
| Stop "re" | ||||
| 062 | AL00000043 | 2.40 | 2.90 | |
| Wheel guard right (inner) | ||||
| 063 | AL00000042 | 7.20 | 8.71 | |
| Screw M4x8mm | ||||
| 064 | AL00000108 | 1.00 | 1.21 | |
| Drill nut M12 | ||||
| 065 | AL00000035 | 1.00 | 1.21 | |
| Protective cover "right" | ||||
| 066 | AL00000034 | 8.40 | 10.16 | |
| Cable clamp plate | ||||
| 067 | AL00000192 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 068 | AL00000115 | |||
| Light bulb 10w/12v | ||||
| 069 | AL00000013 | 3.60 | 4.36 | |
| Internal clamp | ||||
| 070 | AL00000005 | 1.20 | 1.45 | |
| Washer 10mm | ||||
| 071 | AL00000050 | 1.00 | 1.21 | |
| Shank Sleeve | ||||
| 072 | AL00000001 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 073 | AL00000123 | 1.00 | 1.21 | |
| Connection plate | ||||
| 074 | AL00000047 | 1.20 | 1.45 | |
| Screw m6x10 | ||||
| 075 | AL00000048 | 1.00 | 1.21 | |
| Grinding support | ||||
| 076 | AL00000049 | 3.60 | 4.36 | |
| Wing nut M8 | ||||
| 077 | AL00000124 | 1.00 | 1.21 | |
| Hex bolt M6x40mm | ||||
| 078 | AL00000117 | 1.00 | 1.21 | |
| Adjustment | ||||
| 079 | AL00000051 | 1.20 | 1.45 | |
| Screw M8x20mm | ||||
| 080 | AL00000052 | 1.00 | 1.21 | |
| Baffle | ||||
| 081 | AL00000054 | 1.20 | 1.45 | |
| Spacer | ||||
| 082 | AL00000055 | 1.20 | 1.45 | |
| Buffer | ||||
| 083 | AL00000053 | 2.40 | 2.90 | |
| Wing nut M6 | ||||
| 084 | AL00000125 | 1.00 | 1.21 | |
| Screw M4x8mm | ||||
| 085 | AL00000108 | 1.00 | 1.21 | |
| Stop "li" | ||||
| 086 | AL00000018 | 3.60 | 4.36 | |
| STEEKSLEUTEL 8/19MM | ||||
| 087 | AL00000045 | 1.00 | 1.21 | |
| STEEKSLEUTEL 10/13MM | ||||
| 088 | AL00000044 | 1.00 | 1.21 | |
| Allen Bolt M6x16mm | ||||
| 091 | AL00000145 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 093 | AL00000010 | 1.00 | 1.21 | |
| Flat washer 4 | ||||
| 095 | AL00000129 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 096 | AL00000109 | 1.00 | 1.21 | |
| Hex bolt M6x30 | ||||
| 097 | AL00000119 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 098 | AL00000127 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 104 | AL00000304 | |||
| No longer available, no replacement | ||||
| 109 | AL00000128 | |||
| Hexagon bolt M8X12 A | ||||
| 110 | 921411-5 | 1.20 | 1.45 | |
| Hex Nut M6 | ||||
| 112 | AL00000123 | 1.00 | 1.21 | |
| Wing nut M8 | ||||
| 117 | AL00000124 | 1.00 | 1.21 | |
| Hex bolt M6x40mm | ||||
| 118 | AL00000117 | 1.00 | 1.21 | |
| Spring Lock Washer M6 | ||||
| 119 | AL00000133 | 1.00 | 1.21 | |
| Allen Bolt M6x16mm | ||||
| 120 | AL00000145 | 1.00 | 1.21 | |
| Wing nut M6 | ||||
| 123 | AL00000125 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 125 | AL00000123 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 131 | AL00000127 | 1.00 | 1.21 | |
| Nut M6 GB801 | ||||
| 132 | AL00000204 | 1.00 | 1.21 | |
| Spring Lock Washer M6 | ||||
| 137 | AL00000133 | 1.00 | 1.21 | |
| Stop "li" | ||||
| 138 | AL00000018 | 3.60 | 4.36 | |
| Knob screw M8x9 | ||||
| 139 | AL00000253 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 140 | AL00000127 | 1.00 | 1.21 | |
| Trekontlasting | ||||
| 142 | AL00000180 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 143 | AL00000251 | |||
| Strain reliever | ||||
| 144 | AL00000010 | 1.00 | 1.21 | |
| Cable clamp GB801 | ||||
| 145 | AL00000254 | 1.00 | 1.21 | |
| Spring Lock Washer M6 | ||||
| 148 | AL00000133 | 1.00 | 1.21 | |
| Knob screw M8x9 | ||||
| 149 | AL00000253 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 153 | AL00000127 | 1.00 | 1.21 | |
| Nut M6 GB801 | ||||
| 154 | AL00000204 | 1.00 | 1.21 | |
