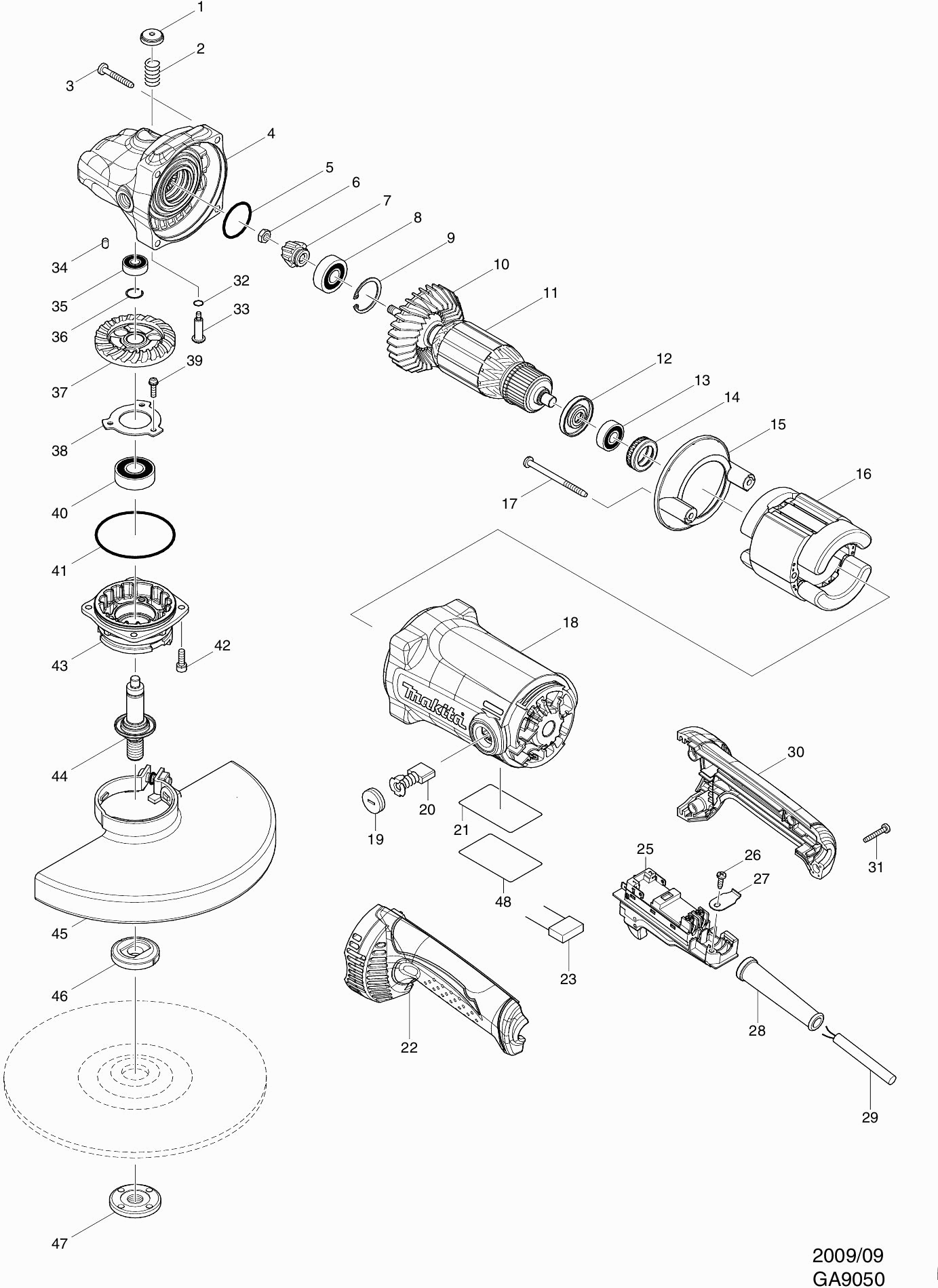

Technical drawing of model Makita GA9050
Spare parts list of model Makita GA9050
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 001 | 451485-7 | 0.83 | 1.00 | |
| Compression spring 12 | ||||
| 002 | 233292-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 266012-5 | |||
| TAPSCHROEF 5X35 A | ||||
| 003-1 | 265B72-6 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 004 | 143016-3 | 19.80 | 23.96 | |
| Spring retention washer Dga506 | ||||
| 004A | 262153-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 005 | 213487-9 | |||
| Nut M7 | ||||
| 006 | 264010-3 | 1.00 | 1.21 | |
| Gear 10b | ||||
| 007 | 227563-3 | 4.80 | 5.81 | |
| Ball Bearing 6201llu | ||||
| 008 | 211137-0 | 6.00 | 7.26 | |
| Lock washer R32 | ||||
| 009 | 257965-9 | 3.60 | 4.36 | |
| Fan 80 | ||||
| 010 | 240120-0 | 6.00 | 7.26 | |
| Armature | ||||
| 011 | 518747-7 | 63.80 | 77.20 | |
| Insulation ring | ||||
| 012 | 681657-2 | 1.20 | 1.45 | |
| Ball bearing 6000ddw | ||||
| 013 | 211289-7 | 13.20 | 15.97 | |
| Rubber Ring 26 | ||||
| 014 | 421490-8 | 6.00 | 7.26 | |
| Spacer plate | ||||
| 015 | 451480-7 | 1.20 | 1.45 | |
| Field | ||||
| 016 | 527700-2 | 41.80 | 50.58 | |
| No information available, not orderable | ||||
| 016A | 654208-4 | |||
| Tapping screw 5x70mm | ||||
| 017 | 266389-8 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 018 | 140222-1 | 13.20 | 15.97 | |
| Brush Holder | ||||
| 018A | 643707-1 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 019 | 643700-5 | 1.20 | 1.45 | |
| Carbon brush set Cb-204 | ||||
| 020 | 194992-4 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 021 | 867561-1 | |||
| Set Of Handles | ||||
| 022 | 188848-1 | 8.40 | 10.16 | |
| Sponge rubber | ||||
| 022A | 423404-3 | 1.00 | 1.21 | |
| Capacitor | ||||
| 023 | 645088-9 | 1.00 | 1.21 | |
| Safety switch | ||||
| 025 | 650102-8 | 23.10 | 27.95 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 026 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 026 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 026-1 | 265B74-2 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 027 | 687169-3 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 028 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 029 | 695123-3 | 22.00 | 26.62 | |
| Set Of Handles | ||||
| 030 | 188848-1 | 8.40 | 10.16 | |
| Sponge rubber | ||||
| 030 | 423404-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 031 | 265999-8 | |||
| TAPSCHROEF 4X25 A | ||||
| 031-1 | 265B73-4 | 1.00 | 1.21 | |
| O-ring 7 | ||||
| 032 | 213026-5 | 1.00 | 1.21 | |
| Collar Pin 11 | ||||
| 033 | 256516-5 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 034 | 263002-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 035 | 210046-0 | 1.20 | 1.45 | |
| Locking washer 13 | ||||
| 036 | 233925-5 | 1.00 | 1.21 | |
| Gear 49 | ||||
| 037 | 227561-7 | 10.80 | 13.07 | |
| Bearing Lock | ||||
| 038 | 285851-4 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 039 | 911526-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 211241-5 | |||
| O-ring 67 | ||||
| 041 | 213720-9 | 2.40 | 2.90 | |
| Allen bolt 5x16 | ||||
| 042 | 922221-3 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 043 | 318523-7 | 6.00 | 7.26 | |
| Spindle Ass'y | ||||
| 044 | 140224-7 | 6.00 | 7.26 | |
| Labyrinth ring | ||||
| 044A | 346166-5 | 1.00 | 1.21 | |
| BESCHERMKAP 230MM | ||||
| 045 | 141P32-5 | 9.00 | 10.89 | |
| O-ring 6 | ||||
| 045A | 213017-6 | 1.00 | 1.21 | |
| O-ring 6 | ||||
| 045B | 213017-6 | 1.00 | 1.21 | |
| Phillips Head Screw M8x25 | ||||
| 045C | 265158-4 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 046 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 047 | 224554-5 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 048 | 805W68-7 | |||
