Here you will find all available parts and drawings of the 'Makita GA9010C'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

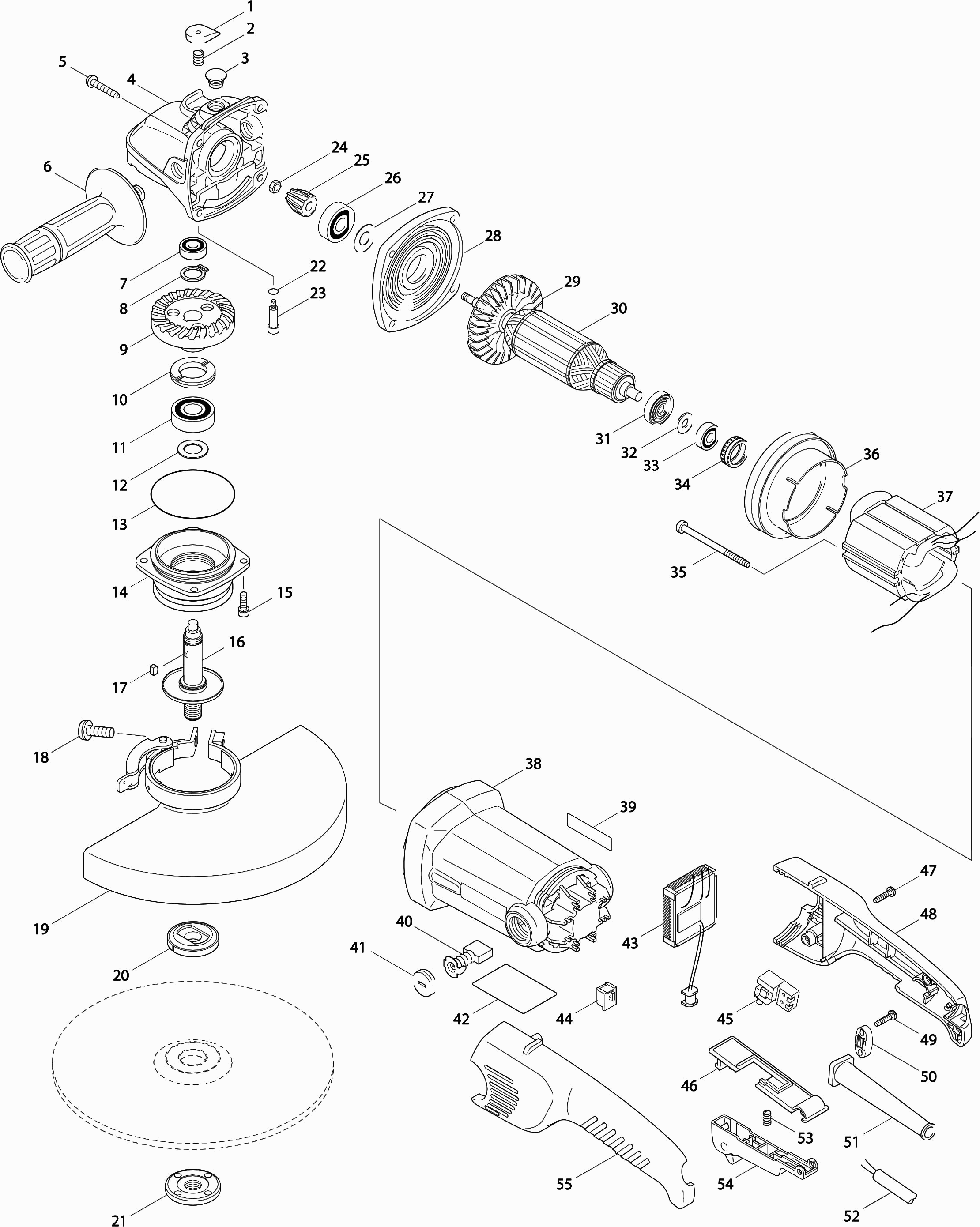

Technical drawing of model Makita GA9010C
Spare parts list of model Makita GA9010C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pin Cap | ||||
| 001 | 418517-3 | 0.83 | 1.00 | |
| Compression Spring 7 | ||||
| 002 | 231037-8 | 0.83 | 1.00 | |
| Covering hood | ||||
| 003 | 416972-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 004 | 317752-9 | |||
| Tapping screw 5x30 | ||||
| 005 | 266142-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 006 | 152539-0 | |||
| Ball bearing 608llb | ||||
| 007 | 210043-6 | 1.67 | 2.02 | |
| Lock washer S-15 | ||||
| 008 | 961055-9 | 0.83 | 1.00 | |
| Gear 43 | ||||
| 009 | 227457-2 | 33.36 | 40.37 | |
| No information available, not orderable | ||||
| 009-1 | 227A49-3 | |||
| Bearing Lock 23-36 Ga7010 | ||||
| 010 | 285809-3 | 2.10 | 2.54 | |
| Ball bearing 6202llb | ||||
| 011 | 211228-7 | 7.22 | 8.74 | |
| Washer 15 Btw200 | ||||
| 012 | 267215-4 | 0.83 | 1.00 | |
| O-ring 67 | ||||
| 013 | 213720-9 | 1.67 | 2.02 | |
| Bearing Housing | ||||
| 014A | 318376-4 | 8.59 | 10.39 | |
| Bearing Housing | ||||
| 014B | 318376-4 | 8.59 | 10.39 | |
| Allen bolt 5x16 | ||||
| 015 | 922221-3 | 0.83 | 1.00 | |
| Axle Ga9010C | ||||
| 016 | 153785-8 | 8.59 | 10.39 | |
| Feather Key 4 | ||||
| 017 | 254011-9 | 0.83 | 1.00 | |
| Crosshead screw 8x25 | ||||
| 018 | 265050-4 | 0.83 | 1.00 | |
| Protective cover 230mm | ||||
| 019A | 163445-4 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 019B | 122847-3 | |||
| Binnenflens haakse slijper super | ||||
| 020 | 192227-7 | 19.00 | 22.99 | |
| Sluitmoer haakse slijper | ||||
| 021 | 224554-5 | 4.00 | 4.84 | |
| O-ring 7 | ||||
| 022 | 213026-5 | 0.83 | 1.00 | |
| Pin 7 | ||||
| 023 | 256483-4 | 0.83 | 1.00 | |
| Hex Nut M6 | ||||
| 024 | 931302-2 | 0.83 | 1.00 | |
| Gear 9 | ||||
| 025 | 227456-4 | 13.82 | 16.72 | |
| No information available, not orderable | ||||
| 025-1 | 227A48-5 | |||
| Ball Bearing 6201llb | ||||
| 026 | 211106-1 | 5.06 | 6.12 | |
| Washer 12 | ||||
| 027 | 253759-0 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 028 | 317753-7 | 8.29 | 10.03 | |
| Impeller 76 | ||||
| 029 | 240070-9 | 3.12 | 3.78 | |
| Armature | ||||
| 030 | 513568-2 | 36.05 | 43.62 | |
| Insulation ring | ||||
| 031 | 681660-3 | 6.41 | 7.76 | |
| Washer 8 | ||||
| 032 | 267281-1 | 0.83 | 1.00 | |
| Ball Bearing 608ddw | ||||
| 033 | 210005-4 | 4.45 | 5.38 | |
| Rubber Ring | ||||
| 034 | 421720-7 | 6.38 | 7.72 | |
| Zelftapper Pt 5x75 | ||||
| 035 | 266059-9 | 1.24 | 1.50 | |
| Intermediate Plate | ||||
| 036 | 418516-5 | 1.46 | 1.77 | |
| Field Ga9010C | ||||
| 037 | 625704-9 | 32.15 | 38.90 | |
| Stator spring | ||||
| 037A | 654197-3 | 0.83 | 1.00 | |
| Clamping bushing for statorv. 2mm | ||||
| 037B | 654502-4 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 038 | 153786-6 | 11.34 | 13.72 | |
| Brush Holder | ||||
| 038A | 643712-8 | 7.22 | 8.74 | |
| Label Makita | ||||
| 039 | 819063-3 | 2.71 | 3.28 | |
| Carbon brush set Cb-204 | ||||
| 040 | 194992-4 | 11.82 | 14.30 | |
| Brush holder cap | ||||
| 041 | 643700-5 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 042 | 860297-1 | |||
| Speed controller Ga9010C | ||||
| 043 | 631598-2 | 55.40 | 67.03 | |
| Socket | ||||
| 044 | 418518-1 | 0.83 | 1.00 | |
| Switch Sw-131 | ||||
| 045 | 651922-3 | 11.82 | 14.30 | |
| Switch mounting plate | ||||
| 046 | 418519-9 | 0.98 | 1.19 | |
| Tap screw 4x18 | ||||
| 047 | 265A48-7 | 0.83 | 1.00 | |
| Handle set | ||||
| 048 | 183783-8 | 7.22 | 8.74 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 050 | 687124-5 | 0.83 | 1.00 | |
| Cable gland 10 | ||||
| 051 | 682573-1 | 1.39 | 1.68 | |
| Power cord 2x1.50 4.0mtr | ||||
| 052 | 695123-3 | 21.08 | 25.51 | |
| Compression Spring 6x29mm | ||||
| 053 | 233117-6 | 0.83 | 1.00 | |
| Switch Button (Safety) | ||||
| 054A | 153788-2 | 5.06 | 6.12 | |
| Switch Button (Safety) | ||||
| 054B | 153788-2 | 5.06 | 6.12 | |
| Handle set | ||||
| 055 | 183783-8 | 7.22 | 8.74 | |
