Here you will find all available parts and drawings of the 'Makita GA7080'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

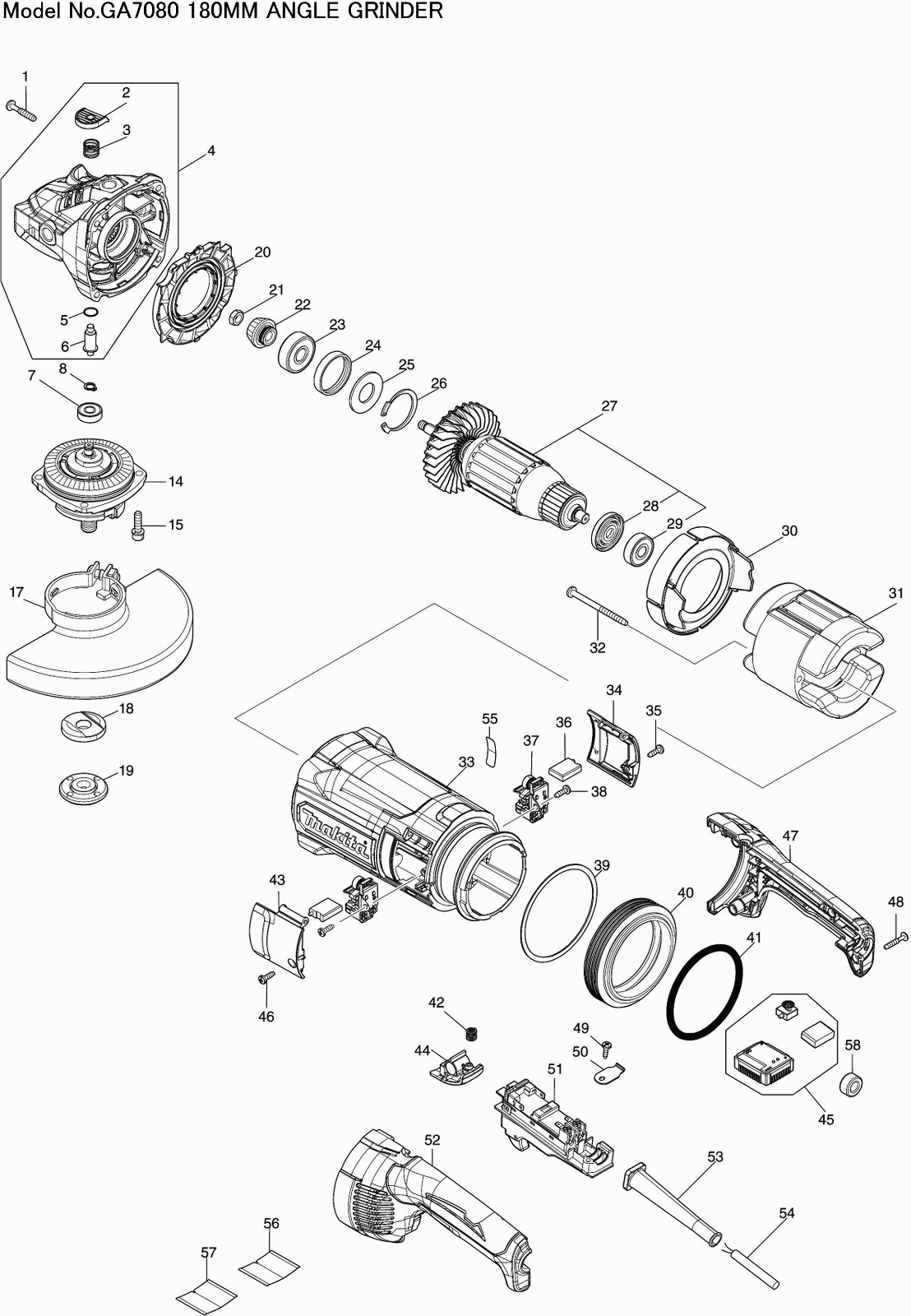

Technical drawing of model Makita GA7080
Spare parts list of model Makita GA7080
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Countersunk Screw 5x30mm | ||||
| 001 | 266553-1 | 1.00 | 1.21 | |
| Countersunk Screw 5x30mm | ||||
| 001-1 | 251489-7 | 1.00 | 1.21 | |
| Cover GA7080 | ||||
| 002 | 413H41-9 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 003 | 233292-8 | 1.00 | 1.21 | |
| GEAR HOUSING ASSEMBLY GA7080 | ||||
| 004 | 136698-8 | 22.00 | 26.62 | |
| Felt washer 18 | ||||
| 004C10 | 262118-7 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 004C20 | 263002-9 | 1.00 | 1.21 | |
| O-ring 9 | ||||
| 005 | 213062-1 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 006 | 256491-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007 | 211032-4 | |||
| Lock ring S-8 | ||||
| 008 | 961004-6 | 1.00 | 1.21 | |
| Torque limiter GA7080 | ||||
| 014 | 122C65-1 | 38.50 | 46.58 | |
| O-ring 78 | ||||
| 014C10 | 213760-7 | 1.20 | 1.45 | |
| Nut M15x23 | ||||
| 014C15 | 252429-8 | 2.40 | 2.90 | |
| NUT M15X23MM GA7080 | ||||
| 014C16 | 252323-4 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 014C20 | 232163-6 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 014C25 | 267798-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 014C30 | 227998-8 | |||
| Phillips Head Screw M5x16 | ||||
| 014C35 | 265120-9 | 1.00 | 1.21 | |
| Snap Ring 50 GA9060 | ||||
| 014C40 | 285741-1 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 014C45 | 267167-9 | 1.20 | 1.45 | |
| Ball bearing 6203dw | ||||
| 014C50 | 211278-2 | 9.60 | 11.62 | |
| Bearing housing GA7080 | ||||
| 014C55 | 312D39-8 | 6.00 | 7.26 | |
| Axle cpl GA7080/81/82 | ||||
| 014C60 | 141D62-4 | 6.00 | 7.26 | |
| Allen screw | ||||
| 015 | 265541-5 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 017 | 122889-7 | |||
| O-ring 6 | ||||
| 017C10 | 213017-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 017C20 | 265198-2 | |||
| No information available, not orderable | ||||
| 018 | 122444-5 | |||
| SLUITMOER HAAKSE SLIJPER | ||||
| 019 | 224485-8 | 2.00 | 2.42 | |
| Fan plate | ||||
| 020 | 456238-9 | 2.40 | 2.90 | |
| NUT M8 | ||||
| 021 | 252194-9 | 1.00 | 1.21 | |
| Gear 15 GA7080 | ||||
| 022 | 227954-8 | 4.80 | 5.81 | |
| Ball Bearing 6301llb | ||||
| 023 | 211132-0 | 9.60 | 11.62 | |
| Rubber ring 38 | ||||
| 024 | 262085-6 | 1.00 | 1.21 | |
| Washer 20 | ||||
| 025 | 267299-2 | 1.20 | 1.45 | |
| Lock ring R-42 | ||||
| 026 | 962211-4 | 2.40 | 2.90 | |
| Armature 240V GA7080/81/82 | ||||
| 027 | 511A29-2 | 58.30 | 70.54 | |
| Fan 86 | ||||
| 027C10 | 240161-6 | 8.40 | 10.16 | |
| Insulation ring | ||||
| 028 | 681630-2 | 2.40 | 2.90 | |
| Ball bearing 6200dw | ||||
| 029 | 211087-9 | 8.40 | 10.16 | |
| Intermediate Plate | ||||
| 030 | 456239-7 | 2.40 | 2.90 | |
| Field 240V GA7080/81/82 | ||||
| 031 | 627086-5 | 62.70 | 75.87 | |
| Tapping screw 5x70mm | ||||
| 032 | 266038-7 | 2.40 | 2.90 | |
| Motor Housing GA7080/9080 | ||||
| 033 | 413595-8 | 13.20 | 15.97 | |
| Carbon brush cap R | ||||
| 034 | 456246-0 | 2.40 | 2.90 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 035 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 035-1 | 265B74-2 | 1.00 | 1.21 | |
| Carbon Brush Set GA70/9070 | ||||
| 036 | 191T31-1 | 7.20 | 8.71 | |
| CARBON BRUSH HOLDER GA9063R A | ||||
| 037 | 643715-2 | 2.40 | 2.90 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 038 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 038-1 | 265B74-2 | 1.00 | 1.21 | |
| Washer KST 89 GA7080/9080 | ||||
| 039 | 261169-7 | 1.20 | 1.45 | |
| AVT Rubber GA7080/9080 | ||||
| 040 | 422706-4 | 4.80 | 5.81 | |
| O-ring 79 GA9080 | ||||
| 041 | 213924-3 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 042 | 233375-4 | 1.00 | 1.21 | |
| Carbon brush cap L | ||||
| 043 | 456245-2 | 2.40 | 2.90 | |
| Lock Button GA7080/9080 | ||||
| 044 | 413598-2 | 2.40 | 2.90 | |
| Controller GA7080/81/82 | ||||
| 045 | 620E20-4 | 28.60 | 34.61 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 046 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 046-1 | 265B74-2 | 1.00 | 1.21 | |
| Hand grip set GA7080/9080 | ||||
| 047 | 183T31-5 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 048 | 265999-8 | |||
| Self-tapping screw 4x25 A | ||||
| 048-1 | 265B73-4 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 049 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 049-1 | 265B74-2 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 050 | 687169-3 | 1.00 | 1.21 | |
| Switch | ||||
| 051 | 632F79-5 | 14.30 | 17.30 | |
| Hand grip set GA7080/9080 | ||||
| 052 | 183T31-5 | 14.30 | 17.30 | |
| Cable gland 10 | ||||
| 053 | 682573-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 054 | 695107-1 | |||
| No information available, not orderable | ||||
| 055 | 811R81-5 | |||
| NAMEPLATE GA7080 | ||||
| 056 | 811R78-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057 | 8038D3-7 | |||
| Line filter | ||||
| 058 | 688131-1 | 1.00 | 1.21 | |
