Here you will find all available parts and drawings of the 'Makita GA7040S'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

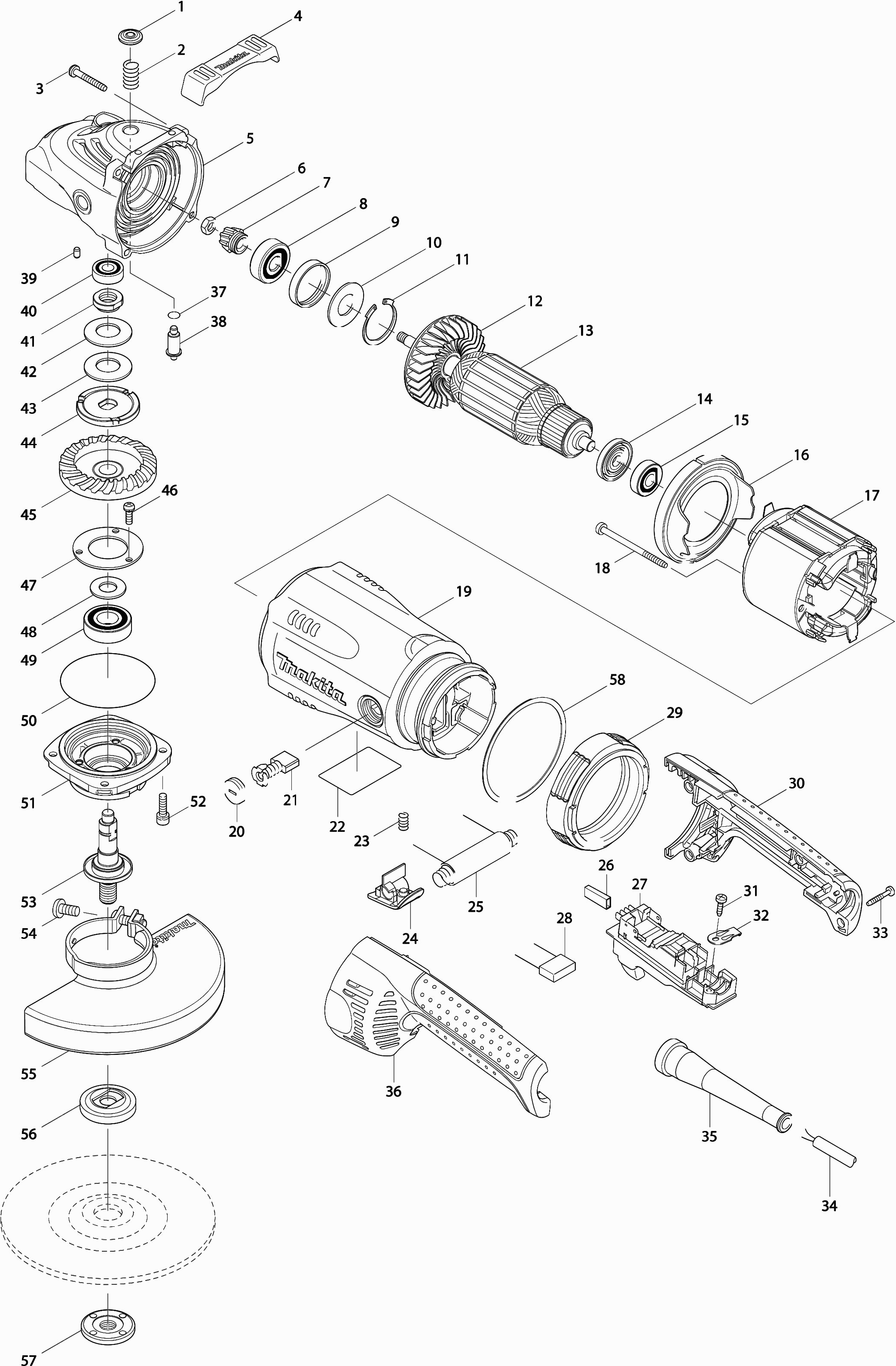

Technical drawing of model Makita GA7040S
Spare parts list of model Makita GA7040S
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 001 | 419133-4 | 0.83 | 1.00 | |
| Compression spring 12 | ||||
| 002 | 233292-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 003 | 266012-5 | |||
| No information available, not orderable | ||||
| 003-1 | 265B72-6 | |||
| Buffer | ||||
| 004 | 419144-9 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 005 | 142754-4 | 21.23 | 25.69 | |
| Felt washer 18 | ||||
| 005A | 262118-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 005B | 419134-2 | |||
| NUT M8 | ||||
| 006 | 252194-9 | 0.83 | 1.00 | |
| Gear 16 | ||||
| 007 | 227488-1 | 4.44 | 5.37 | |
| Ball Bearing 6301llb | ||||
| 008 | 211132-0 | 9.24 | 11.18 | |
| Rubber ring 38 | ||||
| 009 | 262085-6 | 0.83 | 1.00 | |
| Washer 20 | ||||
| 010 | 267299-2 | 0.83 | 1.00 | |
| Lock ring R-42 | ||||
| 011 | 962211-4 | 1.39 | 1.68 | |
| Fan 80 | ||||
| 012 | 240081-4 | 5.70 | 6.90 | |
| Armature 220V Ga7040S A | ||||
| 013 | 517833-1 | 63.68 | 77.05 | |
| Insulation ring | ||||
| 014 | 681630-2 | 1.39 | 1.68 | |
| Ball bearing 6200llb | ||||
| 015 | 211066-7 | 4.45 | 5.38 | |
| Middle plate Ga7020 | ||||
| 016 | 419135-0 | 0.83 | 1.00 | |
| Field | ||||
| 017 | 526198-0 | 52.35 | 63.34 | |
| Stator spring | ||||
| 017A | 654197-3 | 0.83 | 1.00 | |
| Clamping bushing for statorv. 2mm | ||||
| 017B | 654502-4 | 0.83 | 1.00 | |
| Zelftapper Pt 5x75 | ||||
| 018 | 266059-9 | 1.24 | 1.50 | |
| Motor Housing | ||||
| 019 | 154786-9 | 18.79 | 22.74 | |
| Brush Holder | ||||
| 019A | 643712-8 | 7.22 | 8.74 | |
| Brush holder cap | ||||
| 020 | 643700-5 | 0.98 | 1.19 | |
| Carbon brush set Cb-204 | ||||
| 021 | 194992-4 | 11.82 | 14.30 | |
| Label | ||||
| 022 | 862127-2 | 2.71 | 3.28 | |
| Compression Spring 7 | ||||
| 023 | 233375-4 | 0.83 | 1.00 | |
| Lock button | ||||
| 024 | 419260-7 | 1.00 | 1.21 | |
| Start-up Resistance Ga7020/40S A | ||||
| 025 | 646788-4 | 4.82 | 5.83 | |
| Amp isolator | ||||
| 026 | 686036-9 | 0.83 | 1.00 | |
| Safety switch | ||||
| 027 | 651179-6 | 41.77 | 50.54 | |
| Safety switch | ||||
| 027A | 651179-6 | 41.77 | 50.54 | |
| Capacitor | ||||
| 028 | 645088-9 | 0.83 | 1.00 | |
| Anti Vibration Rubber | ||||
| 029 | 421936-4 | 1.46 | 1.77 | |
| Handle set | ||||
| 030 | 188123-5 | 12.80 | 15.49 | |
| Wire feed protective rubber | ||||
| 030A | 423350-0 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 031 | 266020-6 | |||
| Tapschr 4x14mm GA9070Y A | ||||
| 031-1 | 265B74-2 | 0.83 | 1.00 | |
| Strain reliever | ||||
| 032 | 687169-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 033 | 265999-8 | |||
| Tapschroef 4X25 A | ||||
| 033-1 | 265B73-4 | 0.83 | 1.00 | |
| Power cord 2x1.50 4.0mtr | ||||
| 034 | 695123-3 | 21.08 | 25.51 | |
| Cable gland 10 | ||||
| 035 | 682560-0 | 1.67 | 2.02 | |
| Handle set | ||||
| 036 | 188123-5 | 12.80 | 15.49 | |
| Wire feed protective rubber | ||||
| 036A | 423350-0 | 2.71 | 3.28 | |
| O-ring 9 | ||||
| 037 | 213062-1 | 0.83 | 1.00 | |
| Collar Pin 5 | ||||
| 038 | 256491-5 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 039 | 263002-9 | 0.83 | 1.00 | |
| Ball bearing 6000llb | ||||
| 040 | 211061-7 | 7.22 | 8.74 | |
| Nut M15x23 | ||||
| 041 | 252429-8 | 1.24 | 1.50 | |
| Holding Plate | ||||
| 042 | 232163-6 | 1.67 | 2.02 | |
| Holding Plate | ||||
| 043 | 232163-6 | 1.67 | 2.02 | |
| Spring retaining ring | ||||
| 044 | 267798-4 | 3.44 | 4.16 | |
| Gear 53d | ||||
| 045 | 227493-8 | 12.22 | 14.79 | |
| Phillips Head Screw M5x16 | ||||
| 046 | 265120-9 | 0.83 | 1.00 | |
| Bearing Lock 50 | ||||
| 047 | 285724-1 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 048 | 267167-9 | 0.83 | 1.00 | |
| Ball bearing 6203dw | ||||
| 049 | 211278-2 | 9.24 | 11.18 | |
| O-ring 78 | ||||
| 050 | 213760-7 | 1.18 | 1.43 | |
| Bearing housing 2 cut-outs | ||||
| 051A | 317988-0 | 5.98 | 7.24 | |
| Bearing Housing with 3 Recesses | ||||
| 051B | 318377-2 | 8.21 | 9.93 | |
| Allen screw | ||||
| 052 | 265541-5 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 053 | 154777-0 | 9.12 | 11.04 | |
| Phillips Head Screw M8x25 | ||||
| 054A | 265158-4 | 0.83 | 1.00 | |
| Phillips Head Screw M8x25 | ||||
| 054B | 265158-4 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 055A | 122889-7 | |||
| No longer available, no replacement | ||||
| 055B | 122889-7 | |||
| O-ring 6 | ||||
| 055B1 | 213017-6 | 0.83 | 1.00 | |
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 056 | 224415-9 | 4.00 | 4.84 | |
| Sluitmoer haakse slijper | ||||
| 057 | 224554-5 | 4.00 | 4.84 | |
| Plastic ring 89 | ||||
| 058 | 261131-2 | 0.83 | 1.00 | |
