Here you will find all available parts and drawings of the 'Makita GA6040C'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

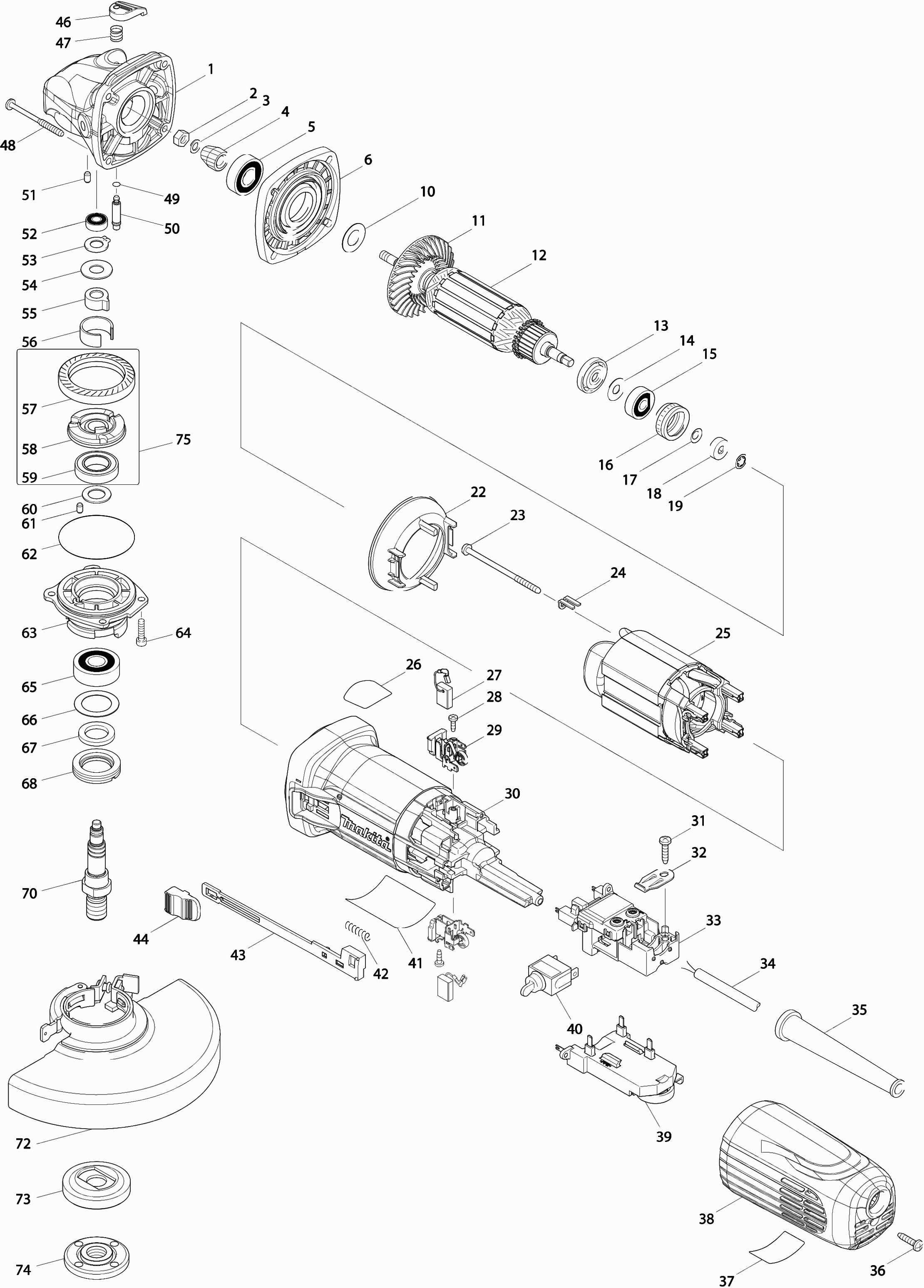

Technical drawing of model Makita GA6040C
Spare parts list of model Makita GA6040C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear housing PC5010C/GA series A | ||||
| 001-1 | 136013-6 | 15.65 | 18.94 | |
| Nut M6 | ||||
| 002 | 252186-8 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 003 | 253077-6 | 0.83 | 1.00 | |
| Gear 9 PC5010C | ||||
| 004 | 227593-4 | 6.38 | 7.72 | |
| No information available, not orderable | ||||
| 005 | 211142-7 | |||
| Inner Cover | ||||
| 006-1 | 141981-0 | 8.59 | 10.39 | |
| Washer 12 | ||||
| 010 | 253084-9 | 0.83 | 1.00 | |
| Fan 88 | ||||
| 011 | 240134-9 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 012 | 515373-3 | |||
| Insulation ring | ||||
| 013 | 681656-4 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 014 | 267326-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 015 | 210027-4 | |||
| Labyrinth ring GA5040C A | ||||
| 016 | 422750-1 | 2.15 | 2.60 | |
| Spring Washer 6 | ||||
| 017 | 267756-0 | 0.83 | 1.00 | |
| Magnetic socket Rt0700 A | ||||
| 018 | 688117-5 | 2.71 | 3.28 | |
| Spring retaining ring | ||||
| 019 | 259039-2 | 0.83 | 1.00 | |
| Intermediate Plate | ||||
| 022 | 453367-9 | 1.39 | 1.68 | |
| Tapping Screw 4x70 | ||||
| 023 | 266258-3 | 0.83 | 1.00 | |
| Holding Plate | ||||
| 024 | 344871-8 | 0.83 | 1.00 | |
| Field | ||||
| 025 | 626653-3 | 30.69 | 37.13 | |
| Label "sjs2" | ||||
| 026 | 898443-6 | 2.71 | 3.28 | |
| Carbon brush set CB-318 | ||||
| 027 | 191978-9 | 8.21 | 9.93 | |
| Tapping screw Pt3x10 | ||||
| 028 | 266007-8 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 029-1 | 643770-4 | 1.39 | 1.68 | |
| Motor Housing | ||||
| 030 | 453366-1 | 9.67 | 11.70 | |
| No information available, not orderable | ||||
| 031 | 266326-2 | |||
| Strain reliever | ||||
| 032 | 687169-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 033 | 638947-4 | |||
| No information available, not orderable | ||||
| 034 | 695034-2 | |||
| Cable gland 8-110 | ||||
| 035 | 682559-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 036 | 266326-2 | |||
| No information available, not orderable | ||||
| 037 | 898445-2 | |||
| Side Cover | ||||
| 038 | 453365-3 | 3.44 | 4.16 | |
| No information available, not orderable | ||||
| 039 | 620129-2 | |||
| No information available, not orderable | ||||
| 040 | 651418-4 | |||
| No information available, not orderable | ||||
| 041-1 | 897092-6 | |||
| Compression Spring 4 | ||||
| 042 | 233071-4 | 0.83 | 1.00 | |
| Switch handle | ||||
| 043 | 453847-5 | 0.83 | 1.00 | |
| Switch knob Ga5040C | ||||
| 044 | 453368-7 | 0.83 | 1.00 | |
| Pin cap | ||||
| 046 | 453369-5 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 047 | 234057-1 | 0.83 | 1.00 | |
| Tap screw 4x30mm DGA520 | ||||
| 048 | 265B70-0 | 0.83 | 1.00 | |
| O-ring 4 | ||||
| 049 | 213032-0 | 0.83 | 1.00 | |
| Collar pin 6mm | ||||
| 050 | 256535-1 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 051 | 263002-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 052 | 210006-2 | |||
| Lock ring S-9 | ||||
| 053 | 961005-4 | 0.83 | 1.00 | |
| Washer 10 | ||||
| 054 | 253180-3 | 0.98 | 1.19 | |
| Spacer bushing Ga5040C A | ||||
| 055-2 | 310683-1 | 5.09 | 6.16 | |
| Spring retaining ring | ||||
| 056 | 346556-2 | 2.36 | 2.86 | |
| Gear 41 PC5010C | ||||
| 057 | 227594-2 | 6.38 | 7.72 | |
| Clutch | ||||
| 058 | 313228-4 | 10.50 | 12.70 | |
| Ball bearing 6903zz | ||||
| 059 | 210302-8 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 060 | 253744-3 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 061 | 263002-9 | 0.83 | 1.00 | |
| O-ring 51 | ||||
| 062 | 213641-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 063 | 318837-4 | |||
| No information available, not orderable | ||||
| 064 | 265490-6 | |||
| Ball Bearing 6201dw1 | ||||
| 065 | 211129-9 | 7.22 | 8.74 | |
| Washer 21 | ||||
| 066 | 267279-8 | 0.83 | 1.00 | |
| Felt ring 17mm | ||||
| 067 | 443124-3 | 0.83 | 1.00 | |
| Bearing Lock | ||||
| 068 | 285854-8 | 1.18 | 1.43 | |
| Spindle Ass'y | ||||
| 070 | 326130-2 | 5.71 | 6.91 | |
| PC5010C coupling | ||||
| 075 | 135556-5 | 26.37 | 31.91 | |
