Here you will find all available parts and drawings of the 'Makita GA5091'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

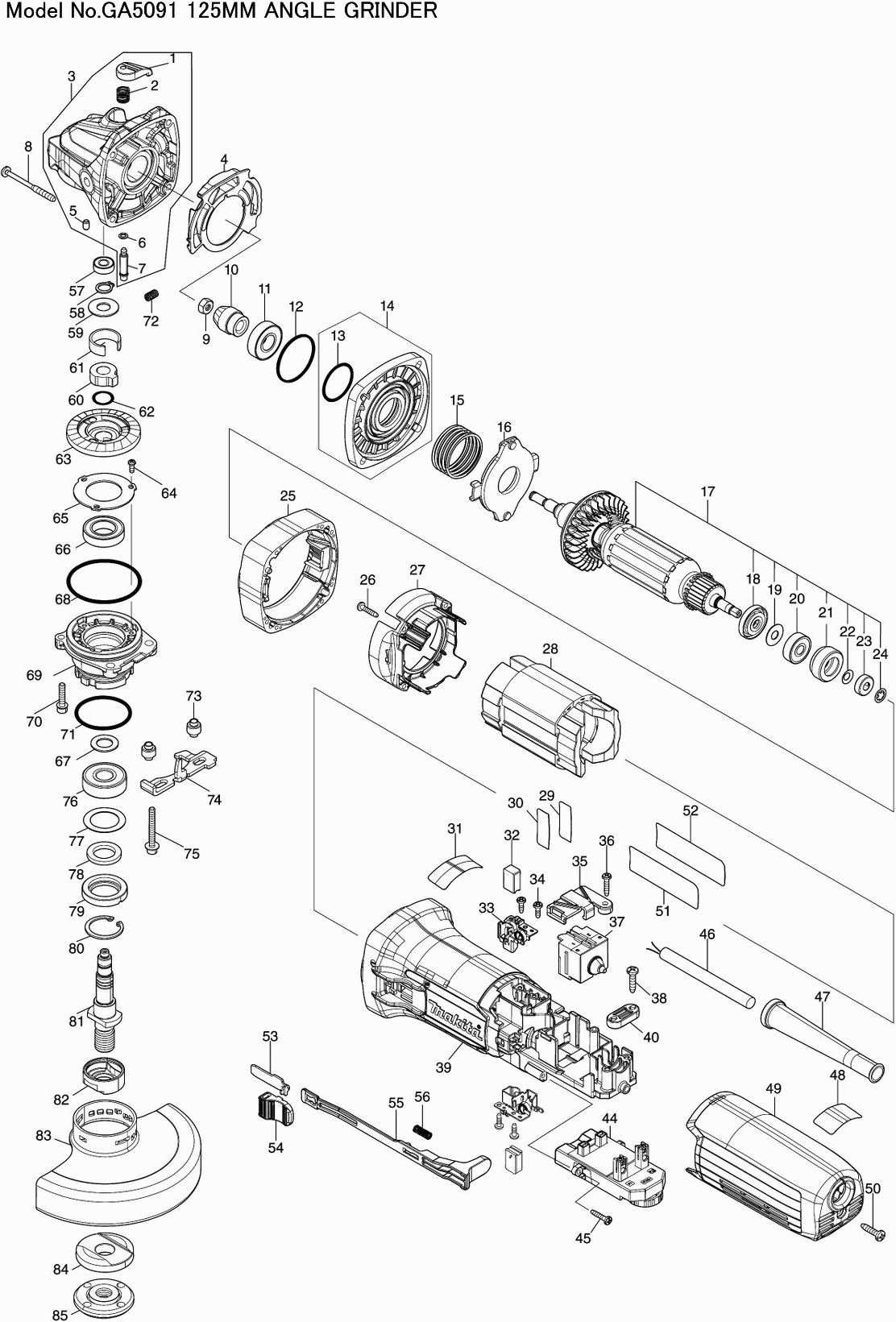

Technical drawing of model Makita GA5091
Spare parts list of model Makita GA5091
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pin cap | ||||
| 001 | 453369-5 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 002 | 234057-1 | 0.83 | 1.00 | |
| Tandwielhuis GA4590 | ||||
| 003 | 136770-6 | 11.82 | 14.30 | |
| Waaierplaat GA5090 | ||||
| 004 | 413C06-1 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 005 | 263002-9 | 0.83 | 1.00 | |
| O-ring 4 | ||||
| 006 | 213032-0 | 0.83 | 1.00 | |
| Collar pin 6mm | ||||
| 007 | 256535-1 | 0.83 | 1.00 | |
| Self-tapping Screw 4X50mm | ||||
| 008 | 266467-4 | 0.83 | 1.00 | |
| Nut M6 | ||||
| 009 | 252186-8 | 0.83 | 1.00 | |
| Tandwiel 11 GA5090 | ||||
| 010 | 227916-6 | 3.88 | 4.69 | |
| Ball Bearing 6001dw | ||||
| 011 | 211131-2 | 9.24 | 11.18 | |
| Rubberplaat GA5090 | ||||
| 012 | 422812-5 | 0.83 | 1.00 | |
| O-ring 27,5 GA5090 | ||||
| 013 | 213693-6 | 0.83 | 1.00 | |
| Tandwielhuiskap GA5090 | ||||
| 014 | 136771-4 | 4.51 | 5.46 | |
| Compression spring 33 | ||||
| 015 | 234230-3 | 0.83 | 1.00 | |
| Clutch holder | ||||
| 016 | 141515-9 | 26.55 | 32.13 | |
| Anker assy GA5091 | ||||
| 017 | 511A44-6 | 49.42 | 59.80 | |
| Insulation ring | ||||
| 018 | 681656-4 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 019 | 267326-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 020 | 210027-4 | |||
| Rubber ring 22 GA5090 | ||||
| 021 | 422811-7 | 0.83 | 1.00 | |
| Spring Washer 6 | ||||
| 022 | 267756-0 | 0.83 | 1.00 | |
| Magnetic socket Rt0700 A | ||||
| 023 | 688117-5 | 2.71 | 3.28 | |
| Spring retaining ring | ||||
| 024 | 259039-2 | 0.83 | 1.00 | |
| Afstandbus GA5091 | ||||
| 025 | 413C05-3 | 2.15 | 2.60 | |
| Tapping Screw 3x16 | ||||
| 026 | 266130-9 | 0.83 | 1.00 | |
| Tussenplaat B GA5091 | ||||
| 027 | 413C08-7 | 1.20 | 1.45 | |
| Veld 220V GA5090 | ||||
| 028 | 621968-3 | 28.82 | 34.87 | |
| No information available, not orderable | ||||
| 029 | 807G78-4 | |||
| Label serienr. GA5091 | ||||
| 030 | 858N22-6 | 0.83 | 1.00 | |
| Label "sjs2" | ||||
| 031 | 898443-6 | 2.71 | 3.28 | |
| Koolborstelset CB264 GA5090 | ||||
| 032 | 1910M3-7 | 5.52 | 6.68 | |
| Koolborstelhouder GA5090 | ||||
| 033 | 644011-1 | 1.74 | 2.11 | |
| Tapping screw Pt3x10 | ||||
| 034 | 266007-8 | 0.83 | 1.00 | |
| Schakelaarkap GA5090 | ||||
| 035 | 413G29-3 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 036 | 266130-9 | 0.83 | 1.00 | |
| Schakelaar GA5090 | ||||
| 037 | 650028-4 | 8.80 | 10.65 | |
| No information available, not orderable | ||||
| 038 | 266326-2 | |||
| Motorhuis B GA5091 | ||||
| 039 | 413C01-1 | 5.56 | 6.73 | |
| Clamp Bracket | ||||
| 040 | 687124-5 | 0.83 | 1.00 | |
| Controller GA5090 | ||||
| 044 | 620H27-8 | 55.65 | 67.34 | |
| Tapping Screw 3x16 | ||||
| 045 | 266130-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 046 | 665890-4 | |||
| Kabelgeleider GA5090 | ||||
| 047 | 682117-7 | 0.83 | 1.00 | |
| Naamplaat GA5090 | ||||
| 048 | 8055D1-9 | 0.83 | 1.00 | |
| Achterkap C GA5090 | ||||
| 049 | 413C02-9 | 2.21 | 2.67 | |
| No information available, not orderable | ||||
| 050 | 266326-2 | |||
| Naamplaat GA5091 | ||||
| 051 | 858N19-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 052 | 8055D2-7 | |||
| Schakelplaat GA5091 | ||||
| 053 | 347908-0 | 1.02 | 1.23 | |
| Schakelaarknop B GA5091 | ||||
| 054 | 413C04-5 | 0.83 | 1.00 | |
| Schakelhendel GA5090 | ||||
| 055 | 413C03-7 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 056 | 233121-5 | 0.83 | 1.00 | |
| Ball bearing 696ZZ A | ||||
| 057 | 210026-6 | 1.99 | 2.41 | |
| Locking Ring S-10 | ||||
| 058 | 257408-1 | 0.83 | 1.00 | |
| Washer 10 | ||||
| 059 | 253180-3 | 0.98 | 1.19 | |
| Pasbus GA5090 | ||||
| 060 | 327918-3 | 1.22 | 1.48 | |
| Plaat C-type GA5090 | ||||
| 061 | 347911-1 | 1.60 | 1.94 | |
| No information available, not orderable | ||||
| 062 | 213122-9 | |||
| Tandwiel 27 GA5090 | ||||
| 063 | 227917-4 | 10.63 | 12.86 | |
| Screw M3x8 | ||||
| 064 | 265199-0 | 0.83 | 1.00 | |
| Borgring 27-46 GA5090 | ||||
| 065 | 285048-5 | 0.83 | 1.00 | |
| Ball bearing 6903zz | ||||
| 066 | 210302-8 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 067 | 253744-3 | 0.83 | 1.00 | |
| O-ring 51 | ||||
| 068 | 213641-5 | 0.83 | 1.00 | |
| Lagerhuis B GA5091 | ||||
| 069 | 312C11-4 | 9.65 | 11.68 | |
| Inbusbout M4x20mm | ||||
| 070 | 266948-8 | 0.83 | 1.00 | |
| O-ring 38 | ||||
| 071 | 213789-3 | 1.99 | 2.41 | |
| Compression Spring 4 | ||||
| 072 | 232490-1 | 0.83 | 1.00 | |
| Sleeve 4 | ||||
| 073 | 327322-6 | 0.83 | 1.00 | |
| Hendel B GA5091 | ||||
| 074 | 347910-3 | 2.34 | 2.83 | |
| Inbusschr M4x35mm GA5090 | ||||
| 075 | 265C21-9 | 0.83 | 1.00 | |
| Ball Bearing 6201dw1 | ||||
| 076 | 211129-9 | 7.22 | 8.74 | |
| Washer 21 | ||||
| 077 | 267279-8 | 0.83 | 1.00 | |
| Felt ring 17mm | ||||
| 078 | 443124-3 | 0.83 | 1.00 | |
| Bearing Lock | ||||
| 079 | 285854-8 | 1.18 | 1.43 | |
| Lock ring R-26 A | ||||
| 080 | 962105-3 | 0.83 | 1.00 | |
| As GA5091 | ||||
| 081 | 327917-5 | 7.98 | 9.66 | |
| Guide ring holder | ||||
| 082 | 310514-4 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 083 | 141L54-1 | |||
| Label waarsch GA5090 | ||||
| 083C10 | 8050A1-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 084 | 224447-6 | |||
| Sluitmoer haakse slijper | ||||
| 085 | 224485-8 | 2.00 | 2.42 | |
