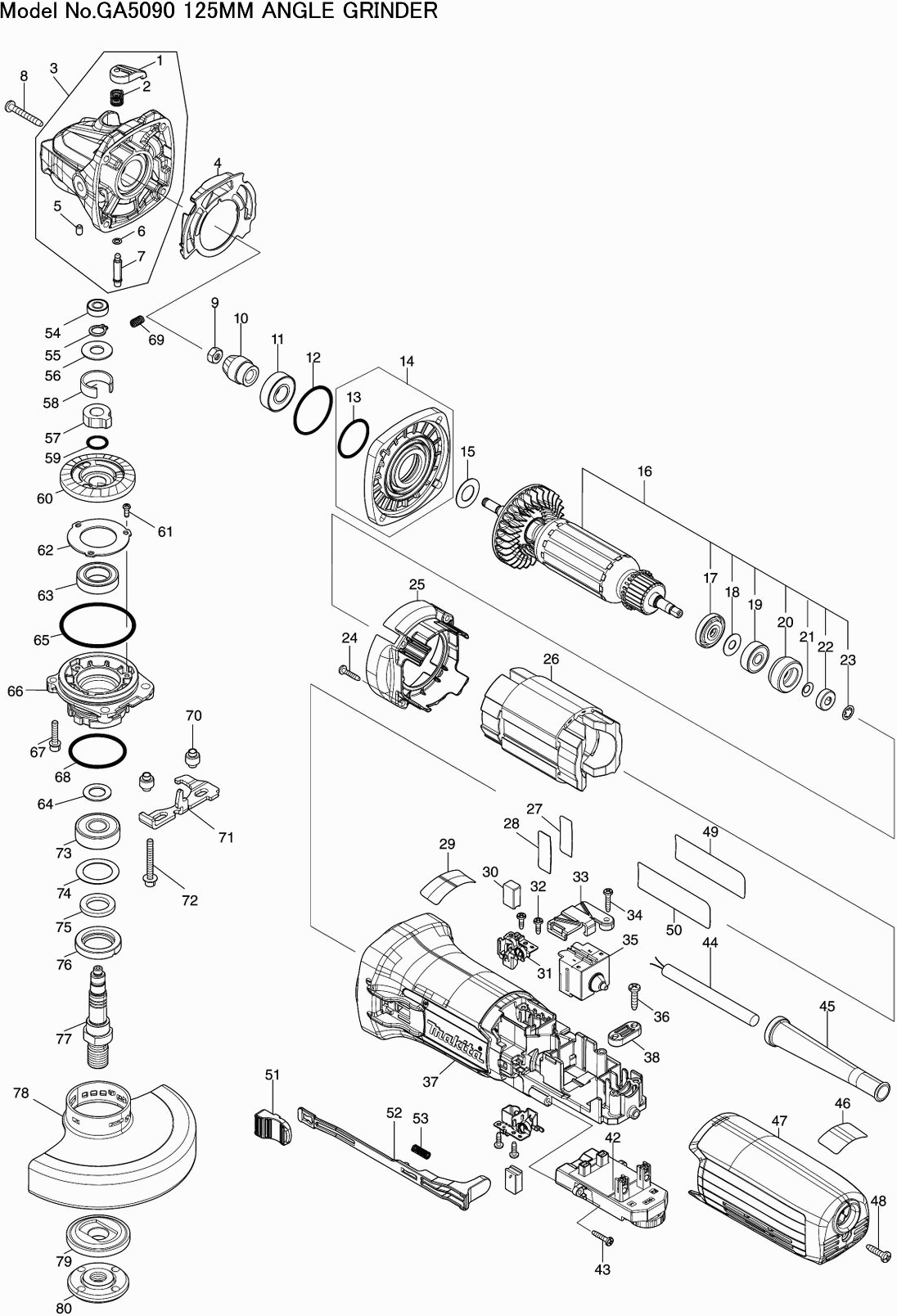

Technical drawing of model Makita GA5090
Spare parts list of model Makita GA5090
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pin cap | ||||
| 001 | 453369-5 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 002 | 234057-1 | 1.00 | 1.21 | |
| GEAR HOUSING GA4590 | ||||
| 003 | 136770-6 | 12.10 | 14.64 | |
| FAN PLATE GA5090 | ||||
| 004 | 413C06-1 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 005 | 263002-9 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 006 | 213032-0 | 1.00 | 1.21 | |
| Collar pin 6mm | ||||
| 007 | 256535-1 | 1.20 | 1.45 | |
| Tap screw 4x30mm DGA520 | ||||
| 008 | 265B70-0 | 1.00 | 1.21 | |
| Nut M6 | ||||
| 009 | 252186-8 | 1.00 | 1.21 | |
| GEAR 11 GA5090 | ||||
| 010 | 227916-6 | 4.80 | 5.81 | |
| Ball Bearing 6001dw | ||||
| 011 | 211131-2 | 9.60 | 11.62 | |
| Rubber plate GA5090 | ||||
| 012 | 422812-5 | 1.00 | 1.21 | |
| O-RING 27.5 GA5090 | ||||
| 013 | 213693-6 | 1.00 | 1.21 | |
| GEAR HOUSING COVER GA5090 | ||||
| 014 | 136771-4 | 4.80 | 5.81 | |
| Washer 12 | ||||
| 015 | 253084-9 | 1.00 | 1.21 | |
| ARMATURE ASSY GA5090 | ||||
| 016 | 511A49-6 | 35.20 | 42.59 | |
| Insulation ring | ||||
| 017 | 681656-4 | 1.00 | 1.21 | |
| Washer 7 LF1000 A | ||||
| 018 | 267326-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 019 | 210027-4 | |||
| Rubber ring 22 GA5090 | ||||
| 020 | 422811-7 | 1.00 | 1.21 | |
| Spring Washer 6 | ||||
| 021 | 267756-0 | 1.00 | 1.21 | |
| Magnetic socket Rt0700 A | ||||
| 022 | 688117-5 | 3.60 | 4.36 | |
| Spring retaining ring | ||||
| 023 | 259039-2 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 024 | 266130-9 | 1.00 | 1.21 | |
| INTERMEDIATE PLATE A GA5090 | ||||
| 025 | 413C07-9 | 1.20 | 1.45 | |
| FIELD 220V GA5090 | ||||
| 026 | 621968-3 | 29.70 | 35.94 | |
| No information available, not orderable | ||||
| 027 | 807G78-4 | |||
| SERIAL NO. LABEL GA5090 | ||||
| 028 | 858M92-9 | 2.40 | 2.90 | |
| Label "sjs2" | ||||
| 029 | 898443-6 | 2.40 | 2.90 | |
| CARBON BRUSH SET CB264 GA5090 P | ||||
| 030 | 1910M3-7 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 030-1 | 1911H3-8 | |||
| CARBON BRUSH HOLDER GA5090 | ||||
| 031 | 644011-1 | 2.40 | 2.90 | |
| Tapping screw Pt3x10 | ||||
| 032 | 266007-8 | 1.00 | 1.21 | |
| Switch cover GA5090 | ||||
| 033 | 413G29-3 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 034 | 266130-9 | 1.00 | 1.21 | |
| SWITCH GA5090 | ||||
| 035 | 650028-4 | 9.60 | 11.62 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 036 | 265B67-9 | 1.00 | 1.21 | |
| MOTOR HOUSING A GA5090 | ||||
| 037 | 413C09-5 | 7.20 | 8.71 | |
| Clamp Bracket | ||||
| 038 | 687124-5 | 1.00 | 1.21 | |
| CONTROLLER GA5090 | ||||
| 042 | 620H27-8 | 66.00 | 79.86 | |
| Tapping Screw 3x16 | ||||
| 043 | 266130-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 044 | 665890-4 | |||
| CABLE GUIDE GA5090 | ||||
| 045 | 682117-7 | 1.20 | 1.45 | |
| NAMEPLATE GA5090 | ||||
| 046 | 8055D1-9 | 2.40 | 2.90 | |
| REAR COVER C GA5090 | ||||
| 047 | 413C02-9 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 048 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 8055D2-7 | |||
| NAMEPLATE GA5090 | ||||
| 050 | 858M90-3 | 1.00 | 1.21 | |
| SWITCH BUTTON A GA5090 | ||||
| 051 | 413C10-0 | 1.00 | 1.21 | |
| SWITCH LEVER GA5090 | ||||
| 052 | 413C03-7 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 053 | 233121-5 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 054 | 210026-6 | 2.40 | 2.90 | |
| Locking Ring S-10 | ||||
| 055 | 257408-1 | 1.20 | 1.45 | |
| Washer 10 | ||||
| 056 | 253180-3 | 1.20 | 1.45 | |
| LOCATING SLEEVE GA5090 | ||||
| 057 | 327918-3 | 2.40 | 2.90 | |
| C-TYPE PLATE GA5090 | ||||
| 058 | 347911-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 059 | 213122-9 | |||
| GEAR 27 GA5090 | ||||
| 060 | 227917-4 | 11.00 | 13.31 | |
| Screw M3x8 | ||||
| 061 | 265199-0 | 1.00 | 1.21 | |
| RETAINING RING 27-46 GA5090 | ||||
| 062 | 285048-5 | 1.00 | 1.21 | |
| Ball bearing 6903zz | ||||
| 063 | 210302-8 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 064 | 253744-3 | 1.00 | 1.21 | |
| O-ring 51 | ||||
| 065 | 213641-5 | 1.00 | 1.21 | |
| Bearing housing A GA5090 | ||||
| 066 | 312C10-6 | 9.60 | 11.62 | |
| Inbusbout M4x20mm | ||||
| 067 | 266948-8 | 1.00 | 1.21 | |
| O-ring 38 | ||||
| 068 | 213789-3 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 069 | 232490-1 | 1.00 | 1.21 | |
| Sleeve 4 | ||||
| 070 | 327322-6 | 1.20 | 1.45 | |
| LEVER A GA5090 | ||||
| 071 | 347909-8 | 2.40 | 2.90 | |
| Hex socket screw M4x35 mm GA5090 | ||||
| 072 | 265C21-9 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 073 | 211129-9 | 8.40 | 10.16 | |
| Washer 21 | ||||
| 074 | 267279-8 | 1.00 | 1.21 | |
| Felt ring 17mm | ||||
| 075 | 443124-3 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 076 | 285854-8 | 1.20 | 1.45 | |
| SPINDLE GA5090 | ||||
| 077 | 327916-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 078 | 141L54-1 | |||
| WARNING LABEL GA5090 | ||||
| 078C10 | 8050A1-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 079 | 224490-5 | |||
| SLUITMOER HAAKSE SLIJPER | ||||
| 080 | 224485-8 | 2.00 | 2.42 | |
