Here you will find all available parts and drawings of the 'Makita GA5041R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

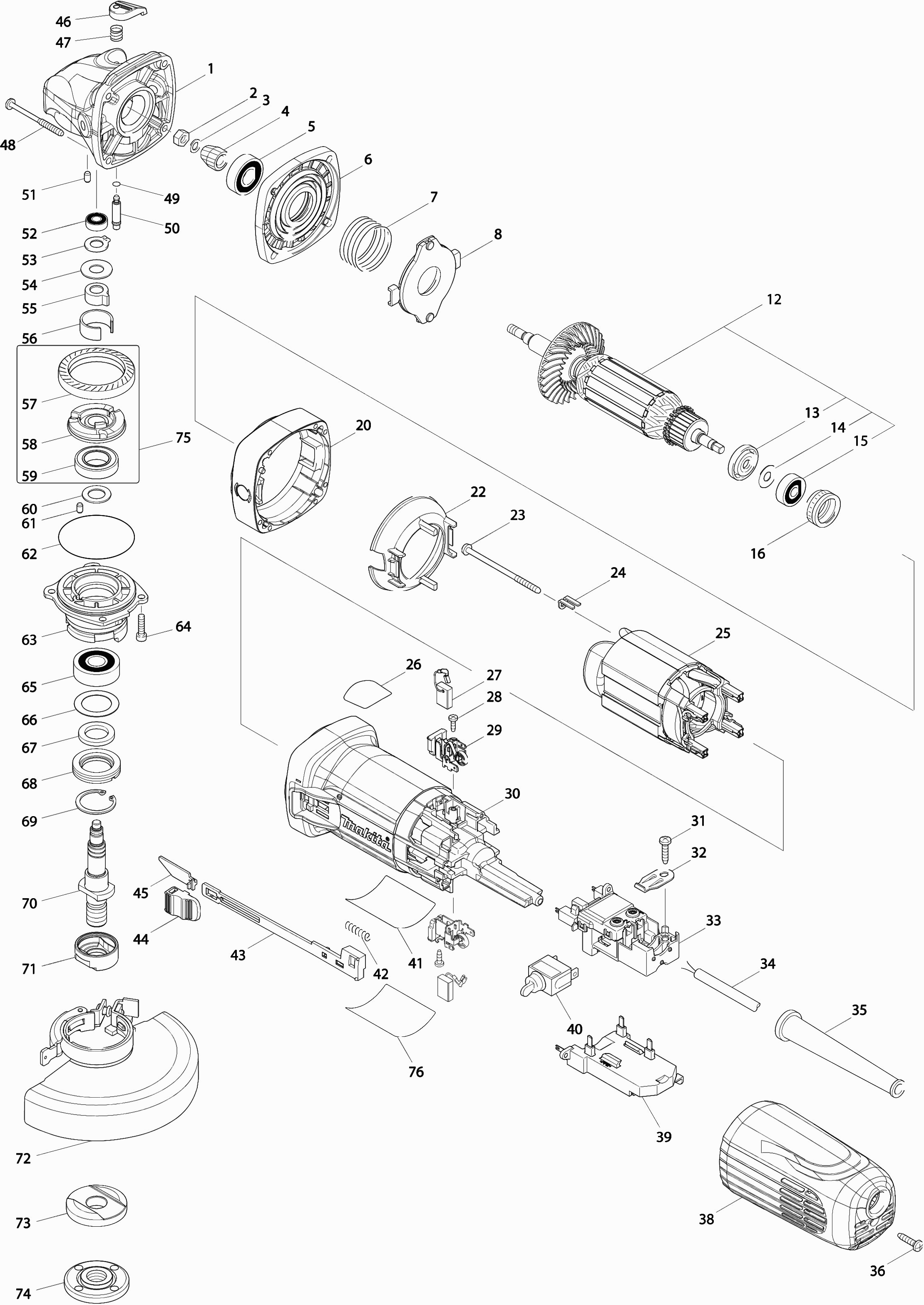

Technical drawing of model Makita GA5041R
Spare parts list of model Makita GA5041R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear housing PC5010C/GA series A | ||||
| 001 | 136013-6 | 16.50 | 19.96 | |
| Nut M6 | ||||
| 002 | 252186-8 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 003 | 253077-6 | 1.00 | 1.21 | |
| Gear 11 | ||||
| 004 | 227591-8 | 7.20 | 8.71 | |
| Ball Bearing 6001zz | ||||
| 005 | 211148-5 | 8.40 | 10.16 | |
| Inner Cover | ||||
| 006 | 141981-0 | 9.60 | 11.62 | |
| Compression spring 33 | ||||
| 007 | 234230-3 | 1.00 | 1.21 | |
| Clutch holder | ||||
| 008 | 141515-9 | 27.50 | 33.28 | |
| Armature 240v | ||||
| 012 | 515394-5 | 63.80 | 77.20 | |
| Insulation ring | ||||
| 013 | 681656-4 | 1.00 | 1.21 | |
| Washer 7 LF1000 A | ||||
| 014 | 267326-5 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 015 | 210045-2 | 3.60 | 4.36 | |
| Labyrinth ring GA5040C A | ||||
| 016 | 422750-1 | 2.40 | 2.90 | |
| Spacer Ga5041C A | ||||
| 020 | 455351-0 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 022 | 453375-0 | 2.40 | 2.90 | |
| Tapping Screw 4x70 | ||||
| 023 | 266258-3 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 024 | 344871-8 | 1.20 | 1.45 | |
| Field | ||||
| 025 | 626649-4 | 33.00 | 39.93 | |
| Label "sjs2" | ||||
| 026 | 898443-6 | 2.40 | 2.90 | |
| Brush Set Cb-325 | ||||
| 027 | 194074-2 | 2.40 | 2.90 | |
| Tapping screw Pt3x10 | ||||
| 028 | 266007-8 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 029 | 643770-4 | 2.40 | 2.90 | |
| Motor Housing B | ||||
| 030 | 453376-8 | 8.40 | 10.16 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 031 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 031-1 | 265B67-9 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 032 | 687169-3 | 1.00 | 1.21 | |
| Switch Holder Ga5040C A | ||||
| 033 | 632K98-1 | 9.60 | 11.62 | |
| Power cord 2x1.50 4.0mtr | ||||
| 034 | 695123-3 | 22.00 | 26.62 | |
| Cable gland 8-110 | ||||
| 035 | 682559-5 | 1.20 | 1.45 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 036 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 036-1 | 265B67-9 | 1.00 | 1.21 | |
| Side Cover | ||||
| 038 | 453365-3 | 3.60 | 4.36 | |
| Speed control circuit | ||||
| 039 | 620786-6 | 25.36 | 30.69 | |
| SPEED CONTROL CIRCUIT GA5041R A | ||||
| 039-1 | 620G06-0 | 25.30 | 30.61 | |
| Switch Sw-126 A | ||||
| 040 | 651069-3 | 8.40 | 10.16 | |
| Label | ||||
| 041 | 850M85-2 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 042 | 233071-4 | 1.00 | 1.21 | |
| Switch handle | ||||
| 043 | 453847-5 | 1.20 | 1.45 | |
| Switch Button | ||||
| 044 | 453377-6 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 045 | 346557-0 | 1.20 | 1.45 | |
| Pin cap | ||||
| 046 | 453369-5 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 047 | 234057-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 265872-2 | |||
| O-ring 4 | ||||
| 049 | 213032-0 | 1.00 | 1.21 | |
| Collar pin 6mm | ||||
| 050 | 256535-1 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 051 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 052 | 210026-6 | 2.40 | 2.90 | |
| Lock ring S-9 | ||||
| 053 | 961005-4 | 1.00 | 1.21 | |
| Washer 10 | ||||
| 054 | 253180-3 | 1.20 | 1.45 | |
| Spacer bushing Ga5040C A | ||||
| 055 | 310683-1 | 6.00 | 7.26 | |
| Spring retaining ring | ||||
| 056 | 346556-2 | 2.40 | 2.90 | |
| Gear 11 | ||||
| 057 | 227592-6 | 6.00 | 7.26 | |
| Clutch | ||||
| 058 | 313228-4 | 10.80 | 13.07 | |
| Ball bearing 6903zz | ||||
| 059 | 210302-8 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 060 | 253744-3 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 061 | 263002-9 | 1.00 | 1.21 | |
| O-ring 51 | ||||
| 062 | 213641-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 063 | 318839-0 | 4.80 | 5.81 | |
| Hex bolt 4x16 | ||||
| 064 | 266437-3 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 065 | 211129-9 | 8.40 | 10.16 | |
| Washer 21 | ||||
| 066 | 267279-8 | 1.00 | 1.21 | |
| Felt ring 17mm | ||||
| 067 | 443124-3 | 1.00 | 1.21 | |
| Bearing Lock | ||||
| 068 | 285854-8 | 1.20 | 1.45 | |
| Lock ring R-26 A | ||||
| 069 | 962105-3 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 070 | 326133-6 | 26.40 | 31.94 | |
| Guide ring holder | ||||
| 071 | 310514-4 | 8.40 | 10.16 | |
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 072 | 141P36-7 | 7.00 | 8.47 | |
| Screw 5x16 | ||||
| 072 | 265180-1 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 072 | 213009-5 | 1.00 | 1.21 | |
| Inner flange | ||||
| 073 | 224447-6 | 4.90 | 5.93 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 074 | 224554-5 | 3.00 | 3.63 | |
| Clutch | ||||
| 075 | 135555-7 | 28.60 | 34.61 | |
| No longer available, no replacement | ||||
| 076 | 804Y42-4 | |||
