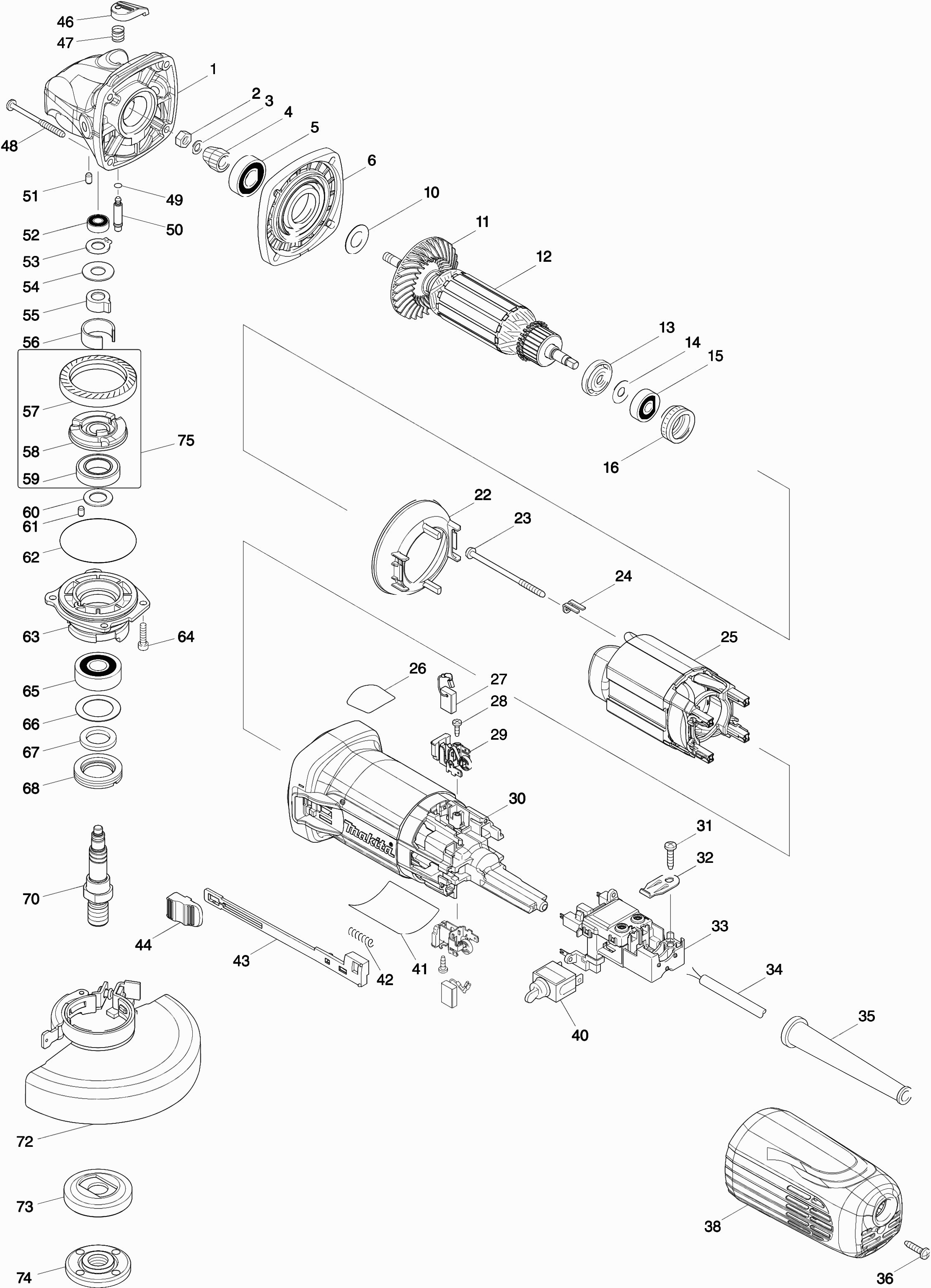

Technical drawing of model Makita GA5040
Spare parts list of model Makita GA5040
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear housing PC5010C/GA series A | ||||
| 001 | 136013-6 | 15.65 | 18.94 | |
| Nut M6 | ||||
| 002 | 252186-8 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 003 | 253077-6 | 0.83 | 1.00 | |
| Gear 11 | ||||
| 004 | 227591-8 | 6.38 | 7.72 | |
| Ball Bearing 6001zz | ||||
| 005 | 211148-5 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 006 | 318835-8 | |||
| Washer 12 | ||||
| 010 | 253084-9 | 0.83 | 1.00 | |
| Fan 88 | ||||
| 011 | 240134-9 | 1.67 | 2.02 | |
| Armature | ||||
| 012 | 515364-4 | 41.77 | 50.54 | |
| Insulation ring | ||||
| 013 | 681656-4 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 014 | 267326-5 | 0.83 | 1.00 | |
| Ball bearing 627ddw | ||||
| 015 | 210045-2 | 3.12 | 3.78 | |
| Labyrinth ring GA5040C A | ||||
| 016 | 422750-1 | 2.15 | 2.60 | |
| Intermediate Plate | ||||
| 022 | 453367-9 | 1.39 | 1.68 | |
| Tapping Screw 4x70 | ||||
| 023 | 266258-3 | 0.83 | 1.00 | |
| Holding Plate | ||||
| 024 | 344871-8 | 0.83 | 1.00 | |
| Field | ||||
| 025 | 626649-4 | 25.36 | 30.69 | |
| Label "sjs2" | ||||
| 026 | 898443-6 | 2.71 | 3.28 | |
| Brush Set Cb-325 | ||||
| 027 | 194074-2 | 2.02 | 2.44 | |
| Tapping screw Pt3x10 | ||||
| 028 | 266007-8 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 029 | 643770-4 | 1.39 | 1.68 | |
| Motor Housing | ||||
| 030 | 453366-1 | 9.67 | 11.70 | |
| No information available, not orderable | ||||
| 031 | 266326-2 | |||
| Tapschr 4x18mm DGA520 A | ||||
| 031-1 | 265B67-9 | 0.83 | 1.00 | |
| Strain reliever | ||||
| 032 | 687169-3 | 0.83 | 1.00 | |
| Switch Holder | ||||
| 033 | 632L23-8 | 8.21 | 9.93 | |
| Power cord 2x1.50 4.0mtr | ||||
| 034 | 695123-3 | 21.08 | 25.51 | |
| Cable gland 10 | ||||
| 035 | 682566-8 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 036 | 266326-2 | |||
| Tapschr 4x18mm DGA520 A | ||||
| 036-1 | 265B67-9 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 038 | 453364-5 | 3.44 | 4.16 | |
| No information available, not orderable | ||||
| 040 | 651428-1 | |||
| Label | ||||
| 041 | 897060-9 | 2.71 | 3.28 | |
| Compression Spring 4 | ||||
| 042 | 233071-4 | 0.83 | 1.00 | |
| Switch handle | ||||
| 043 | 453847-5 | 0.83 | 1.00 | |
| Switch knob Ga5040C | ||||
| 044 | 453368-7 | 0.83 | 1.00 | |
| Pin cap | ||||
| 046 | 453369-5 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 047 | 234057-1 | 0.83 | 1.00 | |
| Tap screw 4x30mm DGA520 | ||||
| 048 | 265B70-0 | 0.83 | 1.00 | |
| Tap screw 4x30mm DGA520 | ||||
| 048-1 | 265B70-0 | 0.83 | 1.00 | |
| O-ring 4 | ||||
| 049 | 213032-0 | 0.83 | 1.00 | |
| Collar pin 6mm | ||||
| 050 | 256535-1 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 051 | 263002-9 | 0.83 | 1.00 | |
| Ball bearing 696ZZ A | ||||
| 052 | 210026-6 | 1.99 | 2.41 | |
| Lock ring S-9 | ||||
| 053 | 961005-4 | 0.83 | 1.00 | |
| Washer 10 | ||||
| 054 | 253180-3 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 055 | 310508-9 | |||
| Spring retaining ring | ||||
| 056 | 346556-2 | 2.36 | 2.86 | |
| Gear 11 | ||||
| 057 | 227592-6 | 5.71 | 6.91 | |
| Clutch | ||||
| 058 | 313228-4 | 10.50 | 12.70 | |
| Ball bearing 6903zz | ||||
| 059 | 210302-8 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 060 | 253744-3 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 061 | 263002-9 | 0.83 | 1.00 | |
| O-ring 51 | ||||
| 062 | 213641-5 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 063 | 136012-8 | 7.21 | 8.72 | |
| Hex bolt 4x16 | ||||
| 064 | 266437-3 | 0.83 | 1.00 | |
| Ball Bearing 6201dw1 | ||||
| 065 | 211129-9 | 7.22 | 8.74 | |
| Washer 21 | ||||
| 066 | 267279-8 | 0.83 | 1.00 | |
| Felt ring 17mm | ||||
| 067 | 443124-3 | 0.83 | 1.00 | |
| Bearing Lock | ||||
| 068 | 285854-8 | 1.18 | 1.43 | |
| Spindle Ass'y | ||||
| 070 | 326130-2 | 5.71 | 6.91 | |
| No longer available, no replacement | ||||
| 072 | 123145-8 | |||
| O-ring 4 | ||||
| 072A | 213009-5 | 0.83 | 1.00 | |
| Screw 5x16 | ||||
| 072B | 265180-1 | 0.83 | 1.00 | |
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 073 | 224415-9 | 4.00 | 4.84 | |
| Sluitmoer haakse slijper | ||||
| 074 | 224554-5 | 4.00 | 4.84 | |
