Here you will find all available parts and drawings of the 'Makita GA5034'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

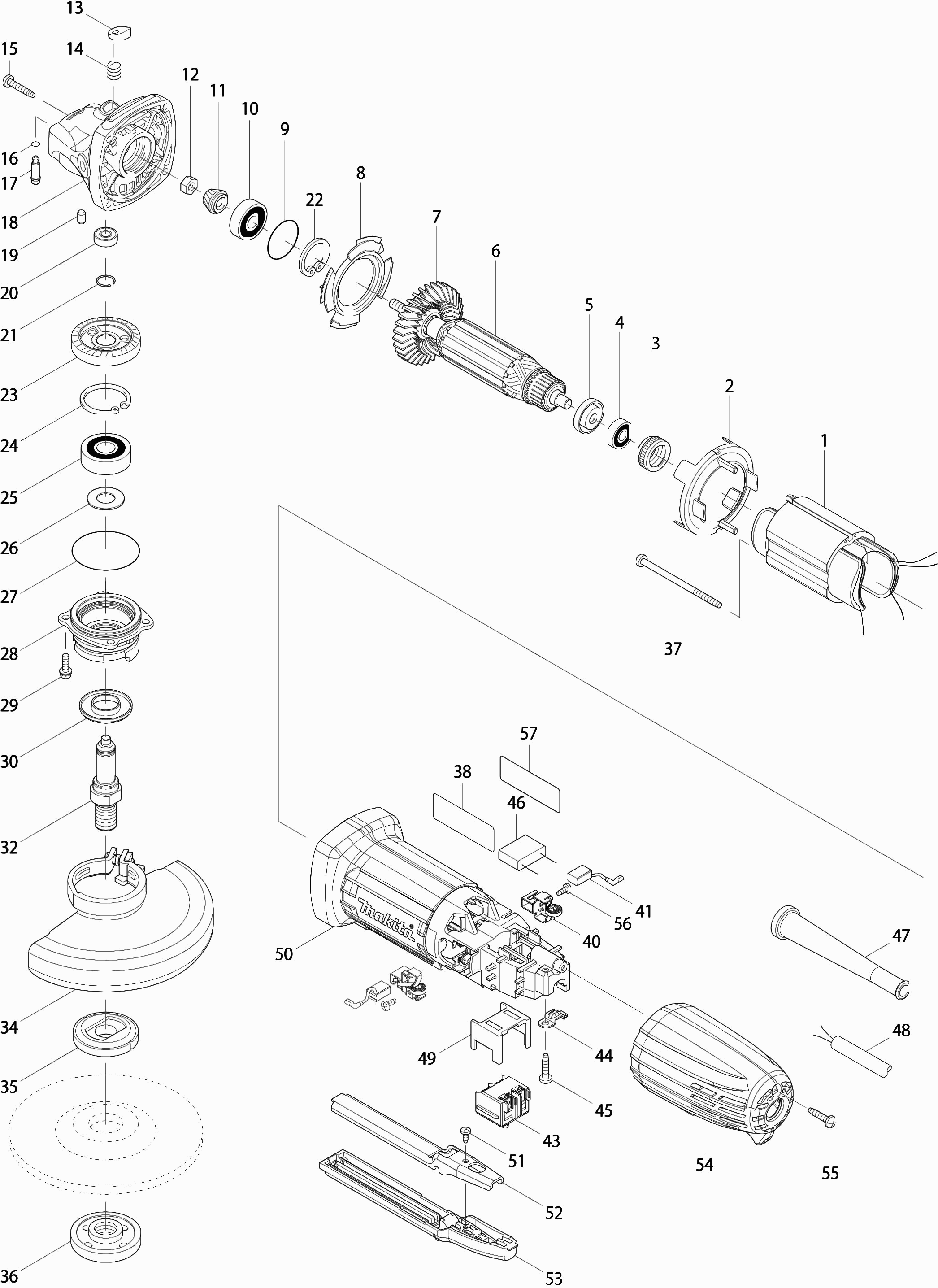

Technical drawing of model Makita GA5034
Spare parts list of model Makita GA5034
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Intermediate Plate | ||||
| 002 | 450796-7 | 1.00 | 1.21 | |
| Intermediate ring 9554Nb A | ||||
| 003 | 422768-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 004 | 210034-7 | |||
| Insulation ring | ||||
| 005 | 681636-0 | 1.20 | 1.45 | |
| Armature | ||||
| 006 | 517649-4 | 22.00 | 26.62 | |
| Fan | ||||
| 007-1 | 240139-9 | 1.20 | 1.45 | |
| Guide plate | ||||
| 008 | 413126-3 | 1.00 | 1.21 | |
| O-ring 26 | ||||
| 009 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629ddw | ||||
| 010 | 211092-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 011 | 227545-5 | |||
| Nut M6 | ||||
| 012 | 252186-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 013 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 234057-1 | 1.00 | 1.21 | |
| Tapping screw 4x22 | ||||
| 015 | 266324-6 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 017 | 256510-7 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 018 | 318335-8 | 11.00 | 13.31 | |
| Rubber Pin 4 | ||||
| 019 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 020 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 021 | 233950-6 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 022 | 962105-3 | 1.00 | 1.21 | |
| Gear 37 | ||||
| 023 | 227546-3 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 024 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 025 | 211129-9 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 026 | 267113-2 | 1.20 | 1.45 | |
| O-ring 42 | ||||
| 027 | 213561-3 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 028 | 318336-6 | 3.60 | 4.36 | |
| Screw M4x14mm | ||||
| 029 | 265099-4 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 030 | 345464-4 | 1.00 | 1.21 | |
| Shaft Ga4530 | ||||
| 032 | 324954-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 035-1 | 224490-5 | |||
| Tapping Screw 4x70 | ||||
| 037 | 266325-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 038 | 867627-7 | |||
| Brush Holder | ||||
| 040 | 643839-4 | 2.40 | 2.90 | |
| Carbon brush set Cb-459 | ||||
| 041 | 195026-6 | 2.40 | 2.90 | |
| Switch Ps10 | ||||
| 043 | 650621-4 | 3.60 | 4.36 | |
| Strain reliever | ||||
| 044 | 687681-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 045 | 266326-2 | |||
| No information available, not orderable | ||||
| 046 | 645200-1 | |||
| Cable gland 8-110 | ||||
| 047 | 682559-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 048 | 665394-6 | |||
| Distance support | ||||
| 049 | 418729-8 | 1.00 | 1.21 | |
| Self-tapping screw 3x8mm | ||||
| 051 | 266492-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 055 | 266326-2 | |||
| Self-tapping screw 3x8mm | ||||
| 056 | 266492-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057-1 | 891976-0 | |||
