Here you will find all available parts and drawings of the 'Makita GA5021'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

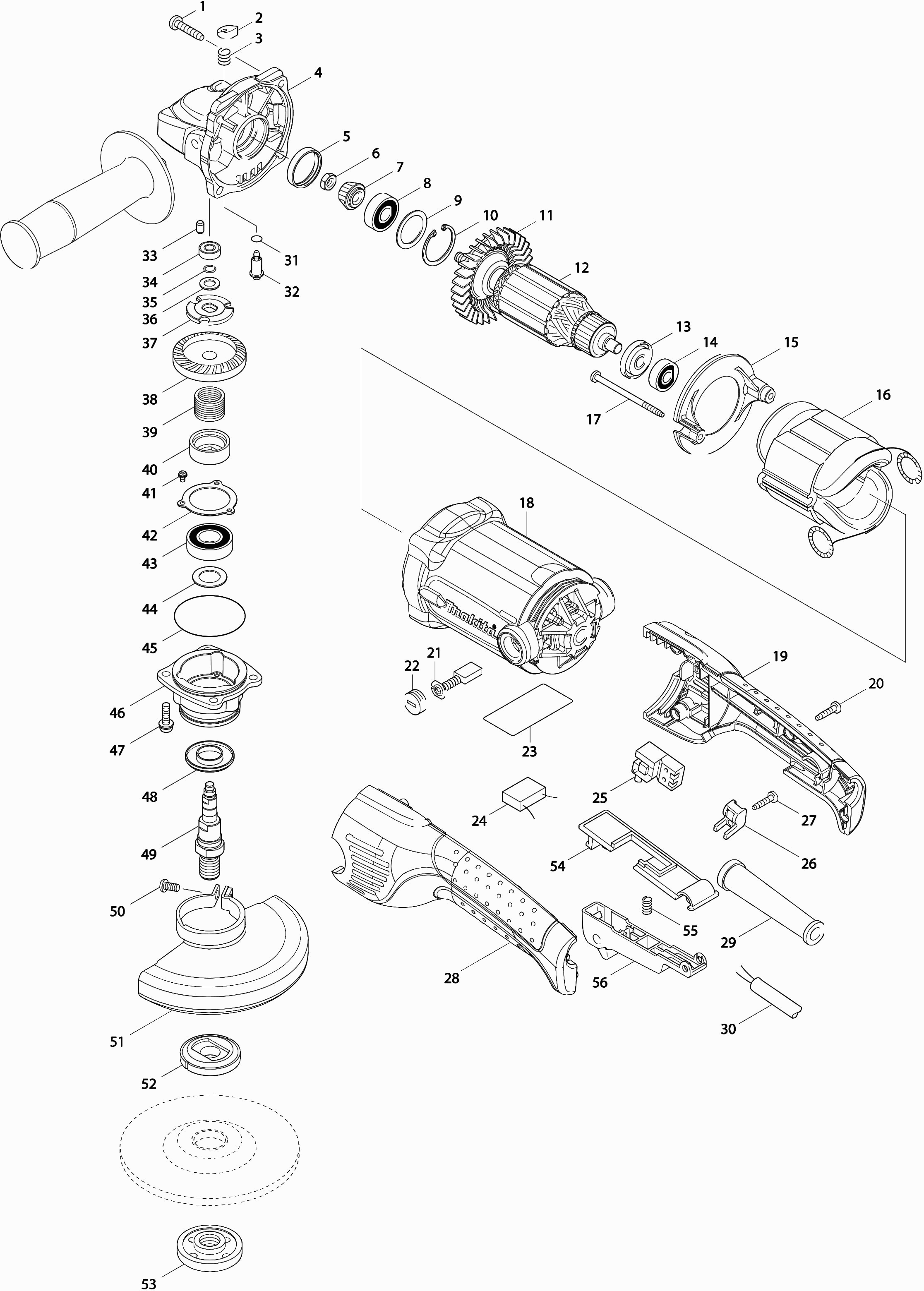

Technical drawing of model Makita GA5021
Spare parts list of model Makita GA5021
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap Screw 5X25 | ||||
| 001 | 266041-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 002 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 003 | 234057-1 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 004 | 318158-4 | 10.80 | 13.07 | |
| Rubber washer 27 | ||||
| 005 | 262132-3 | 1.00 | 1.21 | |
| Nut M7 | ||||
| 006 | 264010-3 | 1.00 | 1.21 | |
| Gear 13 | ||||
| 007 | 227517-0 | 4.80 | 5.81 | |
| Ball bearing 6000ddw | ||||
| 008 | 211289-7 | 13.20 | 15.97 | |
| Washer 22 Ga5021 | ||||
| 009 | 267352-4 | 1.00 | 1.21 | |
| Lock ring R-30 | ||||
| 010 | 962107-9 | 1.00 | 1.21 | |
| Fan 70 | ||||
| 011 | 240094-5 | 2.40 | 2.90 | |
| Armature | ||||
| 012 | 510132-0 | 28.60 | 34.61 | |
| Insulation ring | ||||
| 013 | 681644-1 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 014 | 210005-4 | 4.80 | 5.81 | |
| Spacer plate | ||||
| 015 | 419961-7 | 1.20 | 1.45 | |
| S.A.FIELD M65 ( SERVICE ) | ||||
| 016 | 525803-6 | 47.30 | 57.23 | |
| Stator spring Cb5 | ||||
| 016A | 654020-2 | 1.20 | 1.45 | |
| Plug | ||||
| 016B | 654555-3 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 017 | 266340-8 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 018 | 158278-0 | 13.20 | 15.97 | |
| Carbon Brush holder 5X11 A | ||||
| 018A | 644501-4 | 2.40 | 2.90 | |
| Motor Housing Set | ||||
| 019 | 188462-3 | 11.00 | 13.31 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 020 | 265B67-9 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 021 | 194996-6 | 6.00 | 7.26 | |
| Carbon brush cap | ||||
| 022 | 643515-0 | 1.00 | 1.21 | |
| Nameplate "ga5021" | ||||
| 023 | 864611-3 | 3.60 | 4.36 | |
| Capacitor 0.22uF | ||||
| 024 | 645190-8 | 2.40 | 2.90 | |
| Switch Sw-131 | ||||
| 025 | 651922-3 | 11.00 | 13.31 | |
| Clamp Bracket | ||||
| 026 | 687260-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 027 | 265B67-9 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 028 | 188462-3 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 029 | 682505-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 030 | 695123-3 | 22.00 | 26.62 | |
| O-ring 7 | ||||
| 031 | 213977-2 | 1.00 | 1.21 | |
| Collar Pin 5 | ||||
| 032 | 256505-0 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 033 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 034 | 210026-6 | 2.40 | 2.90 | |
| Locking washer 7 | ||||
| 035 | 233926-3 | 1.20 | 1.45 | |
| Washer 8 x 14 x 1mm | ||||
| 036 | 253835-0 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 037 | 267811-8 | 2.40 | 2.90 | |
| Gear 34b | ||||
| 038 | 227519-6 | 8.40 | 10.16 | |
| Lock washer 16 | ||||
| 039 | 234356-1 | 6.00 | 7.26 | |
| Blocking Bush | ||||
| 040 | 324833-2 | 3.60 | 4.36 | |
| Screw 3x6 | ||||
| 041 | 911003-8 | 1.00 | 1.21 | |
| Bearing Lock 39 | ||||
| 042 | 285728-3 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 043 | 211236-8 | 9.60 | 11.62 | |
| Washer 15 | ||||
| 044 | 253853-8 | 1.00 | 1.21 | |
| O-ring 48 | ||||
| 045 | 213624-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 046 | 318332-4 | 6.00 | 7.26 | |
| Screw 5X18 | ||||
| 047 | 265131-4 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 048 | 345464-4 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 049 | 324789-9 | 11.00 | 13.31 | |
| Screw 5x16 | ||||
| 050 | 265180-1 | 1.00 | 1.21 | |
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 051 | 141P36-7 | 7.00 | 8.47 | |
| O-ring 4 | ||||
| 051A | 213009-5 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 052 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 053 | 224554-5 | 3.00 | 3.63 | |
| Switch mounting plate | ||||
| 054 | 418519-9 | 1.20 | 1.45 | |
| Compression Spring 6x29mm | ||||
| 055 | 233117-6 | 1.00 | 1.21 | |
| Switch button Cpl Ga5021C A | ||||
| 056 | 158402-5 | 6.00 | 7.26 | |
