Here you will find all available parts and drawings of the 'Makita GA5000'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

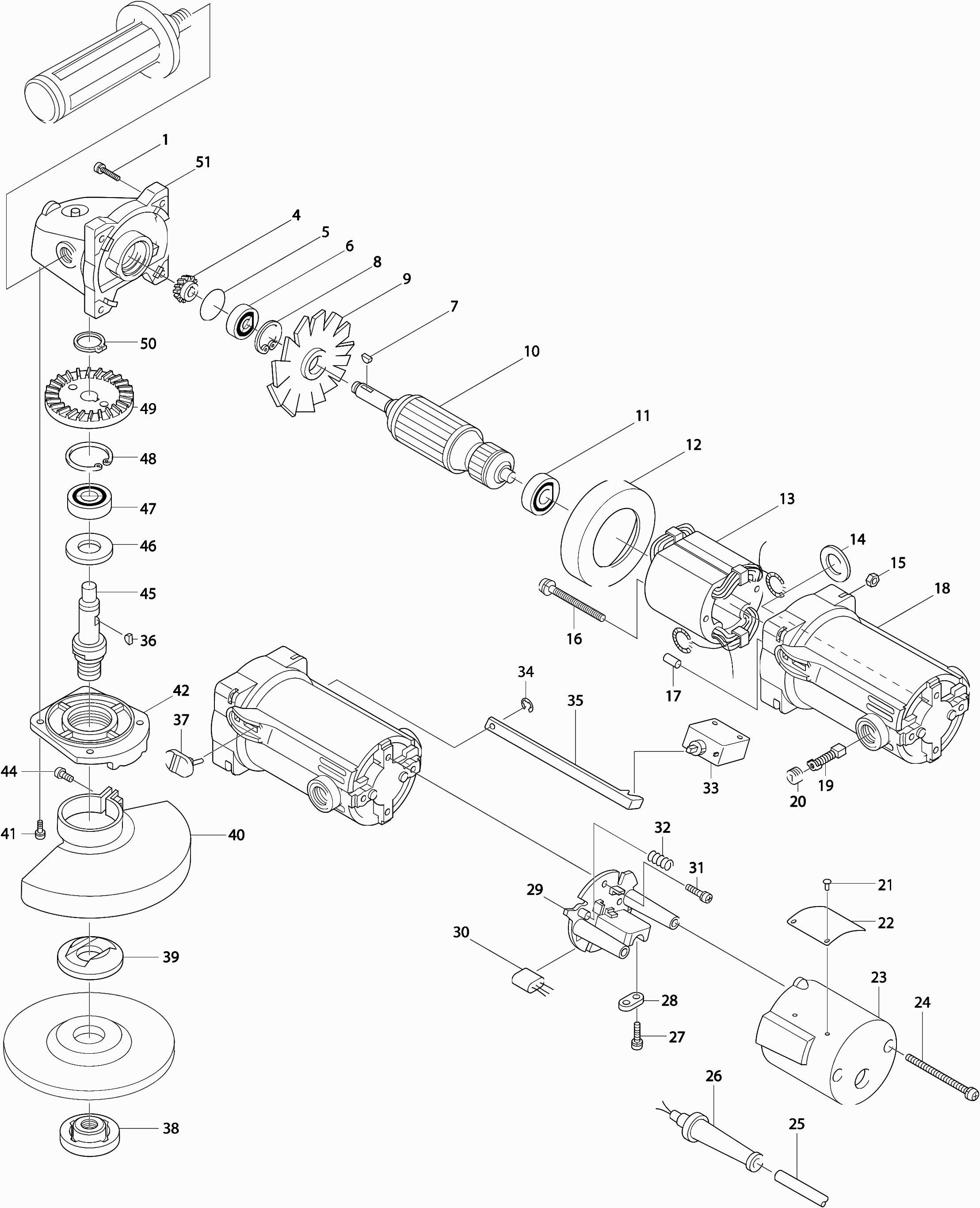

Technical drawing of model Makita GA5000
Spare parts list of model Makita GA5000
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x25 | ||||
| 001 | 911146-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002 | 251835-4 | |||
| Lock ring S-8 | ||||
| 003 | 961004-6 | 1.00 | 1.21 | |
| Gear 13 Ga5000 * | ||||
| 004 | 221354-4 | 26.40 | 31.94 | |
| O-ring 26 | ||||
| 005 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 6000ddw | ||||
| 006 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 006 | 210315-9 | 6.00 | 7.26 | |
| Inlegspie 3 | ||||
| 007 | 254002-0 | 1.00 | 1.21 | |
| Lock ring R-26 A | ||||
| 008 | 962105-3 | 1.00 | 1.21 | |
| Fan 70 | ||||
| 009 | 241517-6 | 12.10 | 14.64 | |
| Armature Ga5000 * | ||||
| 010 | 515153-7 | 52.80 | 63.89 | |
| Ball Bearing 608ddw | ||||
| 011 | 210005-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 012 | 410021-8 | |||
| Field | ||||
| 013 | 528129-5 | 48.40 | 58.56 | |
| Clamping bushing for statorv. 2mm | ||||
| 013A | 654502-4 | 1.00 | 1.21 | |
| Little stator spring Cb-7 | ||||
| 013B | 654019-7 | 1.20 | 1.45 | |
| Insulation ring * | ||||
| 014 | 681001-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 015 | 931102-0 | 1.00 | 1.21 | |
| Field | ||||
| 016 | 911200-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 017 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 156901-1 | |||
| Carbon Brush Set Cb-100 | ||||
| 019 | 181030-1 | 3.54 | 4.28 | |
| Carbon Brush CB100 | ||||
| 019 | 194974-6 | 3.54 | 4.28 | |
| Brush holder cap | ||||
| 020 | 643600-9 | 1.20 | 1.45 | |
| Rear cover Ga5000 * | ||||
| 023 | 411938-8 | 8.40 | 10.16 | |
| Screw 5x65 | ||||
| 024 | 911290-9 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 025 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 10-85 | ||||
| 026 | 682504-0 | 2.40 | 2.90 | |
| Screw 4x14 | ||||
| 027 | 911123-8 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 028 | 687001-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 411939-6 | |||
| Capacitor | ||||
| 030 | 645253-0 | 4.80 | 5.81 | |
| Screw 4x14 | ||||
| 031 | 911123-8 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 032 | 231223-1 | 1.20 | 1.45 | |
| Switch Sw-37 | ||||
| 033 | 651476-0 | 30.80 | 37.27 | |
| Stop Ring E-2.3 | ||||
| 034 | 257903-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 035 | 410272-3 | |||
| Inlegspie 3 | ||||
| 036 | 254002-0 | 1.00 | 1.21 | |
| Switch slide | ||||
| 037 | 411741-7 | 2.40 | 2.90 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 038 | 224554-5 | 3.00 | 3.63 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 039 | 224415-9 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 040 | 134440-1 | |||
| Screw 4x16 | ||||
| 041 | 911126-2 | 1.00 | 1.21 | |
| Bearing housing Ga5000 * | ||||
| 042 | 315397-7 | 17.60 | 21.30 | |
| Spring washer 5MM DLS211 | ||||
| 043 | 253427-5 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 044 | 251259-4 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 045 | 321341-4 | 26.40 | 31.94 | |
| Washer 12 * | ||||
| 046 | 253055-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 047 | 211129-9 | 8.40 | 10.16 | |
| Lock washer r-32 | ||||
| 048 | 962151-6 | 1.00 | 1.21 | |
| Gear 40 Ga5000 * | ||||
| 049 | 221355-2 | 34.10 | 41.26 | |
| Lock washer S-12 | ||||
| 050 | 961052-5 | 1.00 | 1.21 | |
| Gear Housing Ga5000 * | ||||
| 051 | 156902-9 | 40.70 | 49.25 | |
