Here you will find all available parts and drawings of the 'Makita GA041G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

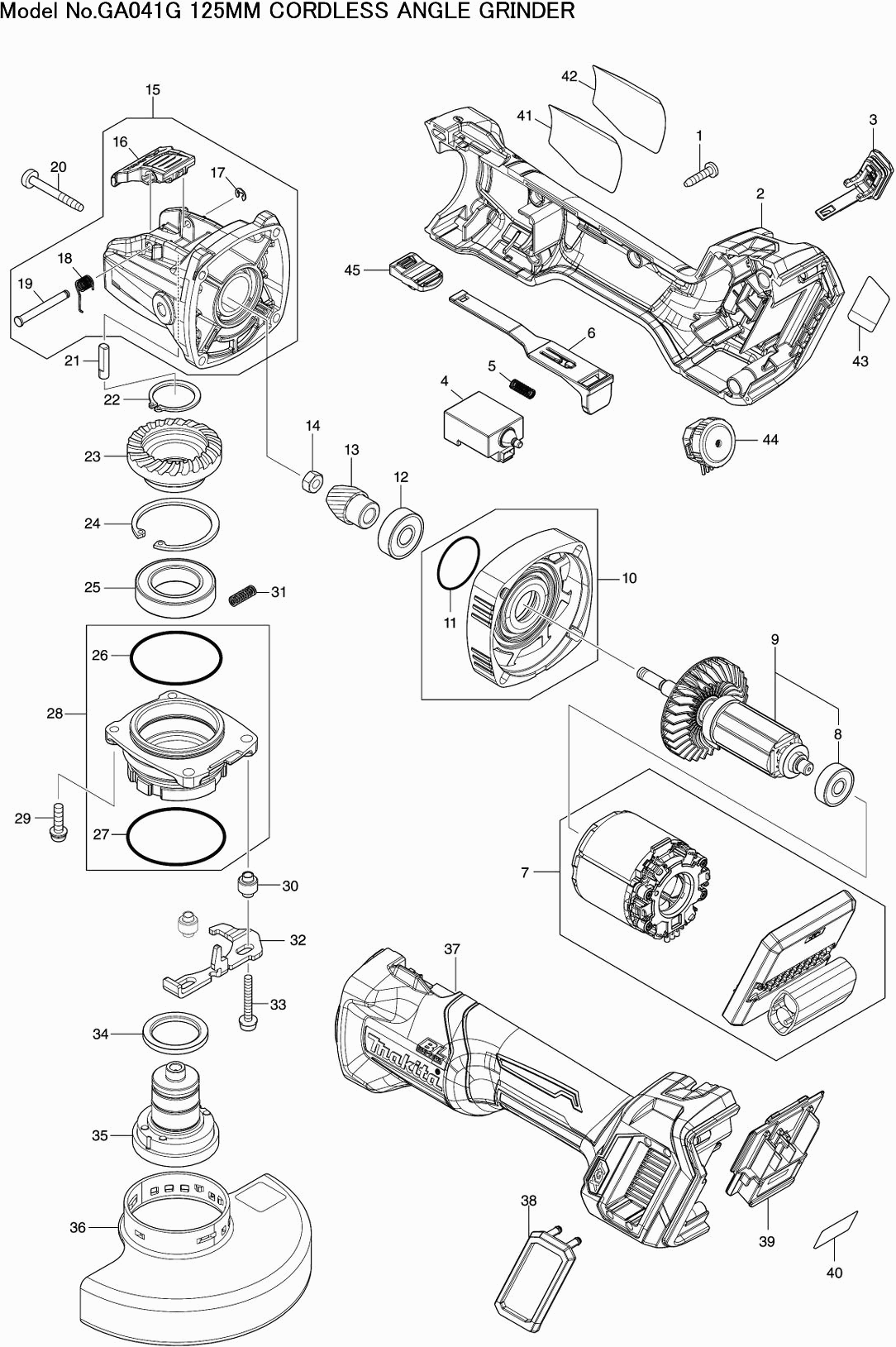

Technical drawing of model Makita GA041G
Spare parts list of model Makita GA041G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| HOUSING GA040 | ||||
| 002 | 183W44-4 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT logo | ||||
| 002C20 | 8005T5-8 | 2.40 | 2.90 | |
| COVER DSP601/DHR400 A | ||||
| 003 | 140G30-2 | 1.74 | 2.11 | |
| O-ring 16 SP001G | ||||
| 003C10 | 213A05-9 | 1.00 | 1.21 | |
| Hood label DLS211 | ||||
| 003C20 | 818H48-4 | 2.40 | 2.90 | |
| Switch GA-40V Series | ||||
| 004 | 651445-1 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 005 | 233121-5 | 1.00 | 1.21 | |
| Switch lever GA-40V series | ||||
| 006 | 412233-9 | 1.00 | 1.21 | |
| Field cpl GA023G | ||||
| 007 | 629498-8 | 169.40 | 204.97 | |
| No information available, not orderable | ||||
| 008 | 210023-2 | |||
| No information available, not orderable | ||||
| 008A | 210023-2 | |||
| Ball bearing 627ddw | ||||
| 008B | 210045-2 | 3.60 | 4.36 | |
| ANKER GA041 P | ||||
| 009 | 519762-4 | 41.80 | 50.58 | |
| ANKER GA041 P | ||||
| 009A | 519762-4 | 41.80 | 50.58 | |
| No information available, not orderable | ||||
| 009B | 510616-8 | |||
| Gear Housing Cap GA-40V series | ||||
| 010 | 136190-4 | 7.20 | 8.71 | |
| O-ring 26 | ||||
| 011 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 012 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 DGA519 | ||||
| 013 | 226950-3 | 4.80 | 5.81 | |
| Nut M6 | ||||
| 014 | 252186-8 | 1.00 | 1.21 | |
| GEAR HOUSING GA041 | ||||
| 015 | 136715-4 | 17.60 | 21.30 | |
| Lock button DGA519 | ||||
| 016 | 459967-3 | 4.80 | 5.81 | |
| Stopring E-3 | ||||
| 017 | 961017-7 | 1.00 | 1.21 | |
| Torsion Spring DGA519 | ||||
| 018 | 232576-1 | 1.00 | 1.21 | |
| Locking pin DGA519 | ||||
| 019 | 256935-5 | 2.40 | 2.90 | |
| Self-tapping screw 4x40 | ||||
| 020 | 266048-4 | 1.00 | 1.21 | |
| Locking pin DGA519 | ||||
| 021 | 327460-4 | 2.40 | 2.90 | |
| Lock Ring S-24 * | ||||
| 022 | 961104-2 | 1.00 | 1.21 | |
| Gear 37 DGA519 | ||||
| 023 | 226951-1 | 7.20 | 8.71 | |
| Lock ring R-42 | ||||
| 024 | 962201-7 | 1.20 | 1.45 | |
| Ball bearing 6905DDW | ||||
| 025 | 210208-0 | 11.00 | 13.31 | |
| O-ring 45 | ||||
| 026 | 213622-9 | 1.00 | 1.21 | |
| O-ring 48 | ||||
| 027 | 213783-5 | 3.60 | 4.36 | |
| BEARING HOUSING GA040 | ||||
| 028 | 136716-2 | 9.60 | 11.62 | |
| Screw 4x20 | ||||
| 029 | 911138-5 | 1.00 | 1.21 | |
| Sleeve 4 | ||||
| 030 | 327322-6 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 031 | 232490-1 | 1.00 | 1.21 | |
| SWITCH LEVER GA040 | ||||
| 032 | 347A22-8 | 2.40 | 2.90 | |
| Crosshead screw 4X30 | ||||
| 033 | 911159-7 | 1.00 | 1.21 | |
| Ring 25mm DGA519 | ||||
| 034 | 327459-9 | 1.20 | 1.45 | |
| Axle assembly DGA519 | ||||
| 035 | 127428-8 | 48.40 | 58.56 | |
| BESCHERMKAP 125MM X-LOCK AFBRAMEN EN SCHUREN | ||||
| 036 | 141L27-4 | 10.00 | 12.10 | |
| LABEL WAARSCH GA5090 | ||||
| 036C10 | 8050A1-8 | 2.40 | 2.90 | |
| HOUSING GA040 | ||||
| 037 | 183W44-4 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 037C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT logo | ||||
| 037C20 | 8005T5-8 | 2.40 | 2.90 | |
| Dust Cap GA023G | ||||
| 038 | 422610-7 | 1.20 | 1.45 | |
| Control unit GA-40V series | ||||
| 039 | 632P65-6 | 8.40 | 10.16 | |
| LABEL SERIENR. GA041G | ||||
| 040 | 858G22-4 | 2.40 | 2.90 | |
| NAAMPLAAT GA041G | ||||
| 041 | 858G16-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042 | 8008U5-3 | |||
| Label indicator GA023G | ||||
| 043 | 8015J1-9 | 2.40 | 2.90 | |
| Circuit Dial GA023G | ||||
| 044 | 620D30-5 | 13.20 | 15.97 | |
| Rotary knob ABB OHYS2AJ | ||||
| 045 | 455447-7 | 1.00 | 1.21 | |
