Here you will find all available parts and drawings of the 'Makita GA037G'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

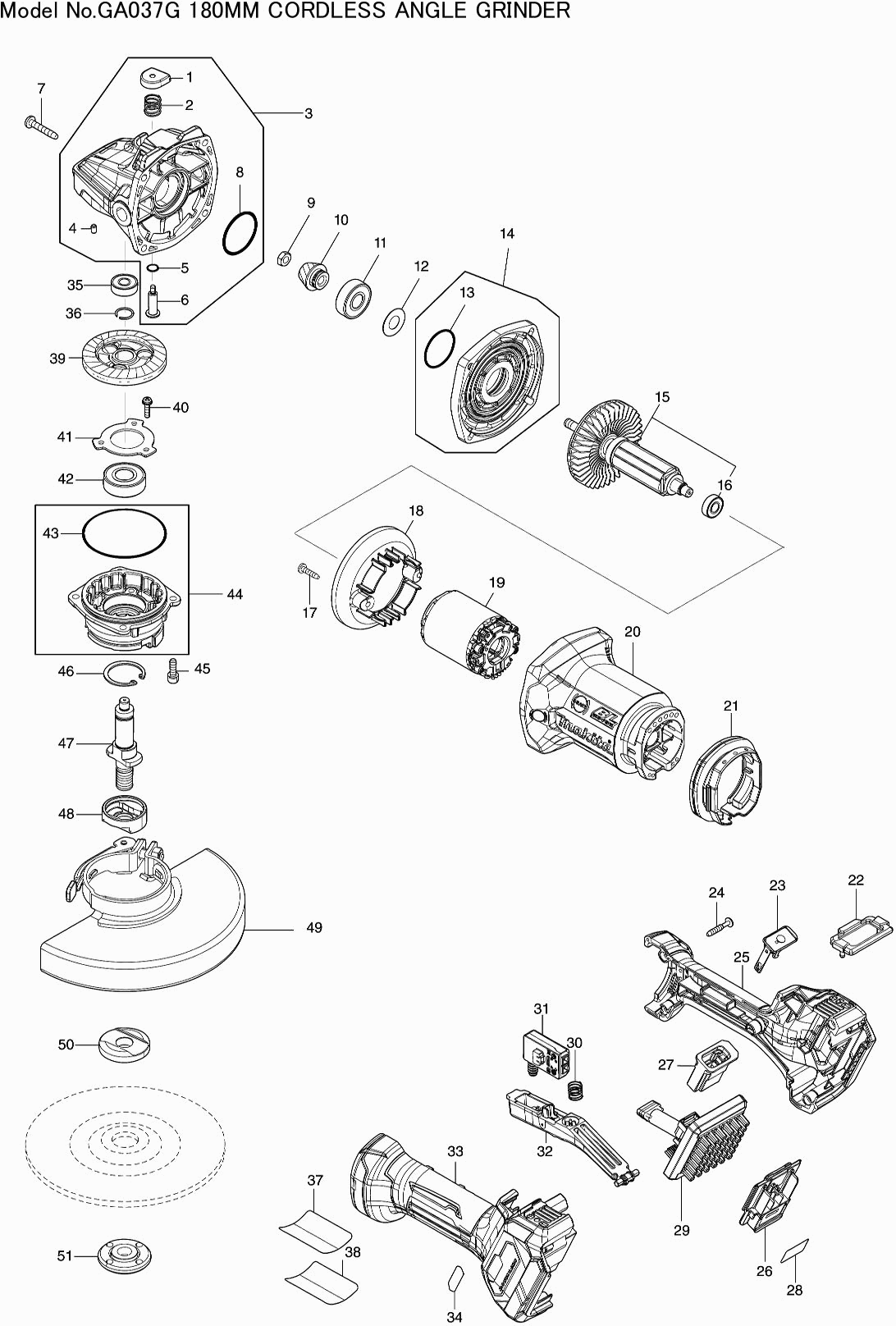

Technical drawing of model Makita GA037G
Spare parts list of model Makita GA037G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover cap GA037G | ||||
| 001 | 413219-6 | 0.89 | 1.08 | |
| Compression spring 12 | ||||
| 002 | 233292-8 | 0.83 | 1.00 | |
| Gearbox GA037/038G | ||||
| 003 | 136365-5 | 21.08 | 25.51 | |
| Rubber Pin 4 | ||||
| 004 | 263002-9 | 0.83 | 1.00 | |
| O-ring 7 | ||||
| 005 | 213026-5 | 0.83 | 1.00 | |
| Collar Pin 11 | ||||
| 006 | 256516-5 | 0.83 | 1.00 | |
| Tapping screw Pt 5x30 | ||||
| 007 | 266173-1 | 0.83 | 1.00 | |
| O-ring 36 | ||||
| 008 | 213510-0 | 1.18 | 1.43 | |
| Nut M7 | ||||
| 009 | 264010-3 | 0.83 | 1.00 | |
| Gear 10 Dga700 | ||||
| 010 | 227564-1 | 4.45 | 5.38 | |
| Ball Bearing 6201llu | ||||
| 011 | 211137-0 | 5.06 | 6.12 | |
| Washer 12 | ||||
| 012 | 253759-0 | 0.83 | 1.00 | |
| O-ring 32 | ||||
| 013 | 213459-4 | 0.98 | 1.19 | |
| Gearbox Cover GA037G | ||||
| 014 | 136363-9 | 6.41 | 7.76 | |
| Armature Dga900 | ||||
| 015 | 519436-7 | 35.87 | 43.40 | |
| Ball Bearing 698Ddw | ||||
| 016 | 211166-3 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 017 | 266326-2 | |||
| Intermediate Plate Dga700 | ||||
| 018 | 457618-2 | 1.20 | 1.45 | |
| Field | ||||
| 019 | 629A38-8 | 33.35 | 40.35 | |
| Motor Housing Dga900 | ||||
| 020 | 457615-8 | 9.24 | 11.18 | |
| Anti-Vibration Rubber Dga700 | ||||
| 021 | 457619-0 | 2.38 | 2.88 | |
| Dust Cover GA037G/038G | ||||
| 022 | 422656-3 | 1.99 | 2.41 | |
| Cover Cap DGA701 | ||||
| 023 | 140F99-0 | 2.36 | 2.86 | |
| O-ring 16 | ||||
| 023C10 | 213218-6 | 0.83 | 1.00 | |
| Label DGA701 | ||||
| 023C20 | 818H07-8 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 024 | 265999-8 | |||
| Handgrip Set GA037G/038G | ||||
| 025 | 183R97-3 | 15.65 | 18.94 | |
| Rubber pen 6 | ||||
| 025C10 | 263005-3 | 0.83 | 1.00 | |
| Connection unit TD001G | ||||
| 026 | 632P75-3 | 8.21 | 9.93 | |
| Connecting box GA037G/038G | ||||
| 027 | 413218-8 | 1.39 | 1.68 | |
| Serial number label GA037G | ||||
| 028 | 858A78-1 | 2.71 | 3.28 | |
| Controller GA037G | ||||
| 029 | 620E23-8 | 111.57 | 135.00 | |
| Compression Spring 11 | ||||
| 030 | 234357-9 | 0.83 | 1.00 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 031 | 651083-9 | 19.29 | 23.34 | |
| Switch button GA037G/038G | ||||
| 032 | 140X49-3 | 5.70 | 6.90 | |
| Handgrip Set GA037G/038G | ||||
| 033 | 183R97-3 | 15.65 | 18.94 | |
| Rubber pen 6 | ||||
| 033C10 | 263005-3 | 0.83 | 1.00 | |
| Label XGT HS004G | ||||
| 034 | 8012U4-2 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 035 | 210046-0 | 0.83 | 1.00 | |
| Locking washer 13 | ||||
| 036 | 233925-5 | 0.83 | 1.00 | |
| Nameplate GA037G | ||||
| 037 | 858A74-9 | 2.71 | 3.28 | |
| Label GA037G | ||||
| 038 | 8026G1-7 | 2.71 | 3.28 | |
| Gear 38 Dga700 | ||||
| 039 | 227562-5 | 11.82 | 14.30 | |
| Screw 4x16 A | ||||
| 040 | 911526-6 | 0.83 | 1.00 | |
| Bearing Lock | ||||
| 041 | 285851-4 | 0.83 | 1.00 | |
| Ball bearing 6202llb | ||||
| 042 | 211228-7 | 7.22 | 8.74 | |
| O-ring 67 | ||||
| 043 | 213720-9 | 1.67 | 2.02 | |
| Bearing Housing GA037G/038G | ||||
| 044 | 136364-7 | 6.41 | 7.76 | |
| Allen bolt 5x16 | ||||
| 045 | 922221-3 | 0.83 | 1.00 | |
| Lock washer r-32 | ||||
| 046 | 962151-6 | 0.83 | 1.00 | |
| As Dga900 | ||||
| 047 | 326963-5 | 5.70 | 6.90 | |
| Guide ring Dga900/700 | ||||
| 048 | 310800-3 | 12.22 | 14.79 | |
| Beschermkap 180mm afbramen en schuren | ||||
| 049 | 127713-9 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| 050 | 224447-6 | |||
| Sluitmoer haakse slijper | ||||
| 051 | 224485-8 | 2.00 | 2.42 | |
